DescriptionThe Bently Nevada 3300/03 System Monitor is a critical supervisory module designed for the 3300 Series rack system. It acts as the central hub for monitoring the health and operational status of all installed modules within the rack. By continuously overseeing rack power, communication bus integrity, and individual module status, it ensures reliable alarm coordination and diagnostics for critical rotating machinery such as turbines and compressors.Features
Centralized supervision of all monitoring modules within the 3300 rack.
Coordinates OK, Bypass, Alert, and Danger relay logic.
Monitors rack power supply stability and communication bus integrity.
Provides visual status updates via front-panel LED indicators.
Interfaces with external control systems to facilitate alarm signaling and predictive maintenance data.
ApplicationsThis module is intended for use in industrial environments where continuous monitoring of rotating equipment is required. It is typically deployed in power generation, oil and gas, and petrochemical facilities to maintain system-wide alarm integrity and diagnostic visibility.Technical Specifications
Model
3300/03-03-00
Brand
Bently Nevada
Series
3300
Operating Temperature
0 to 60 degC
Power Consumption
~2 W
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Slide the module into the designated slot in the 3300 rack, ensuring proper alignment with the backplane connector.
Secure the module using the front-panel captive screws to ensure a reliable ground connection and mechanical stability.
Handle the module using standard ESD (Electrostatic Discharge) protection practices to avoid damaging sensitive internal circuitry.
Verify that the rack power supply is within the specified operating range before energizing the system.
FAQWhat is the primary function of the 3300/03 module?The 3300/03 serves as the system monitor, responsible for coordinating alarms and monitoring the overall health of the 3300 rack and its associated modules.Is this module compatible with other 3300 series racks?Yes, this module is designed specifically for the Bently Nevada 3300 series rack system architecture.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Bently Nevada 3500/05-01-02-00-00-00 is a full-size 19-inch system rack designed for the 3500 Machinery Protection System. It serves as the central platform for housing monitor modules, power supplies, communication modules, and the Rack Interface Module (RIM). The rack provides the essential backplane infrastructure for power distribution and high-speed data communication across the entire monitoring system.Features
19-inch EIA rack format with 14 available module slots.
Provides dedicated slots for power supplies and Rack Interface Module (RIM) on the far-left side.
Supports integration of monitor modules, relay modules, Keyphasor modules, and communication gateways.
Backplane design facilitates real-time data sharing via the proprietary TDI bus.
Robust construction suitable for industrial control rooms and equipment monitoring cabinets.
Applications
Oil & Gas: Production, refining, and pipeline monitoring.
Power Generation: Nuclear, fossil fuel, and renewable energy plants.
Chemical Processing: Monitoring large-scale reactors and processing machinery.
Manufacturing: Pulp and paper, steel, and cement production.
Technical Specifications
Model
3500/05-01-02-00-00-00
Rack Size
19-inch (Full-Size)
Module Slots
14 (plus 3 reserved for power/RIM)
Mounting
Rack Mount (19-inch EIA)
Operating Temperature
-20 degC to +65 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% (non-condensing)
Installation Guidelines
Ensure the rack is mounted in a stable, vibration-dampened environment suitable for sensitive electronic instrumentation.
The power supplies and Rack Interface Module must occupy the three leftmost slots.
Use a grounded wrist strap when handling modules or touching internal backplane components to prevent ESD damage.
Ensure adequate ventilation around the rack to maintain operating temperatures within the specified range.
Verify all rear-panel wiring connections are secure before applying system power.
Store and transport modules in electrically conductive bags or foil to prevent static accumulation.
FAQWhat is the function of the 3500/05 rack?It acts as the physical housing and communication backplane for the 3500 series, allowing modules to share data and receive regulated DC power.What is the power distribution capability?The rack is designed to house one or two 3500 rack power supplies, which convert line power and distribute it to all installed modules.What are the mounting options?This specific model is configured for 19-inch EIA rack mounting. Other configurations include panel mount and bulkhead mount formats.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Bently Nevada 3500/15 114M5330-01 is a Low Voltage DC Power Supply module designed for the 3500 Series Machinery Protection System. This module converts an input voltage of 20 V to 30 V DC into the regulated DC voltages required by other modules within the 3500 rack.Features
Half-height module design occupying two dedicated slots on the left side of the 3500 rack.
Supports redundant configurations: two power supplies can be installed in a single rack, with the lower slot acting as the primary and the upper as the backup.
Hot-swappable capability: modules can be removed or inserted without disrupting rack operation, provided a second supply is active.
Requires a 114M5335-01 Power Input Module (PIM) installed directly behind the supply for physical power interface and fusing.
Wide operating temperature range suitable for industrial environments.
Applications
Critical machinery protection for turbines, compressors, and generators.
Condition monitoring and predictive maintenance in the oil and gas industry.
High-reliability monitoring in petrochemical and chemical processing plants.
Uninterrupted power supply for utility monitoring equipment in power generation.
Technical Specifications
Model
3500/15 114M5330-01
Input Voltage
20 to 30 Vdc
Operating Temperature
-30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature
-40 degC to +85 degC (-40 degF to +185 degF)
Humidity
95%, non-condensing
Weight
1.25 kg
Installation Guidelines
Ensure the 3500 rack is powered down or that a redundant supply is active before installation or removal.
The module must be installed in the designated power supply slots on the left side of the 3500 rack.
Always pair this module with the corresponding 114M5335-01 Power Input Module (PIM) located in the rear of the rack.
Maintain adequate airflow around the rack to ensure operating temperatures remain within the specified limits.
Handle with standard ESD precautions to prevent damage to sensitive internal components.
FAQWhat is the function of the 114M5330-01?It is a Low Voltage DC Power Supply module that converts input power to the regulated DC voltages required by all other modules installed in the 3500 rack.Can the 3500/15 power supply be hot-swapped?Yes, the module supports hot-swapping. Removing or inserting the power supply does not disrupt rack operation as long as a second redundant power supply is installed.What is the input voltage range for this module?The 114M5330-01 is designed for an input range of 20 to 30 Vdc.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

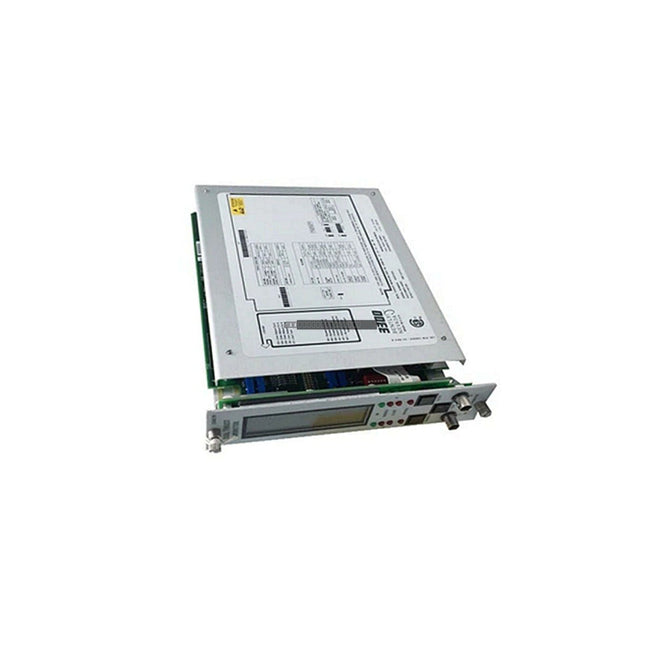

DescriptionThe Bently Nevada 3300/16 XY/GAP Dual Vibration Monitor is a rack-mounted module within the 3300 Series monitoring system. This module is engineered to provide continuous, simultaneous measurement of radial shaft vibration (XY) and probe gap voltage (GAP). By monitoring these parameters, the system offers critical protection for rotating machinery such as turbines, compressors, and pumps, facilitating the early detection of mechanical faults including shaft misalignment, rubs, and bearing degradation.Features
Dual-channel configuration for simultaneous XY vibration and GAP monitoring.
Continuous comparison of input signals against user-defined Alert and Danger setpoints.
Integrated relay outputs for automated alarm and shutdown sequences.
Front-panel LED indicators for quick status verification of OK, Bypass, Alert, and Danger conditions.
Compatible with standard proximity probe (Proximitor) sensor inputs.
Proportional 4-20 mA outputs for integration with external DCS or PLC systems.
ApplicationsThis monitor is widely utilized in industrial environments for the protection of critical rotating equipment, including:
Steam and gas turbines
Centrifugal compressors
Large industrial pumps and motors
Gearboxes and turbo-expanders
Technical Specifications
Model
3300/16-02-01-00-01-00-00
Series
3300
Inputs
2 x Proximity probe channels (XY and GAP)
Outputs
Dynamic signals, 4-20 mA, Relay (Alert/Danger)
Operating Temperature
-30 degC to +65 degC
Power Consumption
6 W (typical)
Installation Guidelines
Ensure the 3300 rack is properly grounded according to site electrical safety standards to prevent noise interference.
Handle the module using ESD-safe practices; avoid touching backplane connectors.
Verify that the rack power is disconnected before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
Ensure that shielded cables are used for proximity probe signals to minimize EMI/RFI impact.
Confirm that the module is fully seated in the rack slot and that the front-panel locking mechanisms are engaged.
FAQWhat is the primary function of the 3300/16 monitor?The 3300/16 is designed to monitor radial shaft vibration and probe gap voltage, providing essential data for machinery health and triggering alarms if pre-set vibration thresholds are exceeded.Does this module include intrinsic safety barriers?No, this specific model (3300/16-02-01-00-01-00-00) is configured with standard input barriers and does not include intrinsic safety barriers.Can this module be used for both Alert and Danger alarms?Yes, the module is equipped with relay outputs capable of managing both Alert and Danger alarm conditions based on the configured setpoints.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Bently Nevada 330130-080-00-CN is a high-quality 3300 XL standard extension cable designed for use within the 3300 XL 8 mm Proximity Transducer System. This cable facilitates the connection between a proximity probe and a Proximitor sensor, ensuring accurate transmission of vibration and position data in industrial machinery.Features
Designed for 8.0 meters (26.2 feet) of signal transmission.
Complete interchangeability with all standard 3300 XL 8 mm probes and Proximitor sensors.
Backwards compatible with non-3300 XL series transducer system components.
Standard cable construction with CSA, ATEX, and IECEx agency approvals.
Supports static (position) and dynamic (vibration) measurement requirements.
Applications
Fluid-Film Bearing Monitoring: Essential for measuring vibration and position on critical rotating equipment.
Turbomachinery Protection: Ideal for compressors, turbines, and industrial rotating machinery.
Keyphasor and Speed Measurement: Provides reliable reference signals for rotational speed and phase monitoring.
API 670 Compliance: Engineered to meet the mechanical configuration, linear range, and accuracy requirements of the American Petroleum Institute (API) 670 standard.
Technical Specifications
Product Model
330130-080-00-CN
Cable Length
8.0 meters (26.2 feet)
Output Resistance
50 Ohm
Capacitance
69.9 pF/m (21.3 pF/ft) typical
Agency Approvals
CSA, ATEX, IECEx
Weight
0.3 kg
Installation Guidelines
Ensure all system components are powered down before connecting or disconnecting the extension cable.
Handle connectors with care to prevent damage to the pins or threads; ensure connections are clean and free of debris.
Route cables away from high-EMI sources and high-voltage power lines to maintain signal integrity.
Use appropriate cable protection if the installation environment involves harsh chemicals or mechanical stress.
Verify that the total system length (probe + extension cable) matches the calibrated length for the specific Proximitor sensor used.
FAQWhat is the 330130-080-00-CN?It is a 3300 XL Standard Extension Cable designed by Bently Nevada for use with 3300 XL 8 mm proximity probes and Proximitor sensors.What does the CN suffix indicate?The -CN suffix indicates that the cable includes specific regulatory approvals and documentation tailored for regional compliance.Is it compatible with other 3300 XL components?Yes, it is designed for complete interchangeability with all standard 3300 XL 8 mm probes and Proximitor sensors, eliminating the need for individual component calibration.Can it be used in high-temperature environments?This is a standard cable rated for standard temperature ranges. For applications exceeding 177 degC (350 degF), an Extended Temperature Range (ETR) system is recommended.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3300/46 Differential Expansion Monitor is a rack-mounted module designed to measure the relative expansion between a turbine rotor and its casing. This measurement is critical in steam turbines and other large rotating machinery where thermal growth can cause mechanical interference. The monitor continuously compares expansion values against alarm setpoints, providing early warning of abnormal conditions and protecting equipment from damage.Features
Measures differential expansion between rotor and casing
Continuous parameter comparison against alarm setpoints
Relay actuation for Alert and Danger conditions
LED indicators for OK, Bypass, Alert, and Danger status
Compatible with standard proximity probe inputs via Proximitor sensors
Technical Specifications
Model
3300/46-XX-XX-01-00
Brand
Bently Nevada
Series
3300
Operating Temperature
0 to 60 degC
Power Consumption
1.5 W
Sensitivity
200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Signal Accuracy
+/- 0.33% typical, +/- 1% max at 25 degC
Output Signals
+4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC
Installation Guidelines
Ensure the 3300 rack is properly grounded to a clean earth point to minimize electrical noise.
Always power down the rack before inserting or removing the monitor module to prevent damage to the backplane connectors.
Use shielded cables for all transducer inputs to protect against EMI in industrial environments.
Verify that the probe configuration matches the specific module suffix settings for accurate measurement.
Ensure adequate ventilation within the cabinet to maintain the operating temperature range of 0 to 60 degC.
FAQWhat is the primary function of the 3300/46 monitor?This module is designed to monitor the differential expansion between the rotor and the casing of rotating machinery, such as steam turbines, to prevent mechanical interference caused by thermal growth.Does this module include relay outputs?Yes, the 01 suffix indicates a single relay output configuration for Alert and Danger alarm conditions.What type of sensors does this module support?It is designed to accept inputs from proximity probes via Proximitor sensors.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

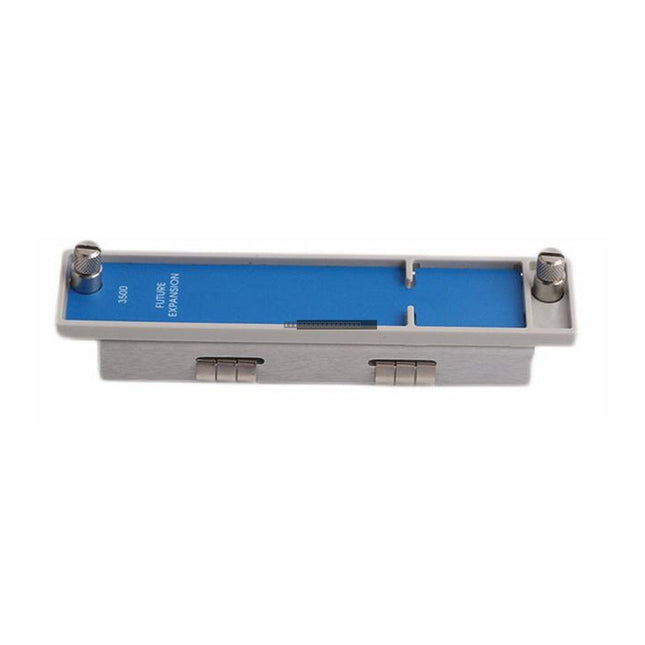

The Bently Nevada 128275-01F is a full-size Future Expansion Faceplate designed for the 3500 Series Machinery Protection System. This blank slot filler serves as a protective cover for unused module slots within the 3500 rack, ensuring proper internal airflow, protecting sensitive backplane components from dust and contaminants, and maintaining a professional rack aesthetic.Features
Designed specifically for Bently Nevada 3500 Series rack slots.
Full-size panel construction for complete slot coverage.
Constructed from durable materials with a protective finish.
Essential for maintaining thermal management and environmental integrity within the rack.
Applications
Oil & Gas: Refining, petrochemical plants, and offshore production facilities.
Power Generation: Traditional and renewable energy power plants.
Manufacturing: General industrial facilities utilizing Bently Nevada asset condition monitoring systems.
Technical Specifications
Product Model
128275-01F
Material
Aluminum with black anodized finish
Compatibility
Bently Nevada 3500 Series Rack
Operating Temperature
-40 degC to +85 degC
Storage Temperature
-40 degC to +85 degC
Humidity
0 to 95% RH (non-condensing)
Installation Guidelines
The 128275-01F can be installed in any of the 14 available monitor slots (slots 2 through 15) in a standard 3500 Series Rack.
Ensure the faceplate is seated flush against the rack chassis to maintain the integrity of the internal cooling airflow.
Standard ESD precautions should be observed when handling or installing components near the 3500 rack backplane.
Verify that the slot is truly intended for future expansion and is not required for current monitoring modules before installation.
FAQsWhat is the 128275-01F?The 128275-01F is a blanking plate used to cover empty slots in a Bently Nevada 3500 monitoring system rack.Where is the 128275-01F installed?It is installed in any of the 14 available monitor slots (slots 2-15) of a 3500 rack to protect the backplane and maintain airflow.What does the F suffix indicate?In Bently Nevada nomenclature, the suffix typically denotes a specific hardware revision level or configuration variant.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3500/40-03-01 Proximitor Monitor is a four-channel module designed for the 3500 Series Machinery Protection System. This module conditions input signals from proximity transducers to provide continuous, high-integrity monitoring of critical machinery parameters including shaft radial vibration, thrust position, differential expansion, eccentricity, and REBAM (Radial Eccentricity and Blade Amplitude Measurement). The 03-01 configuration ensures compatibility with standard Bently Nevada proximity probe systems.Features
Four independent monitoring channels for comprehensive machine protection.
Programmable Alert and Danger setpoints for customized alarm logic.
Integrated 4-20 mA recorder outputs for each channel to interface with external control systems.
Front-panel LED indicators providing real-time status for OK, Bypass, Alert, and Danger conditions.
Buffered transducer outputs available on the front panel for advanced diagnostic analysis.
Designed for continuous online monitoring in compliance with API 670 standards.
Fully configurable via the Bently Nevada 3500 Rack Configuration Software.
ApplicationsThis module is essential for protecting critical rotating machinery, such as steam turbines, gas turbines, centrifugal compressors, and large pumps. It is widely used in power generation, oil and gas, and petrochemical facilities to detect mechanical faults before they lead to catastrophic failure.Technical Specifications
Parameter
Specification
Manufacturer
Bently Nevada
Part Number
3500/40-03-01
Channels
4 independent channels
Operating Temperature
-30 degC to +65 degC
Storage Temperature
-40 degC to +85 degC
Humidity
95% non-condensing
Power Consumption
7.7 W typical
Sensitivity (Radial/Thrust)
100 mV/mil or 200 mV/mil
Sensitivity (Diff. Expansion)
10 mV/mil or 20 mV/mil
Sensitivity (REBAM)
1000 mV/mil or 2000 mV/mil
Installation Guidelines
Ensure the 3500 rack is powered down before inserting or removing the module.
The module is designed for standard 3500 rack mounting; ensure the card is fully seated and the front panel screws are tightened to maintain proper grounding.
Use shielded twisted-pair cabling for all transducer inputs to minimize EMI/RFI interference.
Follow proper ESD handling procedures when touching the module circuitry.
Verify that the I/O module configuration matches the installed transducer type and sensitivity settings in the 3500 software.
FAQWhat is the primary function of the 3500/40-03-01?This module acts as the interface between proximity probes and the 3500 rack, converting raw transducer signals into usable vibration and position data for machinery protection.Can this module be configured for different types of measurements?Yes, the 3500/40 is highly versatile and supports multiple measurement types including radial vibration, thrust, and expansion, which are selected and configured via the 3500 Rack Configuration Software.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 330780-90-CN is a high-performance 3300 XL 11 mm Proximitor Sensor designed for critical machinery protection and condition monitoring applications. This sensor is engineered to provide accurate, non-contact displacement measurements in industrial environments, ensuring reliable vibration and position data for rotating equipment such as turbines, compressors, and pumps. This specific model features a 9.0-meter system length and is configured for panel mounting.Features
Designed for use with 11 mm probe systems for extended range and sensitivity.
Advanced 3300 XL circuitry ensures high signal integrity and noise immunity.
Robust construction suitable for harsh industrial operating temperatures.
Compatible with standard Bently Nevada 3300 series monitoring systems.
Panel mount configuration for simplified integration into existing control cabinets.
Technical Specifications
Product Model
330780-90-CN
System Length
9.0 meters (29.5 feet)
Mounting Option
Panel Mount
Output Resistance
50 Ohm
Operating Temperature
-52 degC to +100 degC (-62 degF to +212 degF)
Probe Tip Material
Polyphenylene sulfide
Agency Approval
Multiple approvals
Installation Guidelines
Ensure the Proximitor sensor is installed in a protected, dry environment within the specified temperature range.
Use appropriate shielded coaxial cabling to minimize EMI/RFI interference in the signal path.
Maintain proper grounding practices for the monitoring system to prevent ground loops.
Verify that the system length (9.0 meters) matches the calibration requirements of the connected monitor.
Always power down the monitoring system before connecting or disconnecting the sensor to prevent electrical damage.
Ensure the probe tip is installed with adequate clearance to prevent mechanical contact during operation.
FAQWhat is the primary function of the 330780-90-CN?This unit is a signal conditioning device that converts the signal from an 11 mm proximity probe into a proportional voltage output for use by vibration monitoring systems.Is this sensor compatible with other 3300 XL components?Yes, the 3300 XL 11 mm series components are designed to be interchangeable within the 3300 XL product family, provided the system length and calibration requirements are met.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 21504-00-32-10-02 is an 8mm proximity probe designed for non-contacting vibration and position monitoring in industrial rotating machinery. As a core component of the Bently Nevada transducer system, this probe measures both static and dynamic distances between the probe tip and the observed target, providing critical data for machinery protection and condition monitoring.Features
Non-contacting measurement technology ensures long-term reliability and minimal wear.
Frequency response ranging from 0 Hz (DC) to 10 kHz for accurate signal capture.
Designed for integration with gap-to-voltage transducer systems.
Standard 8mm probe diameter for compatibility with existing Bently Nevada mounting hardware.
Equipped with a miniature male coaxial connector for secure signal transmission.
Applications
Turbine and compressor vibration monitoring.
Shaft position and axial displacement measurement.
Radial vibration analysis in high-speed rotating equipment.
General industrial machinery condition monitoring systems.
Technical Specifications
Product Model
21504-00-32-10-02
Probe Diameter
8 mm
Frequency Response
0 Hz (DC) to 10 kHz
Overall Case Length
32 mm
Unthreaded Length
0.0 inches
Connector Type
Miniature male coaxial connector
Installation Guidelines
Ensure the probe is mounted in a rigid, vibration-free bracket to prevent false readings.
Maintain proper gap distance as specified by the system calibration requirements.
Use only high-quality coaxial extension cables to minimize signal interference and noise.
Avoid routing signal cables near high-voltage power lines or high-EMI sources.
Handle the probe tip with care; any damage or scratches to the tip can affect measurement accuracy.
Ensure all connections are clean and tightened to the manufacturer's recommended torque.
FAQWhat is the primary function of the 21504-00-32-10-02 probe?This probe is used to measure the gap between the probe tip and a metallic target, allowing the system to monitor shaft vibration and position in rotating machinery.Is this probe compatible with standard Bently Nevada monitoring systems?Yes, this is a standard 8mm proximity probe designed for use with Bently Nevada proximity transducer systems.How should the probe be connected?This model features a miniature male coaxial connector, which should be mated with the corresponding female connector on the Bently Nevada extension cable.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3300/20 Dual Thrust Monitor is a rack-mounted module engineered for precise axial thrust position measurement in critical rotating machinery, including turbines and compressors. This specific model, 3300/20-12-01-01-00-00, is configured for dual-channel thrust monitoring, providing continuous analysis of axial displacement against defined alarm setpoints. By detecting bearing wear or potential mechanical failure early, the module facilitates effective predictive maintenance strategies and minimizes unplanned downtime.Features
Dual-channel axial thrust monitoring for comprehensive machine protection.
Continuous parameter comparison against user-defined Alert and Danger alarm setpoints.
Integrated relay outputs for automated alarm actuation.
Front-panel LED indicators for quick status verification of OK, Bypass, Alert, and Danger states.
Configured for use with standard proximity probes and Proximitor sensors.
Applications
Axial position monitoring for steam and gas turbines.
Thrust bearing wear detection in centrifugal compressors.
Critical asset protection in power generation and petrochemical facilities.
Integration into existing Bently Nevada 3300 monitoring racks.
Technical Specifications
Model
3300/20-12-01-01-00-00
Brand
Bently Nevada
Series
3300
Operating Temperature
0 to 60 degC
Power Consumption
~1.5 W
Input Type
Proximity probe signals via Proximitor sensors
Sensitivity
200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Signal Accuracy
+/- 0.33% typical, +/- 1% max at 25 degC
Output Signals
+4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
The module must be seated firmly in the designated rack slot to ensure proper backplane connectivity.
Use shielded cabling for all transducer inputs to minimize EMI interference.
Verify that proximity probe gaps are calibrated according to the machine manufacturer's specifications.
Maintain adequate ventilation around the rack to ensure the ambient temperature remains within the 0 to 60 degC operating range.
Handle with standard ESD precautions to protect internal circuitry.
FAQWhat does the 12 suffix denote in this model?The 12 suffix indicates the dual-channel thrust configuration, allowing the monitor to process two independent axial displacement inputs simultaneously.Is this module compatible with existing 3300 racks?Yes, this module is designed for the standard 3300 series rack architecture. Ensure your rack backplane configuration supports the 3300/20 module type.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 330101-00-77-15-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for use within the Bently Nevada 3300 XL Proximity Transducer System. This eddy current transducer system is engineered to provide precise, non-contact measurements of vibration and position in rotating machinery. The 3300 XL series is fully compliant with the American Petroleum Institute (API) 670 standard, ensuring reliability in demanding industrial environments.Features
8 mm probe tip diameter for high-resolution measurement.
Complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component calibration.
Miniature coaxial ClickLoc connector for secure and reliable signal transmission.
Designed for harsh environments with CSA, ATEX, and IECEx agency approvals.
Standard cable configuration without armor.
Applications
Power Generation: Monitoring large steam and gas turbines, generators, and exciter units.
Oil & Gas: Vibration and position monitoring for centrifugal and axial compressors, process gas pumps, and expanders.
Water & Wastewater: Deployment on large-scale pumps, fans, and blowers.
General Industry: Critical monitoring for large motors and high-load gearboxes.
Technical Specifications
Model
330101-00-77-15-02-CN
Probe Diameter
8 mm
Thread Size
3/8-24 UNF
Unthreaded Length
0.0 in
Case Length
7.7 in
Cable Length
1.5 meters (4.9 feet)
Connector Type
Miniature coaxial ClickLoc
Agency Approvals
CSA, ATEX, IECEx
Installation Guidelines
Mounting: Install the probe in a rigid bracket or housing that allows for precise adjustment. Use a sliding bracket for applications involving significant differential thermal expansion.
Gapping: The ideal gap between the probe tip and the target (AISI 4140 steel) is 1.27 mm (50 mils).
Calibration: When gapped correctly, the system should yield an initial output of approximately -9 V DC.
Linear Range: The system operates linearly between 0.25 mm and 2.3 mm (10 to 90 mils).
Handling: Ensure the probe tip is protected from mechanical impact during installation. Avoid sharp bends in the coaxial cable to maintain signal integrity.
FAQsWhat is the 330101-00-77-15-02-CN?It is a specific configuration of the 3300 XL 8 mm Proximity Probe used to monitor vibration and position in critical rotating machinery.How does the probe measure vibration?The probe utilizes the eddy current principle to measure the gap between the probe tip and a conductive shaft, converting this distance into a proportional voltage signal for both static and dynamic analysis.Is this probe interchangeable with older systems?Yes, 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, provided the mounting space and cable bend radius requirements are met.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 133835-01 is an Isolated Thermocouple (TC) Temperature I/O Module designed for use within the 3500 machinery protection system. This module provides high-precision temperature monitoring for critical rotating machinery, such as turbines, compressors, and large motors. By utilizing isolated input channels, the 133835-01 ensures signal integrity and minimizes common-mode noise interference, which is essential for accurate bearing and stator temperature tracking. This I/O module is engineered to work in conjunction with the 3500/60 monitor module and supports external termination blocks, facilitating efficient field wiring and simplified maintenance procedures.Features
Isolated Inputs: Each thermocouple channel is electrically isolated to prevent ground loops and signal degradation.
External Termination: Designed for use with external termination blocks, allowing for easier cable management and field maintenance outside the main rack.
System Integration: Fully compatible with the Bently Nevada 3500 rack series, supporting redundant power and communication configurations.
Programmable Alarms: Integrates with 3500 rack configuration software to enable user-defined Alert and Danger setpoints for proactive machinery protection.
Robust Design: Built for harsh industrial environments with a wide operating temperature range.
Applications
Bearing temperature monitoring in centrifugal compressors.
Stator winding temperature tracking in large electric motors and generators.
General-purpose thermocouple monitoring for industrial rotating equipment.
Critical machinery protection systems requiring high-reliability signal isolation.
Technical Specifications
Manufacturer
Bently Nevada
Model / Order Code
133835-01
Module Type
ISO TC (Thermocouple) Temperature I/O Module
Input Type
Thermocouple (TC)
Operating Temperature
-30 degC to +65 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
95%, non-condensing
Installation Guidelines
ESD Protection: Always use a properly grounded anti-static wrist strap when handling the module to prevent damage to sensitive internal electronics.
Rack Seating: Ensure the module is fully seated in the designated 3500 rack slot and that the front panel screws are tightened to maintain proper grounding and EMI shielding.
Power Status: Ensure the rack power is managed according to site safety procedures before inserting or removing any I/O module.
Wiring: Use shielded thermocouple extension wire to maintain signal integrity. Route signal cables away from high-voltage power lines and high-EMI sources to prevent noise injection.
External Termination: Ensure the external termination block is correctly wired and securely mounted before connecting to the I/O module.
FAQQ: Does this module include the terminal block?A: The 133835-01 is the I/O module itself. External termination blocks are typically ordered separately depending on your specific wiring requirements.Q: Is this module compatible with all 3500 racks?A: Yes, it is designed for standard Bently Nevada 3500 series racks. Ensure your rack configuration software is updated to support the 3500/60 module series.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 136188-01 is a Communication Gateway I/O Module designed for integration within the 3500 Machinery Protection System. This module serves as a critical interface, enabling data exchange between the 3500 rack and external systems, such as Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), or Human-Machine Interfaces (HMI). It facilitates seamless communication using industry-standard protocols, specifically Modbus, to ensure reliable monitoring and control of rotating machinery.Features
Provides high-speed data transfer between the 3500 rack and external host systems.
Supports Modbus protocol for broad compatibility with third-party automation equipment.
Integrated Ethernet (10 BASE-T) and RS-232 serial interfaces for flexible connectivity.
Designed for robust performance in demanding industrial environments with high isolation voltage.
Low power consumption profile for efficient rack thermal management.
ApplicationsThis communication gateway is typically deployed in power generation, oil and gas, and petrochemical facilities. It is used to transmit vibration, position, and process data from Bently Nevada monitoring racks to plant-wide control networks for centralized monitoring, alarming, and diagnostic analysis.Technical Specifications
Product Model
136188-01
Power Consumption
5.0 W (typical)
Ethernet Interface
1 x 10 BASE-T RJ-45
Serial Interface
1 x RS-232
Isolation
1500 V dc (field-to-logic)
Operating Temperature
-30 degC to +65 degC (-22 degF to +149 degF)
Storage Temperature
-40 degC to +85 degC
Relative Humidity
95% RH non-condensing
Installation Guidelines
Ensure the 3500 rack power is disconnected before installing or removing the module.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that the module is fully seated in the designated rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
Use shielded cables for RS-232 and Ethernet connections to minimize EMI (Electromagnetic Interference) in industrial environments.
Maintain adequate clearance around the rack to facilitate proper airflow and cooling, adhering to the specified operating temperature range.
FAQWhat is the primary function of the 136188-01 module?The 136188-01 acts as a communication gateway, allowing the Bently Nevada 3500 system to communicate with external control systems like PLCs or DCS using Modbus protocol over Ethernet or RS-232.Is this module hot-swappable?The 3500 system modules are generally designed for hot-swapping; however, always consult your specific site safety procedures and the Bently Nevada 3500 system manual before performing maintenance on an active rack.
8 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 128276-01E is a half-height future expansion faceplate designed for use within the Bently Nevada 3500 Series machinery protection system. This component serves as a critical interface element for Proximitor and Seismic Monitor modules, facilitating the expansion and configuration of monitoring channels within the 3500 rack. It is engineered to maintain the structural and signal integrity of the rack system while supporting various machinery measurements, including radial vibration, thrust position, eccentricity, differential expansion, acceleration, and velocity.Features
Designed for integration with 3500 Series rack systems.
Supports four monitor channels for flexible system expansion.
Compatible with Proximitor and Seismic transducer inputs for comprehensive machinery condition monitoring.
Facilitates alarm and danger setpoint programming via 3500 Rack Configuration Software.
Ensures consistent signal integrity and protection functionality in high-reliability industrial environments.
Applications
Machinery Protection: Continuously monitors and compares machine vibration data against configured alarm setpoints to trigger protective actions.
Operational Insight: Delivers essential vibration and position data to maintenance teams and operators for diagnostic analysis.
System Configuration: Acts as a modular interface for scaling monitoring capabilities within existing 3500 rack installations.
Technical Specifications
Model
128276-01E
Brand
Bently Nevada
Series
3500 Series
Component Type
Half-Height Future Expansion Faceplate
Channel Capacity
4 Channels
Input Compatibility
Proximitor and Seismic Transducers
Installation Guidelines
Ensure the 3500 rack is powered down before attempting to install or remove any module or faceplate.
Align the faceplate carefully with the designated slot in the 3500 rack to prevent pin damage.
Ensure all module connections are fully seated to maintain proper grounding and signal continuity.
Handle with care to avoid electrostatic discharge (ESD) damage to internal electronic components.
Verify that the rack configuration software is updated to recognize the expanded channel capacity after installation.
FAQWhat is the primary purpose of the 128276-01E faceplate?The 128276-01E is a half-height faceplate used in the Bently Nevada 3500 system to allow for the expansion of monitoring channels, specifically for Proximitor and Seismic Monitor modules.Is this faceplate compatible with all 3500 series racks?Yes, this component is designed specifically for the Bently Nevada 3500 Series machinery protection system architecture.Does this faceplate require software configuration?While the faceplate itself is a mechanical interface, the modules it supports are configured using the 3500 Rack Configuration Software to define alarm and danger setpoints for the monitored channels.
1 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3500/22M Transient Data Interface (TDI) module, part number 161580-01, serves as the primary gateway for the 3500 Machinery Protection System. It functions as the interface between the 3500 rack and various software applications, including Bently Nevada's System 1 condition monitoring software. The TDI module combines the capabilities of the legacy 3500/20 Rack Interface Module (RIM) with high-speed data collection, supporting both steady-state and transient waveform data capture for comprehensive machinery diagnostics.Features
Integrates rack interface and communication processor functions into a single module.
Provides Ethernet connectivity for seamless integration with System 1 software.
Supports both steady-state and transient data collection for advanced diagnostics.
Equipped with a front-panel USB port for local configuration and maintenance.
Includes a dedicated I/O module with an OK relay for system health monitoring.
Features a configuration keylock switch to prevent unauthorized changes to rack settings.
Supports up to 127 rack addresses for large-scale system deployments.
ApplicationsThe 3500/22M TDI is essential for critical machinery protection and condition monitoring in industrial environments, including power generation, oil and gas, petrochemical, and heavy manufacturing. It is used to monitor rotating equipment such as turbines, compressors, pumps, and motors, ensuring early detection of mechanical faults through transient data analysis.Technical Specifications
Model
3500/22M TDI
Part Number
161580-01
Operating Temperature
-35 to +65 deg C
Power Consumption
10.5 W
Ethernet Interface
10Base-T/100Base-TX (Optional 100Base-FX fiber)
Local Interface
USB-B port
Relay Rating
5 A @ 24 VDC / 120 VAC
Slot Position
Slot 1 (adjacent to power supplies)
Installation Guidelines
The 3500/22M must be installed in Slot 1 of the 3500 rack.
Ensure the rack power is disconnected before inserting or removing the module to prevent electrical damage.
Use standard ESD precautions when handling the module to protect internal circuitry.
Verify that the rack address switches are correctly set according to the system configuration requirements.
Ensure the I/O module is properly seated and secured with the front panel screws to maintain a reliable connection to the backplane.
Use shielded Ethernet cabling for network connections to minimize EMI interference in industrial environments.
FAQWhat is the primary function of the 3500/22M module?The 3500/22M acts as the communication interface between the 3500 rack and external monitoring software, while also managing the collection of transient and steady-state data from the rack's monitor modules.Can this module be used in place of a 3500/20 RIM?Yes, the 3500/22M TDI is designed to replace the 3500/20 Rack Interface Module, providing enhanced data collection capabilities and integrated communication features.How is the module configured?Configuration is performed via the 3500 Rack Configuration Software, typically connected through the front-panel USB port or the rear Ethernet port, with the physical keylock switch set to the PROGRAM position.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3500/22M Transient Data Interface (TDI) serves as the primary communication gateway between the 3500 Machinery Protection System and external software platforms, including System 1 Condition Monitoring and Diagnostic software. By integrating the functionality of a 3500/20 Rack Interface Module (RIM) with the high-speed data collection capabilities of a communication processor, the TDI enables continuous monitoring of steady-state and transient dynamic waveform data.The 138607-01 is the standard version of the TDI module, designed to occupy the dedicated slot (Slot 1) immediately adjacent to the power supplies in a 3500 rack. It facilitates Ethernet-based communication to host software for advanced machinery diagnostics.Features
Integrates 3500/20 RIM functionality with advanced communication processing.
Supports continuous collection of steady-state and transient (waveform) data.
Enables high-resolution diagnostic analysis via System 1 software.
Features a physical keylock for secure switching between RUN and PROGRAM modes.
Standard static data capture with optional dynamic data capability.
Applications
Power Generation: Monitoring of steam, gas, and hydro turbines for early-stage mechanical fault detection.
Oil & Gas: Critical protection and analysis for high-value pumps, compressors, and motors in refineries.
Heavy Manufacturing: Vibration monitoring for large rotating equipment in steel and paper mills.
Predictive Maintenance: Facilitates long-term trend analysis and post-event failure investigation.
Technical Specifications
Model
3500/22M 138607-01
Module Type
Transient Data Interface (TDI)
Power Consumption
10.5 Watts
Operating Temperature
-30 degC to +65 degC
Storage Temperature
-40 degC to +85 degC
Humidity
95%, non-condensing
Front Interface
RS232 Serial Port (9-pin)
Rack Position
Slot 1 (adjacent to power supplies)
Installation Guidelines
Slot Placement: The TDI must be installed in Slot 1 of the 3500 rack, directly next to the power supply modules.
Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
Power: Ensure the rack power is stable; the module is hot-swappable in most configurations, but verify system requirements before removal.
Configuration: Use the front-panel serial port for local configuration. Ensure the keylock is set to the appropriate mode (RUN/PROGRAM) during operation.
Cabling: Use shielded Ethernet cabling for the host software connection to minimize EMI interference in industrial environments.
FAQWhat is the function of the 3500/22M 138607-01?It acts as the interface between the 3500 rack and System 1 software, capturing both steady-state and transient vibration data for detailed machinery health analysis.Is this module still in production?The 138607-01 is a legacy version and has been superseded by the 288055-01. The newer version replaces the serial port with a USB-B interface for easier connectivity.Can this be used in TMR systems?The 138607-01 is the standard version. For Triple Modular Redundant (TMR) applications, a specific TMR version of the TDI is required to perform monitor channel comparison.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3500/53 133388-01 is an electronic overspeed detection module designed for the 3500 Series Machinery Detection System. This module provides a highly reliable, fast-response, redundant tachometer system specifically engineered for overspeed protection applications. It is designed to comply with American Petroleum Institute (API) Standards 670 and 612. The 3500/53 modules can be configured to form 2-out-of-2 or 2-out-of-3 (recommended) voting systems, requiring a 3500 rack equipped with redundant power supplies.Features
Redundant tachometer architecture for critical machinery protection.
Fast response time for emergency shutdown (ESD) applications.
Configurable for 2-out-of-2 or 2-out-of-3 voting logic.
Designed to meet API 670 and 612 overspeed protection requirements.
Integrated buffered output for signal testing and recording.
Applications
Power Generation: Large turbine power generation units in thermal, nuclear, and combined cycle power plants.
Oil & Gas: Refineries, LNG stations, and critical chemical plant rotating equipment.
Industrial: High-speed rotating equipment including blast furnace blowers, large electric motors, generators, and fans.
Technical Specifications
Model
3500/53 133388-01
Input Impedance
20 kOhm
Output Impedance
550 Ohm
Power Consumption
8.0 Watts
Operating Voltage
24 VDC
Operating Temperature
-30 degC to +65 degC
Storage Temperature
-40 degC to +85 degC
Humidity
95%, non-condensing
Installation Guidelines
Safety First: Always power down the 3500 rack before inserting or removing any module to prevent electrical damage or unintended system trips.
ESD Handling: Use proper electrostatic discharge (ESD) grounding procedures when handling the module to protect sensitive internal circuitry.
Wiring: Connect transducer signals (proximity probes or magnetic pickups) to the designated I/O module terminals. Ensure relay output wiring to the ESD system is secure and verified.
Signal Routing: Route signal cables away from high-EMI sources to maintain measurement integrity.
Rack Seating: Ensure the module is fully seated and the front panel screws are tightened to maintain proper ground connection and mechanical stability.
FAQsWhat is the 3500/53 133388-01?The Bently Nevada 3500/53 133388-01 is an electronic overspeed detection module used to protect rotating machinery by monitoring speed and initiating shutdowns.What does the 3500/53 module do?It provides critical overspeed protection and monitoring for machinery, ensuring that if speed thresholds are exceeded, the system initiates a protective trip to prevent mechanical damage.What are the key features of the 133388-01?This module is part of the 3500 series, designed to meet API 670 and 612 standards for machinery protection. It features programmable alarm and trip setpoints.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 330180-X1-05 (MOD:145004-102) is a 3300 XL Proximitor Sensor designed for use in industrial proximity transducer systems. It serves as the primary signal conditioning interface, converting high-frequency eddy current signals generated at the probe tip into a calibrated voltage output. This output is directly proportional to the distance between the probe tip and the monitored conductive target, enabling precise measurement of both static (position) and dynamic (vibration) values in rotating machinery.Features
Compatible with 3300 XL 8mm and 5mm proximity probes and extension cables.
Provides a linear range of 2 mm (80 mils) with a scale factor of 200 mV/mil.
Features a compact housing design suitable for both high-density DIN-rail mounting and legacy 4-hole panel-mount configurations.
Enhanced RFI/EMI immunity allows for installation in non-metallic enclosures without additional shielding.
Fully interchangeable components eliminate the need for individual component matching or bench calibration.
Factory-calibrated for AISI 4140 steel targets.
Applications
Vibration and position monitoring for fluid-film bearing machines.
Keyphasor reference and speed measurements.
Steam and gas turbine rotor-casing differential expansion monitoring.
Hydroelectric turbine shaft wobble and thrust detection.
Marine propulsion system shaft and gearbox thermal expansion monitoring.
Steel rolling mill roll-gap and thrust measurement.
Technical Specifications
Model
330180-X1-05
Modification
MOD:145004-102
Scale Factor
200 mV/mil (7.87 V/mm) +/- 5%
Linear Range
2 mm (80 mils)
Frequency Response
0 to 10 kHz
Power Supply
-17.5 Vdc to -26 Vdc
Housing Material
A308 Aluminum
Mounting
DIN Rail or Panel Mount
Agency Approvals
CSA, ATEX, IECEx
Installation Guidelines
Ensure the probe target area is flat with a minimum diameter of 102 mm (4.0 inches) to prevent electromagnetic field distortion.
The system is calibrated for AISI 4140 steel; use of other materials will result in measurement errors.
For differential expansion applications, verify thermal growth requirements; use redundant probes for growth under 27.9 mm and complementary arrangements for 28 mm to 56 mm.
Always power down the system before inserting or removing the Proximitor sensor from the rack or terminal blocks.
Maintain proper grounding practices to ensure signal integrity and protect against EMI.
Handle with care to avoid damage to the connectors; ensure cables are routed away from high-voltage lines.
FAQWhat is the 330180-X1-05?The Bently Nevada 330180-X1-05 is a 3300 XL Proximitor Sensor used in industrial vibration and shaft position monitoring systems to detect relative motion between a probe and a machine shaft.Can I use different probes interchangeably?Yes, the 3300 XL system is designed for complete component interchangeability, meaning probes, extension cables, and Proximitor sensors can be replaced without requiring individual bench calibration.What is the primary function of this sensor?It utilizes eddy current technology to measure displacement, helping to protect critical assets like turbines, compressors, and pumps from mechanical failure due to excessive vibration or position shifts.Which probes are compatible with this sensor?This sensor is fully compatible with both 5 mm and 8 mm 3300 and 3300 XL proximity probes.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Bently Nevada 330103-00-10-10-12-05 is a high-performance 3300 XL 8 mm proximity probe designed for non-contacting vibration and position monitoring in industrial rotating machinery. This transducer system provides an output voltage proportional to the gap between the probe tip and a conductive target, enabling precise measurement of both static position and dynamic vibration.Features
Advanced eddy current transducer technology for high-accuracy displacement monitoring.
Patented TipLoc molding for a robust bond between the probe tip and body.
CableLoc design providing 330 N (75 lbf) pull strength for enhanced cable security.
FluidLoc cable option to prevent liquid leakage through the cable interior.
Full electrical and mechanical interchangeability with other 3300 XL series components.
Compliant with API 670 standards for mechanical configuration, linear range, and accuracy.
Applications
Fluid-film bearing machines
Centrifugal and process gas compressors
Turbo expanders
High-speed electric motors and generators
Centrifugal pumps and industrial fans
Keyphasor reference and speed measurement systems
Technical Specifications
Model
330103-00-10-10-12-05
Probe Diameter
8 mm
Thread Size
M10 x 1
Unthreaded Length
0 mm
Case Length
10 mm
Total Length
1.0 meter (3.3 feet)
Connector Type
Miniature coaxial ClickLoc
Cable Type
FluidLoc
Approvals
CSA, ATEX, IECEx
Installation Guidelines
Hole Preparation: Use a 0.332-inch drill and a Q-size tap drill for the 3/8-24 UNF threads.
Mounting: Ensure thread engagement does not exceed 0.562 inches to prevent the probe tip from bottoming out against the target.
Gapping: For standard AISI 4140 steel targets, set the gap to 1.27 mm (50 mils) to achieve the center of the linear range (-9 Vdc).
Torque: Apply a maximum tightening torque of 11.3 N·m (100 in·lb) to the probe case.
Handling: Always power down the system before disconnecting or installing probes to prevent electrical damage. Use ESD-safe practices when handling the connector.
FAQWhat is the 330103-00-10-10-12-05?It is a specific configuration of the Bently Nevada 3300 XL 8 mm proximity probe used for non-contacting vibration and displacement measurement in industrial machinery.What is the ideal gap voltage for this probe?The ideal gap voltage is -9.0 VDC, corresponding to a 1.27 mm (50 mils) gap. The linear operating range is typically between -1.0 VDC and -17.0 VDC.Is this probe interchangeable with older models?Yes, the 3300 XL series is designed to be electrically and mechanically interchangeable with previous 3300 8 mm systems, though using 3300 XL probes with 3300 XL Proximitor sensors is recommended for optimal performance.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3300/55 Dual Velocity Monitor is a rack-mounted module within the 3300 Series monitoring system, engineered to provide continuous casing vibration velocity measurements. Utilizing Velomitor piezo-velocity sensors, this module is specifically configured for critical turbomachinery protection, ensuring reliable monitoring of vibration levels and precise alarm coordination.Features
Dual-channel independent velocity measurement.
Compatible with Velomitor piezo-velocity sensors.
Proportional 4-20 mA outputs for integration with external control systems.
Integrated relay logic for Alert and Danger alarm conditions.
Front-panel LED indicators for system status, including OK, Bypass, Alert, and Danger.
Enhanced input scaling and diagnostic capabilities.
ApplicationsThis module is designed for use in industrial environments requiring high-reliability vibration monitoring, such as steam turbines, gas turbines, centrifugal compressors, and large pumps. It provides the necessary signal processing to detect machinery degradation and trigger protective actions before critical failures occur.Technical Specifications
Model
3300/55-01-04-12-12-00-00-05-00
Brand
Bently Nevada
Series
3300
Inputs
2 x Velomitor piezo-velocity sensors
Outputs
4-20 mA proportional, Relay (Alert/Danger)
Operating Temperature
0 degC to 60 degC
Power Consumption
1.5 W (typical)
Installation Guidelines
Ensure the 3300 Series rack is properly grounded according to site safety protocols.
Handle the module using ESD-safe procedures to prevent damage to internal electronic components.
Verify that the module is fully seated in the rack slot before applying power.
Use shielded cabling for sensor inputs to minimize EMI/RFI interference.
Always power down the rack or follow hot-swap procedures (if supported by the specific system revision) before inserting or removing the module.
Ensure ventilation clearances are maintained around the rack to prevent overheating.
FAQWhat is the primary function of the 3300/55 module?The module is designed to monitor casing vibration velocity in critical rotating machinery using two independent channels, providing both local alarm status and proportional 4-20 mA signals for external monitoring systems.Is this module compatible with standard Velomitor sensors?Yes, the 3300/55-01-04-12-12-00-00-05-00 configuration is specifically designed to interface with Velomitor piezo-velocity sensors.What do the LED indicators on the front panel represent?The LEDs provide visual confirmation of the module's health and alarm status, specifically indicating OK (system health), Bypass, Alert, and Danger conditions.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 330130-085-00-CN is a high-performance 3300 XL series extension cable designed for use with proximity transducer systems. This component serves as the critical link between the proximity probe and the Proximitor sensor, ensuring signal integrity in demanding industrial vibration monitoring environments. This specific model features an 8.5-meter length and is configured with standard cable protection and international agency approvals for hazardous area compliance.Features
Designed for 3300 XL Proximity Transducer Systems
Cable length of 8.5 meters (27.9 feet)
Standard cable construction for reliable signal transmission
Includes CSA, ATEX, and IECEx hazardous area approvals
Typical extension cable capacitance of 69.9 pF/m (21.3 pF/ft)
Characteristic output resistance of 50 Ohm
Technical Specifications
Product Model
330130-085-00-CN
Cable Length
8.5 meters (27.9 feet)
Cable Option
Standard
Agency Approvals
CSA, ATEX, IECEx
Output Resistance
50 Ohm
Capacitance
69.9 pF/m (21.3 pF/ft) typical
Weight
0.34 kg
Installation Guidelines
Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
Use appropriate conduit or cable trays to protect the extension cable from mechanical damage in the field.
Verify that all connector interfaces are clean and free of debris before mating.
Ensure that the cable bend radius is maintained according to Bently Nevada installation standards to prevent internal conductor damage.
Always power down the associated monitoring system before disconnecting or connecting transducer cables to avoid potential electrical surges.
FAQWhat is the primary purpose of the 330130-085-00-CN extension cable?This cable is used to extend the connection between a Bently Nevada proximity probe and the Proximitor sensor, allowing for flexible installation distances in machinery monitoring setups.Does this cable meet international safety standards?Yes, the -CN suffix indicates that this specific model is manufactured with CSA, ATEX, and IECEx approvals, making it suitable for use in certified hazardous locations.Can this cable be used with non-3300 XL systems?The 3300 XL series components are specifically engineered to work together to maintain system accuracy and calibration. It is recommended to use this cable only with compatible 3300 XL series hardware.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
The Bently Nevada 128031-01C is a rear connector cover, also known as a blank filler plate, engineered for the Bently Nevada 3500 Series machinery protection system. This component is essential for maintaining the integrity of the 3500 rack by sealing unused slots, which protects the internal backplane and module connections from environmental contaminants such as dust, moisture, and debris.Features
Designed specifically for Bently Nevada 3500 System racks.
Constructed from durable aluminum for structural rigidity.
Prevents bypass airflow, ensuring optimal cooling efficiency for active modules within the rack.
Provides a professional, clean finish to the rear of the monitoring system.
Applications
Steam, gas, and hydro turbines.
Centrifugal, reciprocating, and screw compressors.
Large electric motors and synchronous or induction generators.
Industrial pumps, fans, and blowers.
Technical Specifications
Model
128031-01C
Manufacturer
Bently Nevada
Material
Aluminum
Operating Temperature
-40 degC to +85 degC
Storage Temperature
-40 degC to +85 degC
Humidity
0 to 95% RH (non-condensing)
Compatibility
3500 Series System Rack
Installation Guidelines
Ensure the rack is powered down or follow site-specific safety protocols before installing or removing any components near the backplane.
Align the cover with the empty slot on the rear of the 3500 rack.
Secure the plate using the provided mounting points to ensure a proper seal.
Always install blanking plates in all unused slots to maintain proper internal airflow and prevent overheating of adjacent active modules.
When working near the open backplane, adhere to standard ESD (Electrostatic Discharge) safety practices to protect sensitive electronic components.
FAQWhat is the primary purpose of the 128031-01C?This cover is used to fill empty slots in a 3500 series rack. It protects the backplane from debris and ensures that cooling air is directed correctly through active modules rather than escaping through open gaps.Is this part compatible with all 3500 racks?Yes, it is designed for standard 3500 machinery protection system racks. It is often paired with a front blank monitor panel to fully enclose an unused slot.Does this cover require special tools for installation?Installation is straightforward and typically requires standard hand tools to secure the plate to the rack frame.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module within the 3300 Series system, engineered to provide continuous monitoring of radial shaft vibration across two independent channels. This specific configuration, 3300/16-03-01-01-00-00-00, is designed for critical machinery protection in industrial environments such as turbines, compressors, and pumps. It continuously processes vibration signals from proximity probes, comparing them against user-defined alarm setpoints to detect mechanical faults like imbalance, misalignment, or bearing wear.Features
Dual-channel monitoring for radial shaft vibration.
Compatible with standard Proximitor sensors.
Provides proportional 4-20 mA outputs for integration with external control systems.
Integrated relay outputs for Alert and Danger alarm conditions.
Front-panel LED indicators for status monitoring (OK, Bypass, Alert, and Danger).
Continuous signal processing for real-time machinery protection.
ApplicationsThis monitor is primarily utilized in the protection of rotating machinery, including:
Steam and gas turbines
Centrifugal compressors
Large industrial pumps
Motors and gearboxes
Technical Specifications
Model
3300/16-03-01-01-00-00-00
Brand
Bently Nevada
Series
3300
Inputs
Two independent proximity probe channels
Outputs
Dynamic vibration, 4-20 mA, Relay (Alert/Danger)
Operating Temperature
-30 degC to +65 degC
Power Consumption
6 W (typical)
Installation Guidelines
Ensure the 3300 rack is properly grounded according to site electrical standards.
Handle with care to prevent electrostatic discharge (ESD) damage to internal circuitry.
Verify that the module is fully seated in the rack slot before applying power.
Use shielded cabling for transducer inputs to minimize electromagnetic interference (EMI).
Maintain adequate ventilation around the rack to ensure operating temperatures remain within the specified -30 degC to +65 degC range.
Always power down the rack before inserting or removing the monitor module.
FAQWhat does the 3300/16-03-01-01-00-00-00 model code indicate?The code specifies a dual vibration monitor with standard industrial approvals, configured for proximity probe inputs, standard relay outputs, and a standard measurement range with no custom modifications.Can this module be used for XY vibration monitoring?Yes, the 3300/16 is designed to monitor two independent channels, making it suitable for XY vibration measurement configurations on rotating shafts.
10 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
