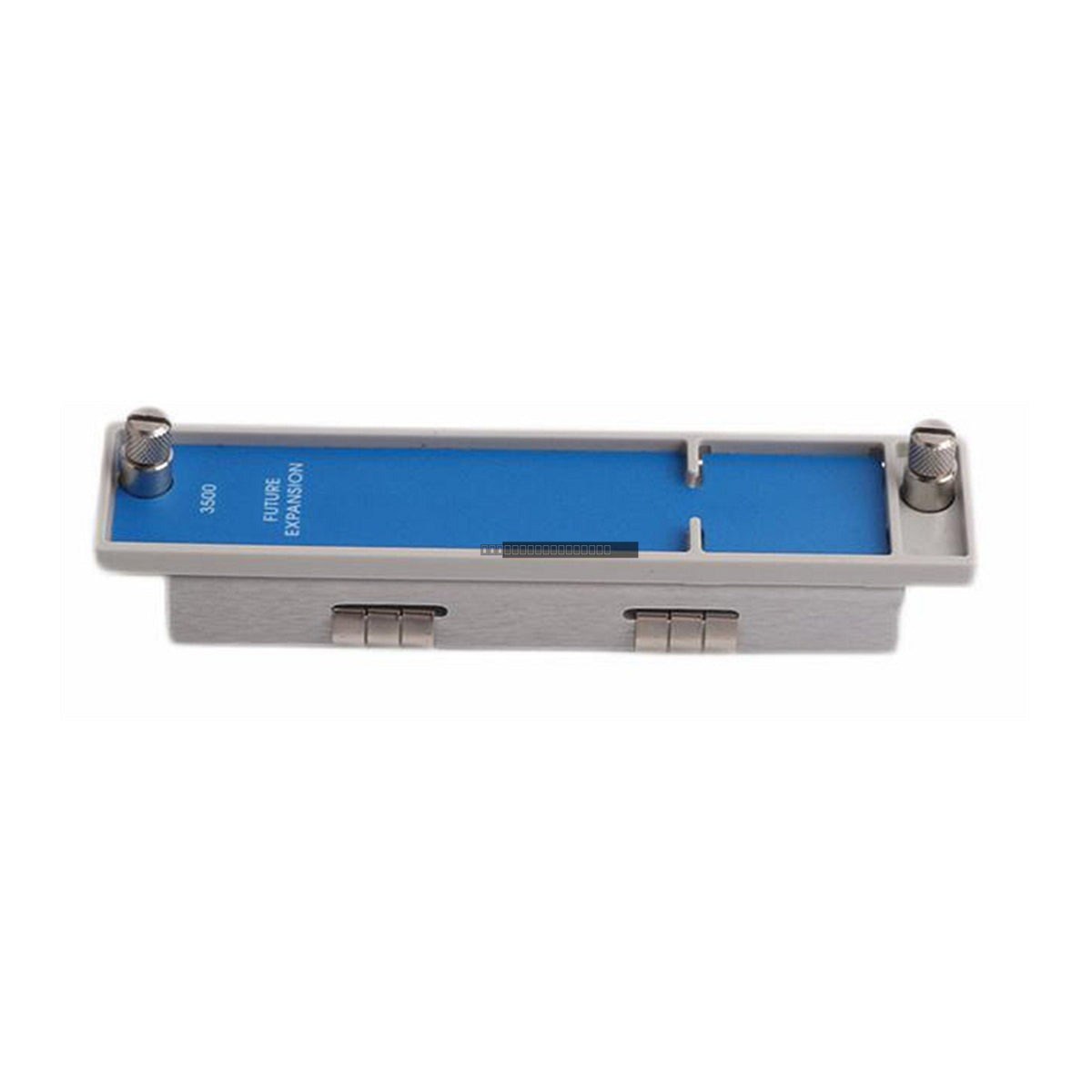

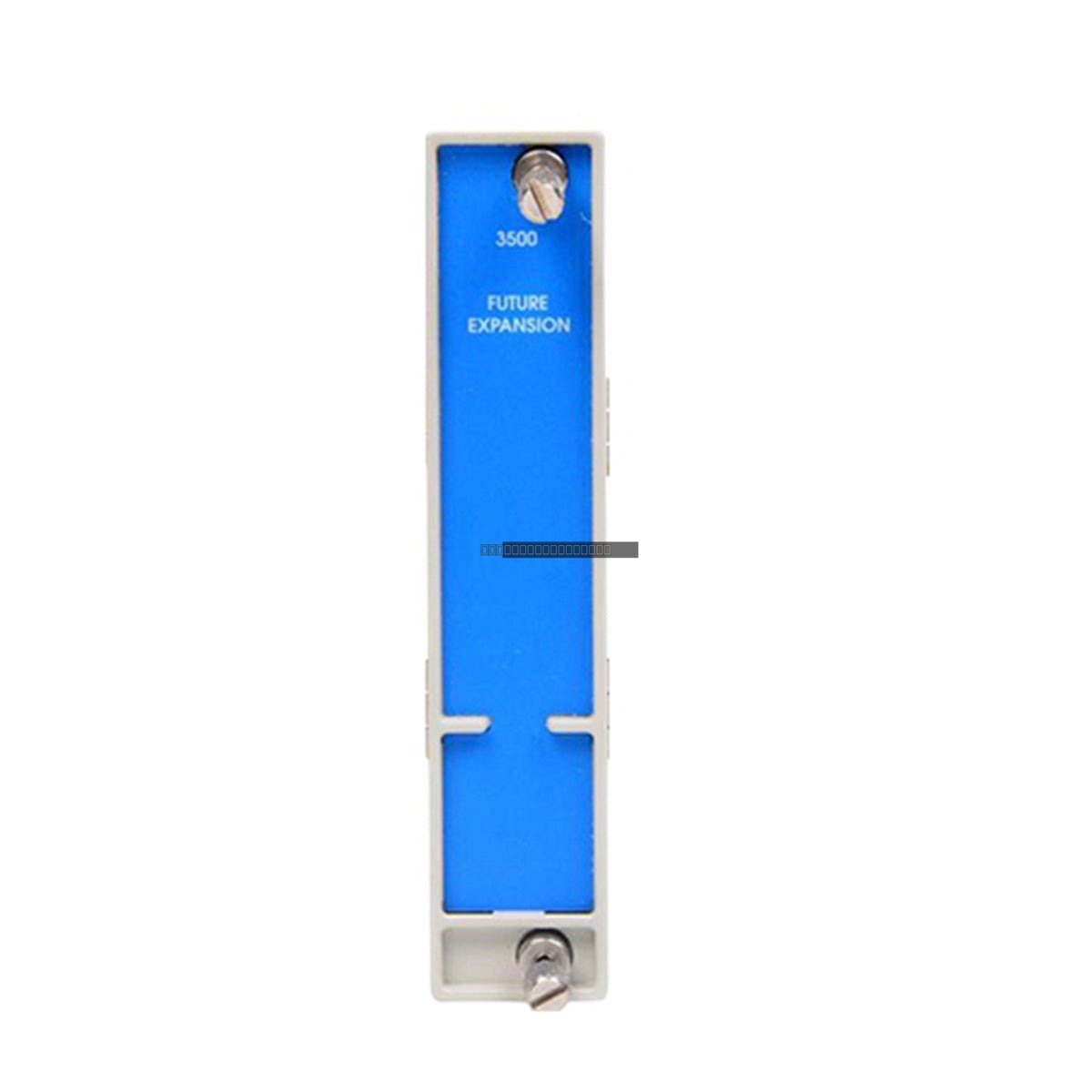

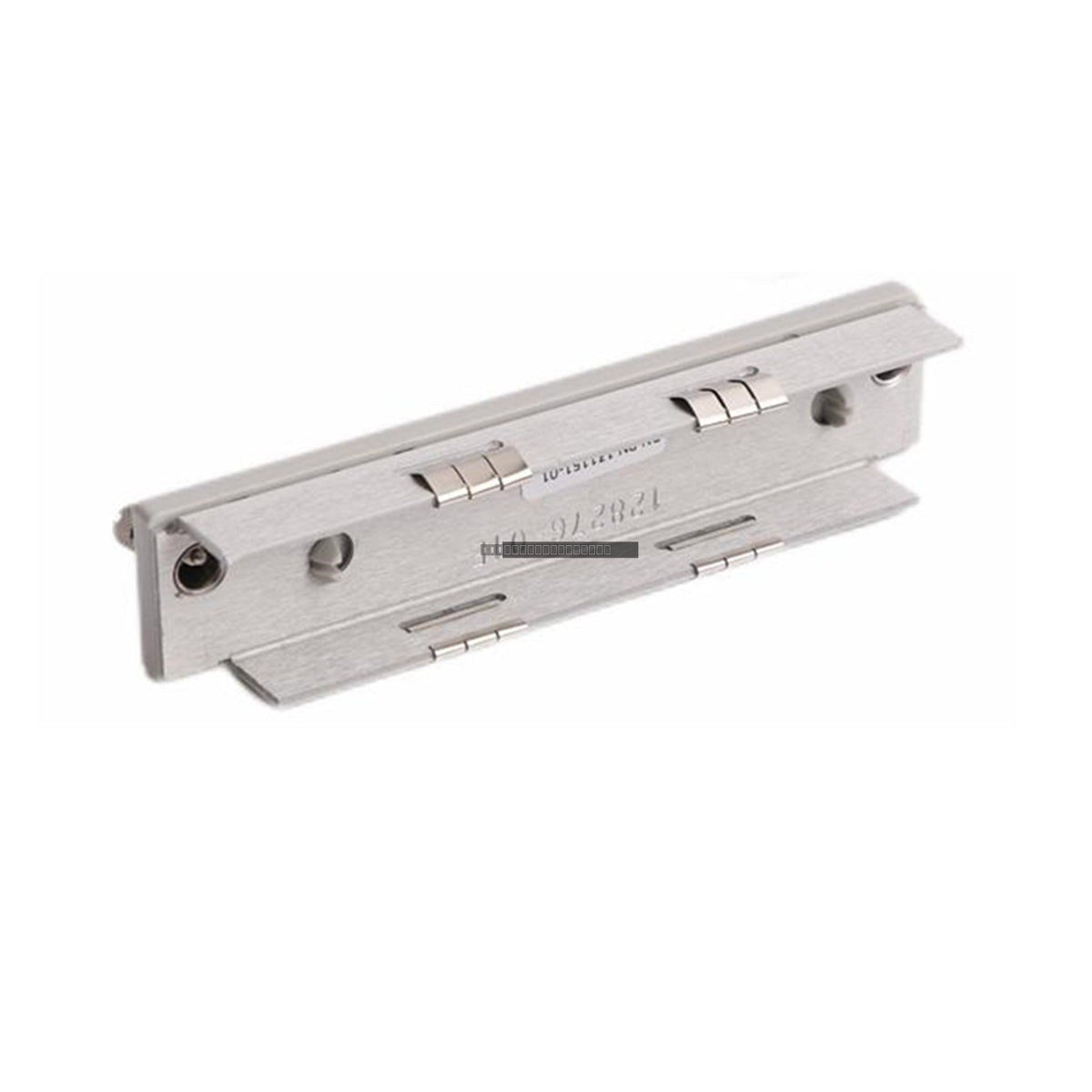

The Bently Nevada 128276-01E is a half-height future expansion faceplate designed for use within the Bently Nevada 3500 Series machinery protection system. This component serves as a critical interface element for Proximitor and Seismic Monitor modules, facilitating the expansion and configuration of monitoring channels within the 3500 rack. It is engineered to maintain the structural and signal integrity of the rack system while supporting various machinery measurements, including radial vibration, thrust position, eccentricity, differential expansion, acceleration, and velocity.
Features
- Designed for integration with 3500 Series rack systems.
- Supports four monitor channels for flexible system expansion.
- Compatible with Proximitor and Seismic transducer inputs for comprehensive machinery condition monitoring.
- Facilitates alarm and danger setpoint programming via 3500 Rack Configuration Software.
- Ensures consistent signal integrity and protection functionality in high-reliability industrial environments.
Applications
-
Machinery Protection: Continuously monitors and compares machine vibration data against configured alarm setpoints to trigger protective actions.
-
Operational Insight: Delivers essential vibration and position data to maintenance teams and operators for diagnostic analysis.
-
System Configuration: Acts as a modular interface for scaling monitoring capabilities within existing 3500 rack installations.
Technical Specifications
| Model |
128276-01E |
| Brand |
Bently Nevada |
| Series |
3500 Series |
| Component Type |
Half-Height Future Expansion Faceplate |
| Channel Capacity |
4 Channels |
| Input Compatibility |
Proximitor and Seismic Transducers |
Installation Guidelines
- Ensure the 3500 rack is powered down before attempting to install or remove any module or faceplate.
- Align the faceplate carefully with the designated slot in the 3500 rack to prevent pin damage.
- Ensure all module connections are fully seated to maintain proper grounding and signal continuity.
- Handle with care to avoid electrostatic discharge (ESD) damage to internal electronic components.
- Verify that the rack configuration software is updated to recognize the expanded channel capacity after installation.
FAQ
What is the primary purpose of the 128276-01E faceplate?
The 128276-01E is a half-height faceplate used in the Bently Nevada 3500 system to allow for the expansion of monitoring channels, specifically for Proximitor and Seismic Monitor modules.
Is this faceplate compatible with all 3500 series racks?
Yes, this component is designed specifically for the Bently Nevada 3500 Series machinery protection system architecture.
Does this faceplate require software configuration?
While the faceplate itself is a mechanical interface, the modules it supports are configured using the 3500 Rack Configuration Software to define alarm and danger setpoints for the monitored channels.
