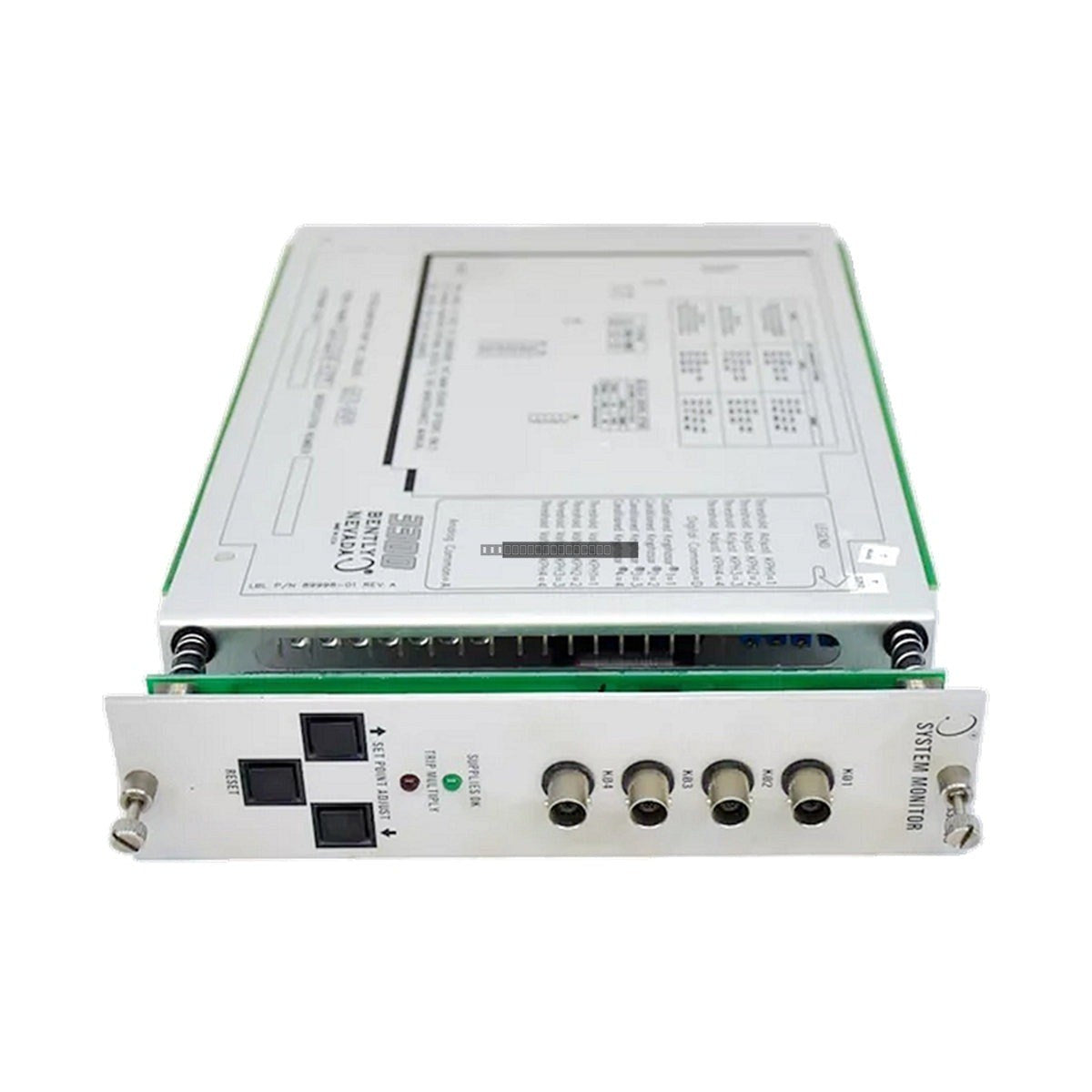

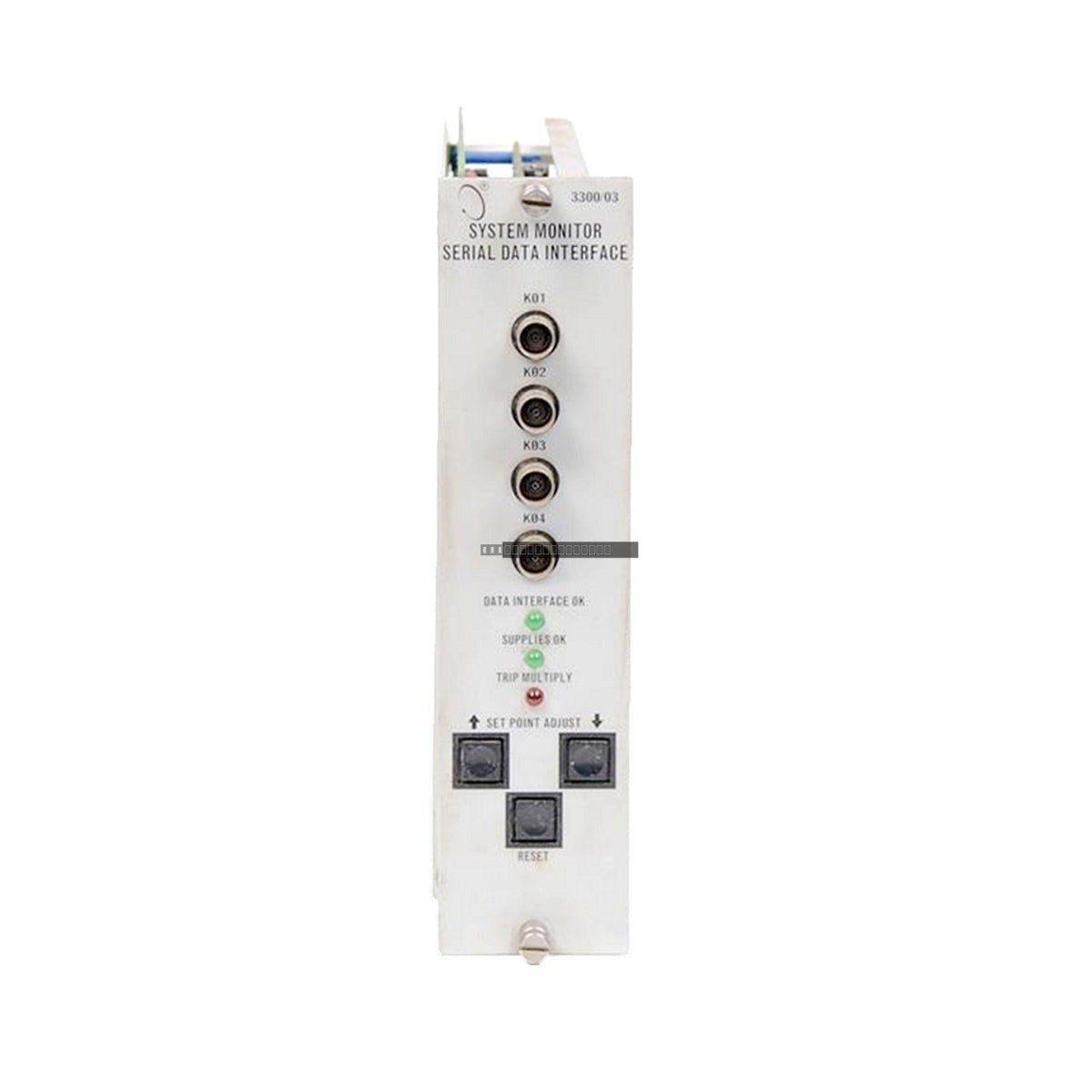

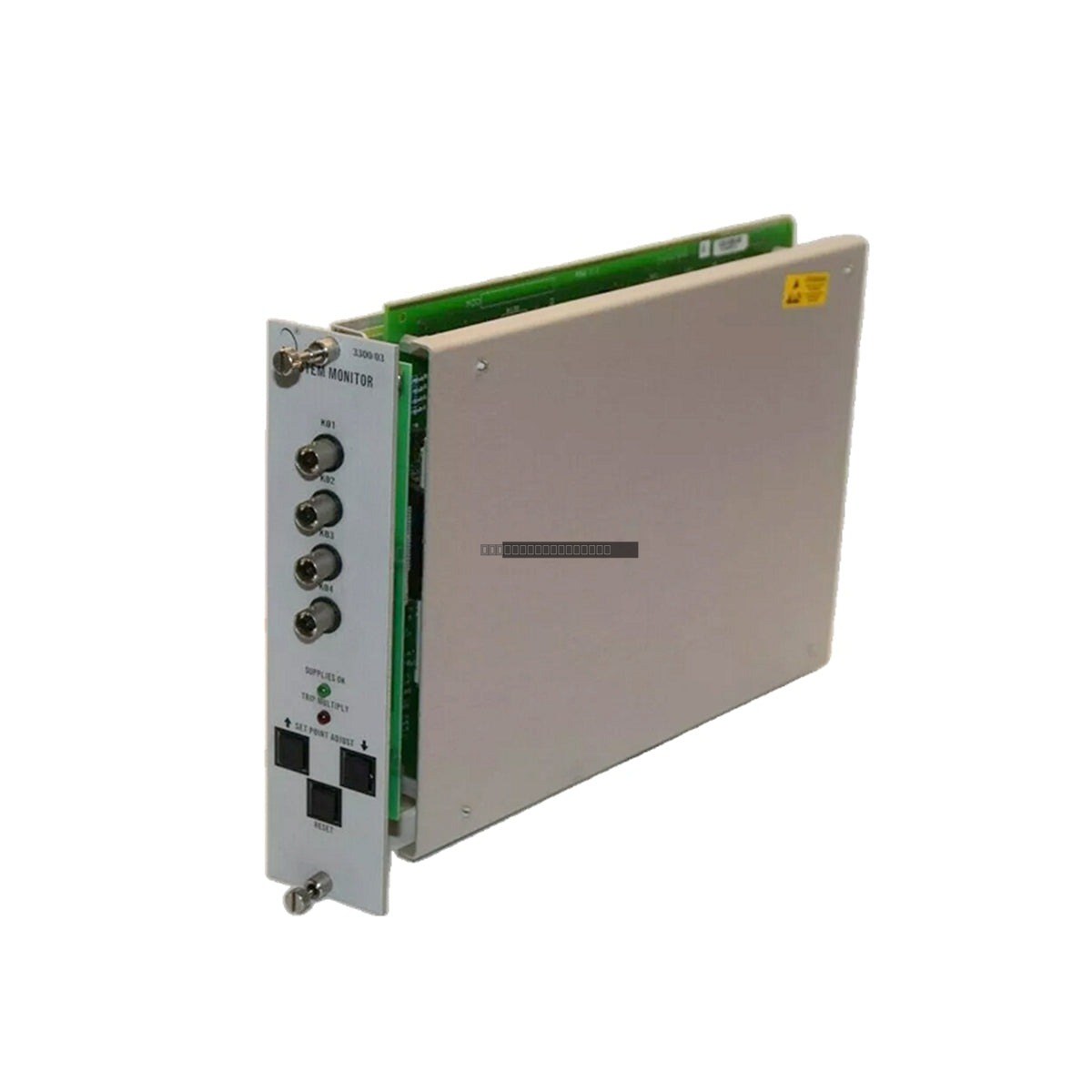

The Bently Nevada 3300/03 System Monitor is a critical supervisory module designed for the 3300 Series rack system. It acts as the central hub for monitoring the health and operational status of all installed modules within the rack. By continuously overseeing rack power, communication bus integrity, and individual module status, it ensures reliable alarm coordination and diagnostics for critical rotating machinery such as turbines and compressors.
Features
- Centralized supervision of all monitoring modules within the 3300 rack.
- Coordinates OK, Bypass, Alert, and Danger relay logic.
- Monitors rack power supply stability and communication bus integrity.
- Provides visual status updates via front-panel LED indicators.
- Interfaces with external control systems to facilitate alarm signaling and predictive maintenance data.
Applications
This module is intended for use in industrial environments where continuous monitoring of rotating equipment is required. It is typically deployed in power generation, oil and gas, and petrochemical facilities to maintain system-wide alarm integrity and diagnostic visibility.
Technical Specifications
| Model |
3300/03-03-00 |
| Brand |
Bently Nevada |
| Series |
3300 |
| Operating Temperature |
0 to 60 degC |
| Power Consumption |
~2 W |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
- Slide the module into the designated slot in the 3300 rack, ensuring proper alignment with the backplane connector.
- Secure the module using the front-panel captive screws to ensure a reliable ground connection and mechanical stability.
- Handle the module using standard ESD (Electrostatic Discharge) protection practices to avoid damaging sensitive internal circuitry.
- Verify that the rack power supply is within the specified operating range before energizing the system.
FAQ
What is the primary function of the 3300/03 module?
The 3300/03 serves as the system monitor, responsible for coordinating alarms and monitoring the overall health of the 3300 rack and its associated modules.
Is this module compatible with other 3300 series racks?
Yes, this module is designed specifically for the Bently Nevada 3300 series rack system architecture.
