ABB CI855 MasterBus 300 Communication Interface
The ABB CI855, also cataloged as the CI855 MasterBus 300 Communication Interface, provides MB 300 communication between AC 800M controllers and existing MasterBus 300 based controllers within System 800xA installations. The interface connects to the CEX-Bus through the TP853 baseplate and supports redundant Ethernet line connections.
Hardware Specifications
Parameter
Specification
Model
CI855
Brand
ABB
Product Type
MasterBus 300 Communication Interface
Article Number
3BSE018106R1
Communication Protocol
ABB MasterBus 300
Master or Slave
Master
Transmission Speed
10 Mbit/s, 200 datasets/s
Line Redundancy
Yes
Module Redundancy
No
Hot Swap
Yes
Used Together with HI Controller
Yes
Maximum Units on CEX-Bus
12
Baseplate
TP853
Connector
RJ-45 female, 8-pin
Ethernet Ports
2
Network Redundancy
Supported through two Ethernet ports
Power Consumption
Typical 150 mA at 24 V
Operating Temperature
0 deg C to +55 deg C
Storage Temperature
-40 deg C to +70 deg C
Corrosion Protection
G3 compliant to ISA 71.04
Protection Class
IP20 according to EN 60529 and IEC 529
CE Marking
Yes
Marine Certificates
BV, DNV-GL, LR
RoHS Compliance
EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance
Directive 2012/19/EU
Width
59 mm
Height
185 mm
Depth
127.5 mm
Weight Including Base
700 g
Origin
ABB manufacturing origin not specified in the supplied data
MasterBus 300 Communication and Industrial Network Integration
The CI855 implements ABB MasterBus 300 communication within the AC 800M controller environment. It connects through the CEX-Bus and uses the TP853 baseplate for physical installation and Ethernet network connections.
The interface operates as an MB 300 master and supports a transmission speed of 10 Mbit/s with up to 200 datasets/s. Furthermore, line redundancy supports redundant network communication, while module redundancy is not specified for the CI855.
The interface allows peer-to-peer communication between System 800xA plant sections using AC 800M controllers and existing MB 300 based controller sections. Supported legacy controller platforms include Advant Controller 410, Advant Controller 450, and MasterPiece 200/1.
For ABB industrial control architectures, the CEX-Bus provides the local communication path between the AC 800M controller and the CI855 interface. The specified maximum is 12 units on the CEX-Bus.
Frequently Asked Questions (FAQ)
Q: Does the CI855 support hot swapping?A: Yes. The supplied specifications identify the CI855 as supporting hot swap operation. Site procedures should still follow the applicable AC 800M and System 800xA maintenance requirements.
Q: Does the CI855 provide module redundancy?A: No. The supplied data specifies line redundancy as supported, while module redundancy is specified as not supported.
Q: How does the CI855 connect to the MB 300 network?A: The CI855 uses the TP853 baseplate, which provides two RJ-45 Ethernet connectors. The two ports support network redundancy within the MB 300 communication arrangement.
Field Installation Guidelines
Mount the TP853 baseplate on a suitable DIN rail with adequate mechanical clearance.
Install the CI855 onto the baseplate according to the AC 800M hardware installation procedure.
Connect the CEX-Bus interface through the designated baseplate connection.
Use the specified RJ-45 Ethernet interfaces for MB 300 network connections.
Route communication cables separately from high-voltage and high-current power wiring where practical.
Maintain appropriate cable bend radius and prevent excessive mechanical loading on RJ-45 connectors.
Apply the site grounding and shielding practices specified for the System 800xA installation.
Verify the redundant network topology before placing the CI855 into service.
Confirm the CEX-Bus unit count remains within the specified maximum of 12 units.
Check ambient temperature and enclosure conditions against the specified 0 deg C to +55 deg C operating range.
For corrosive environments, verify that the installation conditions remain within the stated G3 corrosion classification.
Perform communication diagnostics after installation before connecting the interface to operational MB 300 controller sections.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI856K01 S100 I/O Communication Interface
Configured for S100 I/O communication in AC 800M systems, the ABB CI856K01 (CI856 S100 I/O Communication Interface) provides the communication path between the AC 800M controller and S100 I/O racks. The CI856 connects to the CEX-Bus through the TP856 baseplate and requires no separate external power source.
Hardware Specifications
Parameter
Specification
Model
CI856K01
Base Model
CI856
Product ID
3BSE026055R1
Brand
ABB
Product Type
S100 I/O Communication Interface
Communication Protocol
ABB S100 I/O
Controller Interface
CEX-Bus
Master or Slave
Master
Transmission Speed
Not specified
Line Redundancy
No
Module Redundancy
No
Hot Swap
Yes
HI Controller Compatibility
Yes
Maximum Units on CEX-Bus
12
S100 I/O Rack Capacity
Up to 5 racks per CI856
I/O Boards per Rack
Up to 20
Connector
36-pin Miniribbon
Baseplate
TP856
Power Source
AC 800M processor unit via CEX-Bus
24 VDC Consumption
Typ. 120 mA
Typical Power Consumption
Approx. 2.88 W at 24 VDC
Operating Temperature
0 to +55 deg C
Storage Temperature
-40 to +70 deg C
Corrosion Protection
G3 compliant to ISA 71.04
Protection Class
IP20 according to EN 60529 and IEC 529
CE Marking
Yes
RoHS Compliance
EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance
Directive 2012/19/EU
Width
59 mm
Height
185 mm
Depth
127.5 mm
Weight Including Base
700 g
CEX-Bus and S100 I/O Communication
The CI856 exchanges S100 I/O data with the AC 800M controller through the CEX-Bus interface. The TP856 baseplate provides the mechanical mounting interface and houses the ribbon connector used for connection to S100 I/O rack bus extender boards.
One CI856 can connect to up to five S100 I/O racks. Each rack can accommodate up to 20 I/O boards. Therefore, the supported architecture permits distributed S100 I/O expansion while retaining the controller-side CEX-Bus connection.
The module receives its operating power from the AC 800M processor unit through the CEX-Bus. Consequently, the CI856 does not require a separate external power supply.
The specified 36-pin Miniribbon connector provides the physical interface for the communication assembly. The TP856 baseplate also supports DIN-rail mounting for installation within the control cabinet.
Frequently Asked Questions (FAQ)
Q: How many S100 I/O racks can one CI856K01 support?A: One CI856K01 can connect to up to five S100 I/O racks, with each rack supporting up to 20 I/O boards.
Q: Does the CI856K01 require an external power supply?A: No. The CI856 receives power from the AC 800M processor unit through the CEX-Bus. Its typical 24 VDC consumption is 120 mA.
Q: What connector does the CI856K01 use for the CEX-Bus connection?A: The supplied specification identifies a 36-pin Miniribbon connector. The connector is housed through the TP856 baseplate assembly.
Field Installation Guidelines
Mount the TP856 baseplate on a suitable DIN rail inside the control cabinet.
Install the CI856 communication interface on the TP856 baseplate according to the AC 800M hardware installation procedure.
Connect the baseplate to the CEX-Bus using the specified system connection arrangement.
Connect the TP856 ribbon interface to the S100 I/O rack bus extender boards.
Route communication and power-related wiring separately from high-current switching and high-noise circuits where practical.
Verify connector seating and mechanical retention before energizing the controller assembly.
Maintain cabinet grounding and shielding practices specified by the AC 800M and S100 I/O installation documentation.
Confirm that the installed rack count and I/O board count remain within the CI856 architecture limits.
Check the cabinet operating temperature against the specified 0 to +55 deg C range.
Inspect the installation for correct IP20 enclosure protection and adequate environmental control.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI856K01 S100 I/O Interface
Configured for communication between an AC 800M controller and an S100 I/O system, the ABB CI856K01 (CI856 Communication Interface) provides the hardware interface required for S100 system integration. The package includes the CI856 communication interface and TP856 baseplate.
Hardware Specifications
Parameter
Specification
Model
CI856K01
Product ID
3BSE026055R1
Brand
ABB
Product Type
Communication Module
Function
S100 I/O interface for AC 800M
System Interface
AC 800M to S100 system
Package Contents
CI856 Communication Interface; TP856 Baseplate
Dimensions
127.5 mm D x 186 mm H x 59 mm W
Weight
0.7 kg
RoHS
EU Directive 2011/65/EU
WEEE Category
5. Small Equipment
Batteries
0
HS Code
851762
Customs Tariff Number
85176200
Industrial Control Interface Characteristics
The CI856K01 handles the physical communication interface between an AC 800M controller and an S100 system. Therefore, installation must preserve the intended module-to-system connection path and mechanical seating of the communication hardware.
The supplied package combines the CI856 communication interface with the TP856 baseplate. This configuration provides the required mounting platform for the interface module while maintaining the specified overall hardware dimensions.
Because the supplied data does not define communication speed, channel count, current consumption, or firmware requirements, those values should be taken from the applicable ABB system documentation rather than inferred from the product designation.
Frequently Asked Questions (FAQ)
Q: What is the primary function of the CI856K01?
A: The CI856K01 provides communication between an AC 800M controller and an S100 system.
Q: What components are included with the CI856K01 package?
A: The package includes one CI856 Communication Interface and one TP856 Baseplate.
Q: What are the physical dimensions of the CI856K01?
A: The supplied data specifies 127.5 mm depth, 186 mm height, and 59 mm width, with a net weight of 0.7 kg.
Field Installation Guidelines
Install the TP856 baseplate on a suitable control-system mounting surface before fitting the CI856 communication interface. Verify that the module seats correctly and that no mechanical obstruction affects connector engagement.
Keep communication wiring separated from high-current switching conductors and other sources of electromagnetic interference. Where shielded communication cables are specified by the system design, terminate and ground the shield according to the applicable ABB installation documentation.
Before energizing the controller system, inspect connectors, mounting hardware, cable routing, and module seating. Also verify that the installed CI856K01 matches the intended AC 800M and S100 system configuration.
Do not apply operating temperature, power consumption, communication speed, or electrical loading values that are not confirmed by the applicable ABB hardware documentation.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI858 DriveBus Communication Interface
Configured for DriveBus communication between ABB Drives, ABB Special I/O units, and an AC 800M controller, the ABB CI858 (CI858 DriveBus Communication Interface) provides the controller-side interface for ABB DriveBus networks. The interface operates as a DriveBus master at 8 Mbit/s and receives its power through the CEX-Bus from the processor unit.
Hardware Specifications
Parameter
Specification
Model
CI858
Product ID
3BSE018135R1
Brand
ABB
Product Type
DriveBus Communication Interface
Communication Protocol
ABB DriveBus
Master or Slave
Master
Transmission Speed
8 Mbit/s
Line Redundancy
No
Module Redundancy
No
Hot Swap
Yes
Used Together with HI Controller
No
Maximum Units on CEX-Bus
2
Connector
Optical
Power Supply
Via CEX-Bus from processor unit
24 V Consumption, Typical
200 mA
Operating Temperature
0 to +55 deg C
Storage Temperature
-40 to +70 deg C
Corrosion Protection
G3 compliant to ISA 71.04
Protection Class
IP20 according to EN60529, IEC 529
CE Marking
Yes
Marine Certificates
ABS, BV, DNV-GL, LR
RoHS Compliance
EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance
Directive 2012/19/EU
Width
59 mm
Height
185 mm
Depth
127.5 mm
Weight Including Base
700 g
DriveBus Communication Characteristics
The CI858 provides the DriveBus communication path between an AC 800M controller and compatible ABB Drives and ABB Special I/O units. The interface operates as the network master and supports an 8 Mbit/s transmission rate.
ABB designed DriveBus for sectional drive applications, including ABB rolling mill drive systems and paper machine control systems. Therefore, the CI858 handles the controller-side communication interface without requiring a separate external power source.
The CI858 receives operating power through the CEX-Bus from the processor unit. Its typical 24 V consumption is 200 mA. The interface supports hot swap, while the specified configuration provides no line redundancy or module redundancy.
The optical connector provides the physical DriveBus connection. The CEX-Bus supports a maximum of two CI858 units according to the supplied technical data.
Industrial Control and Drive Interface
The CI858 belongs to the ABB AC 800M communication interface architecture and uses the CEX-Bus for internal controller communication. Consequently, installation must maintain the required CEX-Bus connection between the processor unit and communication interface.
For DriveBus applications, the communication interface should be configured according to the connected ABB Drive system and controller application. The supplied data specifies DriveBus at 8 Mbit/s and identifies the CI858 as the master device.
This interface does not use an external power supply. Instead, the processor unit supplies the CI858 through the CEX-Bus, while the optical connector provides the external communication path.
Frequently Asked Questions (FAQ)
Q: Does the CI858 require an external power supply?A: No. The CI858 receives power from the AC 800M processor unit through the CEX-Bus. The typical 24 V consumption is 200 mA.
Q: What communication protocol and transmission speed does the CI858 use?A: The CI858 uses ABB DriveBus and operates at a specified transmission speed of 8 Mbit/s.
Q: Does the CI858 support hot swap and redundant operation?A: The CI858 supports hot swap. The supplied specifications state that neither line redundancy nor module redundancy is provided.
Field Installation Guidelines
Install the CI858 within the specified operating temperature range of 0 to +55 deg C.
Maintain the IP20 installation environment and provide suitable enclosure protection for the complete control assembly.
Connect the CI858 to the AC 800M CEX-Bus according to the controller hardware configuration.
Do not add an external power supply to the CI858 when using the specified CEX-Bus power arrangement.
Connect the optical DriveBus interface using compatible optical cabling and approved connectors.
Route communication cabling separately from high-current power conductors where practical to reduce electromagnetic interference.
Maintain proper cabinet grounding and bonding for the controller enclosure and associated drive equipment.
Verify the DriveBus master configuration before placing connected ABB Drives or Special I/O units into operation.
Confirm the CEX-Bus configuration when installing more than one CI858, as the supplied specification permits a maximum of two units on the CEX-Bus.
Observe the specified storage range of -40 to +70 deg C when storing the module before installation.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI861K01 VIP Communication Interface
Configured for VIP communication within AC 800M controller architectures, the ABB CI861K01 (CI861 VIP Communication Interface) provides the communication hardware interface supplied with the TP853 baseplate. The package is specified for AC800xA M/PEC systems and includes the CI861 communication unit and TP853 baseplate.
Hardware Specifications
Parameter
Specification
Model
CI861K01
Base Model
CI861
Brand
ABB
Product Type
Communication Module
Communication Function
VIP Communication Interface
Compatible System
AC800xA M/PEC
Included Baseplate
TP853
Baseplate Width
60 mm
Product ID
3BSE058590R1
Replaced Product IDs
3AUA0000083933; 5FSE707630-72
Origin
Sweden; United States
Weight
0.621 kg
Dimensions
185 mm x 59 mm x 127.5 mm package dimensions
Package Depth / Length
185 mm
Package Height
127.5 mm
Package Width
59 mm
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Part Type
New
RoHS Status
Not RoHS compliant
WEEE Category
5. Small Equipment
HS Code
851762
Batteries
0
ABB Controller Interface and Baseplate Integration
The CI861K01 combines the CI861 VIP communication interface with the TP853 baseplate. Therefore, installation requires the supplied baseplate arrangement rather than treating the communication interface as an independent field wiring component.
The TP853 baseplate has a specified width of 60 mm. Consequently, cabinet layout must provide sufficient mechanical clearance for the complete assembly and its associated controller-side connections.
The supplied data identifies CI861K01 as a communication module for AC800xA M/PEC systems. However, it does not specify communication speed, protocol frame rate, power consumption, or firmware revision requirements. These parameters should therefore be verified against the applicable ABB system documentation before configuration.
The product data also lists replaced product identifiers 3AUA0000083933 and 5FSE707630-72. These identifiers should not be interpreted as electrical equivalents without checking the applicable hardware and software compatibility documentation.
Frequently Asked Questions
Q: What components are included with the CI861K01 package?A: The package includes one CI861 VIP Communication Interface and one TP853 baseplate.
Q: What is the specified baseplate width?A: The TP853 baseplate has a specified width of 60 mm.
Q: Does the supplied data specify power consumption or operating temperature?A: No. The provided product information does not state either parameter, so application-specific values must be obtained from the applicable ABB technical documentation.
Field Installation Guidelines
Install the CI861 communication interface on the specified TP853 baseplate according to the ABB hardware installation procedure.
Verify the mechanical mounting position before energizing the AC 800M assembly. Allow clearance for connectors, wiring, and module removal.
Confirm that the installed controller hardware and system configuration support the CI861K01 before commissioning.
Route communication wiring separately from high-voltage power conductors where practical to reduce electromagnetic coupling.
Maintain appropriate cable shielding and grounding practices according to the applicable ABB installation documentation and the plant grounding design.
Do not apply unverified power or signal connections to the communication interface. Use the connector assignments and electrical limits specified for the installed hardware revision.
Before system startup, verify module seating, baseplate engagement, connector retention, and controller-side configuration.
Because the supplied data does not define operating temperature or power consumption, confirm these parameters from the applicable hardware manual before final cabinet thermal and power calculations.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI868A IEC 61850 Interface
Configured for IEC 61850 communication in System 800xA, the ABB CI868A (CI868 IEC 61850 Interface) connects an AC 800M controller with external Ethernet devices. It supports MMS client communication and GOOSE publishing/subscription, with 10/100 Mbit/s Ethernet connectivity through the TP868 Baseplate.
Hardware Specifications
Parameter
Specification
Model
CI868A
Base Model
CI868
Brand
ABB
Product Type
IEC 61850 Communication Interface
Article Number
3BSE092691R1
System Platform
System 800xA
Communication Protocol
IEC 61850
IEC 61850 Edition
Edition 2
Client / Server Functions
MMS Client, GOOSE Publisher and Subscriber
Ethernet Speed
10/100 Mbit/s
Ethernet Connector
RJ-45 female, 8-pin
Ethernet Ports
2 RJ-45 connectors on TP868 Baseplate
CH1 Speed
10/100 Mbit/s
Network Redundancy
No
Module Redundancy
No
Hot Swap
Yes
CEX-Bus Capacity
Maximum 12 units
24 V Consumption
Typical 160 mA
Power Dissipation
3.8 W
Used with HI Controller
Yes
Operating Temperature
0 to +55 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95 %, non-condensing
Operating Altitude
2000 m
Pollution Degree
Degree 2
Corrosion Protection
G3, ISA 71.04
Protection Class
IP20, EN 60529 / IEC 529
Electrical Safety
UL 61010-1, UL 61010-2-201
Hazardous Location
UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, Ex nA IIC T4Gc X
Marine Certifications
DNV-GL; ABS, BV and LR pending
CE Marking
Yes
RoHS Compliance
EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance
Directive 2012/19/EU
Width
59 mm
Height
185 mm
Depth
127.5 mm
Weight, Including Base
700 g
Compatible System Versions
System 800xA 6.0.3.3, 6.1.1 and subsequent versions
IEC 61850 Communication and Ethernet Interface
The CI868A provides an Ethernet communication path between an AC 800M controller and IEC 61850 external devices. It implements IEC 61850 Edition 2 functions for substation automation data exchange.
The module supports MMS as a client and GOOSE as both publisher and subscriber. Therefore, the controller can exchange IEC 61850 process and control data without requiring a separate controller for the electrical control interface.
The TP868 Baseplate provides two RJ-45 Ethernet connectors. CH1 supports 10 Mbit/s or 100 Mbit/s operation. The Ethernet connection must pass through an Ethernet switch before connecting to the main network.
The baseplate uses a mechanical code lock to prevent installation of an incompatible unit type. This coding mechanism restricts incorrect module installation on the corresponding baseplate.
CEX-Bus and Power Architecture
The CI868A expansion unit contains the CEX-Bus logic, communication electronics, and a DC/DC converter. The converter derives the required internal voltages from the +24 V supply through the CEX-Bus.
The CEX-Bus supports up to 12 units. Typical 24 V consumption is 160 mA, while the specified power dissipation is 3.8 W.
ABB specifies hot-swap capability for the module. However, network configuration, controller state, and system maintenance procedures should be considered before removing or installing the unit in an operating system.
The CI868A does not provide network redundancy or module redundancy according to the supplied technical data.
System Compatibility
The CI868A is specified for System 800xA version 6.0.3.3, version 6.1.1, and subsequent versions. System software compatibility should therefore be verified before deployment or replacement.
The module can also be used together with an HI Controller where the corresponding System 800xA configuration supports the hardware.
Frequently Asked Questions
Q: What IEC 61850 communication functions does the CI868A provide?A: The CI868A supports MMS client communication and GOOSE publishing and subscription under IEC 61850 Edition 2.
Q: What Ethernet speed does the CI868A support?A: The TP868 Baseplate CH1 Ethernet interface supports 10 Mbit/s and 100 Mbit/s operation through an RJ-45 connection.
Q: Does the CI868A support network or module redundancy?A: The supplied specifications state that both network redundancy and module redundancy are not supported.
Field Installation Guidelines
Install the CI868A only on the compatible TP868 Baseplate and verify the mechanical code before insertion.
Connect the Ethernet cable through an appropriate Ethernet switch before connecting to the main network.
Use the designated CH1 RJ-45 connector for the specified Ethernet communication path.
Maintain physical separation between Ethernet communication cables and high-voltage or high-current conductors where practical.
Route communication cables to minimize exposure to electromagnetic interference from switching equipment and power circuits.
Verify the +24 V supply and CEX-Bus installation before commissioning the communication interface.
Confirm that the installed System 800xA version is 6.0.3.3, 6.1.1, or a subsequent supported version.
Check IEC 61850 device configuration, MMS client parameters, and GOOSE publisher/subscriber assignments before placing the controller into service.
Observe the specified 0 to +55 deg C operating temperature range and 5 to 95 % non-condensing relative humidity range.
Provide an enclosure or installation environment that maintains the specified IP20 protection and pollution conditions.
Follow the applicable IEC/EN, UL, hazardous-location, and site-specific electrical installation requirements during commissioning.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI868K01 IEC 61850 Interface
The ABB CI868K01, also cataloged as the CI868 IEC 61850 Interface, provides communication interface hardware for IEC 61850 data exchange within ABB System 800xA control architectures. The package includes the CI868 communication interface and TP867 baseplate.
Hardware Specifications
Parameter
Specification
Model
CI868K01
Base Module
CI868
Brand
ABB
Product ID
3BSE048845R1
Product Type
Communication Module
Function
IEC 61850 Interface
Package Contents
CI868 Communication Interface + TP867 Baseplate
Mounting Baseplate
TP867
Dimensions
127.5 mm depth x 59 mm width x 186 mm height
Weight
0.7 kg
Operating Temp
Not specified in supplied data
Power Consumption
Not specified in supplied data
Communication Protocol
IEC 61850
Environmental Compliance
EU Directive 2011/65/EU
WEEE Category
5 - Small Equipment
Battery Quantity
0
HS Code
851762
Customs Tariff Number
85176200
IEC 61850 Communication Interface
The CI868 provides the hardware interface for IEC 61850 communication within the applicable ABB control architecture. Therefore, the communication function depends on the CI868 interface electronics and its associated TP867 baseplate.
The supplied data identifies the unit specifically as an IEC 61850 Interface. However, it does not specify Ethernet port count, link speed, supported IEC 61850 services, maximum data throughput, or network redundancy behavior. These parameters should therefore be confirmed against the applicable ABB hardware and system documentation rather than inferred.
The CI868 package uses the TP867 baseplate as its mechanical and electrical mounting interface. Consequently, installation should maintain the specified baseplate arrangement and the manufacturer's system-level wiring requirements.
Frequently Asked Questions (FAQ)
Q: What does the CI868K01 package contain?A: The package contains one CI868 Communication Interface and one TP867 Baseplate.
Q: Does the supplied data specify CI868K01 power consumption?A: No. The provided ABB data does not state a power-consumption value, so no numerical value should be assigned without the applicable technical manual.
Q: What communication protocol does CI868K01 support?A: ABB identifies CI868K01 as an IEC 61850 Interface. The supplied data does not specify individual IEC 61850 services or network performance parameters.
Field Installation Guidelines
Install the CI868 on the specified TP867 baseplate and follow the applicable ABB mounting procedure.
Verify that the baseplate is correctly positioned and mechanically secured before connecting system wiring.
Route communication cables separately from high-voltage and high-current conductors where practical to reduce electromagnetic interference.
Maintain appropriate cable shielding and grounding practices according to the ABB installation documentation and the site grounding design.
Inspect connectors and cable terminations before energizing the communication interface.
Confirm that the installed hardware matches the required CI868K01 product identification, including Product ID 3BSE048845R1.
Do not apply an assumed power-consumption, network-speed, or redundancy specification when the applicable ABB documentation does not state it.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI871AK01 PROFINET IO Communication Interface
Configured for PROFINET IO communication in System 800xA, the ABB CI871AK01 (CI871A PROFINET IO Communication Interface) connects AC 800M controllers to PROFINET IO devices through Ethernet. The module uses the CH1 Ethernet connector on the TP867 Baseplate for the PROFINET IO network. ABB specifies compatibility with System 800xA 6.0.3.3, 6.1.1, and subsequent versions.
Hardware Specifications
Parameter
Specification
Model
CI871AK01
Base Model
CI871A
Brand
ABB
Product Type
PROFINET IO Communication Interface
Article Number
3BSE092693R1
Origin
Not specified
Communication Protocol
PROFINET IO
Master or Slave
Master
Transmission Speed
10/100 Mbit/s
Line Redundancy
No
Module Redundancy
Yes
Hot Swap
Yes
Used Together with HI Controller
Yes
CEX-Bus Capacity
Maximum 12 units
Connector
RJ-45 female, 8-pin
PROFINET Connection
TP867 CH1
Ethernet Connection
Ethernet switch required for PROFINET IO network connection
24 V Consumption
Typ. 160 mA
Operating Temperature
0 to +55 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95 %, non-condensing
Maximum Altitude
2000 m according to IEC/EN 61131-2
Pollution Degree
Degree 2 according to IEC/EN 61131-2
Corrosion Protection
G3 according to ISA 71.04
Protection Class
IP20 according to EN60529, IEC 529
Electrical Safety
UL 61010-1, UL 61010-2-201
Hazardous Location
UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
Marine Certificates
DNV-GL; ABS, BV, and LR pending
CE Marking
Yes
RoHS Compliance
EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance
Directive 2012/19/EU
Width
59 mm
Height
185 mm
Depth
127.5 mm
Weight Including Base
700 g
Power Consumption
24 V supply, typ. 160 mA
PROFINET IO and CEX-Bus Communication
The CI871A provides the communication path between an AC 800M controller and PROFINET IO devices. The TP867 Baseplate provides two RJ-45 Ethernet connectors; however, only CH1, which supports 100 Mbit/s operation, is used for the PROFINET IO connection.
The Ethernet cable connects the CH1 interface to the PROFINET IO network through an Ethernet switch. Therefore, the installation must place the required switch between the CI871A interface and the connected PROFINET IO network.
Internally, the CI871 expansion unit contains CEX-Bus logic, a communication unit, and a DC/DC converter. The converter derives the required operating voltage from the +24 V supply through the CEX-Bus. The CEX-Bus supports a maximum of 12 units.
The module supports module redundancy but does not provide line redundancy. It also supports hot swap according to the stated hardware configuration.
Frequently Asked Questions
Q: Which Ethernet connector on the TP867 Baseplate carries the PROFINET IO connection?A: The CH1 RJ-45 connector is used for the PROFINET IO connection. The installation connects CH1 to the PROFINET IO network through an Ethernet switch.
Q: What System 800xA versions support the CI871AK01?A: The CI871A operates with System 800xA 6.0.3.3, 6.1.1, and subsequent versions. Earlier compatibility should not be assumed without ABB documentation.
Q: What is the typical 24 V supply consumption?A: The specified typical consumption is 160 mA from the 24 V supply through the CEX-Bus arrangement.
Field Installation Guidelines
Mount the CI871A with its TP867 Baseplate according to the AC 800M hardware installation procedure.
Connect the required 24 V supply and verify the CEX-Bus installation before commissioning.
Connect the PROFINET IO Ethernet cable to the CH1 RJ-45 connector.
Route the Ethernet cable to the PROFINET IO network through the required Ethernet switch.
Keep Ethernet communication wiring separated from high-voltage and high-current power conductors where practical.
Apply appropriate cable shielding and grounding practices for the installed industrial Ethernet network.
Verify that the installation environment remains within 0 to +55 deg C operating temperature and 5 to 95 % non-condensing humidity.
Confirm that the selected System 800xA software version is 6.0.3.3, 6.1.1, or a subsequent supported version before commissioning.
Check the RJ-45 connection and network topology before enabling PROFINET IO device communication.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI871K01 Profinet IO Interface
Configured for Profinet I/O communication, the ABB CI871K01 (CI871 Profinet I/O Interface) provides network communication between ABB control hardware and Profinet I/O devices. The package includes the CI871 communication interface and TP867 baseplate.
Hardware Specifications
Parameter
Specification
Model
CI871K01
Base Model
CI871
Product ID
3BSE056767R1
Brand
ABB
Product Type
Communication Module
Function
Profinet IO Interface
Package Contents
CI871 Communication Interface + TP867 Baseplate
Communication Network
Profinet IO
Dimensions
127.5 mm D x 186 mm H x 59 mm W
Weight
0.7 kg
RoHS
Complies with EU Directive 2011/65/EU
WEEE Category
Category 5 - Small Equipment
Batteries
0
HS Code
851762
Customs Tariff Number
85176200
Profinet IO Communication and Hardware Integration
The CI871 provides the communication interface required for Profinet IO connectivity. It operates as a dedicated network component rather than as a field signal termination device.
The supplied TP867 baseplate provides the specified mechanical mounting interface for the CI871. Therefore, installation should maintain the manufacturer's prescribed baseplate arrangement and physical clearances.
For network operation, Profinet cabling should follow the applicable industrial Ethernet wiring practices. Keep communication cables separated from high-voltage or high-current conductors where practical, and maintain appropriate shielding and grounding practices.
The supplied data does not specify communication speed, supported Profinet device count, network topology limits, firmware compatibility, or backplane current consumption. These parameters should therefore be verified against the applicable ABB system documentation before system configuration.
Frequently Asked Questions
Q: What is included with the ABB CI871K01 package?A: The package includes one CI871 Communication Interface and one TP867 Baseplate.
Q: What network function does the CI871K01 provide?A: It provides a Profinet IO communication interface for connecting compatible industrial control hardware with Profinet IO devices.
Q: What are the physical dimensions and weight of the package hardware?A: The supplied product data specifies 127.5 mm depth, 186 mm height, 59 mm width, and 0.7 kg net weight.
Field Installation Guidelines
Install the CI871 on the specified TP867 baseplate and secure the assembly according to ABB mechanical installation requirements.
Verify the mounting position before connecting network or system wiring.
Route Profinet communication cables separately from power conductors where practical to reduce electromagnetic interference.
Maintain cable bend radius and connector access required by the selected industrial Ethernet cabling system.
Apply the applicable shield termination and protective grounding method defined by the system installation design.
Confirm connector engagement before commissioning network communication.
Verify the installed module identification against the configured CI871 hardware before system startup.
Do not assume operating temperature, power consumption, network capacity, or firmware compatibility from the supplied product identification alone; verify these values against the applicable ABB documentation.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
ABB CI871AK01 PROFINET IO Interface
The ABB 3BSE092693R1, also cataloged as the CI871AK01 PROFINET IO Interface, provides PROFINET IO communication within ABB 800xA control architectures. The package includes the CI871A communication interface and TP867 baseplate.
Hardware Specifications
Parameter
Specification
Model
CI871AK01
Product ID
3BSE092693R1
Brand
ABB
Product Type
Communication Module
Communication Interface
PROFINET IO
Package Contents
CI871A Communication Interface; TP867 Baseplate
Compatible Platform
ABB 800xA
800xA Compatibility
6.0.3.3, 6.1.1, and onwards
Compact Control Builder Compatibility
6.0.0-3, 6.1.1, and onwards
Weight
0.7 kg
Dimensions
127.5 mm D x 59 mm W x 186 mm H
RoHS
EU Directive 2011/65/EU
WEEE Category
5. Small Equipment
Battery Quantity
0
HS Code
85176200
PROFINET IO Communication and Industrial Network Characteristics
The CI871AK01 provides a PROFINET IO interface for data exchange between ABB control-system infrastructure and compatible PROFINET IO devices. It operates as a communication interface rather than a standalone controller.
The supplied package combines the CI871A communication interface with the TP867 baseplate. Therefore, installation requires the associated mounting and backplane arrangement supported by the target ABB architecture.
For system integration, verify the installed 800xA and Compact Control Builder versions before commissioning. The supplied ABB data specifically identifies compatibility with 800xA 6.0.3.3 and 6.1.1, Compact Control Builder 6.0.0-3 and 6.1.1, and later supported versions.
Frequently Asked Questions (FAQ)
Q: What communication protocol does the CI871AK01 support?A: The CI871AK01 is a PROFINET IO communication interface for ABB control-system architectures.
Q: What is included with ABB 3BSE092693R1?A: The package includes one CI871A communication interface and one TP867 baseplate.
Q: Which ABB software versions are identified as compatible?A: The supplied data specifies ABB 800xA 6.0.3.3 and 6.1.1, Compact Control Builder 6.0.0-3 and 6.1.1, and onwards.
Field Installation Guidelines
Install the CI871A and TP867 assembly according to the applicable ABB hardware installation documentation. Confirm the mounting position and backplane connection before energizing the system.
Route PROFINET network cabling separately from high-voltage power conductors and high-noise switching circuits where practical. Maintain proper cable shielding and grounding according to the installed network architecture.
Before commissioning, verify the module identity, hardware revision, software compatibility, network addressing, and PROFINET device configuration. Do not apply operating parameters that are not supported by the system documentation.
15 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Honeywell TK-OAV061 is a high-precision analog output module engineered for demanding industrial automation and process control environments. This module provides six independent analog voltage output channels, designed to deliver stable and accurate signals for controlling actuators, control valves, and various instrumentation loops. By utilizing a 14-bit resolution architecture, the TK-OAV061 ensures fine control over signal variation, making it suitable for continuous process industries such as chemical processing, power generation, and refining.Features
6-channel analog voltage output configuration.
14-bit resolution across a 21 V total output span.
Robust output impedance of less than 3 ohm, supporting loads of 1 k ohm or higher.
Integrated overvoltage and short-circuit protection for each channel.
High-stability design with low temperature drift (offset 60 microV/deg C; gain 50 ppm/deg C).
Galvanic isolation rated at 2546 VDC for 1 second (channel-to-channel and user-to-system).
ApplicationsThis module is primarily deployed in distributed control systems (DCS) and large-scale automation architectures. Typical applications include:
Proportional control of industrial valves and dampers.
Signal generation for variable speed drives and actuators.
Precision instrumentation control loops in continuous process plants.
Technical Specifications
Model
TK-OAV061
Output Channels
6
Output Range
+/- 10.50 VDC
Resolution
14-bit
Output Impedance
< 3 ohm
Load Capability
>= 1 k ohm
Accuracy
< 0.1% at 25 deg C
Power Consumption
4.9 W (max)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the module from the backplane.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that field wiring is properly shielded and routed away from high-voltage AC lines to prevent EMI interference.
Ensure the module is fully seated in the rack slot and secured according to the system chassis specifications.
Maintain adequate ventilation around the module to ensure operating temperatures remain within the specified 0 to 60 deg C range.
FAQWhat is the primary function of the TK-OAV061?The TK-OAV061 is an analog output module used to convert digital control signals from a PLC or DCS into precise analog voltage signals for field devices like valves and actuators.What type of protection is built into the module?Each of the six channels is equipped with dedicated overvoltage and short-circuit protection to prevent damage to the module and field wiring during fault conditions.Can this module be used in high-temperature environments?The module is rated for an operating temperature range of 0 to 60 deg C. It features temperature compensation circuits to minimize drift and maintain accuracy within these limits.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Siemens 6AV6542-0AG10-0AX0 is a SIMATIC MP 270B Multi Panel designed for industrial operator interface applications. This unit features a 10.4-inch TFT color display and a membrane keypad, providing a robust solution for monitoring and controlling automated processes. As a legacy device, it is frequently utilized in established machine control systems requiring reliable human-machine interaction.Features
10.4-inch TFT color display with 640 x 480 pixel resolution.
Integrated membrane keyboard for tactile operator input.
4 MB of configuration memory.
Configurable via Siemens ProTool software (Version V6.0 or higher).
Integrated USB interface for peripheral connectivity.
Designed for demanding industrial environments with a rated current consumption of 0.9 A.
Applications
Packaging and palletizing systems for recipe management and error logging.
Industrial kilns and ovens for multi-step temperature profiling.
Water treatment and pump station monitoring.
Injection molding machine cycle and pressure monitoring.
Maritime machinery and engine control systems.
Technical Specifications
Model
6AV6542-0AG10-0AX0
Display Type
TFT, 256 colors
Screen Diagonal
10.4 inch
Resolution
640 x 480 pixels
Backlight MTBF
50,000 hours (at 25 degC)
Control Elements
Membrane keyboard
Power Input (typ.)
22 W
Rated Current
0.9 A
Memory
4 MB configuration memory
Interfaces
1x USB
Installation Guidelines
Ensure the panel is mounted in a clean, dry environment within an appropriate IP-rated enclosure.
Verify that the mounting cutout dimensions are accurate to maintain the integrity of the front seal.
Use a damp, soft cloth for cleaning the front membrane; avoid abrasive cleaners or solvents that may damage the display or seal.
Ensure proper grounding of the panel chassis to minimize electromagnetic interference (EMI).
Power down the system before connecting or disconnecting communication cables or peripheral devices.
Maintain adequate ventilation around the rear of the unit to prevent overheating during operation.
FAQsWhat is the 6AV6542-0AG10-0AX0?The Siemens 6AV6542-0AG10-0AX0 is an industrial multi-panel with a 10.4-inch color display and functional keys, typically used with ProTool V6.0 or higher software for process visualization.What is the difference between MP270 and MP270B?The 6AV6542-0AG10-0AX0 is a Multi Panel 270B model. The 'B' designation generally indicates updated processor performance and memory specifications compared to the original MP270 series.What is the memory capacity?The device features 4 MB of configuration memory and supports up to 2,048 variables for process monitoring.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

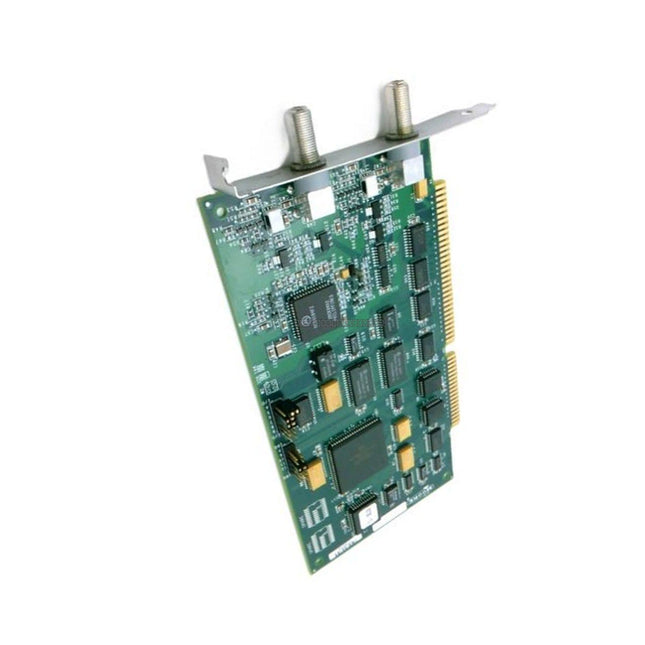

DescriptionThe 16267-1/4 (1626714) is a specialized Modulnet Communication Interface Module designed for the Siemens Moore APACS+ Distributed Control System (DCS). This module serves as the primary physical and logical bridge for MNET (Modulnet) peer-to-peer data exchange, connecting process automation controllers to high-level operator consoles. It is engineered for mission-critical industrial environments, including petrochemical refineries, power generation, and chemical processing, where deterministic, high-speed communication is required to maintain process integrity and minimize data latency.Features
Facilitates reliable peer-to-peer communication across the APACS+ MNET backbone.
Manages proprietary token-passing mechanisms and integrated error-checking routines.
Provides high-integrity electrical isolation to protect backplane electronics from network-induced surges and ground loops.
Supports redundant network architectures to ensure continuous control operations during cable faults or partial failures.
Optimized for deterministic data transfer of process variables, alarms, and configuration data.
ApplicationsThis communication interface is essential for maintaining legacy APACS+ control networks. It is typically deployed in large-scale industrial automation systems where real-time process visibility and high-availability communication between rack-mounted controllers are required.Technical Specifications
Model
16267-1/4
Brand
Siemens (Moore APACS+)
Module Type
MNET Modulnet Communication Interface
Protocol
Modulnet (MNET)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5% to 95% (non-condensing)
Power Source
APACS+ Rack Backplane
Installation Guidelines
Ensure the APACS+ rack power is disconnected before installing or removing the module to prevent electrical damage.
The module is designed for a standard APACS+ single-slot footprint; ensure proper alignment with the backplane connector before seating.
Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
Verify that all MNET cabling is properly shielded and routed away from high-voltage lines or significant EMI sources to maintain signal integrity.
Ensure the module is fully seated and the locking mechanism is engaged to maintain a secure connection to the backplane.
FAQWhat is the primary function of the 16267-1/4 module?The 16267-1/4 acts as the communication interface for the Modulnet (MNET) protocol within the Siemens Moore APACS+ DCS, enabling data exchange between controllers and operator stations.Is this module compatible with redundant systems?Yes, the 16267-1/4 is designed to operate within redundant network architectures, supporting seamless failover capabilities in the event of a communication path fault.How is the module powered?The module receives its operating power directly from the APACS+ rack backplane; no external power supply is required for the module itself.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Siemens 6SE7033-7EG84-1JF1 is an Inverter Control Module designed for use within the SIMOVERT MASTERDRIVES series. This component, specifically identified as an IGD4 (Insulated Gate Driver) module, serves as a critical interface for power regulation and control in high-performance industrial drive applications. It is engineered to manage power conversion processes for 3-phase AC systems operating within the 380-460V range, or DC systems within the 510-620V range, supporting current ratings up to 370A.Features
Designed for integration with Siemens SIMOVERT MASTERDRIVES systems.
IGD4 control architecture for precise power semiconductor gate driving.
Supports wide input voltage ranges for both AC and DC power configurations.
Robust construction suitable for demanding industrial environments.
Optimized for high-current applications up to 370A.
ApplicationsThis control module is primarily utilized in industrial automation environments where variable speed control and precise motor management are required. Typical applications include heavy-duty conveyor systems, large-scale pump and fan control, and industrial manufacturing machinery where the SIMOVERT MASTERDRIVES platform is deployed.Technical Specifications
Model
6SE7033-7EG84-1JF1
Component Type
Inverter Control Module (IGD4)
AC Input Voltage
380-460V
DC Input Voltage
510-620V
Frequency
50/60 Hz
Current Rating
370A
Manufacturer
Siemens
Tariff Code
8537101190
Installation Guidelines
Ensure the drive system is fully powered down and capacitors are discharged before attempting to install or remove the control module.
Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
Verify that the module is firmly seated in the designated slot to ensure proper electrical contact with the backplane.
Ensure adequate ventilation around the drive enclosure to maintain operating temperatures within the manufacturer's specified limits.
Check all cable connections for secure fitment and ensure that control wiring is routed away from high-power cables to minimize electromagnetic interference (EMI).
FAQIs this module compatible with all MASTERDRIVES units?This module is specific to the 6SE70 series. Please verify your drive's order code and hardware revision to ensure compatibility with the IGD4 control module.What should I do if the module displays a fault code?If a fault occurs, consult the SIMOVERT MASTERDRIVES technical manual for your specific drive frame size. Fault codes associated with the IGD module often indicate issues with gate signal feedback or power stage synchronization.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
Description
The SST-PB3-VME-1 is a high-performance VMEbus interface module designed for seamless integration of Profibus DP networks into VME-based control systems. This module serves as a critical communication bridge, offloading complex protocol processing from the host controller to its onboard processor. By managing Profibus DP-V0 and DP-V1 messaging independently, it ensures deterministic, low-latency data exchange, which is vital for maintaining stability in demanding industrial environments such as power generation and automated manufacturing.
Features
Supports Profibus DP-V0 and DP-V1 protocols for versatile network integration.
Configurable as either a Profibus Master or Slave node.
High-speed VMEbus interface for rapid memory access and real-time data transfer.
Onboard processor architecture minimizes CPU load on the host VME controller.
Robust industrial design with high EMI resistance for reliable operation in noisy electrical environments.
Supports transmission speeds ranging from 9.6 kbps up to 12 Mbps.
Applications
The SST-PB3-VME-1 is primarily utilized in turbomachinery control systems, power plant automation, and distributed I/O architectures where VMEbus controllers must interface with Profibus-enabled field devices, sensors, and actuators.
Technical Specifications
Parameter
Specification
Model
SST-PB3-VME-1
Brand
Woodward / Molex Woodhead
Module Type
Profibus Communication Module
Bus Interface
VMEbus
Protocol
Profibus DP (DP-V0, DP-V1)
Baud Rate
9.6 kbps to 12 Mbps
Power Consumption
5 W
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the VME rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the VME backplane slot is configured correctly for the module's address space.
Use shielded Profibus-rated cabling to maintain signal integrity and minimize EMI interference.
Ensure proper grounding of the VME chassis to the plant common ground to protect against surge and noise.
Maintain adequate airflow within the cabinet to stay within the 0 to 60 deg C operating temperature range.
Handle the module by the edges or front panel to avoid electrostatic discharge (ESD) damage to sensitive components.
FAQ
Can this module operate as a Profibus Master?
Yes, the SST-PB3-VME-1 supports both Master and Slave configurations, allowing it to act as a primary controller or a secondary node depending on your system requirements.
What is the maximum data rate supported?
The module supports standard Profibus baud rates up to 12 Mbps, ensuring high-speed communication for time-critical control applications.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Bently Nevada 162291-01 is a 16-channel Relay Module designed for the 3500 Machinery Protection System. This module provides high-density relay outputs to facilitate automated machinery shutdown and emergency notification protocols. Integrated into safety-critical environments such as gas turbine stations, refineries, and chemical processing plants, the 162291-01 translates alarm statuses from monitoring modules into physical contact closures. By enabling voting logic—such as 2-out-of-3 or 1-out-of-16 configurations—it provides a sophisticated layer of protection that prevents catastrophic equipment failure while minimizing the risk of costly false trips caused by single-instrument malfunctions.System Architecture and Relay LogicThe 3500/33 16-channel relay system consists of two primary components: the 16-channel Relay Module and the associated 16-channel Relay Interface Module. The 162291-01 is the internal module that manages the digital logic and communication with the 3500 backplane. Each of the 16 relays is fully programmable via the 3500 Rack Configuration Software, allowing for independent assignment of alarm drive logic. The module supports normally energized and normally de-energized states, as well as latching or non-latching alarm behaviors. This hardware architecture ensures that the machinery protection system can interface with external Distributed Control Systems (DCS) or Emergency Shutdown (ESD) systems with maximum reliability and deterministic response times.Features
16 independent SPDT (Single-Pole, Double-Throw) relay outputs.
Configurable via 3500 Rack Configuration Software.
Supports complex voting logic (e.g., 2-out-of-3).
Programmable alarm drive logic (latching/non-latching, normally energized/de-energized).
High-density design for space-efficient rack mounting.
Applications
Machinery protection for rotating equipment.
Emergency Shutdown (ESD) system integration.
Alarm annunciation in industrial control environments.
DCS interface for critical status monitoring.
Technical Specifications
Model
162291-01
Output Channels
16 SPDT Relays
Contact Ratings
5 A at 30 VDC or 250 VAC
Power Consumption
5.8 W (typical)
Operating Temperature
-30 to 65 deg C
Storage Temperature
-40 to 85 deg C
Humidity
95% non-condensing
Mounting
3500 System Rack Slot
Installation Guidelines
Ensure the 3500 rack is powered down before inserting or removing the module.
The module must be installed in an appropriate slot within the 3500 system rack, paired with the required Relay Interface Module.
Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
Verify that all field wiring is properly secured to the I/O terminal blocks and that shielded cables are used where required to minimize EMI.
Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified -30 to 65 deg C range.
FAQWhat is the primary function of the 162291-01 module?The 162291-01 is a relay output module for the Bently Nevada 3500 system, used to trigger external alarms or shutdown devices based on the alarm status of monitored machinery.Does this module support voting logic?Yes, the module is designed to support various voting logic configurations, such as 2-out-of-3, to improve system reliability and prevent false trips.Is this module compatible with all 3500 racks?The 162291-01 is designed for the standard Bently Nevada 3500 Machinery Protection System. Please ensure your rack configuration supports the 3500/33 series modules.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
Description
The HIMA F60 GEH 01 is a robust, high-integrity subrack designed specifically for the HIMatrix F60 safety system. This enclosure provides a secure, organized housing for critical safety components, including power supply units, central processing modules, and I/O modules. Engineered for demanding industrial environments such as oil refining, chemical processing, and power generation, the F60 GEH 01 ensures mechanical stability and effective thermal management to support continuous, reliable operation of safety-critical applications.
Features
Modular Architecture: Supports 8 dedicated slots for flexible system configuration.
Thermal Management: Integrated dual-fan cooling system to maintain optimal operating temperatures.
Robust Construction: Anodized aluminum chassis providing structural integrity and electromagnetic protection.
Secure Seating: Equipped with integrated guide rails to ensure precise module alignment and secure seating.
Standardized Connectivity: Utilizes a 96-pole Type C connector system (DIN EN 60603-2) for reliable backplane signal routing.
Applications
The F60 GEH 01 subrack is used extensively in safety-instrumented systems (SIS) where high availability and fault tolerance are required. It is ideal for emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas detection applications.
Technical Specifications
Brand
HIMA
Model
F60 GEH 01
Material
Anodized aluminum
Slot Capacity
8 Slots
Horizontal Pitch
40 HP
Connector Type
96-pole, Type C (DIN EN 60603-2)
Operating Temperature
0 to 60 deg C
Humidity
Max 95 percent (non-condensing)
Installation Guidelines
Mounting: Ensure the subrack is mounted in a clean, dry, and vibration-dampened cabinet environment.
Grounding: Connect the chassis earth grid to the cabinet's main protective earth (PE) busbar to ensure electromagnetic compatibility and safety.
Cooling: Maintain clear airflow paths around the unit; do not obstruct the integrated fan intake or exhaust vents.
Module Insertion: Always power down the system before inserting or removing modules to prevent electrical arcing or damage to the backplane pins.
Handling: Use ESD-safe handling practices when installing modules into the subrack to protect sensitive electronic components.
FAQ
What is the slot allocation for the F60 GEH 01?
The subrack features 8 slots in total: Slot 1 is reserved for the power supply, Slot 2 is for the central module, and Slots 3 through 8 are available for various I/O modules.
Is this subrack suitable for high-vibration environments?
Yes, the F60 GEH 01 is designed for industrial use with a rigid aluminum chassis and guide rails that provide high mechanical stability for the installed modules.
6 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe HIMA F3 AIO 8/4 01 is a high-performance safety-related remote I/O module designed for the Himatrix system. This module provides integrated analog signal processing capabilities, specifically engineered for safety-critical industrial automation environments. It facilitates the reliable acquisition of analog input signals and the control of analog output devices, ensuring system integrity and functional safety compliance.Features
Safety-rated analog I/O module for Himatrix systems.
8 analog input channels with high input resistance.
4 analog output channels with configurable voltage/current parameters.
12-bit digital resolution for precise signal conversion.
Supports standard 4...20 mA process signal ranges.
Robust design suitable for harsh industrial conditions.
Technical Specifications
Product Model
F3 AIO 8/4 01
Number of Inputs
8
Input Resistance
> 2 MΩ
Input Signal Source Resistance
≤ 500 Ω
Digital Resolution
12-bit
Number of Supply Outputs
8
Nominal Voltages
8.2 VDC / 26 VDC (switchable)
Voltage Tolerance
± 5 %
Nominal Current Range
4...20 mA
Operating Current Range
0...21 mA
Max Load Impedance
600 Ω
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the module from the rack.
Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures.
Use shielded cables for all analog signal connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the module chassis to the system common ground to maintain safety integrity.
Verify that all terminal connections are secure and that wire gauges comply with local electrical standards.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQIs the F3 AIO 8/4 01 compatible with other HIMA systems?This module is specifically designed for the HIMA Himatrix series. Please consult your system documentation or HIMA configuration software to ensure compatibility with your specific controller CPU and backplane.What is the primary function of the switchable nominal voltages?The 8.2 VDC / 26 VDC switchable voltage allows the module to interface with a variety of field sensors and transmitters, providing the necessary loop power for different instrumentation requirements.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe Honeywell 10420F-0042-42 is a high-performance operator interface panel specifically engineered for the HC900 process automation system. This HMI unit serves as the primary graphical interface for operators, enabling real-time monitoring, data visualization, and process setpoint adjustments in demanding industrial environments. Built for reliability, it facilitates seamless communication between human operators and the control system, ensuring efficient management of complex process loops.Features
ARM Cortex-A8 600 MHz processor for responsive interface navigation and data processing.
SVGA resolution (800 x 600 pixels) display for clear, high-contrast process visualization.
Resistive touchscreen technology designed for operation with industrial gloves or tools.
Optimized memory architecture with 128 MB SDRAM and 256 MB non-volatile Flash storage for configuration retention.
Robust design suitable for continuous industrial duty cycles in power generation, chemical, and water treatment applications.
ApplicationsThis operator interface panel is widely utilized in process control applications requiring deterministic performance and stable human-machine interaction, including:
Power generation and distribution monitoring.
Chemical and petrochemical process control.
Water and wastewater treatment plant automation.
General industrial process visualization and SCADA integration.
Technical Specifications
Model
10420F-0042-42
Brand
Honeywell
Processor
ARM Cortex-A8, 600 MHz
Display Resolution
800 x 600 pixels (SVGA)
Input Method
Resistive touchscreen
SDRAM
128 MB
Flash Storage
256 MB
Operating Temperature
0 to 60 deg C
Storage Temperature
-20 to 70 deg C
Installation Guidelines
Ensure the panel is mounted in an enclosure that meets the required IP rating for the installation environment.
Maintain adequate ventilation around the unit to prevent overheating, keeping within the 0 to 60 deg C operating range.
Use shielded communication cables to minimize EMI interference in high-noise industrial areas.
Verify that the power supply voltage matches the specified requirements before connecting to the DC input terminals.
Handle the touchscreen surface with care; avoid using sharp objects that could damage the resistive layer.
Always power down the system before performing any wiring or maintenance tasks to prevent electrical damage.
FAQIs this panel compatible with all HC900 controllers?The 10420F-0042-42 is designed for integration with the Honeywell HC900 process controller series. Please verify your specific controller firmware version and system configuration to ensure full compatibility.Can this HMI be operated while wearing gloves?Yes, the unit features a resistive touchscreen interface, which is specifically designed to register input from gloved fingers or industrial styluses, making it suitable for factory floor environments.
4 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

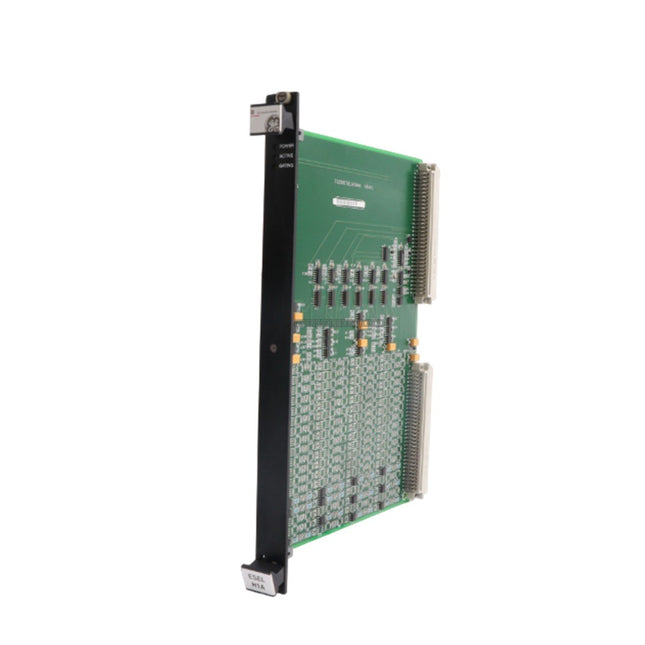

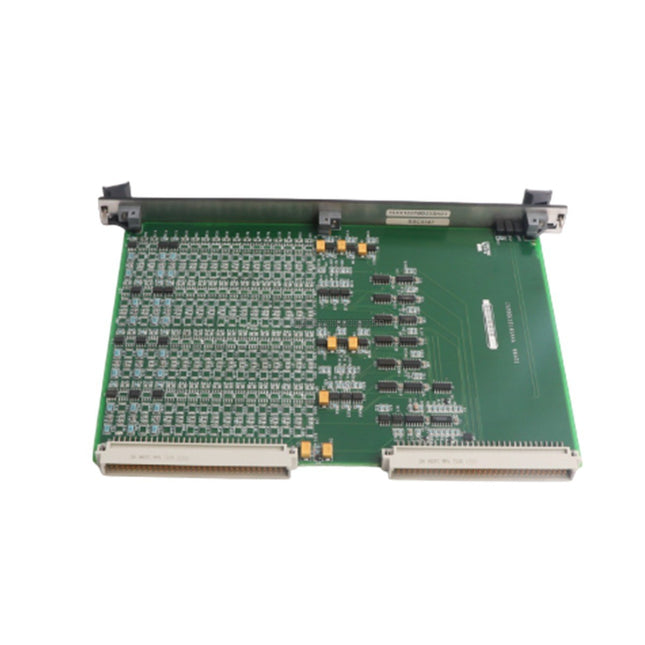

DescriptionThe IS200ESELH1A is a critical Exciter Selector Board designed for the General Electric EX2100 series turbine control ecosystem. This module is engineered for high-reliability power generation environments and facilitates the transmission of logic-level gate pulse signals from the Master I/O (EMIO) board to the Exciter Gate Pulse Amplifier (EGPA) boards housed within the Power Conversion Cabinet. By managing six distinct gating commands, the IS200ESELH1A ensures precise control over the power bridge, supporting stable excitation in thermal, gas, and hydro power plant operations.Features
Supports single bridge driver configurations for one Power Conversion Module (PCM).
Integrates into both simplex and redundant excitation architectures.
Enables online repair and fault tolerance when configured in dual-board (ESEL1 and ESEL2) setups.
Maintains physical and logical separation between Master 1 and Master 2 control paths.
Converts internal logic pulses into robust signals for external distribution cables.
ApplicationsThis board is primarily utilized in GE EX2100 Excitation systems for power generation facilities. It is essential for managing gate pulse distribution to power bridges, ensuring reliable turbine control and minimizing unscheduled downtime in critical infrastructure.Technical Specifications
Model
IS200ESELH1A
Series
EX2100 Excitation
Board Version
H1 (Single bridge driver)
Operating Temperature
0 to 45 deg C
Compatibility
EMIO and EGPA boards
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the rack.
Handle the board using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive logic components.
Verify that the board is correctly seated in the designated slot within the Power Conversion Cabinet.
Ensure all signal cables are securely connected and routed to minimize EMI interference.
In redundant configurations, ensure that ESEL1 and ESEL2 are correctly mapped to their respective M1 and M2 controllers.
FAQWhat is the primary function of the IS200ESELH1A?The IS200ESELH1A acts as an interface board that routes gate pulse signals from the Master I/O board to the Exciter Gate Pulse Amplifier boards, enabling precise control of the power bridge.Can this board be used in redundant systems?Yes, the IS200ESELH1A is designed to support redundant architectures using dual boards (ESEL1 and ESEL2), which allows for fault tolerance and online maintenance.
7 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

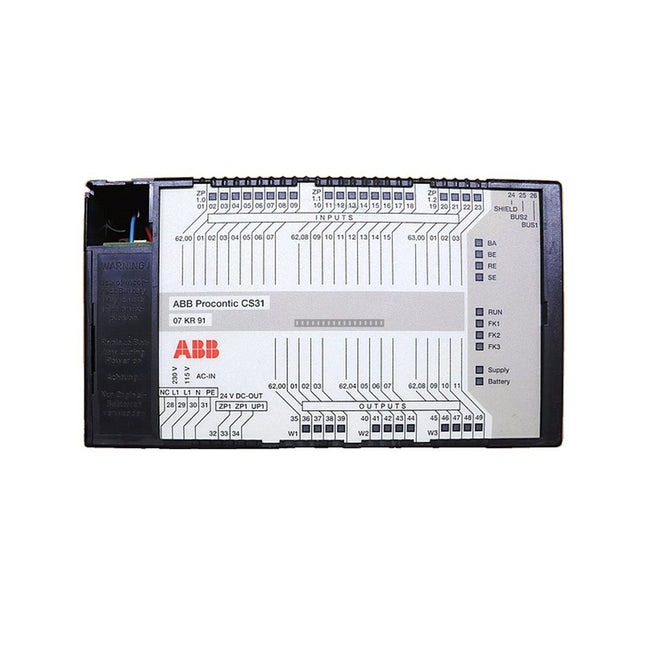

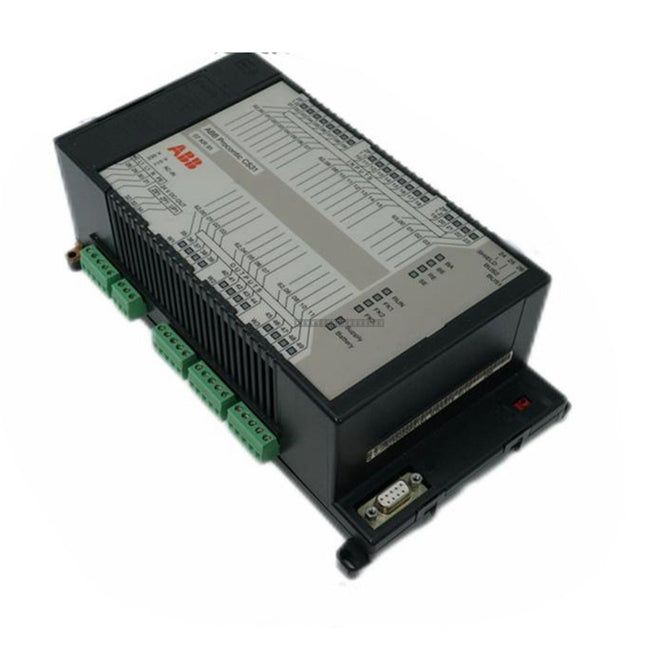

DescriptionThe ABB 07 KR 91 (GJR5250000R0101) is a high-performance processor module designed for the Procontic CS31 series automation systems. Serving as a central unit for the 90 Series, this processor module manages logic execution, system communication, and I/O processing within the CS31 architecture. It is engineered for industrial environments requiring reliable control and data processing capabilities.Features
Central processing unit for Procontic CS31 90 Series systems.
Integrated power supply support for 115/230 VAC input.
Robust design suitable for demanding industrial control applications.
Designed for seamless integration with existing CS31 rack-based configurations.
ApplicationsThis processor module is primarily utilized in industrial automation systems where the Procontic CS31 platform is deployed. It is suitable for manufacturing process control, machine automation, and distributed I/O management where a central controller is required to execute complex logic and maintain system synchronization.Technical Specifications
Manufacturer
ABB
Model
07 KR 91
Order Code
GJR5250000R0101
System Series
Procontic CS31 (90 Series)
Input Voltage
115/230 VAC
Weight
0.9 kg
Installation Guidelines
Ensure the power supply is disconnected before inserting or removing the module from the rack.
Verify that the rack slot is clean and free of debris to ensure proper electrical contact.
Handle the module using ESD-safe practices to prevent damage to internal circuitry.
Ensure adequate ventilation around the module to prevent overheating during operation.
Secure the module firmly into the designated slot to maintain mechanical stability and grounding continuity.
FAQWhat is the primary function of the 07 KR 91 module?The 07 KR 91 acts as the central processor unit for the ABB Procontic CS31 90 Series, responsible for executing control programs and managing the communication between the system and connected I/O devices.Is this module compatible with other CS31 series components?Yes, the 07 KR 91 is specifically designed for the Procontic CS31 90 Series ecosystem. Ensure that your existing rack and backplane are compatible with the 90 Series specifications before installation.
3 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

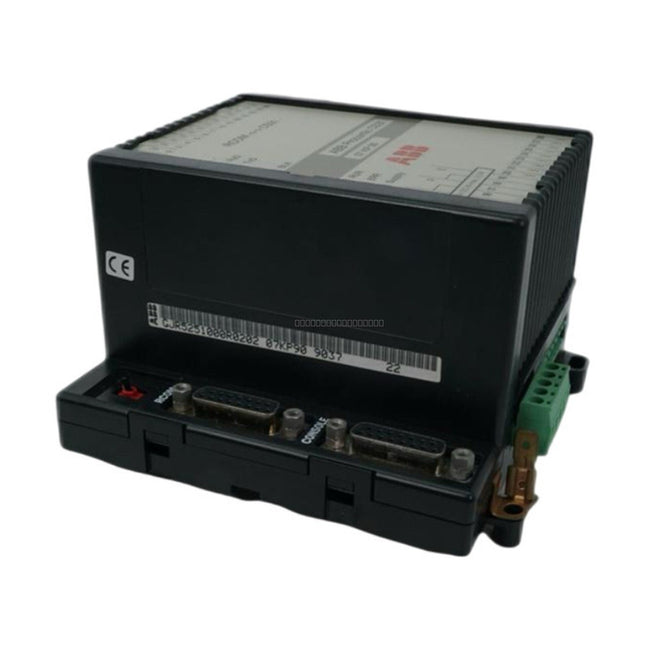

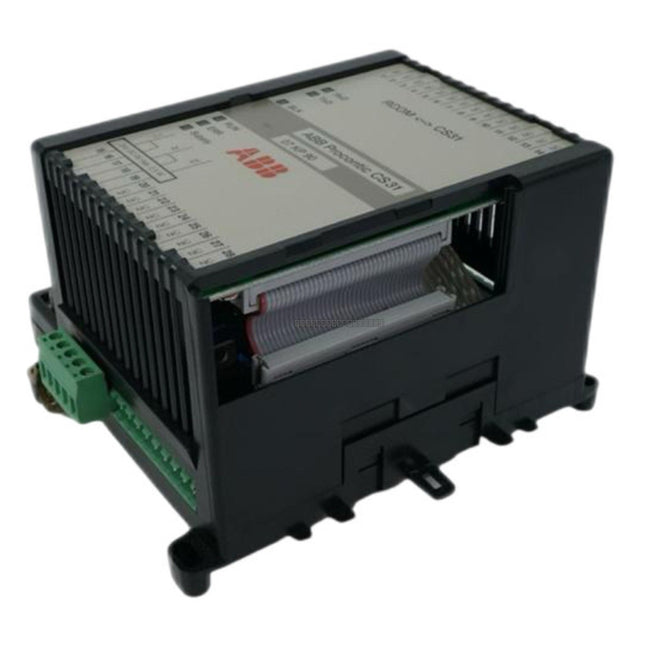

DescriptionThe ABB 07KP90 is an RCOM communications module designed for use within the Advant Controller 31 (AC31) series. This module facilitates reliable data exchange and communication connectivity, serving as a critical interface component in industrial automation systems requiring robust serial communication capabilities.Features
Designed specifically for the ABB Advant Controller 31 platform.
Supports RCOM protocol for efficient data transmission.
Compact hardware design suitable for standard rack or rail mounting configurations.
Reliable performance in demanding industrial environments.
ApplicationsThis module is primarily utilized in industrial control systems where the AC31 series is deployed for process automation, machine control, and remote data acquisition. It is commonly found in manufacturing, power generation, and water treatment facilities requiring integration between controllers and peripheral devices.Technical Specifications
Product Model
07KP90
Spare Model / Order Code
GJR5251000R0303
Manufacturer
ABB
Product Type
Communications Module
Weight
0.4 kg
Installation Guidelines
Ensure the controller power is disconnected before installing or removing the 07KP90 module to prevent electrical damage.
Verify that the module is correctly seated in the designated slot of the AC31 rack to ensure proper backplane connection.
Maintain proper ventilation around the controller housing to prevent overheating during continuous operation.
Use shielded communication cables where required to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
FAQWhat is the primary function of the 07KP90 module?The 07KP90 acts as an RCOM communications interface for the ABB Advant Controller 31, enabling the controller to communicate with other devices or systems using the RCOM protocol.Is this module compatible with other controller series?No, the 07KP90 is specifically engineered for the Advant Controller 31 (AC31) series. It is not intended for use with other ABB controller families.
5 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
DescriptionThe DS200LDCCH1 is a specialized drive control and Local Area Network (LAN) communications board designed for the General Electric Speedtronic Mark V series. Engineered for integration with GE DIRECTO-MATIC 2000 exciters and drives, this module functions as a primary processing hub for automated gas, steam, and wind turbine control systems. It manages complex motor processing, operator interfacing, and high-speed network synchronization, ensuring system stability in demanding industrial environments such as power generation, oil refining, and mining.Features
Quad-Microprocessor Architecture: Features dedicated processors for Drive Control (DCP), Motor Control (MCP), Co-Motor computation (CMP), and LAN communication (LCP).
Integrated Diagnostics: Includes an onboard alphanumeric keypad for local parameter adjustment and system diagnostics.
Memory Storage: Equipped with multiple Flash PROMs (U6, U7, U11, U12, U22, U23) and a U9 EEPROM for configuration and firmware storage.
Robust Construction: PCB is protected with conformal coating to resist environmental contaminants.
Bus Connectivity: Supports five distinct communication bus systems for high-speed I/O signal processing.
ApplicationsThis board is primarily utilized within the GE Speedtronic Mark V control platform to facilitate drive regulation and communication. Typical applications include turbine control, excitation systems, and large-scale industrial motor drive management where high-availability and multi-processor synchronization are required.Technical Specifications
Model
DS200LDCCH1
Brand
General Electric (GE)
Series
Mark V Speedtronic
Product Type
LAN/Control Communications Board
Microprocessors
DCP, MCP, CMP, LCP
Memory
Flash PROMs (U6, U7, U11, U12, U22, U23), U9 EEPROM
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Manual Reference
GEI-100216
Installation Guidelines
ESD Protection: Always use a grounded wrist strap when handling the board to prevent electrostatic discharge damage to sensitive components.
Power Down: Ensure the drive system is fully de-energized and locked out before attempting to install or remove the module from the rack.
Seating: Ensure the board is fully seated in the designated backplane slot and that all retaining screws are tightened to maintain proper electrical contact and vibration resistance.
Environment: Maintain the cabinet environment within the specified temperature range and ensure cooling fans are operational to prevent overheating.
FAQIs the DS200LDCCH1 compatible with all Mark V systems?The DS200LDCCH1 is specific to the Mark V Speedtronic series and is designed for use with DIRECTO-MATIC 2000 exciters. Always verify your system's specific revision requirements against the GEI-100216 manual before installation.Does this board require site-specific configuration?Yes, the board stores configuration data in its onboard Flash PROMs and EEPROM. When replacing an existing unit, ensure that the site-specific software and parameters are correctly loaded or transferred to the new module.
9 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.

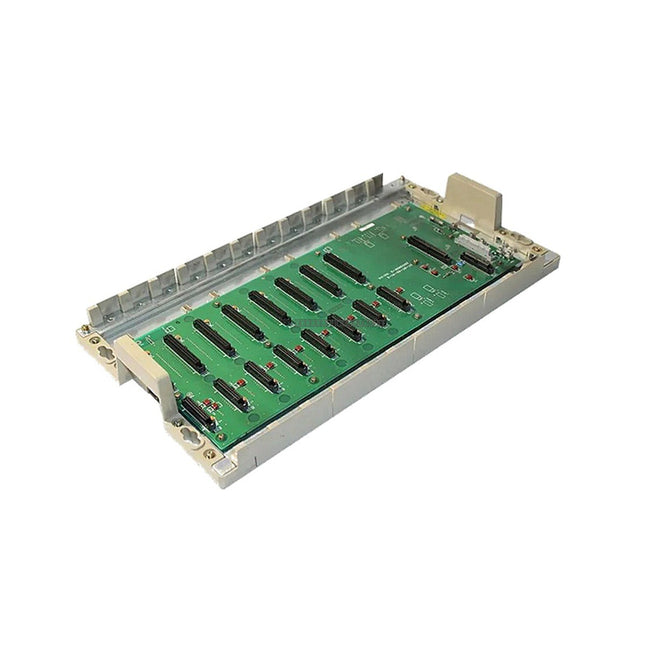

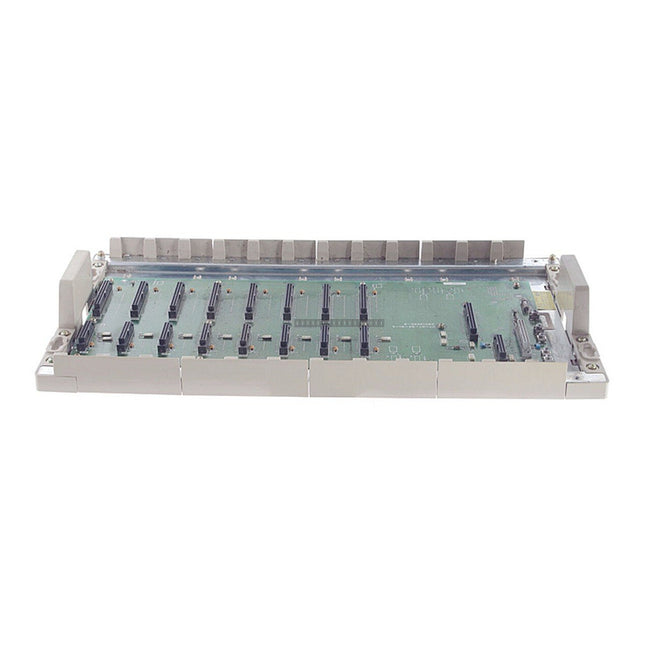

DescriptionThe ABB 07BT62R1 is a basic module rack designed for the Procontic T200 automation system. This rack provides the physical mounting and backplane interface for up to 8 I/O modules, serving as a foundational component for expanding or maintaining T200 control configurations. Please note that this product has been discontinued by the manufacturer.Features
Designed specifically for the ABB Procontic T200 series architecture.
Provides 8 slots for modular I/O expansion.
Robust mechanical design for industrial cabinet mounting.
Compatible with spare model GJV3074303R1.
Technical Specifications
Product Model
07BT62R1
Spare Model
GJV3074303R1
System Series
Procontic T200
Slot Capacity
8 I/O Slots
Weight
2.4 kg
Installation Guidelines
Ensure the rack is mounted in a clean, dry environment within the specified operating temperature range for the T200 system.
Verify that the rack is securely fastened to the mounting plate or DIN rail to prevent vibration-induced connection issues.
Always power down the system before inserting or removing I/O modules from the rack to prevent electrical damage to the backplane connectors.
Ensure proper grounding of the rack assembly to the cabinet ground bus to mitigate EMI/RFI interference.
Maintain adequate clearance around the rack to allow for proper airflow and heat dissipation.
FAQIs the 07BT62R1 still in production?No, the 07BT62R1 has been discontinued by ABB. We provide this unit as a surplus or refurbished spare part to support legacy T200 systems.What is the spare part number for this module?The identified spare model for this unit is GJV3074303R1.
2 dalam stok
Pengiriman dalam waktu 48 jam, bayar setelahnya
Pertengahan minggu Senin sampai Jumat kami menawarkan pengiriman hari berikutnya jika produk tersedia dan pengecualian pada hari libur.
Akhir pekan Kami tidak menawarkan pengiriman di akhir pekan.
Internasional Tergantung lokasi Anda, kami menawarkan pengiriman keesokan harinya. Periksa status pengiriman Anda di tautan ini.
