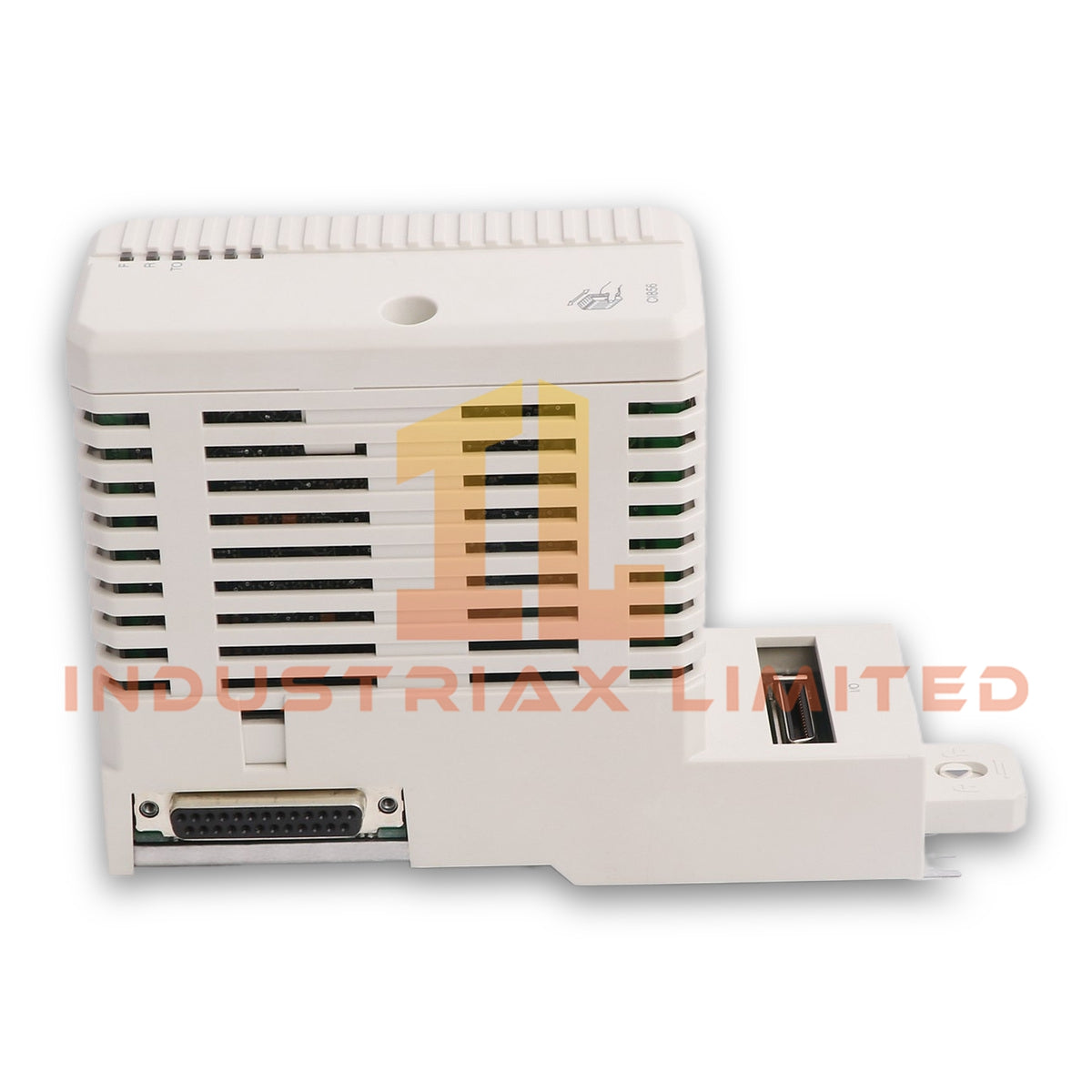

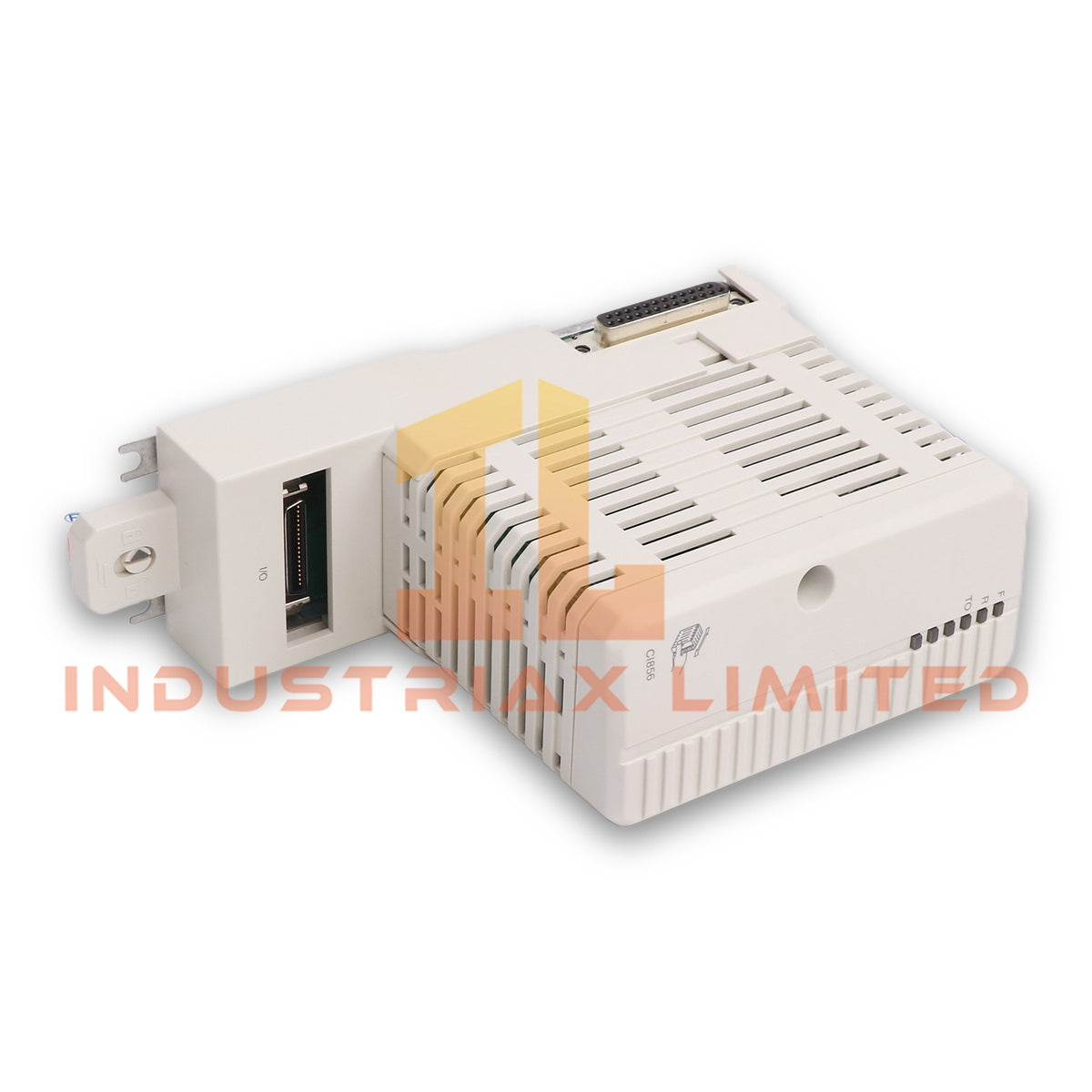

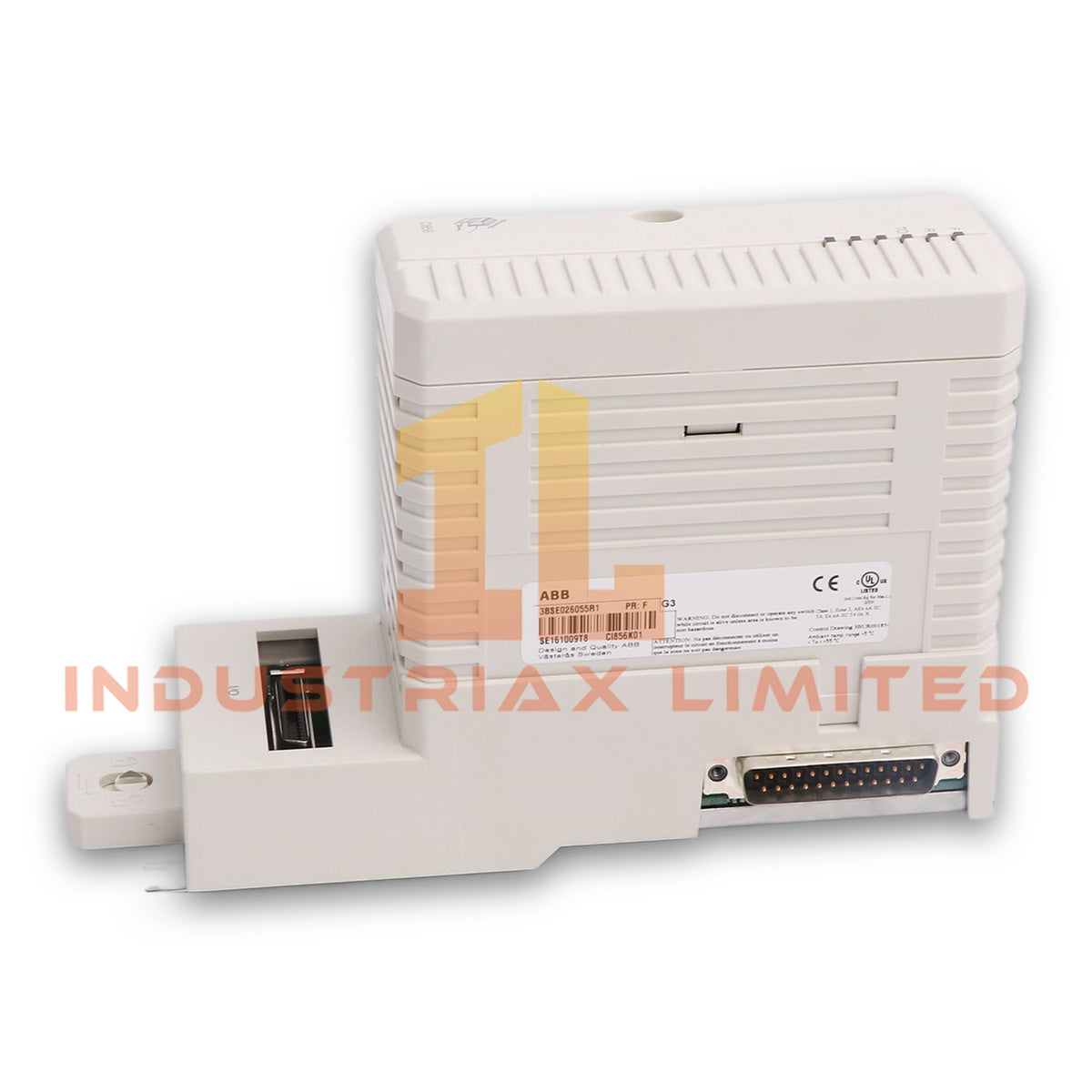

ABB CI856K01 S100 I/O Interface
Configured for communication between an AC 800M controller and an S100 I/O system, the ABB CI856K01 (CI856 Communication Interface) provides the hardware interface required for S100 system integration. The package includes the CI856 communication interface and TP856 baseplate.
Hardware Specifications
Parameter
Specification
Model
CI856K01
Product ID
3BSE026055R1
Brand
ABB
Product Type
Communication Module
Function
S100 I/O interface for AC 800M
System Interface
AC 800M to S100 system
Package Contents
CI856 Communication Interface; TP856 Baseplate
Dimensions
127.5 mm D x 186 mm H x 59 mm W
Weight
0.7 kg
RoHS
EU Directive 2011/65/EU
WEEE Category
5. Small Equipment
Batteries
0
HS Code
851762
Customs Tariff Number
85176200
Industrial Control Interface Characteristics
The CI856K01 handles the physical communication interface between an AC 800M controller and an S100 system. Therefore, installation must preserve the intended module-to-system connection path and mechanical seating of the communication hardware.
The supplied package combines the CI856 communication interface with the TP856 baseplate. This configuration provides the required mounting platform for the interface module while maintaining the specified overall hardware dimensions.
Because the supplied data does not define communication speed, channel count, current consumption, or firmware requirements, those values should be taken from the applicable ABB system documentation rather than inferred from the product designation.
Frequently Asked Questions (FAQ)
Q: What is the primary function of the CI856K01?
A: The CI856K01 provides communication between an AC 800M controller and an S100 system.
Q: What components are included with the CI856K01 package?
A: The package includes one CI856 Communication Interface and one TP856 Baseplate.
Q: What are the physical dimensions of the CI856K01?
A: The supplied data specifies 127.5 mm depth, 186 mm height, and 59 mm width, with a net weight of 0.7 kg.
Field Installation Guidelines
Install the TP856 baseplate on a suitable control-system mounting surface before fitting the CI856 communication interface. Verify that the module seats correctly and that no mechanical obstruction affects connector engagement.
Keep communication wiring separated from high-current switching conductors and other sources of electromagnetic interference. Where shielded communication cables are specified by the system design, terminate and ground the shield according to the applicable ABB installation documentation.
Before energizing the controller system, inspect connectors, mounting hardware, cable routing, and module seating. Also verify that the installed CI856K01 matches the intended AC 800M and S100 system configuration.
Do not apply operating temperature, power consumption, communication speed, or electrical loading values that are not confirmed by the applicable ABB hardware documentation.
