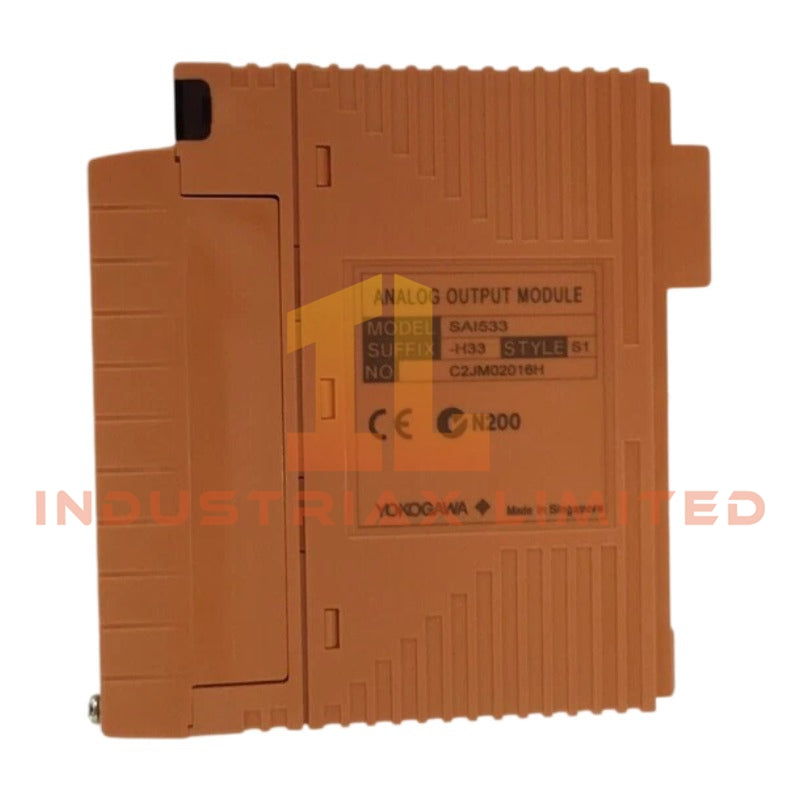

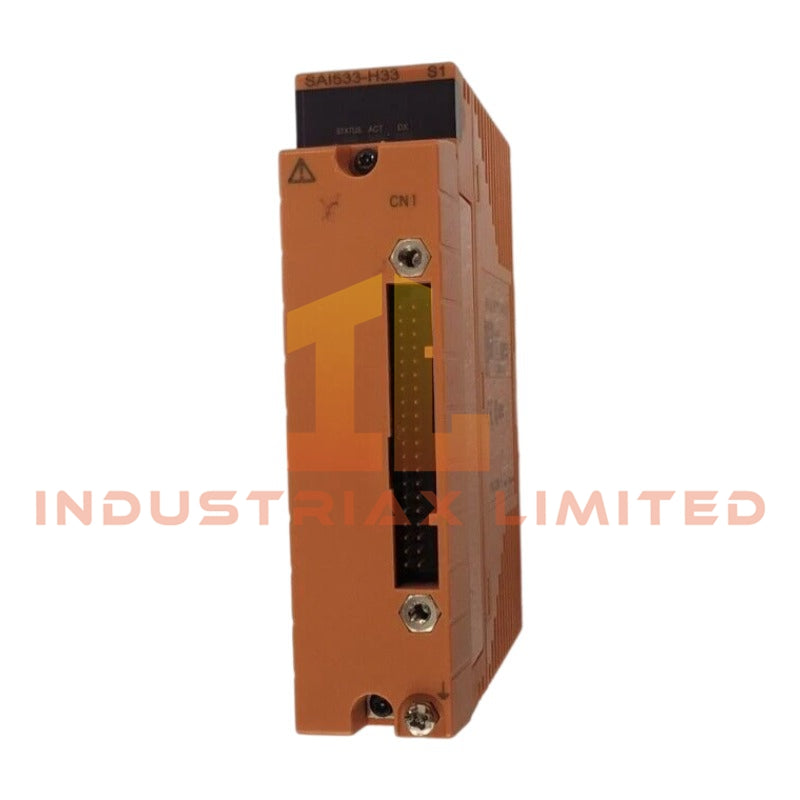

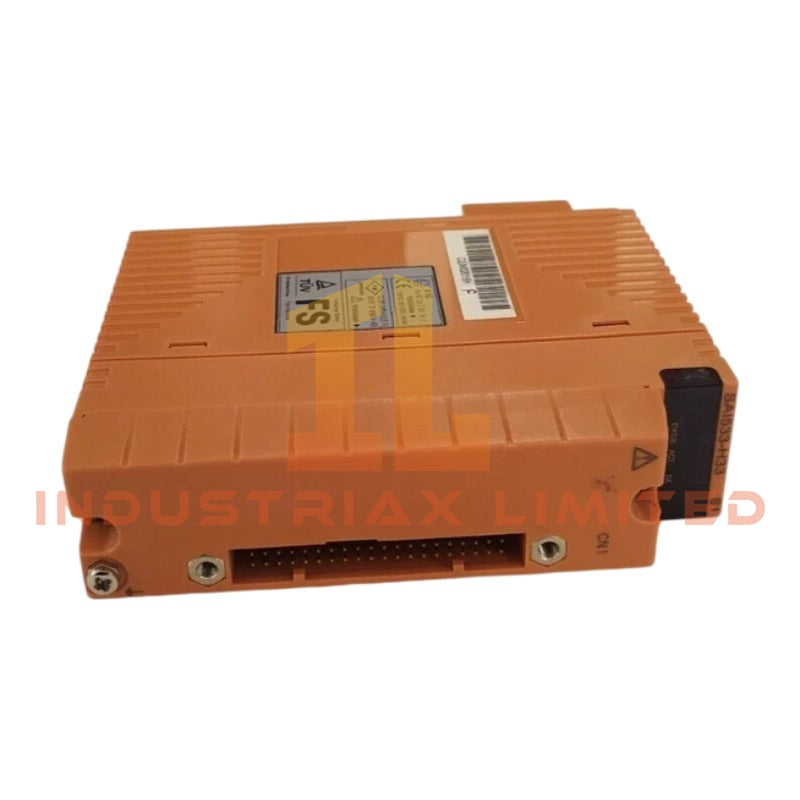

Yokogawa SAI533-H33 Analog Input Module

The Yokogawa SAI533-H33, also cataloged as the SAI533 Analog Input Module, operates as a dedicated hardware component for 4-20 mA signal acquisition and HART communication within CENTUM VP and ProSafe-RS systems. It provides isolated multi-channel analog input processing and supports integration with safety instrumented loops up to SIL3.

Hardware Specifications

Parameter	Specification
Model	SAI533-H33
ModelBrand	Yokogawa
Module Type	Analog Input Module (Current Input)
Number of Channels	16 isolated channels
Input Signal Range	4-20 mA DC
Allowable Input Current	Max. 24 mA
Input Impedance	Approx. 250 Ohm during HART communication
Withstand Voltage	Input-to-system: 1500 VAC, 1 minChannel-to-channel: 500 VAC, 1 min
Accuracy	±0.1% of full scale
Data Update Cycle	≤10 ms
Weight	Approx. 0.35 kg
Dimensions	Standard CENTUM VP module dimensions
Operating Temperature	0 to 55 degC
Power Consumption	Max. 7.7 W (internal)

DCS-Specific Technical Features

• 4-20 mA HART Loop Protocol Support: The module enables simultaneous analog current transmission and digital device diagnostics, facilitating remote configuration and monitoring.
• Channel-to-Channel Isolation: Galvanic isolation between each of the 16 channels mitigates cross-talk and protects against electrical noise and ground loops.
• Cold Junction Compensation (CJC): Supports accurate temperature-related measurements in field devices when interfacing with thermocouples or sensors requiring linearization.

Frequently Asked Questions

Q1: VnA: Is the SAI533-H33 hot-swappable within CENTUM VP racks?
A1: The module supports installation in powered racks, but only with terminals disconnected from field loops to prevent transient currents affecting analog measurements.

Q2: VnA: How is the HART communication affected by channel-to-channel isolation?
A2: Each channel is electrically isolated; HART signaling is fully maintained on each loop without interference, ensuring accurate device diagnostics and parameter adjustments.

Q3: VnA: What is the maximum loop power load per module?
A3: The module provides 24 VDC ±10% for transmitter loop power. Total loop load must remain within the module's 320 mA current consumption specification.

Field Installation Guidelines

• Ensure the module is mounted on the designated CENTUM VP/ProSafe-RS backplane slot.
• Maintain twisted-pair wiring for 4-20 mA loops with separate ground shielding for analog and digital signals.
• Avoid routing high-current cables parallel to the signal cables to reduce electromagnetic interference.
• Confirm all terminal blocks are correctly torque-tightened according to manufacturer specifications.
• Verify HART devices are addressed individually to prevent loop conflicts during commissioning.
