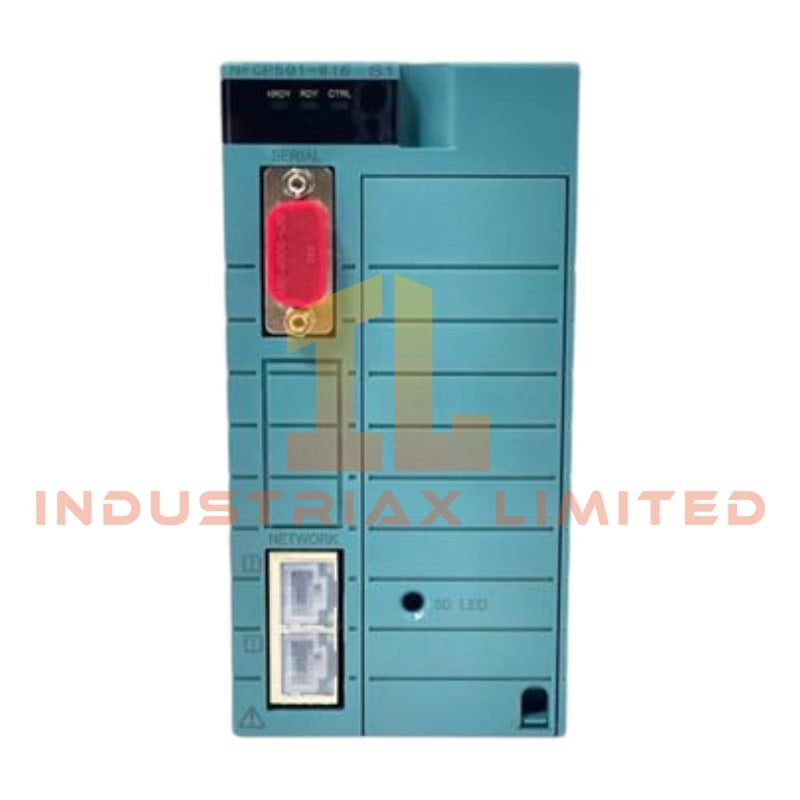

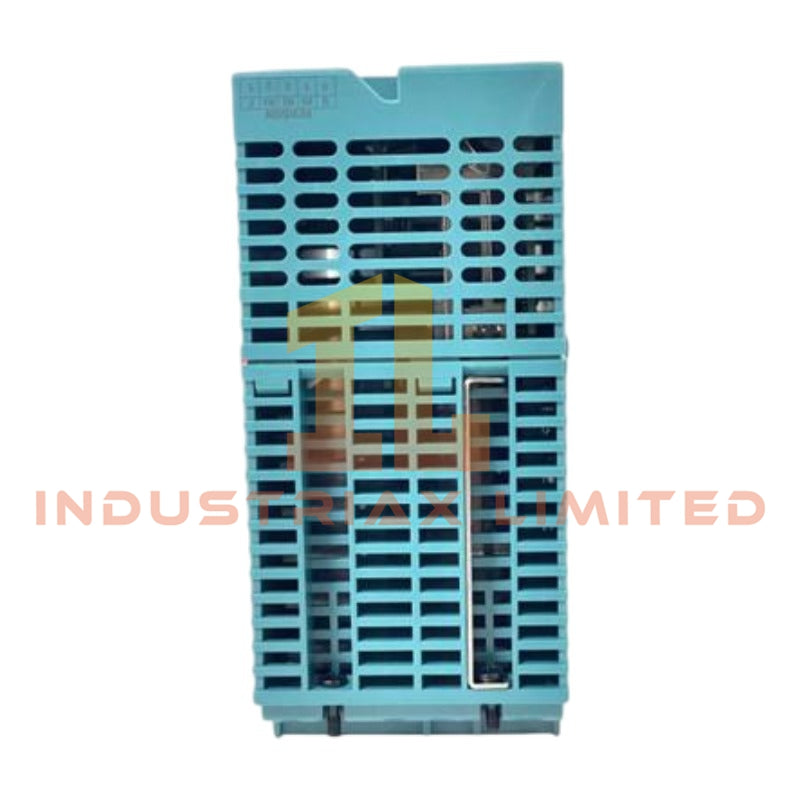

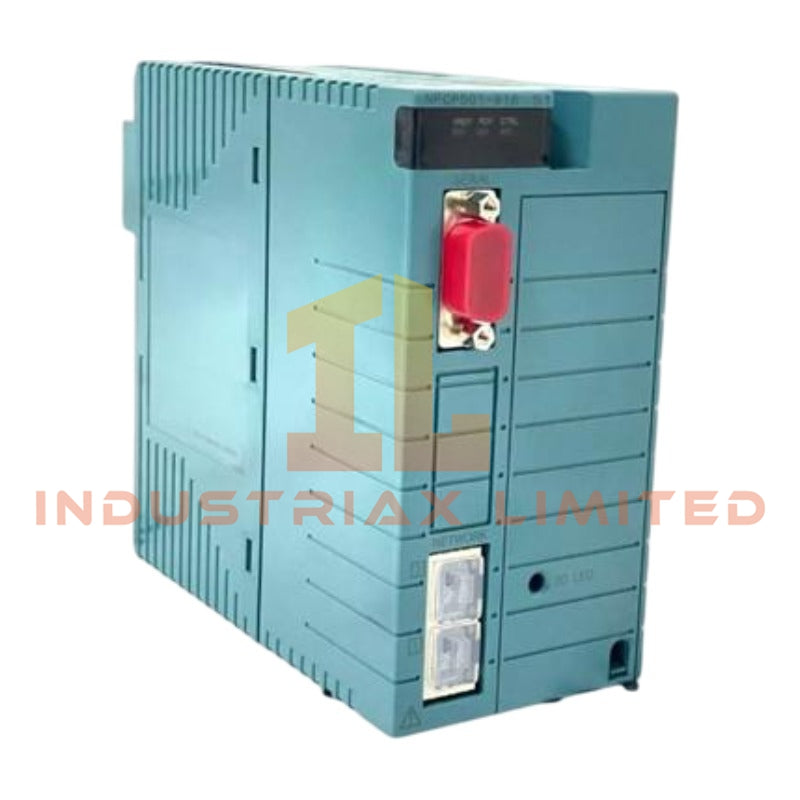

Yokogawa NFCP501-S05 FCN-500 CPU Module

Configured for real-time control execution in STARDOM FCN-500 network, the Yokogawa NFCP501-S05 (NFCP501-S05 CPU Module) provides direct physical/electrical execution within distributed controller processing, executing IEC 61131-3 logic, task scheduling, and deterministic communication handling over dual Ethernet interfaces. The module operates on a VxWorks real-time operating system with ECC-protected memory architecture.

Suffix Breakdown & Model Matrix

• S: Standard function configuration
• 0: Non-explosion proof base type
• 5: Style revision level S2 hardware profile

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa NFCP501-S05
Origin	Japan
Weight	0.3 kg
Dimensions	22 mm x 124 mm x 126 mm
OperatingTemp	0 degC to 55 degC (standard), -20 degC to 70 degC (extended base dependent)
Memory Protection	ECC (Error-Correcting Code)
Control Capacity	Up to 3 MB application memory
Data Memory	Up to 8 MB
Retained Memory	Up to 700 KB
Task Capacity	Max 16 tasks, 16 priority levels
Communication Ports	2 x Ethernet, RS-232, RS-485

Yokogawa Process Control Execution Characteristics

4-20 mA Loop and Field Communication Mapping

The NFCP501-S05 CPU module interfaces with process data acquisition layers where 4-20 mA signal conditioning is mapped through FCN-500 I/O subsystems. HART protocol tunneling is handled via networked I/O modules rather than direct CPU analog termination, maintaining separation between logic execution and field signal conversion layers.

FOUNDATION Fieldbus / System Integration Layer

Integration with FOUNDATION Fieldbus and OPC-based supervisory systems is handled through Ethernet-linked controllers. The CPU manages cyclic and event-driven communication tasks using deterministic scheduling with configurable scan intervals starting from 5 ms.

Channel Isolation and System Integrity Handling

Electrical isolation is implemented at the base module and I/O subsystem level rather than within CPU silicon architecture. The processing unit executes diagnostic routines including watchdog supervision, memory parity validation, and thermal state monitoring.

ECC Memory and Execution Integrity

ECC memory structure corrects single-bit errors during runtime execution cycles, supporting continuous operation under high electromagnetic and thermal variation conditions typical of industrial control cabinets.

Frequently Asked Questions

Q: Can the module execute hot-swap CPU replacement in redundant configuration?
A: CPU duplex configurations support controlled switchover. Physical replacement requires system transition to standby state; hot removal during active task execution is not supported.

Q: What is the backplane communication load behavior under full task utilization?
A: Backplane traffic scales with task count and I/O refresh rate. Maximum task configuration (16 tasks) requires scan interval adjustment to avoid bus saturation below 5 ms cycles.

Q: Does firmware update interrupt retained memory areas?
A: Retained memory (up to 700 KB) is preserved during standard firmware upgrades when performed through supported SDHC media workflow.

Field Installation Guidelines

• Install module only into FCN-500 base unit with verified backplane alignment
• Ensure system power is isolated before insertion or removal
• Maintain minimum cable bending radius for Ethernet and serial lines to avoid impedance variation
• Use shielded twisted pair for RS-485 segments with single-point grounding at cabinet earth reference
• Verify SDHC card formatting compatibility (4 GB to 32 GB, Class 10) before firmware deployment
• Avoid installation in environments exceeding 95% RH non-condensing to prevent connector oxidation

Spesifikasi

• Merek: Yokogawa
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
