Description

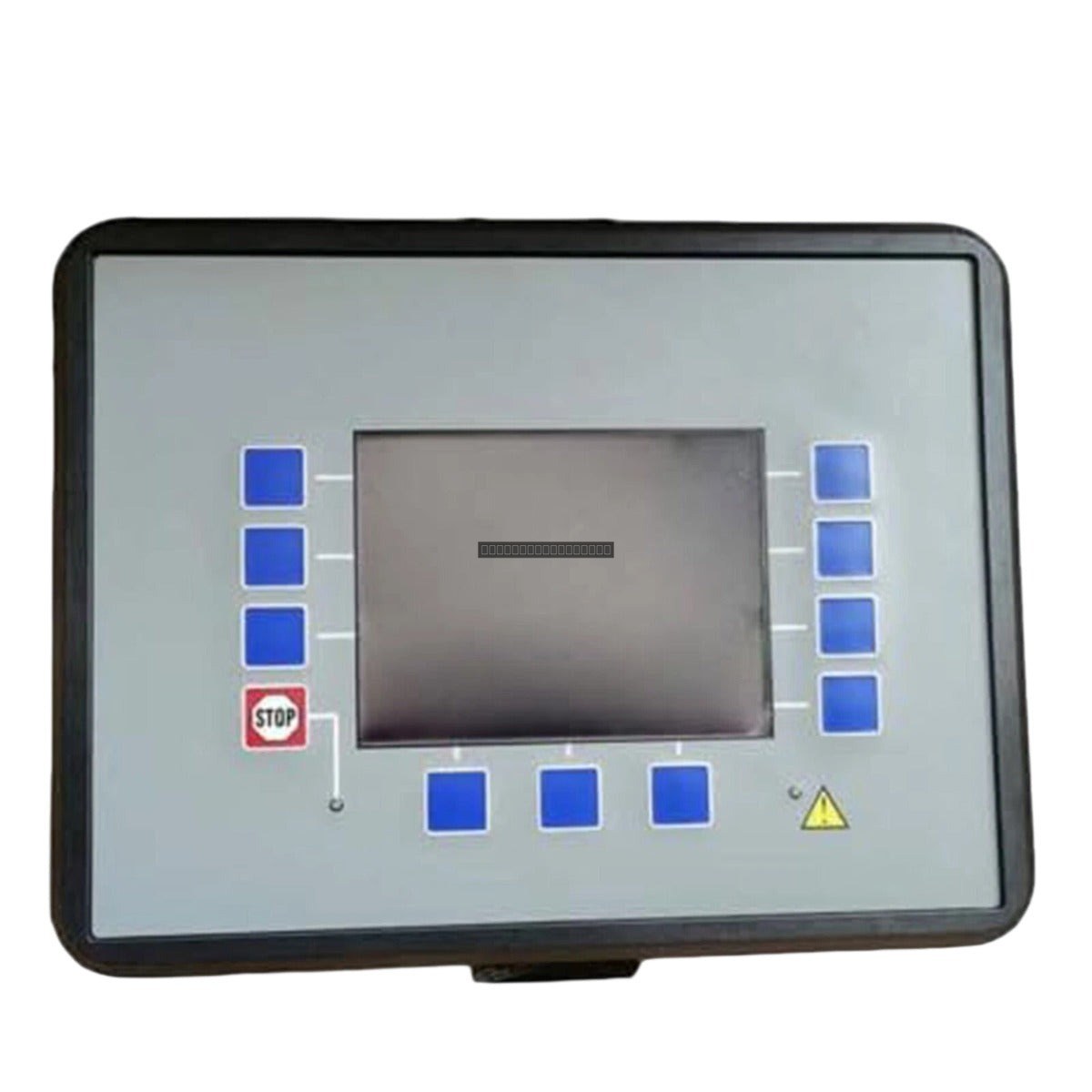

The Woodward 8440-2050 EasyGen-3200-5 is a sophisticated genset control and protection unit engineered for complex power management applications. It serves as a central hub for engine-generator control, offering advanced synchronization, load sharing, and protection logic. This controller is specifically designed for critical power environments, including marine vessels, large-scale data centers, and oil and gas infrastructure, where reliability and precise power distribution are paramount.
Features
-
Advanced Synchronization: Supports complex power management for up to 32 gensets in parallel.
-

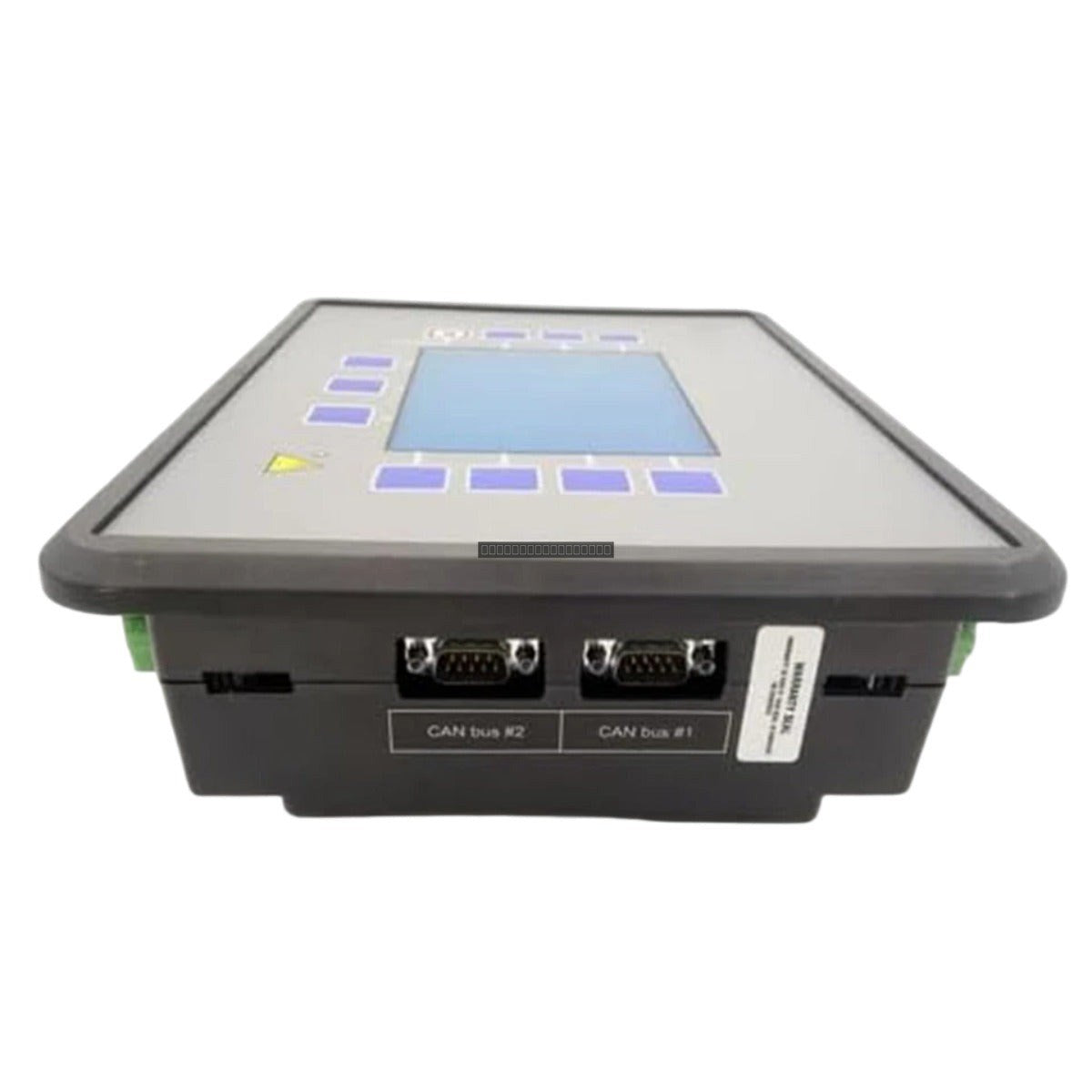

Communication Protocols: Features dual CAN bus ports for J1939 engine ECU integration and RS-485 for Modbus RTU communication with SCADA/BMS systems.
-
Rugged Design: Housed in a durable enclosure suitable for front-panel mounting in high-vibration environments such as engine skids.
-

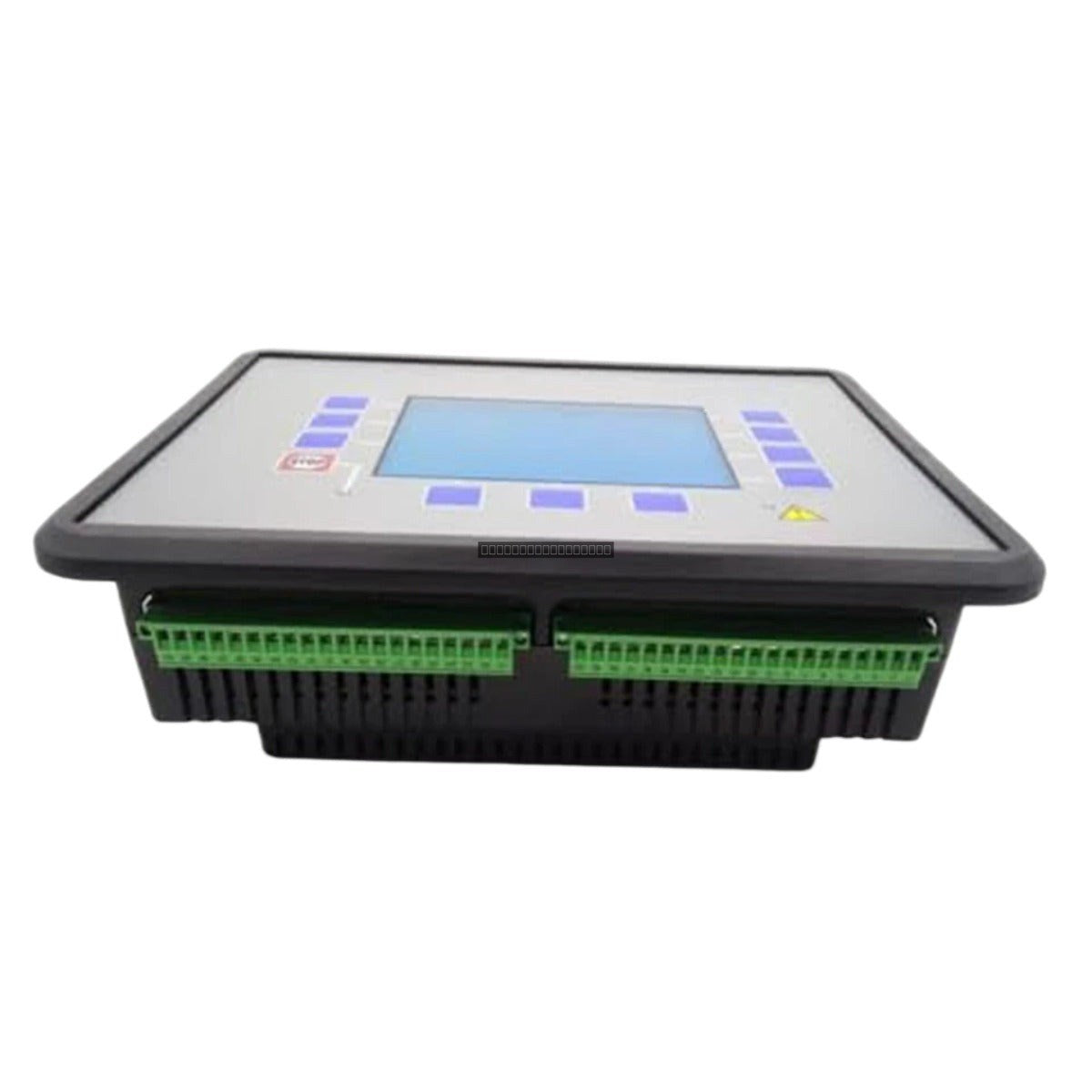

Versatile I/O: Equipped with 10 configurable discrete inputs, 12 configurable relay outputs, and flexible analog input/output channels.
-
True RMS Sensing: Provides accurate voltage and current monitoring for reliable system diagnostics.
Applications
The EasyGen-3200-5 is ideal for emergency standby power, cogeneration systems, and critical power distribution. Its robust architecture makes it suitable for deployment in harsh industrial settings, including marine power plants, data center backup systems, and oil refinery power management.
Technical Specifications
| Model |
8440-2050 EasyGen-3200-5 |
| Input Power Supply |
12/24 VDC (8 to 40 VDC) |
| Power Consumption |
Max 17 W |
| Voltage Sensing |
100 VAC to 480 VAC (True RMS) |
| Current Sensing |
1 A or 5 A (Secondary) |
| Discrete Inputs |
10 Configurable |
| Relay Outputs |
12 Configurable |
| Analog Inputs |
0-2500 Ohm / 0-20 mA / 4-20 mA |
| Analog Outputs |
+/- 10 V / +/- 20 mA / PWM |
| Operating Temperature |
-20 to 70 deg C |
Installation Guidelines
-
Mounting: Ensure the unit is securely mounted in a front-panel configuration using the provided hardware.
-
Power Supply: Verify that the supply voltage is within the 8 to 40 VDC range before connection.
-
Wiring: Use shielded cables for communication lines (CAN/RS-485) to minimize EMI interference. Ensure proper grounding of the controller chassis.
-
Safety: Always disconnect power before performing any wiring or maintenance on the module.
-
Environment: Ensure adequate ventilation around the unit to maintain operating temperatures within the specified -20 to 70 deg C range.
FAQ
Is the EasyGen-3200-5 compatible with existing SCADA systems?
Yes, the unit supports Modbus RTU protocols via RS-485, allowing for seamless integration into most standard SCADA and building management systems.
Can this controller manage multiple generators?
Yes, the EasyGen-3200-5 is designed to handle the synchronization and load sharing of up to 32 gensets in a single system.
