Description

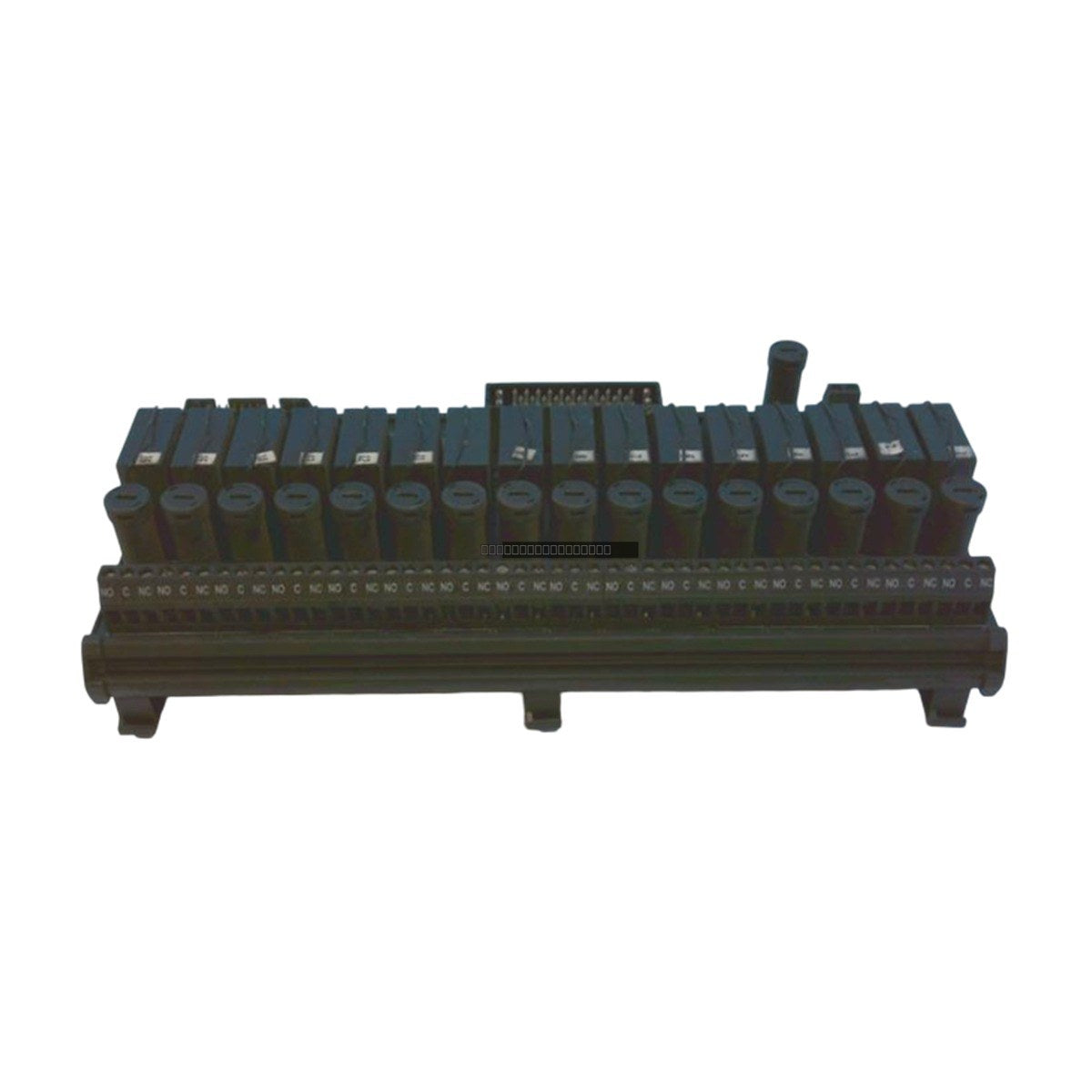

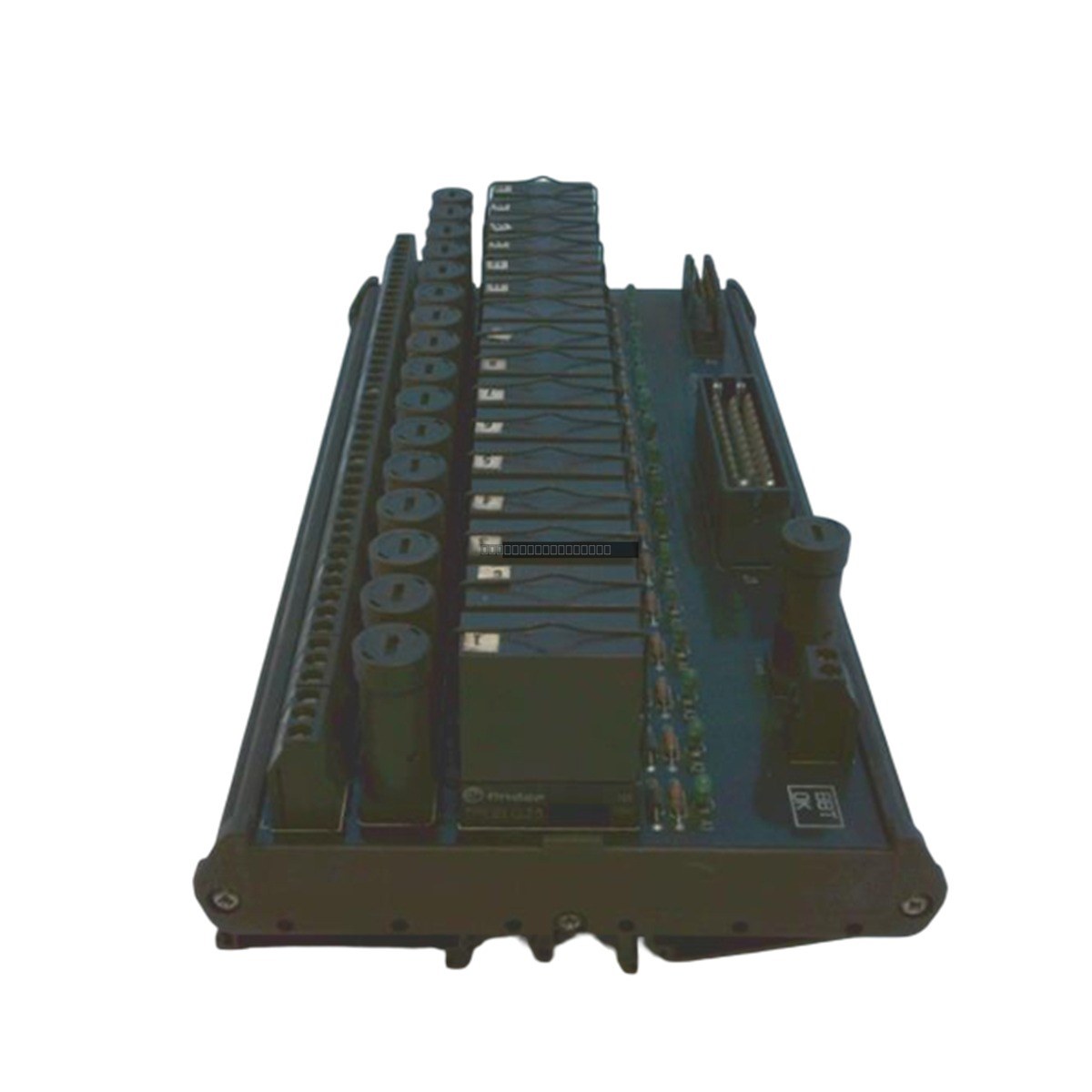

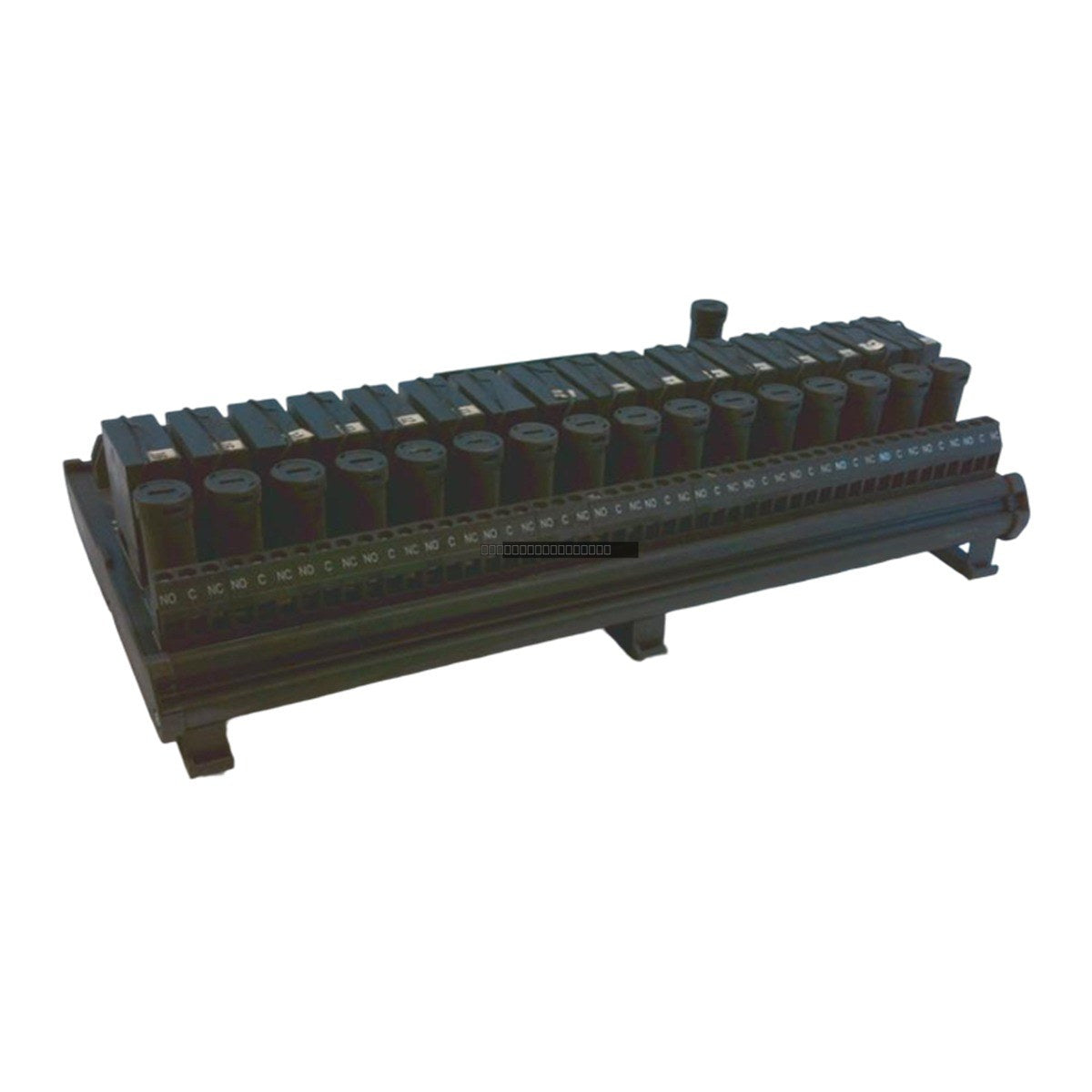

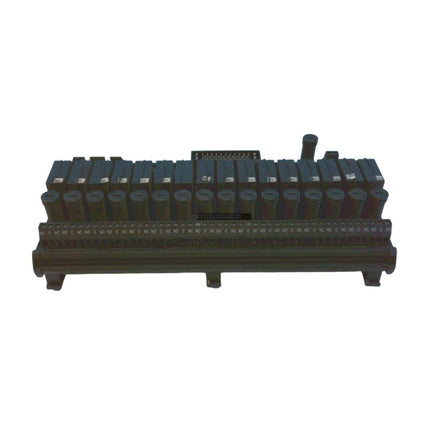

The GE Fanuc IC200CHS111 is a Versamax series interposing I/O main base designed to provide robust electrical isolation between field devices and control system electronics. This module features 16 isolated channels, ensuring that high-voltage field signals do not compromise the integrity of the PLC backplane. By facilitating point-to-point galvanic isolation, the IC200CHS111 protects sensitive control hardware from voltage surges, cross-channel interference, and ground loops in demanding industrial environments.
Features
-
16-Channel Isolation: Provides independent galvanic separation for each of the 16 I/O points.
-
High-Density Termination: Equipped with 50 box-style terminal blocks to support secure, vibration-resistant field wiring.
-
Visual Diagnostics: Includes 16 integrated LEDs for real-time status monitoring of individual channels.
-
Dedicated Power Input: Features specific terminals (A17 and A18) for 24 VDC logic power supply.
-
Rugged Design: Engineered for reliable operation in high-stress environments, including chemical processing and power generation.
Technical Specifications
| Model |
IC200CHS111 |
| Channels |
16 Isolated Points |
| Max Carry Current |
8.0 A per point |
| Resistive Load Capacity |
8 A at 250 VAC / 30 VDC |
| Inductive Load Capacity |
6 A at 250 VAC / 4 A at 30 VDC |
| Max Switching Voltage |
380 VAC / 125 VDC |
| Max Switching Power |
2000 VA (AC) / 240 W (DC) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
-
Power Down: Always disconnect power from the I/O base and associated field devices before installing or removing modules.
-
Mounting: Ensure the base is securely mounted to the DIN rail or backplane to maintain proper grounding and mechanical stability.
-
Wiring: Use shielded cables for field connections to minimize EMI. Ensure all terminal screws are tightened to the specified torque to prevent loose connections.
-
Environment: Maintain adequate ventilation around the module to ensure operating temperatures remain within the 0 to 60 deg C range.
-
ESD Handling: Use appropriate electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal components.
FAQ
What is the primary function of the IC200CHS111?
It acts as an interposing base to provide galvanic isolation between field-side signals and the control system, protecting the PLC from electrical faults.
Can this module handle AC and DC loads?
Yes, it is rated for both AC and DC switching, with specific limits for resistive and inductive loads as detailed in the technical specifications.
How do I monitor the status of the channels?
The module features 16 individual LEDs on the front panel that provide visual feedback for each channel's switching state.
