Description

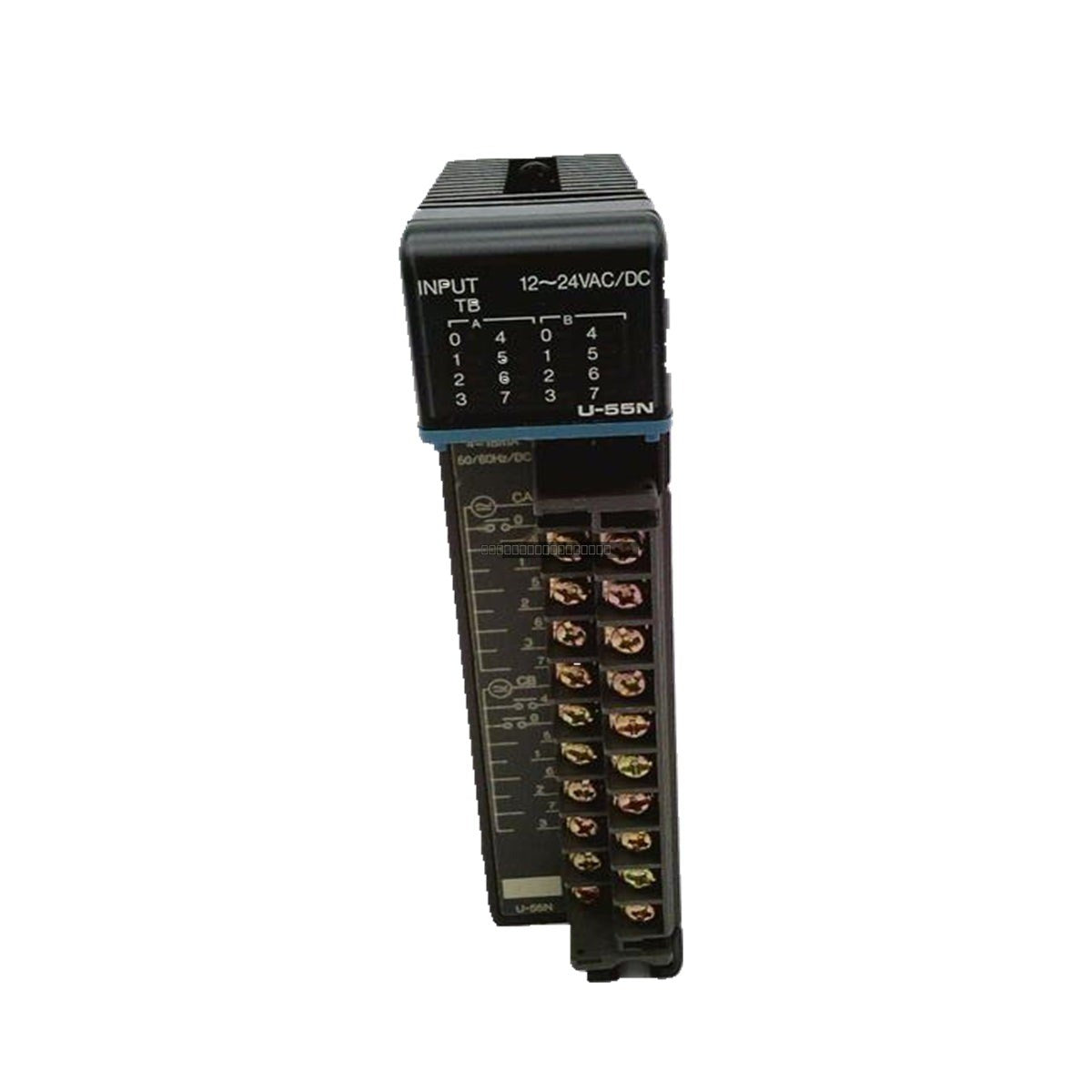

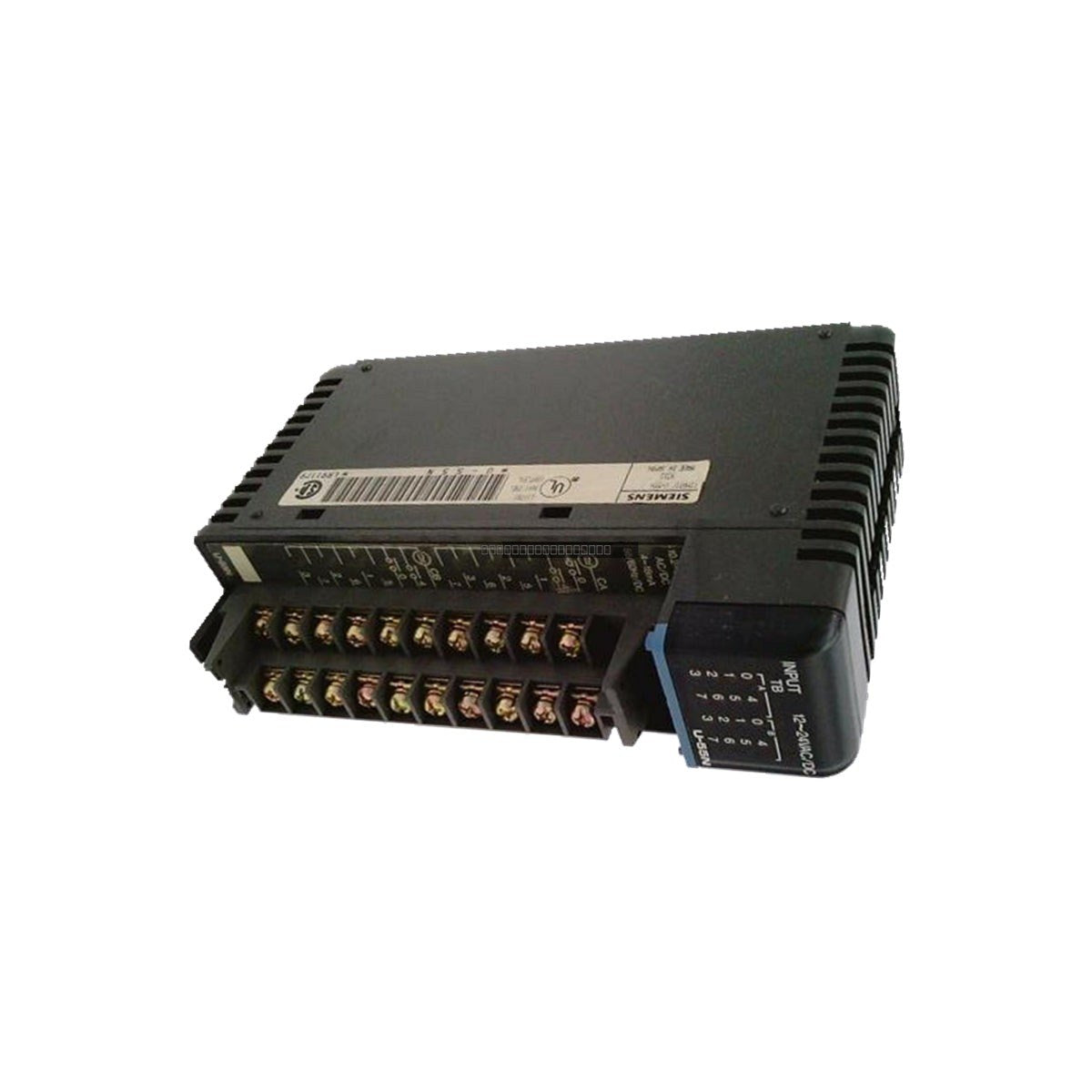

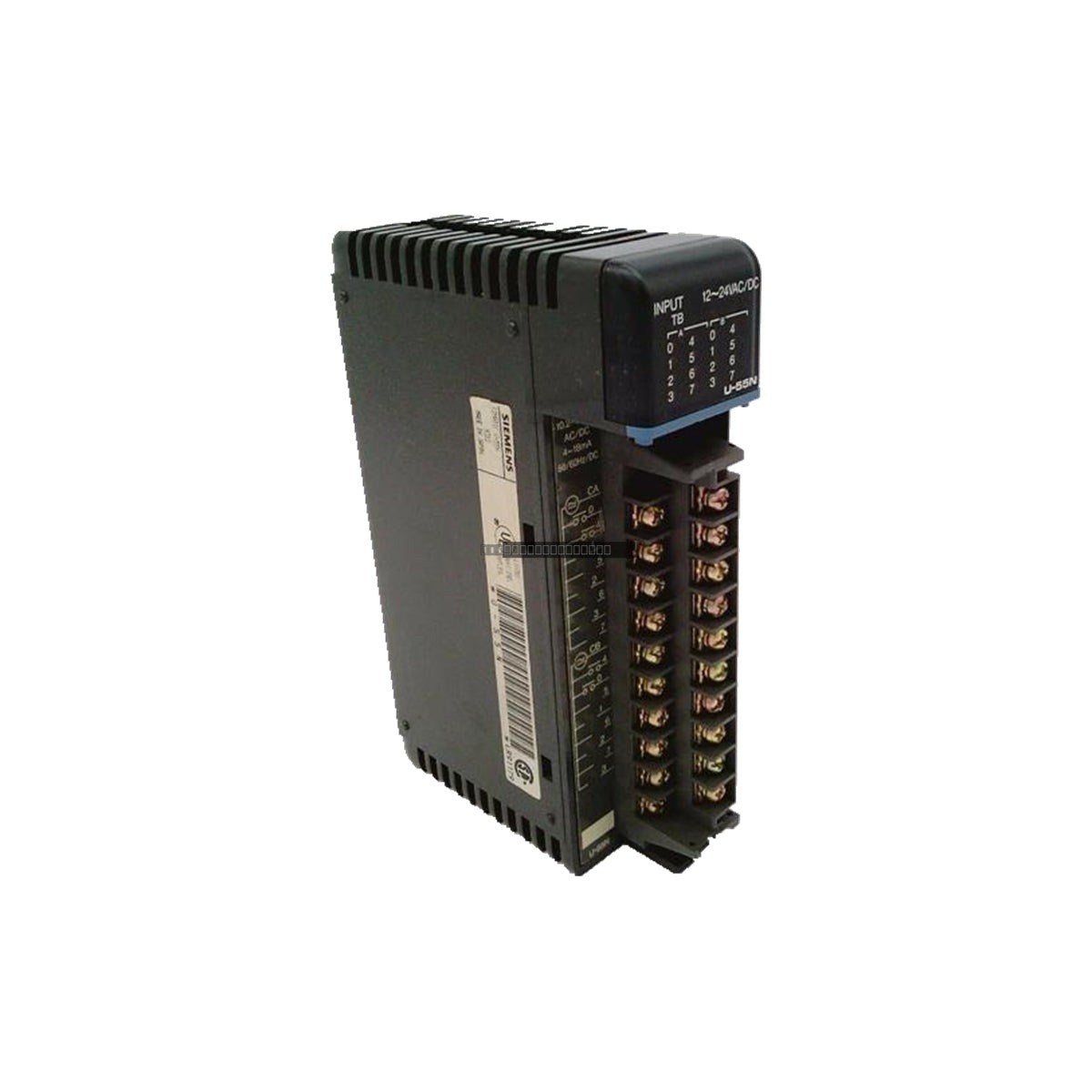

The Siemens U-55N is a robust 16-point digital input module designed for legacy SIMATIC automation environments. It functions as a reliable interface between field-side discrete sensors, switches, and the central control processor. Built to handle a flexible 12/24 VAC/DC input range, this module is widely utilized in heavy industrial sectors, including power generation and petrochemical processing, where maintaining stable legacy control logic is essential for operational continuity.
Features
- 16 discrete input channels for high-density signal monitoring.
- Dual-compatibility for 12/24 VAC/DC signal levels.
- Integrated opto-electrical isolation to safeguard the PLC backplane against transient voltage surges.
- On-board status LEDs for each channel, allowing for rapid visual diagnostics of field-side wiring and signal status.
- Optimized for low-latency signal acquisition to ensure precise logic execution within the PLC scan cycle.
Applications
This module is frequently deployed in legacy control architectures requiring high-density digital input handling. It is suitable for monitoring industrial switchgear, limit switches, and proximity sensors in environments such as oil refineries, mining facilities, and automated manufacturing lines.
Technical Specifications
| Model |
U-55N |
| Brand |
Siemens |
| Series |
SIMATIC |
| Module Type |
Digital Input Module |
| Input Points |
16 Points |
| Voltage Rating |
12/24 VAC/DC |
| Power Consumption |
1.5 W (Typical) |
| Isolation |
Optocoupler |
| Operating Temperature |
0-60 deg C |
| Storage Temperature |
-40 to +70 deg C |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the U-55N module to prevent electrical damage.
- Verify that the module is properly seated in the backplane connector to maintain reliable communication with the CPU.
- Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Maintain adequate ventilation around the SIMATIC rack to ensure the operating temperature remains within the 0-60 deg C range.
- Follow standard ESD (electrostatic discharge) safety procedures when handling the module to protect internal circuitry.
FAQ
Is the U-55N compatible with both AC and DC signals?
Yes, the U-55N is engineered to support both 12/24 VAC and VDC inputs, making it highly versatile for various sensor types.
Does this module require external power for the inputs?
The module utilizes the field signal voltage; ensure your external power supply matches the 12/24V rating as specified in the technical documentation.
