Description

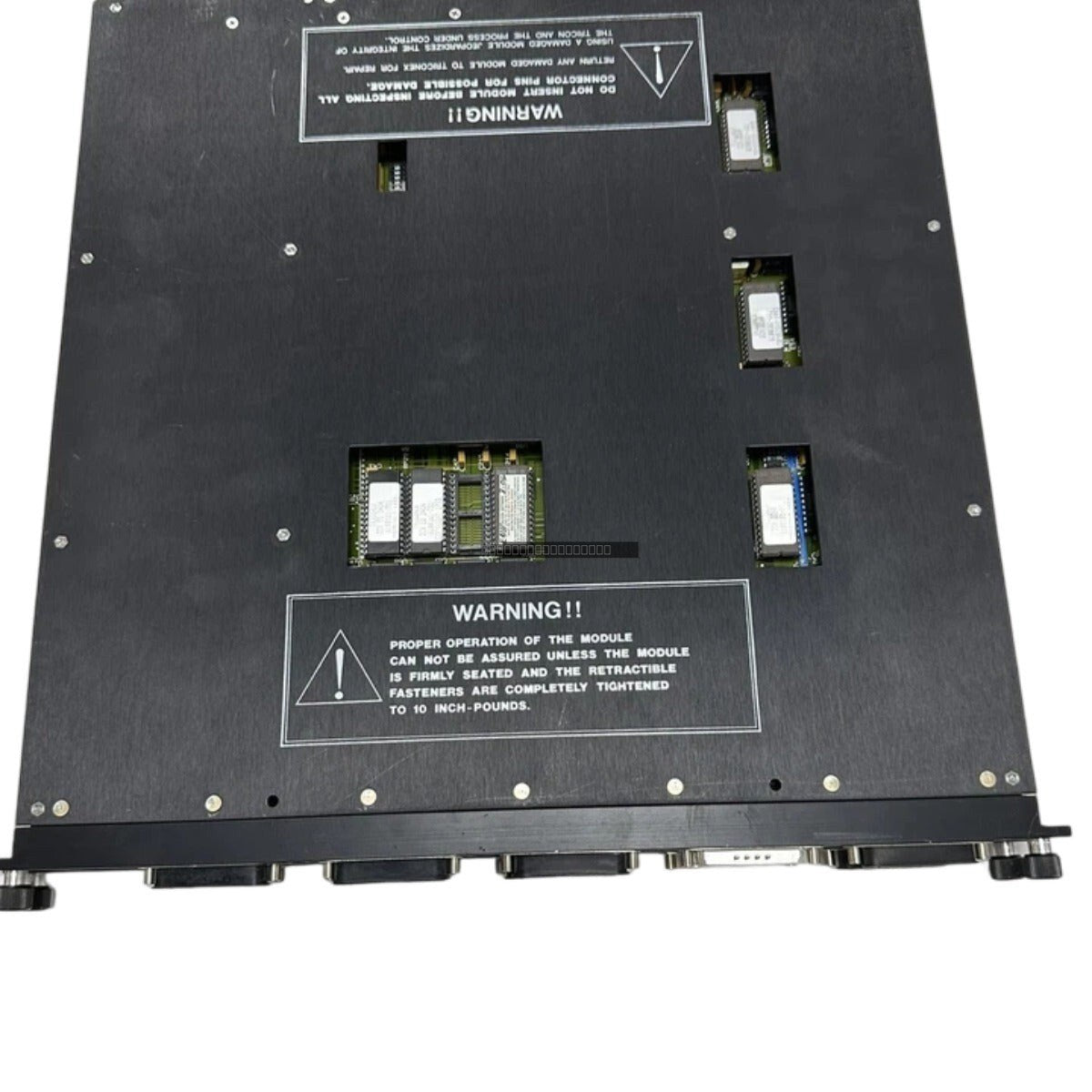

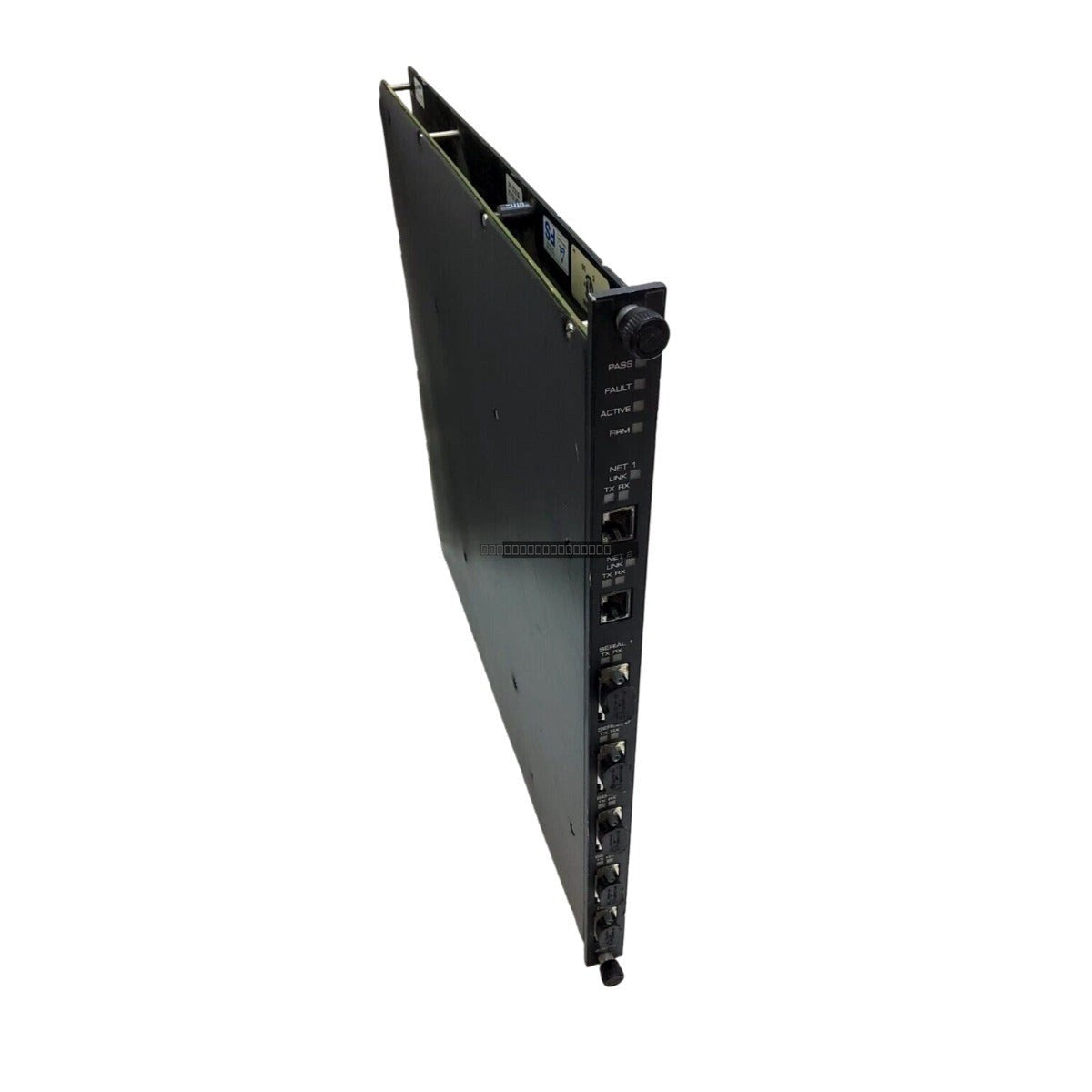

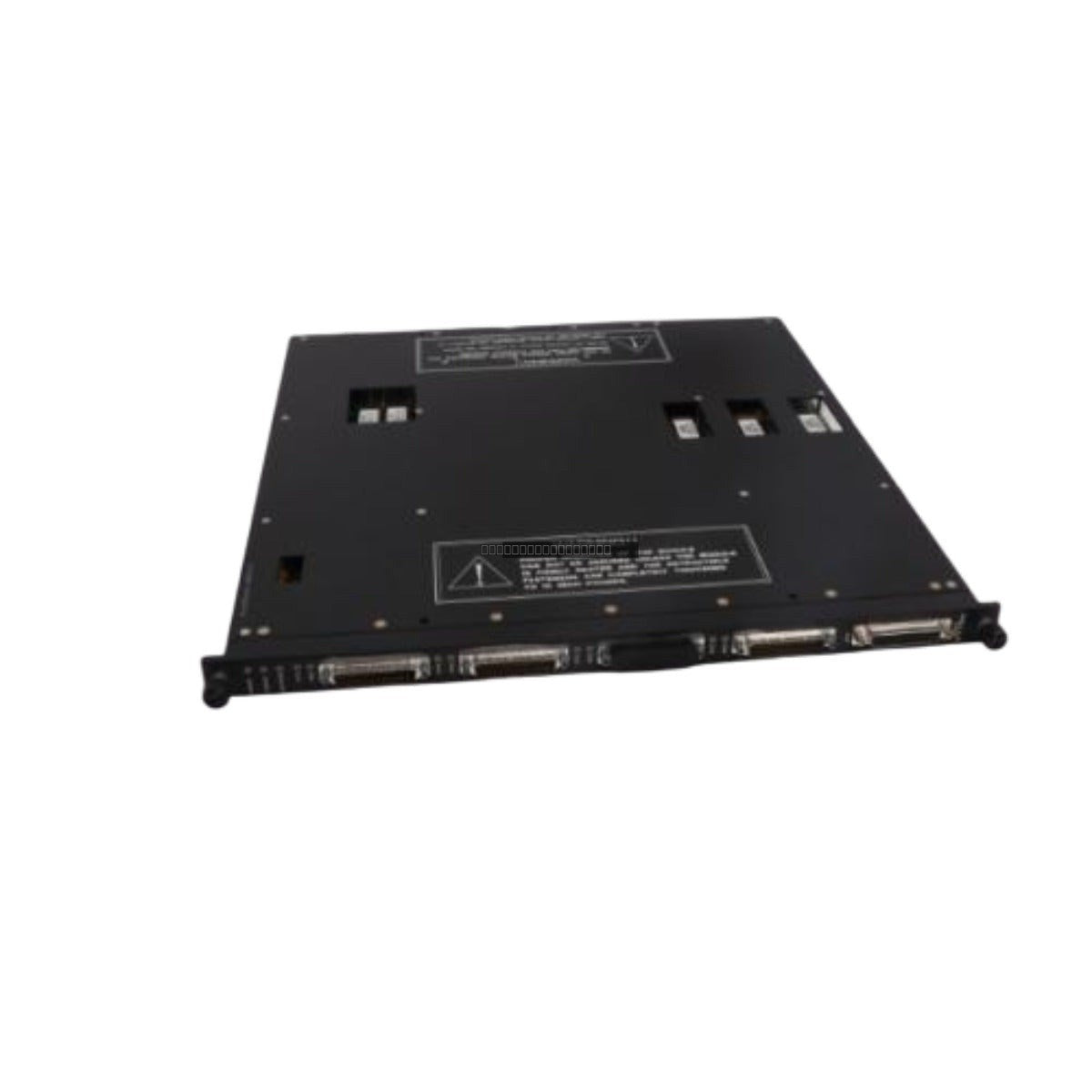

The Triconex 4107 EICM (Enhanced Intelligent Communication Module) is a specialized interface module designed for the Tricon Safety Instrumented System (SIS). It serves as a high-performance communication gateway, enabling the Tricon controller to exchange data reliably and deterministically with external systems such as Distributed Control Systems (DCS), Supervisory Control and Data Acquisition (SCADA) platforms, and other third-party industrial devices. By offloading communication tasks from the main processors, the 4107 EICM ensures that critical safety functions remain the primary priority of the system while maintaining high-speed data throughput.
Features
- Supports multiple communication protocols, including Modbus (Master and Slave) and Honeywell TDC 3000 interfaces.
- Features independent serial ports to facilitate redundant communication paths, enhancing system availability.
- Onboard intelligence manages physical layer signaling and data link framing, reducing processor overhead.
- Designed for high-integrity safety applications in demanding environments like oil, gas, and power generation.
- Provides transparent diagnostic visibility for external monitoring and control systems.
Applications
The 4107 EICM is primarily deployed in safety-critical industrial automation environments where high-speed, reliable data integration is required. Typical applications include integration with DCS platforms for process monitoring, connection to third-party HMI systems, and data logging in safety-instrumented loops within refineries, chemical processing plants, and power generation facilities.
Technical Specifications
| Brand |
Triconex |
| Model |
4107 EICM |
| Module Type |
Enhanced Intelligent Communication Module |
| Input Voltage |
24 VDC |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the Tricon system is powered down before inserting or removing the 4107 EICM module to prevent electrical damage or system faults.
- Handle the module using proper ESD (Electrostatic Discharge) protection practices to avoid damaging sensitive internal components.
- Ensure the module is fully seated in the designated Tricon chassis slot and that the locking mechanisms are secure.
- Verify that all serial communication cables are properly shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Consult the specific Tricon system documentation for wiring pinouts and configuration requirements for the intended protocol (Modbus or Honeywell TDC 3000).
FAQ
Is the 4107 EICM compatible with all Tricon systems?
The 4107 EICM is designed for use within the Tricon SIS platform. Compatibility depends on the specific system revision and firmware version. Always verify your system's hardware compatibility list before installation.
Does this module support redundant configurations?
Yes, the 4107 EICM is designed to support redundant hardware configurations, allowing for high-availability communication paths essential for safety-critical applications.
