Description

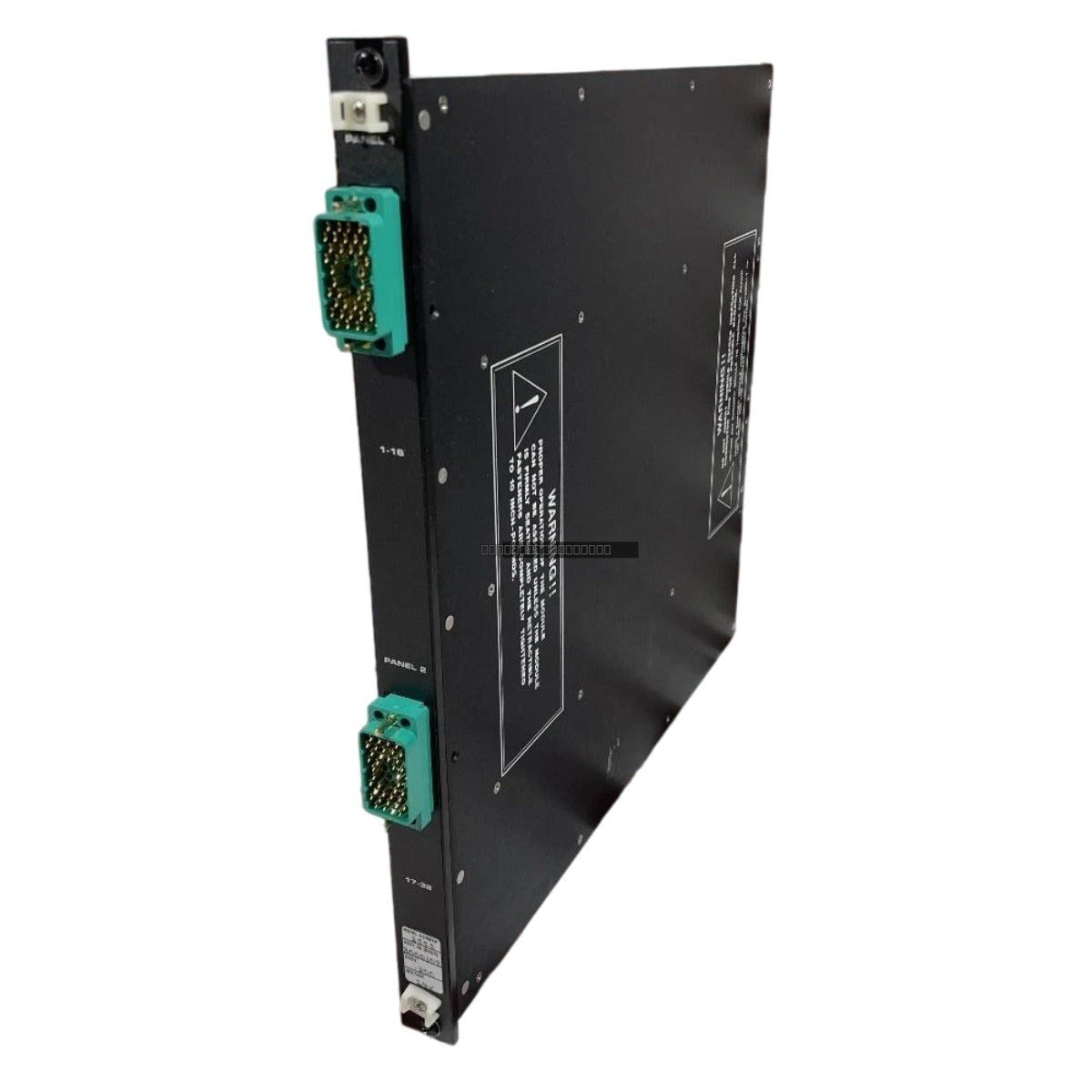

The Triconex 2553 is a specialized dual-panel External Termination Assembly (ETA) designed to facilitate reliable signal interfacing within Triconex digital input subsystems. This unit serves as a critical bridge between field instrumentation and high-density PLC input modules, ensuring robust signal conditioning for 24 VAC/VDC discrete inputs. By centralizing field wiring and providing integrated protection, the 2553 supports high-integrity data acquisition in demanding industrial environments, including power generation and petrochemical processing.
Features
- Dual-panel configuration designed for efficient field wiring management.
- Optimized for 24 VAC/VDC digital input signal conditioning.
- Integrated test points to simplify maintenance and loop troubleshooting.
- Field-side fuse protection to shield sensitive PLC input circuitry from transient electrical faults.
- High-density layout suitable for installation within standard marshalling cabinets.
Applications
This termination assembly is commonly deployed in safety-critical and process control systems where discrete signal integrity is paramount. Typical applications include the integration of proximity sensors, mechanical limit switches, and auxiliary relay contacts into the Triconex safety PLC architecture.
Technical Specifications
| Model |
2553 |
| Brand |
Triconex |
| Module Type |
Digital Input External Termination Panel |
| Input Rating |
24 VAC/VDC |
| Operating Temperature |
0 to 60 deg C |
| Weight |
1.84 kg |
Installation Guidelines
- Ensure all power to the system is disconnected before installing or removing the termination assembly.
- Mount the module securely on a standard DIN rail within a clean, dry, and temperature-controlled marshalling cabinet.
- Maintain physical separation between high-voltage field wiring and low-voltage signal cables to minimize electromagnetic interference (EMI).
- Verify proper grounding of the assembly to the cabinet chassis to ensure effective surge suppression.
- Use appropriate wire gauges and torque settings as specified in your system's site-specific documentation.
FAQ
Does the 2553 include fuses for channel protection?
Yes, the 2553 is designed with field-side fuses to provide a layer of protection for the downstream input modules against electrical transients.
Can this module be used for both AC and DC signals?
Yes, the 2553 is rated for 24 VAC/VDC discrete inputs, making it versatile for various field device types.
What is the primary purpose of the dual-panel design?
The dual-panel architecture allows for high-density termination in space-constrained cabinets while maintaining clear separation between field-side and system-side cabling.
