Description

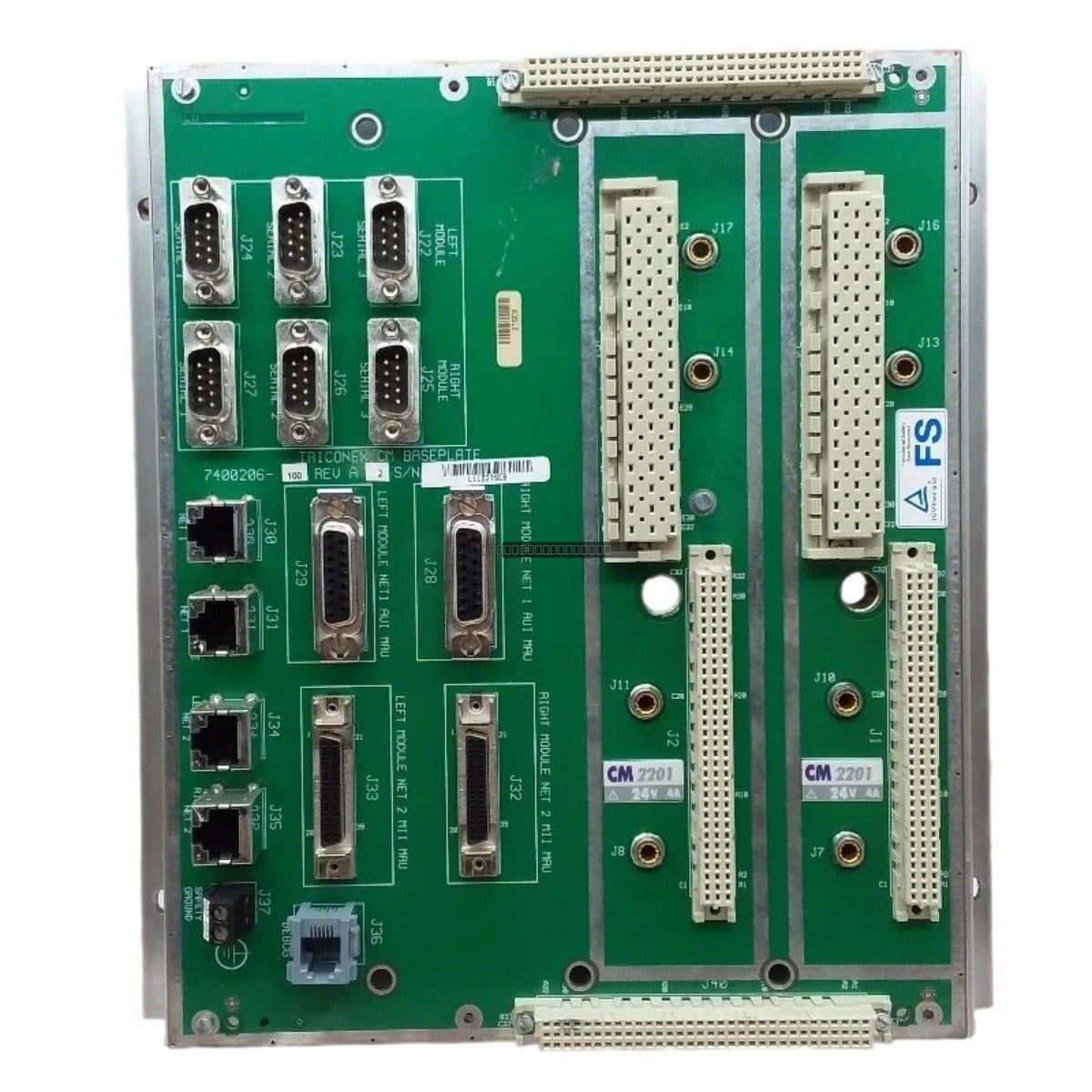

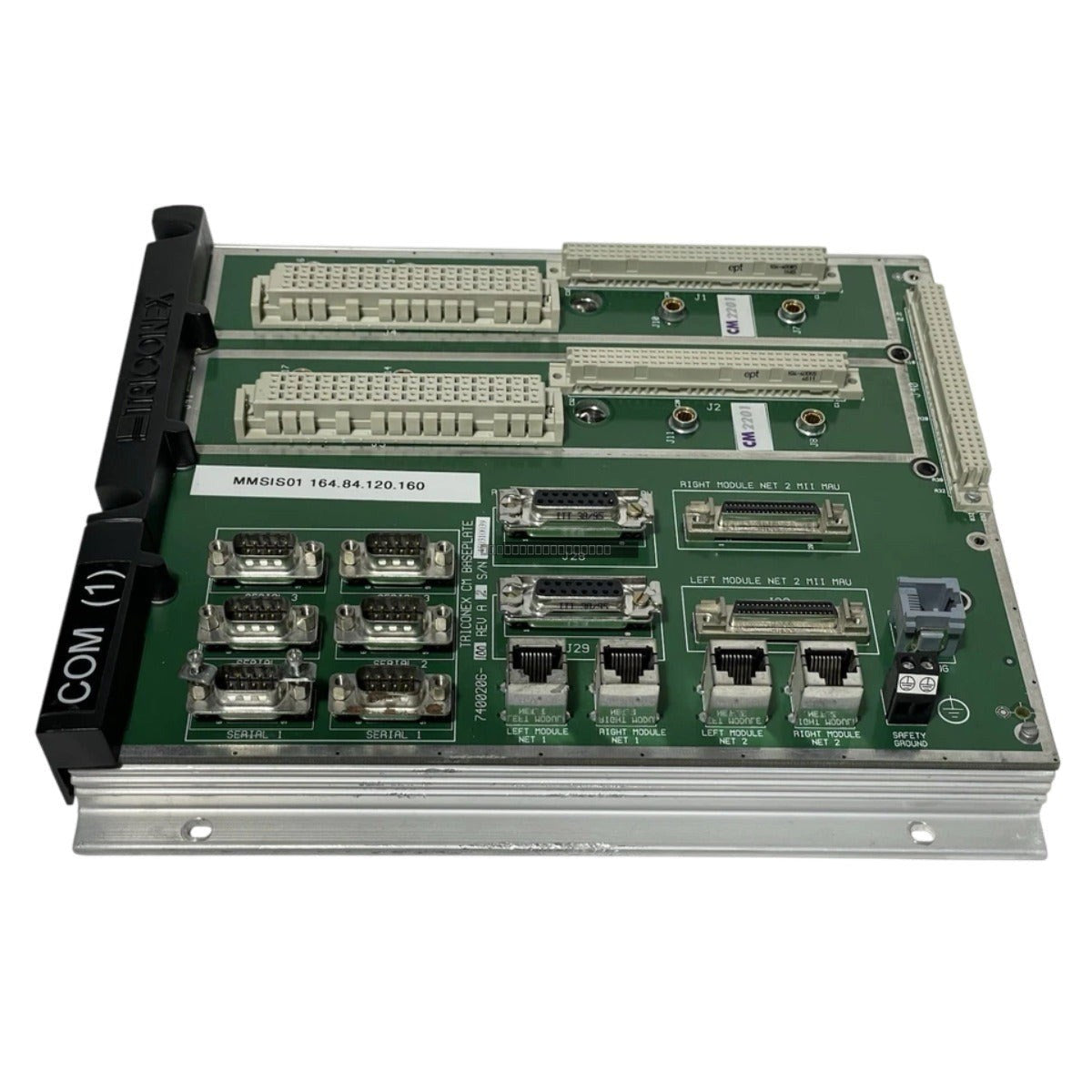

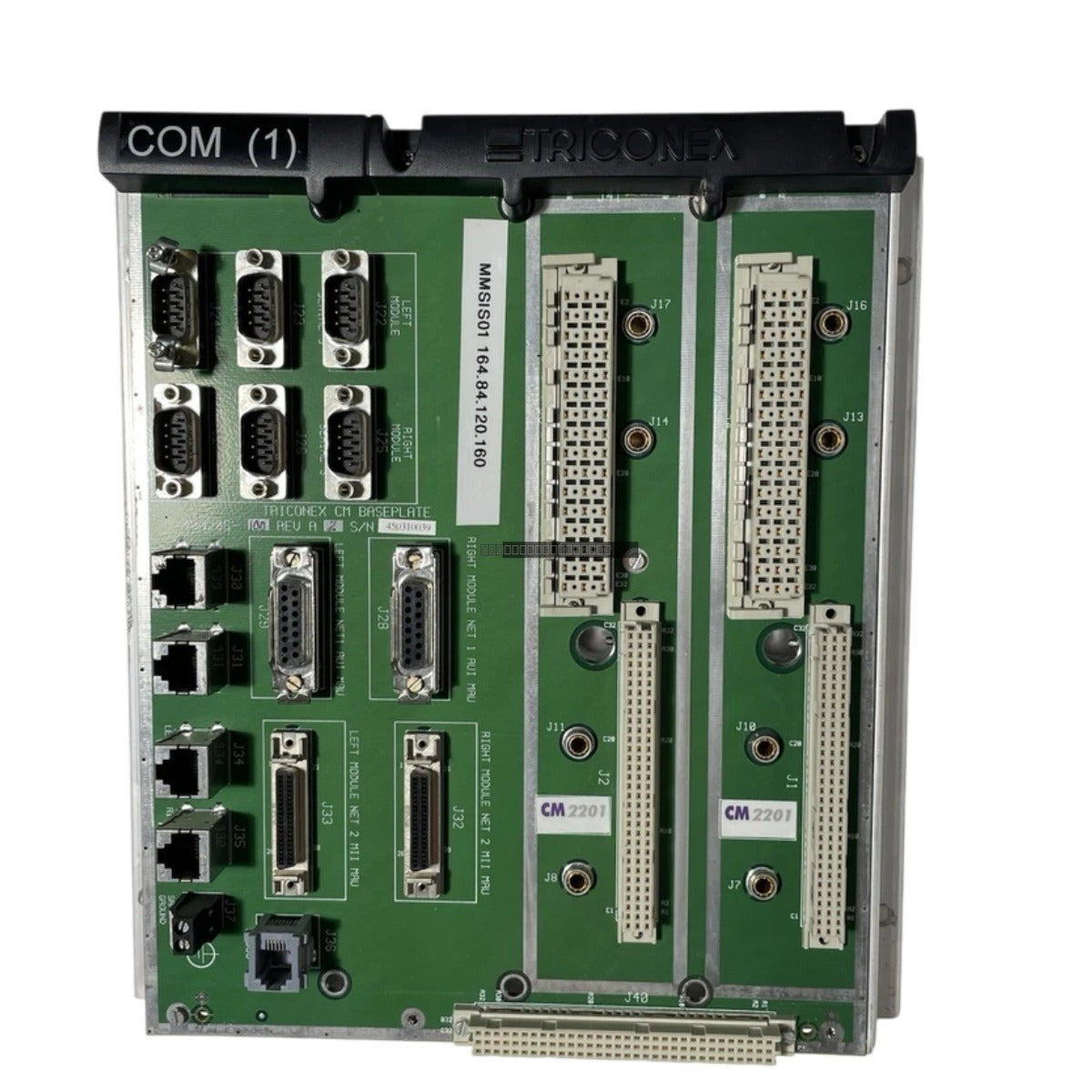

The Triconex 2201 is a specialized communication module baseplate designed to serve as the structural and electrical backbone for the Tricon safety-instrumented system. This component provides the necessary bus routing and power distribution required to integrate communication modules into the Triconex fault-tolerant architecture. Engineered for high-availability applications, the 2201 ensures reliable signal integrity and robust mechanical support for critical control network interfaces in demanding industrial sectors such as hydrocarbon processing, power generation, and chemical manufacturing.
Features
-
Fault-Tolerant Infrastructure: Supports the high-speed data bus requirements of the Tricon platform, maintaining system-wide communication stability.
-
Hot-Swap Capability: Designed to permit the removal and installation of communication modules without interrupting the operation of the safety system.
-
Redundant Power Distribution: Features dedicated power paths to ensure consistent voltage supply to all mounted modules, even in the event of a primary power rail disturbance.
-
Signal Integrity: Internal layout minimizes electromagnetic interference and signal crosstalk, protecting data packets during transmission.
-
Industrial Durability: Built to withstand the thermal and mechanical stresses typical of continuous-duty control room or plant floor environments.
Applications
This baseplate is primarily utilized within Tricon safety systems to provide mounting and connectivity for communication modules that bridge the gap between safety controllers and external DCS, HMI, or SCADA networks. It is suitable for deployment in mission-critical safety loops where uptime and fault tolerance are mandatory.
Technical Specifications
| Brand |
Invensys Triconex |
| Model |
2201 |
| Type |
Communication Module Baseplate |
| Operating Temperature |
-20 to 60 deg C |
Installation Guidelines
- Ensure the mounting surface is clean, level, and capable of supporting the weight of the baseplate and installed modules.
- Verify that the system is de-energized before performing any physical installation or removing existing hardware.
- Handle with care to avoid damage to the backplane pins and connectors; ensure modules are fully seated and locked into the baseplate slots.
- Maintain proper ventilation around the chassis to ensure operating temperatures remain within the specified -20 to 60 deg C range.
- Follow standard grounding procedures for the Tricon system to prevent electrical noise and potential damage from electrostatic discharge.
FAQ
Is the 2201 baseplate compatible with all Tricon modules?
The 2201 is specifically designed for communication modules within the Tricon platform. Please verify your specific module catalog numbers against the Triconex hardware documentation for compatibility.
Can I replace a module while the system is running?
Yes, the 2201 baseplate supports hot-swapping, allowing for maintenance or module replacement without shutting down the control system.
