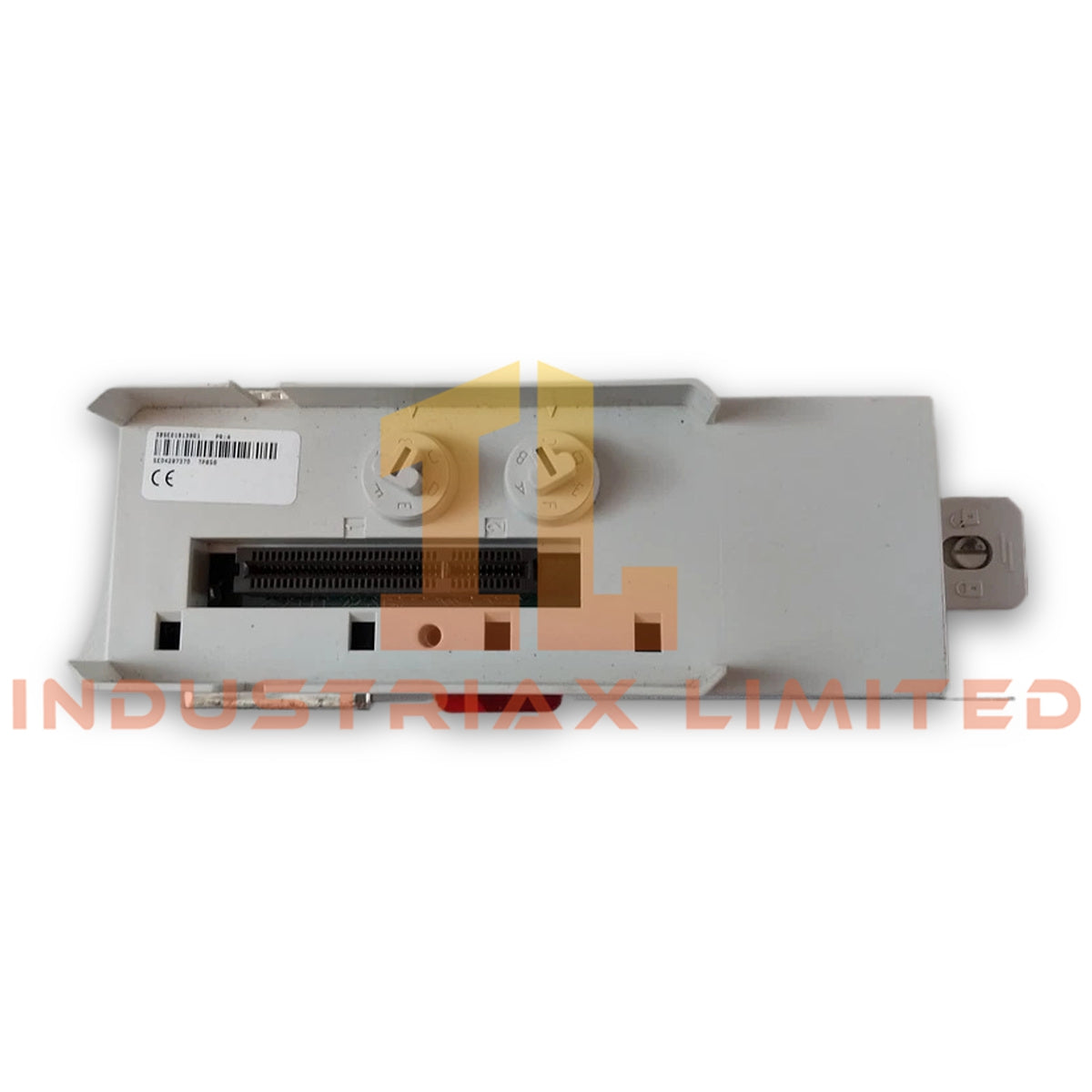

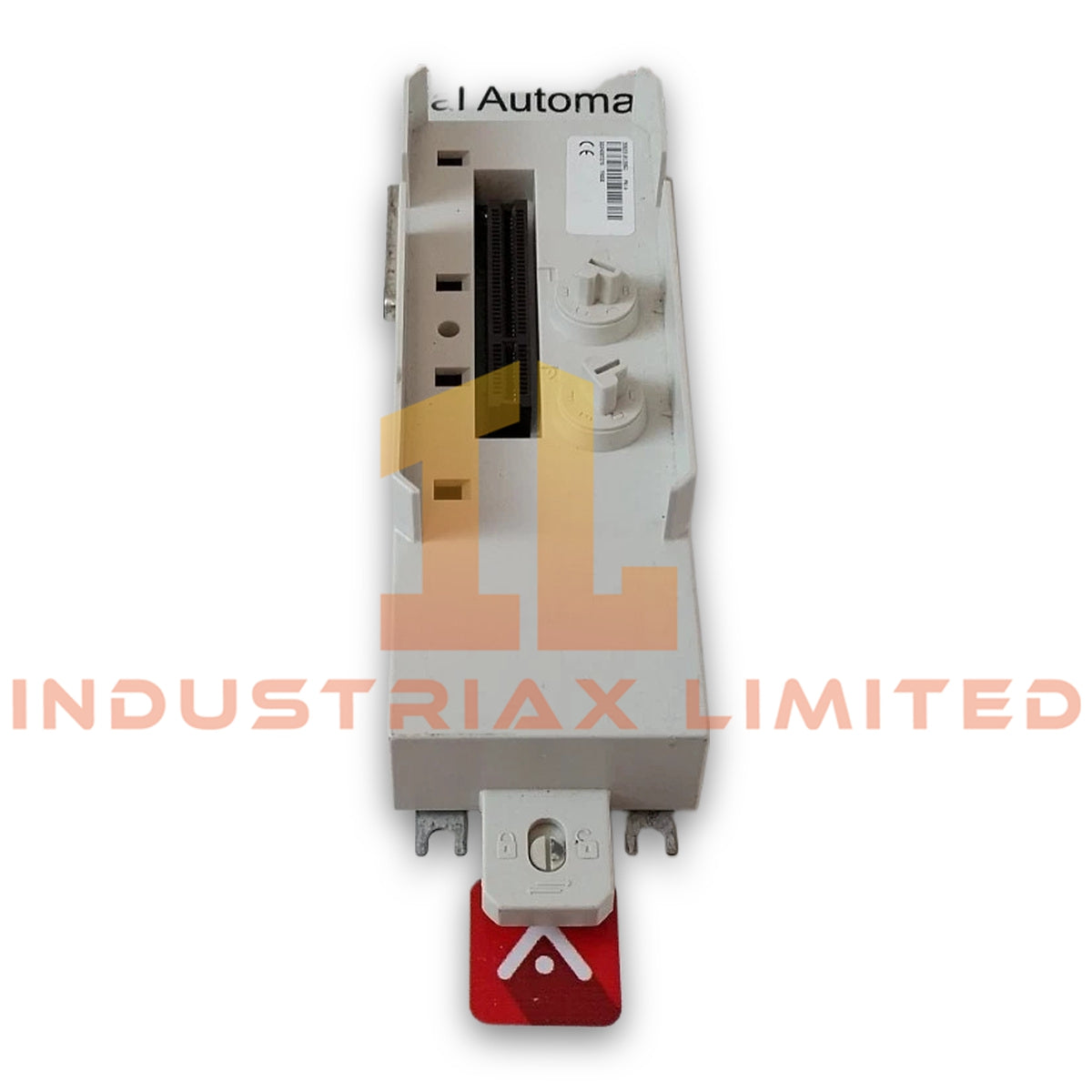

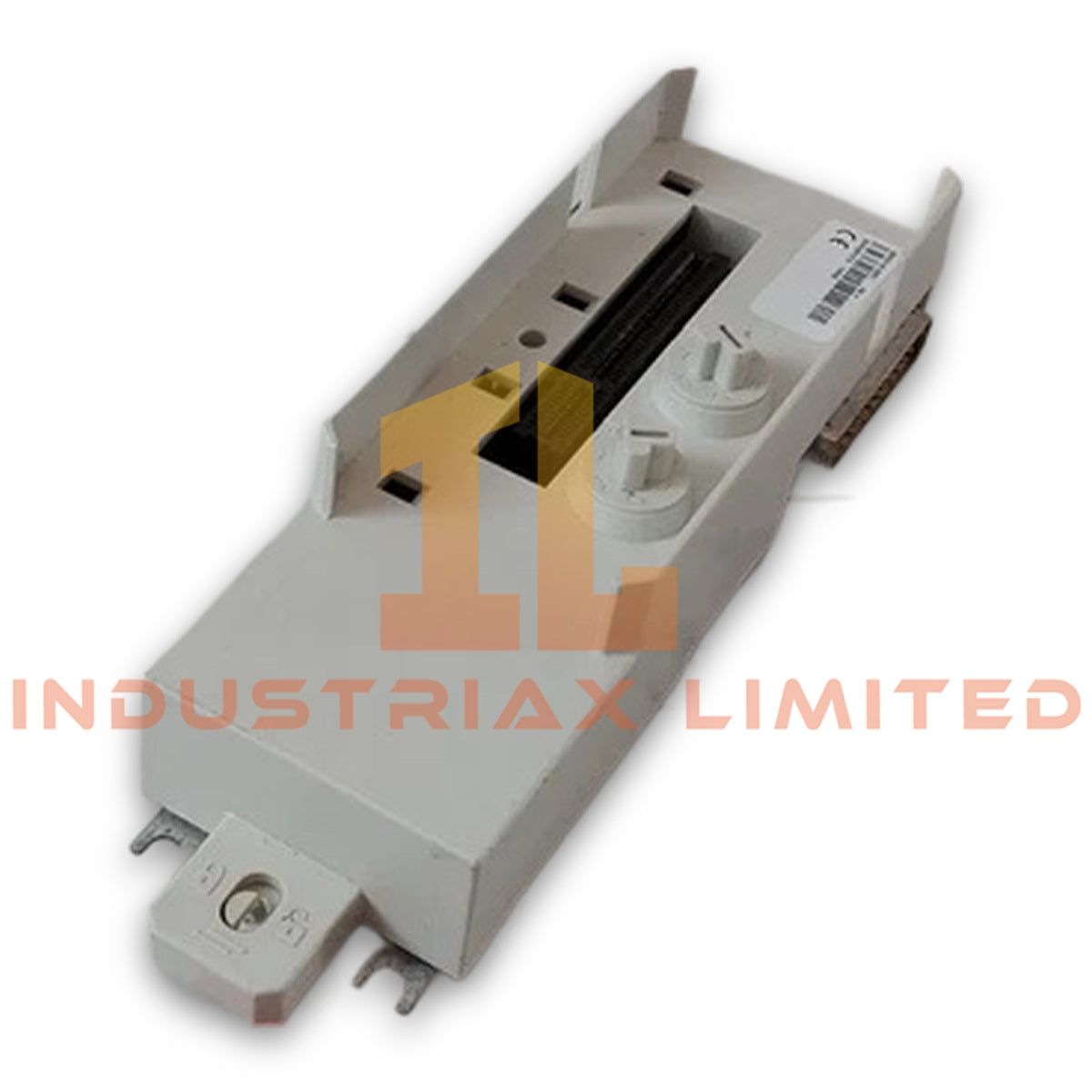

ABB TP858 Baseplate Unit
The ABB TP858, also cataloged as the TP858 Baseplate Unit, provides the physical mounting and electrical interface structure for CI858 communication interface installation within ABB AC 800M controller systems.
Hardware Specifications
Parameter
Specification
Model
TP858
Brand
ABB
Product Type
Baseplate Unit
System Compatibility
ABB AC 800M controller platform with CI858 communication interface
Origin
Sweden
Operating Temp
Industrial control environment range, system dependent
Power Consumption
Supplied through associated controller communication interface assembly
Mounting Type
Controller rack / CEX-Bus mounting structure
Communication Interface
Supports CI858 module mechanical and electrical connection
Installation Method
Panel-mounted controller system installation
Backplane Bus Communication and Industrial Control Integration
The TP858 functions as the mechanical and electrical base assembly for ABB communication interface modules. Therefore, it provides the mounting position, connector alignment, and internal signal routing required for AC 800M system integration.
The unit supports ABB controller architecture through defined module positioning and backplane connection methods. Additionally, firmware and communication behavior depend on the installed CI858 interface module rather than the TP858 hardware itself.
The baseplate design maintains correct module placement for industrial control configurations. Furthermore, it supports structured installation practices for ABB CEX-Bus based communication assemblies.
Frequently Asked Questions
Q: Is the TP858 an independent communication module? A: No. The TP858 is a baseplate unit designed to mechanically and electrically support compatible ABB communication interface modules such as CI858.
Q: Does the TP858 contain configurable firmware? A: No. The TP858 does not provide independent firmware functions. Configuration parameters are managed by the installed communication interface and AC 800M controller software.
Q: Can the TP858 be installed without a compatible ABB interface module? A: The TP858 can be physically mounted, but its intended operation requires installation with the corresponding ABB communication hardware.
Field Installation Guidelines
Install the TP858 on the designated ABB controller mounting structure according to the AC 800M hardware installation manual.
Verify that the mechanical locking features engage correctly before installing the communication interface module.
Maintain proper grounding practices for the controller cabinet. Connect cable shields according to ABB system grounding requirements to reduce electrical interference.
Route communication and power wiring separately where required. Avoid placing high-current switching cables adjacent to controller communication wiring.
Inspect connectors and mounting contacts before commissioning. Ensure all modules are correctly seated before applying system power.
