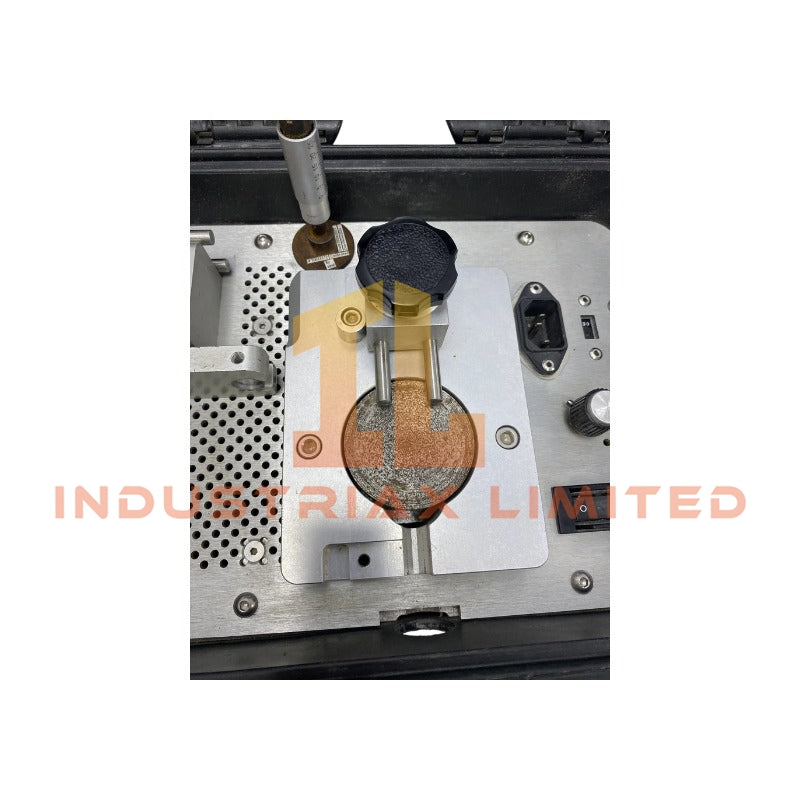

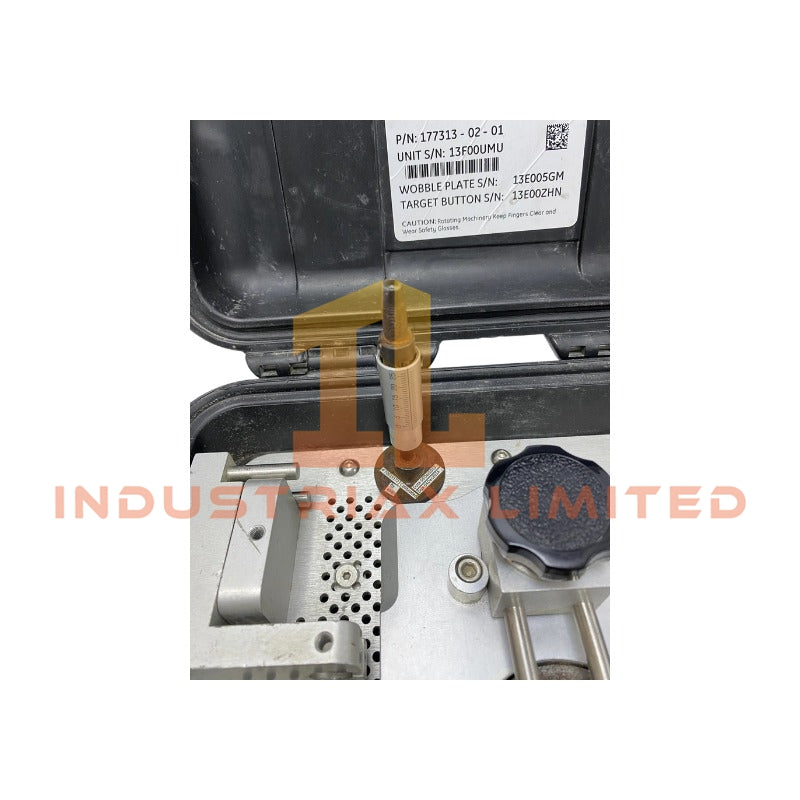

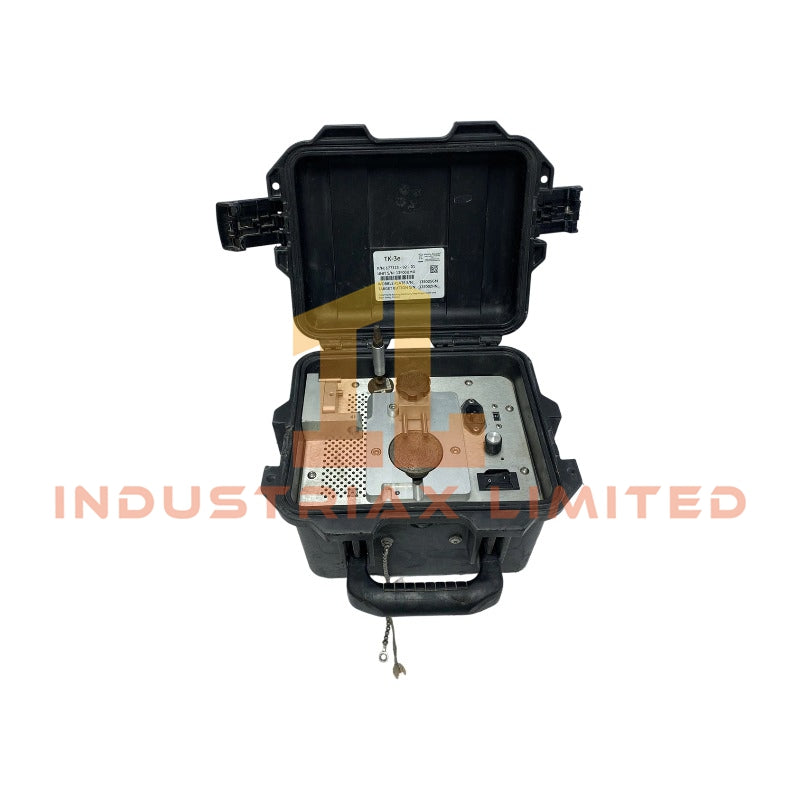

Bently Nevada TK-3E 177313-02-01 TK3 Proximity System Test Kit
The Bently Nevada TK-3E 177313-02-01, also cataloged as the TK-3E Proximity System Test Kit, provides mechanical positioning and electrical verification functions for Bently Nevada proximity probe calibration and vibration monitoring system testing.
Hardware Specifications
Parameter
Specification
Model
TK-3E 177313-02-01
Brand
Bently Nevada
Product Type
TK3 Proximity System Test Kit
Spare Model
177313-02-01
Origin
USA
Weight
5.5 kg
Dimensions
30 x 25 x 20 cm shipping size
Operating Temp
0 deg C to 50 deg C (32 deg F to 122 deg F)
Storage Temp
-18 deg C to 65 deg C (0 deg F to 150 deg F)
Humidity
95% non-condensing humidity
Power Consumption
95-125 VAC, 50/60 Hz, minimum 1 A or 190-250 VAC, 50/60 Hz, minimum 1 A
Drive Type
Electric driven mechanism
Air Supply
90 psi (6.2 bar) maximum
Configuration
02 Metric / 01 American
Spindle Micrometer Range
0 - 25.4 mm (0 - 1000 mils)
Target Button and Wobble Plate Material
AISI 4140 alloy steel
Vibration Amplitude Range
50 um to 254 um
Eddy-Current Probe Scaling and Gap Voltage Validation
The TK-3E test kit provides controlled mechanical displacement for verifying eddy-current probe scaling characteristics. The spindle micrometer generates precise target movement, allowing technicians to evaluate probe output response across the calibrated displacement range.
In addition, the test procedure supports gap voltage validation for Bently Nevada proximity systems. The measurement process verifies probe operating position and confirms electrical output behavior before field installation on machinery monitoring channels.
The alloy steel target button and wobble plate provide a defined conductive surface for proximity probe excitation and signal response evaluation. Therefore, the kit supports rotor dynamics measurement preparation where accurate displacement reference is required.
Frequently Asked Questions
Q: What type of proximity probes can be evaluated with the TK-3E 177313-02-01? A: The TK-3E is designed for testing Bently Nevada proximity systems by providing controlled target displacement and mechanical reference movement for eddy-current probe verification.
Q: Does the TK-3E require external air supply during operation? A: The unit supports an air supply input with a maximum rating of 90 psi (6.2 bar). The provided configuration also includes an electrically driven mechanism.
Q: What environmental conditions are specified for operating the TK-3E? A: The specified operating temperature range is 0 deg C to 50 deg C with 95% non-condensing humidity. Storage conditions are specified from -18 deg C to 65 deg C.
Field Installation Guidelines
Install the TK-3E on a stable work surface before performing proximity probe verification procedures. Ensure that the mechanical spindle assembly moves freely and that the target button remains clean and free from contamination.
Connect the AC power supply according to the specified voltage range. Use appropriate protective grounding practices and verify electrical connections before energizing the equipment.
When connecting proximity probes, maintain proper cable routing to reduce electrical interference. Keep signal cables separated from high-current power conductors and verify shielding continuity according to the monitoring system installation requirements.
Before testing, confirm the probe gap position and perform mechanical alignment checks. Use the spindle micrometer adjustment to apply controlled displacement while monitoring the corresponding probe output response.
