Description

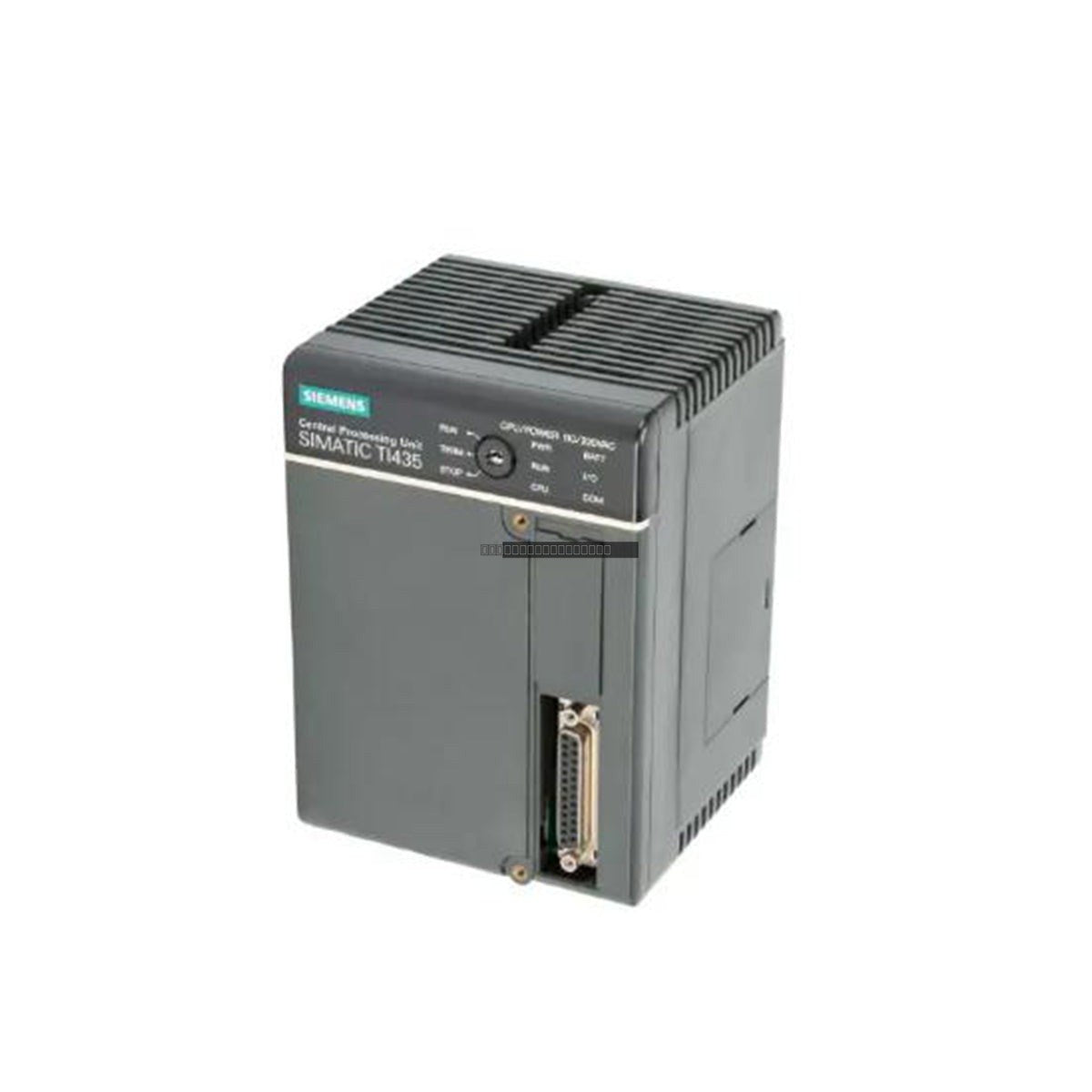

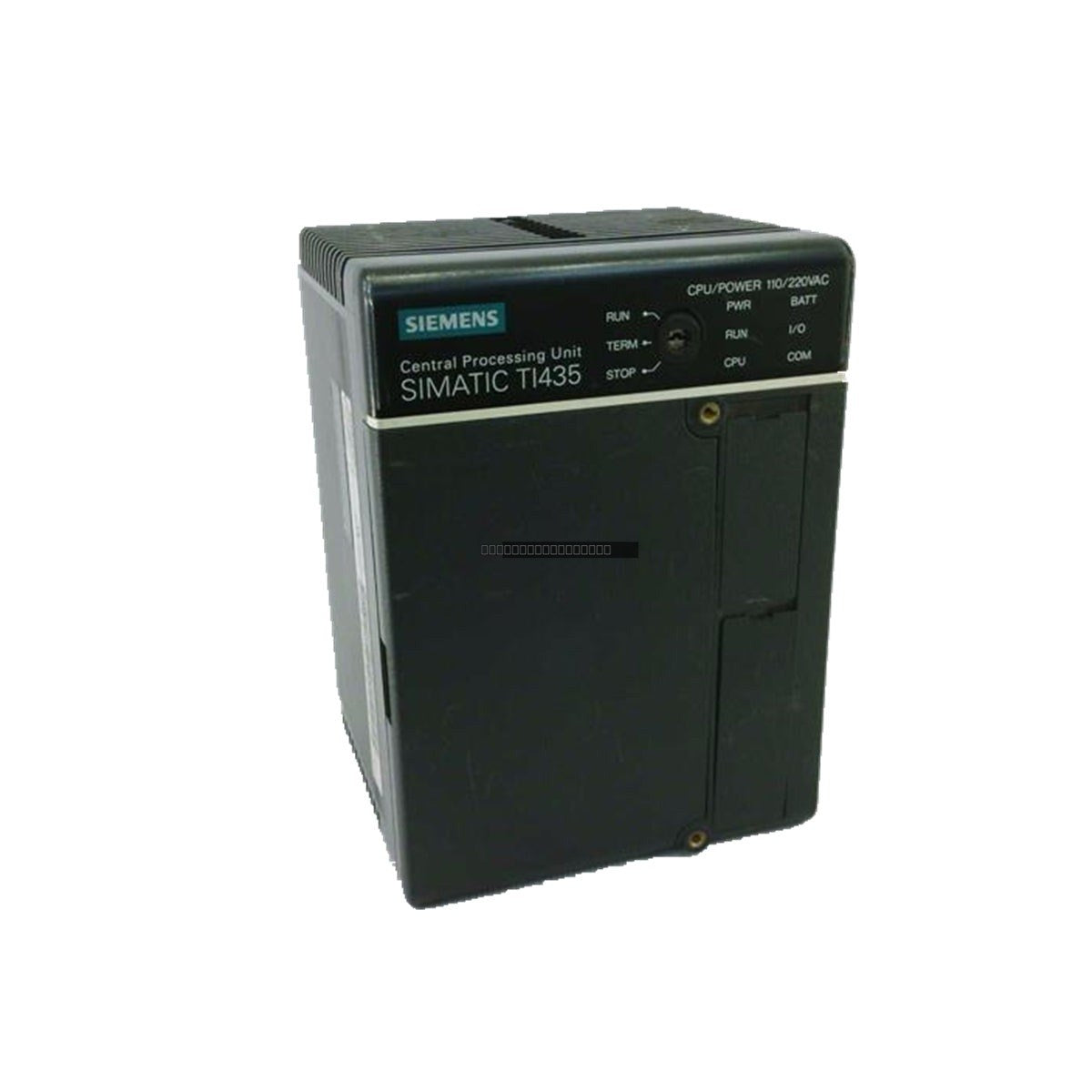

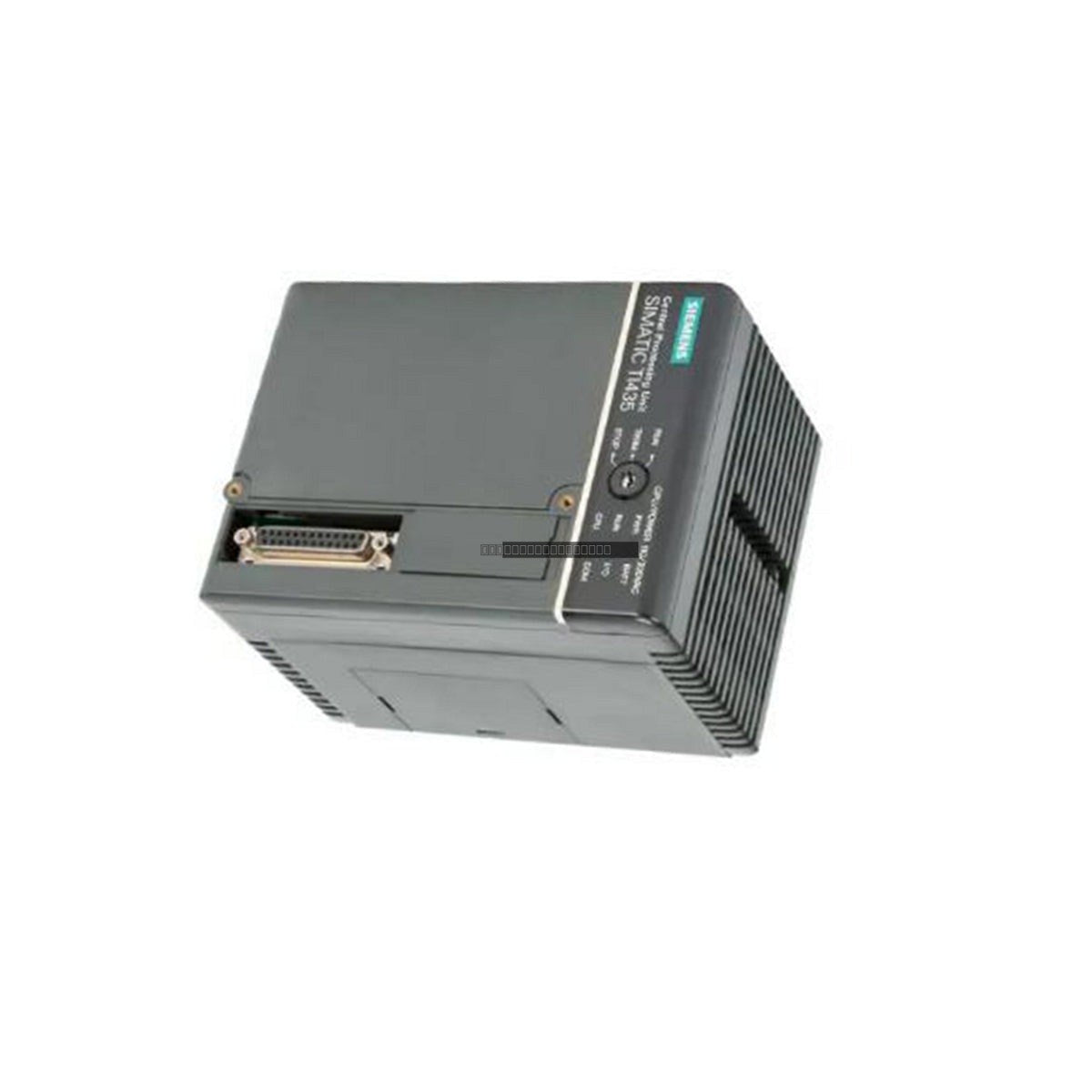

The Siemens Texas Instruments TI435-CPU serves as a core control module for legacy programmable logic controller systems. Engineered to provide reliable, deterministic execution of industrial control routines, this CPU module manages complex sequential logic and input/output synchronization across the backplane. It is widely utilized in demanding environments such as thermal power generation, petrochemical processing, and mineral handling facilities where high-speed, predictable decision-making is essential to minimize operational downtime.
Features
-
Memory Architecture: Features a total memory capacity of 22.5K words, with a dedicated 15.5K word section reserved for ladder logic execution, ensuring clear separation between application code and runtime registers.
-
Deterministic Performance: Designed for high-speed instruction processing, including digital rungs, timers, and functional blocks to maintain consistent scan cycles.
-
System Compatibility: The module is designed for direct field interchangeability with standard 435-CPU and 435-CPU-1Q revisions, facilitating maintenance without the need for extensive program recompilation.
-
Robust Processing: Executes instructions at the hardware layer to provide stable arithmetic processing and integrated memory protection for critical control tasks.
Technical Specifications
| Model |
TI435-CPU |
| Total Memory |
22.5K Words |
| Ladder Logic Memory |
15.5K Words |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Power Requirements |
5 VDC (Backplane powered) |
Installation Guidelines
-
Power Status: Always ensure the PLC rack power supply is disconnected before installing or removing the CPU module to prevent electrical damage.
-
ESD Handling: Utilize proper electrostatic discharge (ESD) protection, such as a grounded wrist strap, when handling the module to protect sensitive internal logic components.
-
Backplane Seating: Ensure the module is properly aligned with the backplane connector guide rails and seated firmly to establish reliable communication with I/O modules.
-
Environment: Install in an enclosure that provides adequate ventilation to maintain the ambient operating temperature within the specified 0 to 60 deg C range.
-
Grounding: Verify that the PLC chassis is properly grounded according to site industrial standards to mitigate electromagnetic interference (EMI).
FAQ
Is this module compatible with existing 435-CPU-1Q systems? Yes, the TI435-CPU is designed as a drop-in replacement for the 435-CPU and 435-CPU-1Q models, allowing for seamless substitution in your existing control architecture.
What is the primary function of the memory segmentation? The segmentation separates your ladder logic execution space from the raw data and register blocks, which helps protect your application code during runtime and improves overall system stability.
