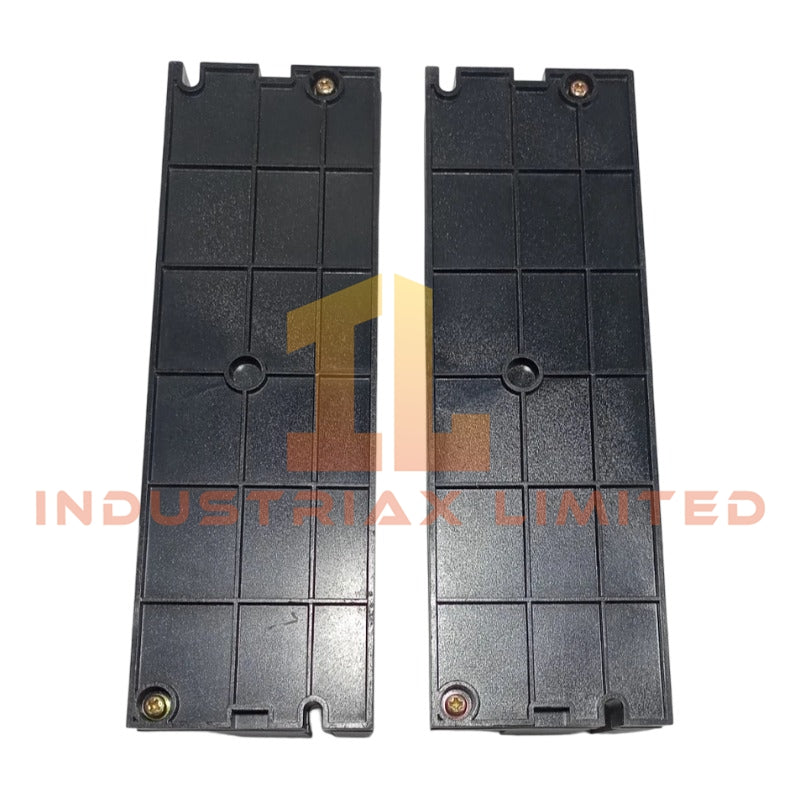

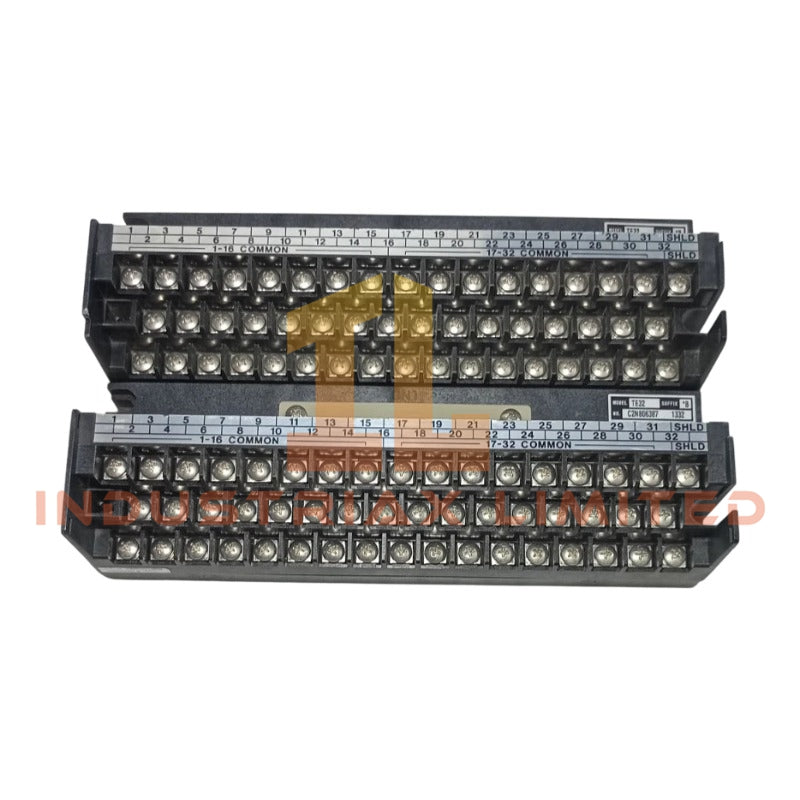

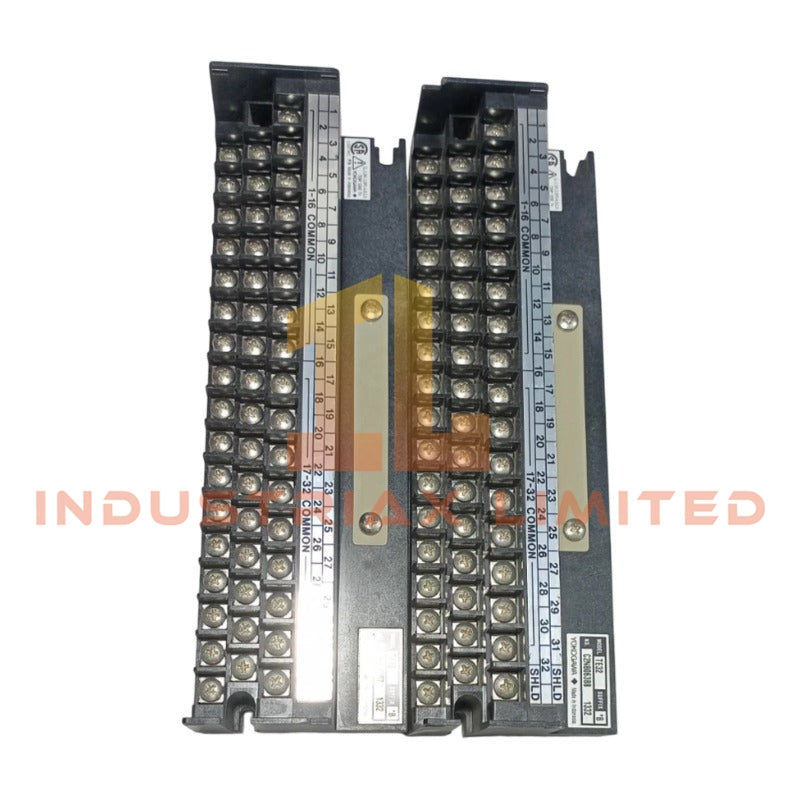

Yokogawa TE32 Terminal Block Module
The Yokogawa TE32 terminal block module, also cataloged as the TE32 general-purpose terminal board, operates as a dedicated hardware component for high-density field signal interfacing within CENTUM CS3000, CENTUM VP, and ProSafe-RS systems.
Hardware Specifications
Parameter
Specification
Model/Brand
TE32 / Yokogawa
Origin
Japan
Number of Contact Points
32 points
Terminal Type
M4 Screw-clamp
Terminal Pitch
5.08 mm
Acceptable Wire Size
0.2 to 2.5 mm2 (AWG 24 to 12)
Rated Voltage
300 V AC/DC
Maximum Current
6 A per terminal
Insulation Resistance
≥100 MΩ at 500 V DC
Withstanding Voltage
500 V AC / 1,500 V AC for 1 min (depending on module pairing)
Housing Material
Flame-retardant polyamide (UL 94 V-0)
Approximate Weight
0.36 kg (module) / 3.0 kg (shipping)
Operating Temperature
0 to 50 degC (some variants –20 to 70 degC)
Storage Temperature
–40 to 85 degC
Ambient Humidity
5% to 90% RH, non-condensing
Process Control Connectivity
The TE32 module supports channel-to-channel electrical isolation, ensuring signal integrity across adjacent DI/DO and AI/AO circuits. It is compatible with 4-20 mA HART loop protocol and can integrate with FOUNDATION Fieldbus or Profibus PA networks. Cold-junction compensation (CJc) in analog inputs is supported when paired with compatible AI modules, maintaining precise measurement under variable temperature conditions.
Frequently Asked Questions
Q: Does the TE32 support hot-swap installation in DCS cabinets? A: The TE32 does not support hot-swap; all connections must be de-energized prior to installation or maintenance.
Q: What is the maximum current load per terminal under continuous operation? A: The rated continuous current is 6 A per terminal. Exceeding this may degrade terminal clamp reliability and insulation.
Q: Is firmware or software required for TE32 operation? A: The TE32 is a passive terminal block; no firmware or configuration software is required. Electrical connectivity is handled entirely through field wiring to I/O modules.
Field Installation Guidelines
Mount the TE32 on DIN rails or according to Yokogawa panel layout specifications.
Ensure proper torque on M4 screw terminals to maintain secure electrical contact without damaging conductors.
Route field wiring to minimize cross-talk; maintain separation between analog and digital signals where possible.
Ground the module housing according to local electrical codes to prevent transient surges.
Avoid bending wires excessively at the terminal interface; maintain the minimum bend radius recommended for the wire gauge.
