Product Overview

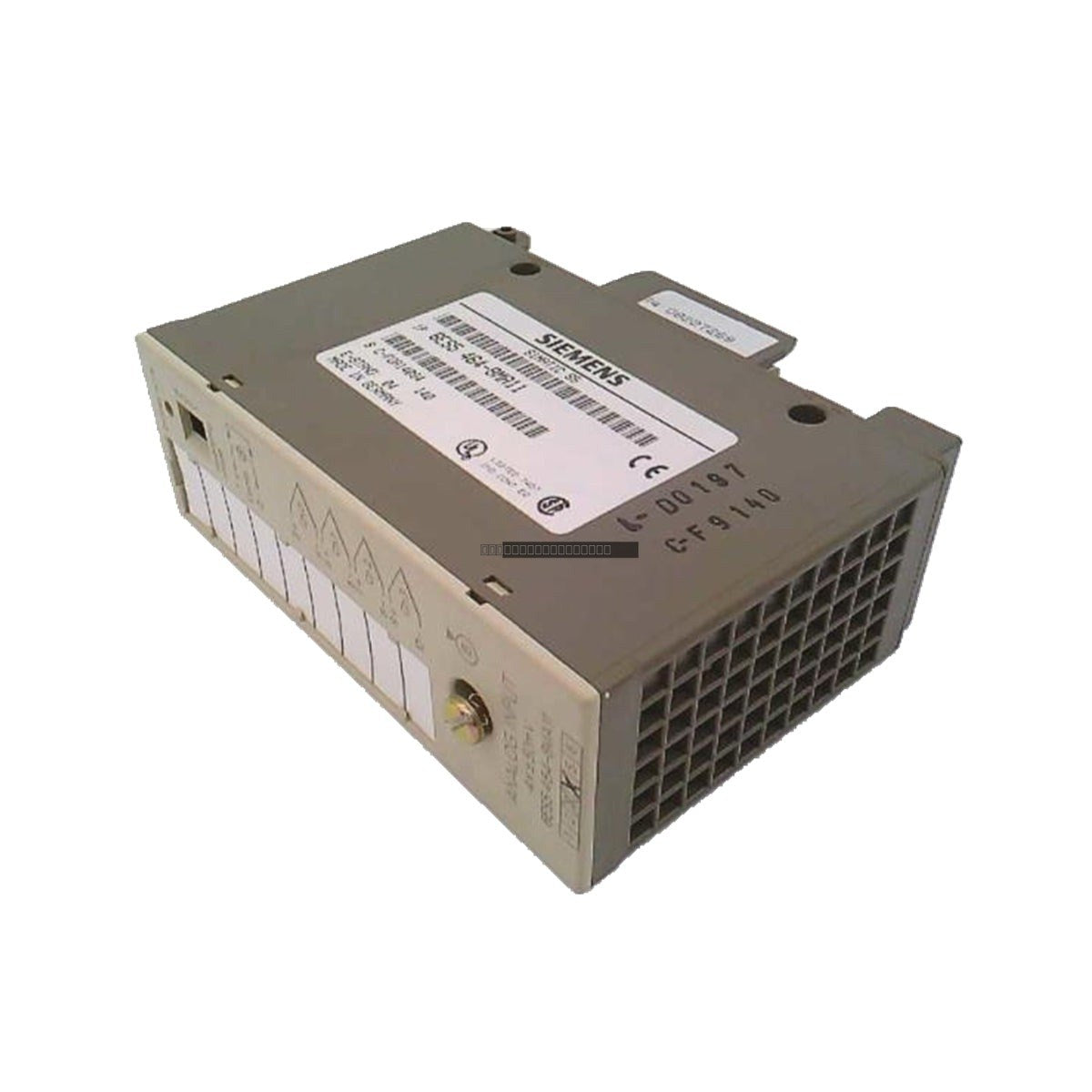

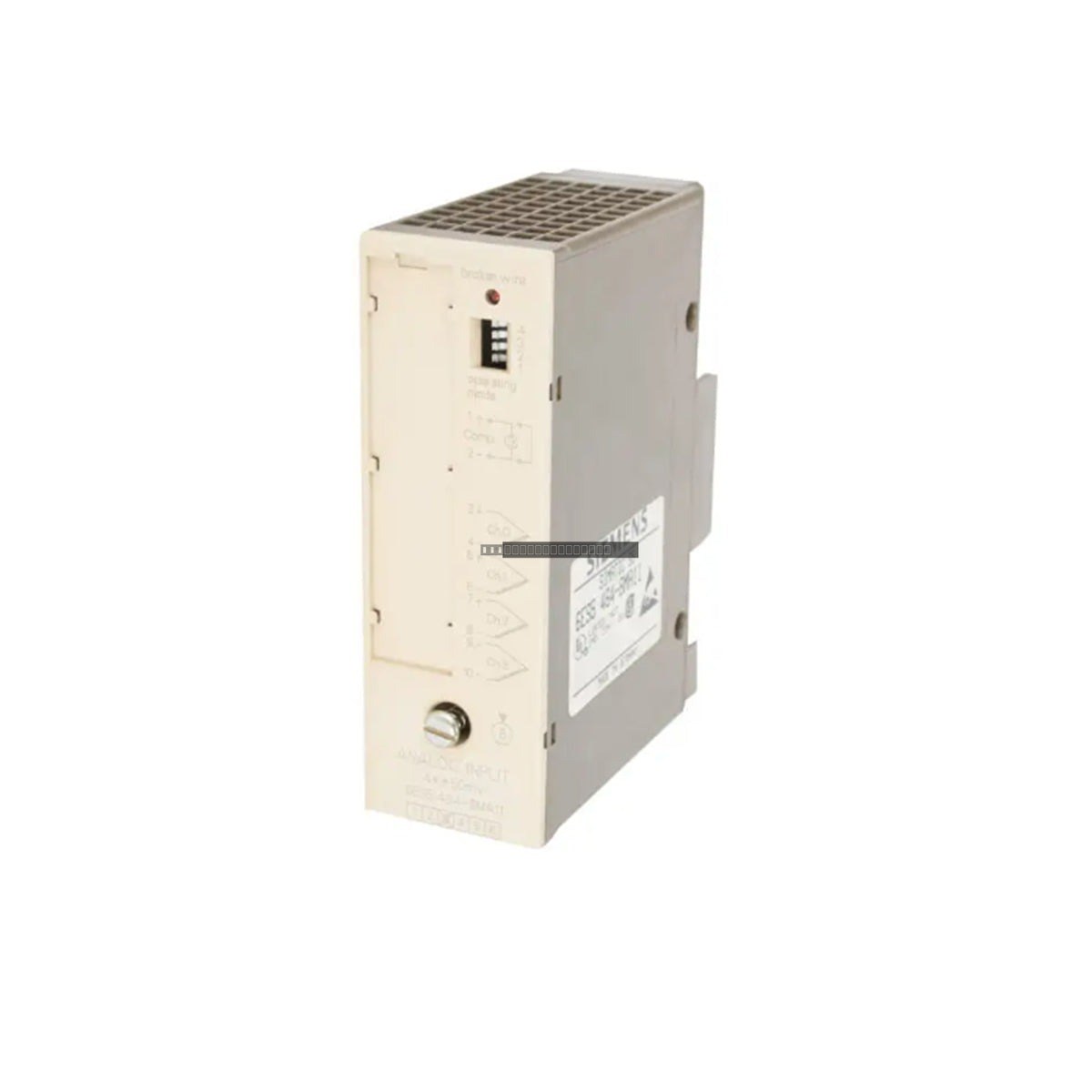

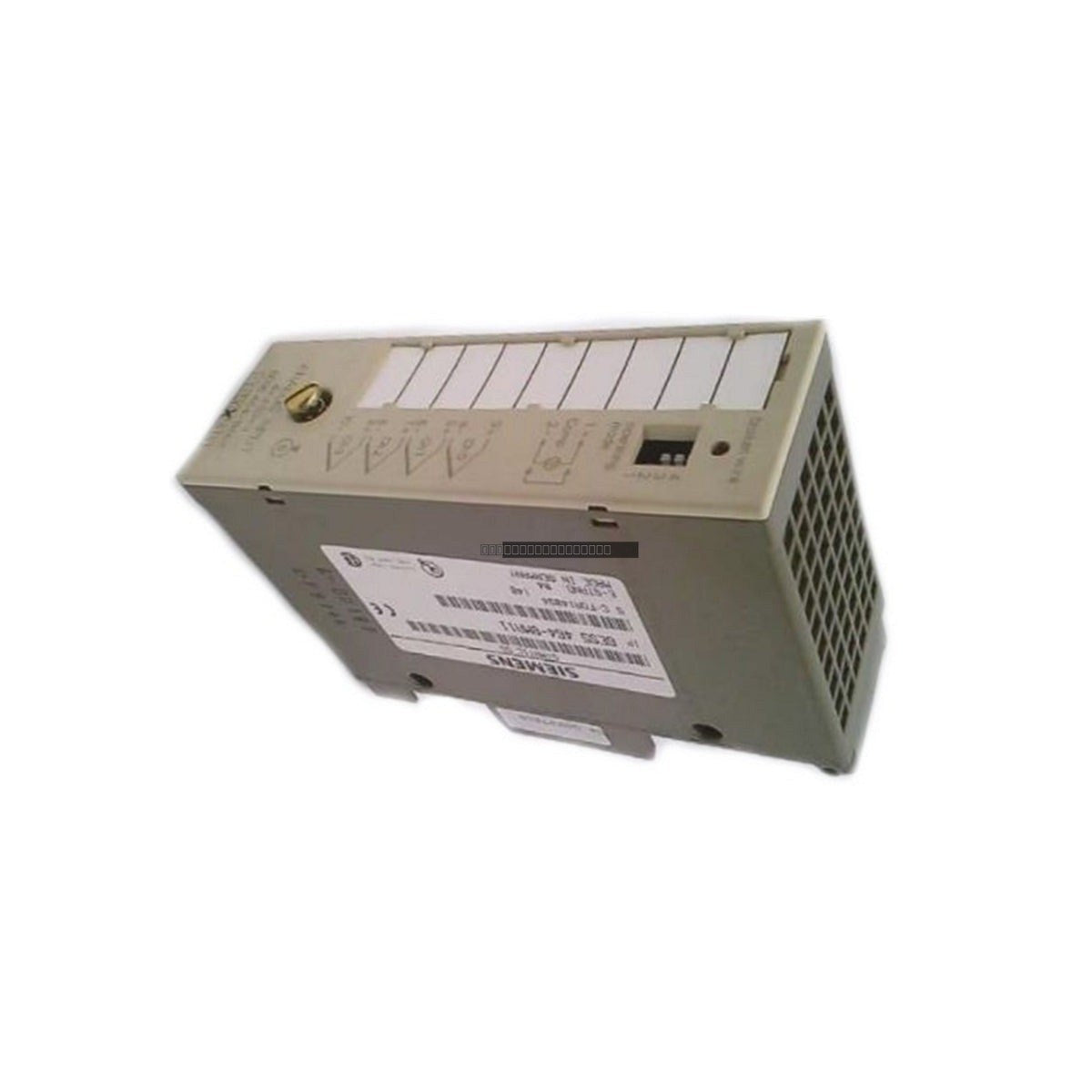

The Siemens 6ES5464-8MA11 is a specialized analog input module designed for the Simatic S5 automation series. This unit provides 4 galvanically isolated differential channels, specifically engineered to process low-level signals such as those derived from thermocouples. It is a critical component for maintaining signal integrity and data acquisition accuracy in legacy S5-90U, S5-95U, and S5-100U PLC environments, as well as ET 100U and ET 200U distributed I/O configurations.
Technical Features
- Four isolated differential input channels for robust noise rejection.
- Dedicated signal range of +/- 50 mV for precision measurement.
- Galvanic isolation protects backplane circuitry from field-side electrical interference.
- Optimized for integration within standard S5 rack systems and decentralized I/O blocks.
- Efficient power consumption profile suitable for long-term industrial operation.
Applications
This module is frequently utilized in industrial automation environments where legacy Siemens S5 systems monitor sensitive process variables. Common deployment scenarios include temperature monitoring in refineries, process control in manufacturing facilities, and signal conditioning in power generation infrastructure where galvanic isolation is required to prevent ground loops and common-mode noise.
Technical Specifications
| Model |
6ES5464-8MA11 |
| Manufacturer |
Siemens |
| Function |
Analog Input Module |
| Input Channels |
4 (Isolated) |
| Input Signal Range |
+/- 50 mV |
| System Compatibility |
S5-90U, S5-95U, S5-100U, ET 100U, ET 200U |
| Power Consumption |
1.8 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Verify that the module is properly seated in the S5 rack or ET block backplane to ensure reliable communication.
- Use shielded cables for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial areas.
- Maintain adequate spacing within the cabinet to allow for proper airflow and heat dissipation, keeping the ambient temperature within the 0 to 60 deg C range.
- Follow standard ESD protection procedures when handling the module to prevent damage to internal sensitive electronics.
FAQ
Is this module compatible with modern S7-series PLCs? No, this module is specifically designed for the Simatic S5 architecture and is not natively compatible with S7-series systems without specialized conversion hardware.
What is the primary function of the galvanic isolation? The galvanic isolation provides an electrical barrier between the field-side sensor inputs and the internal PLC bus, which helps prevent ground loops and protects the controller from voltage surges.
