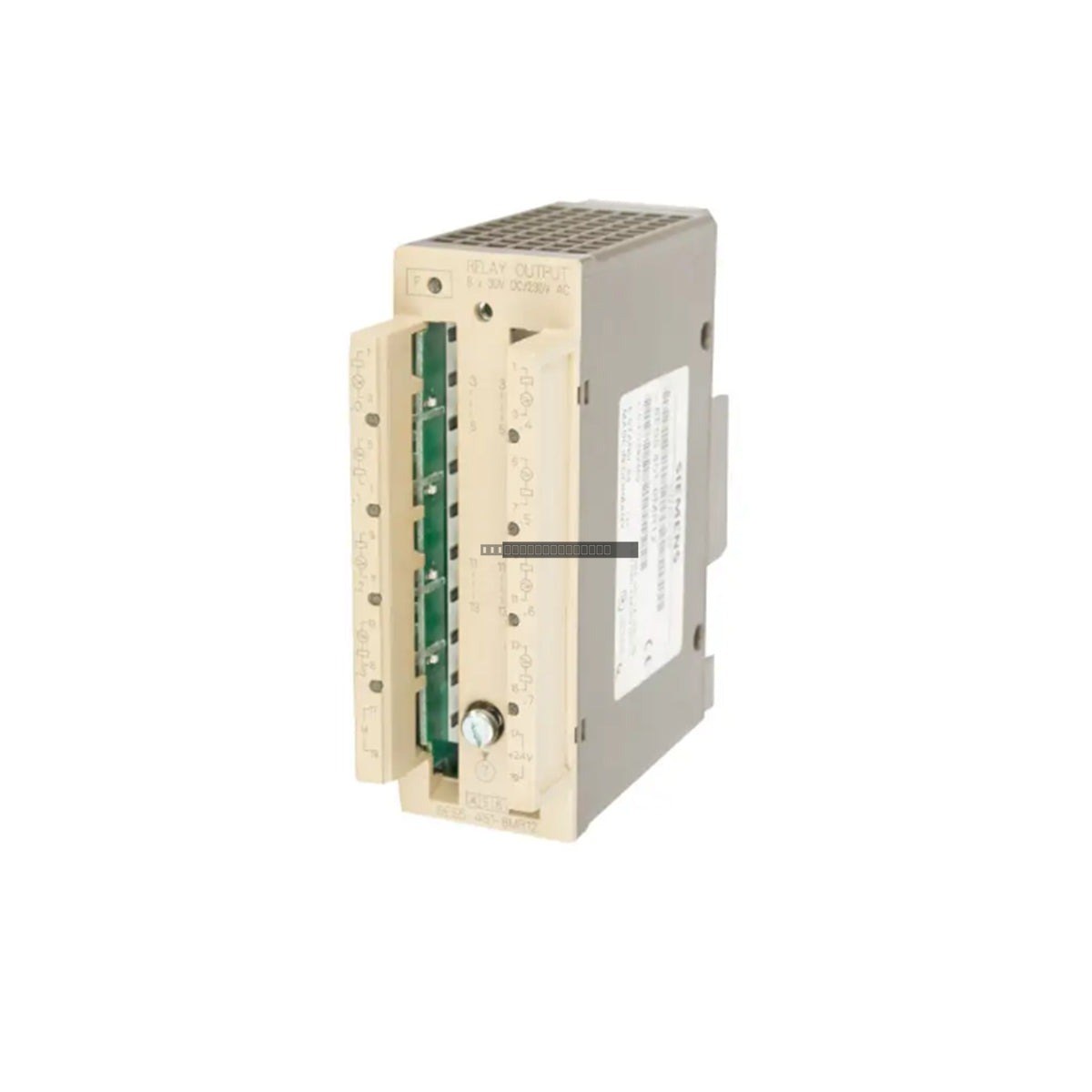

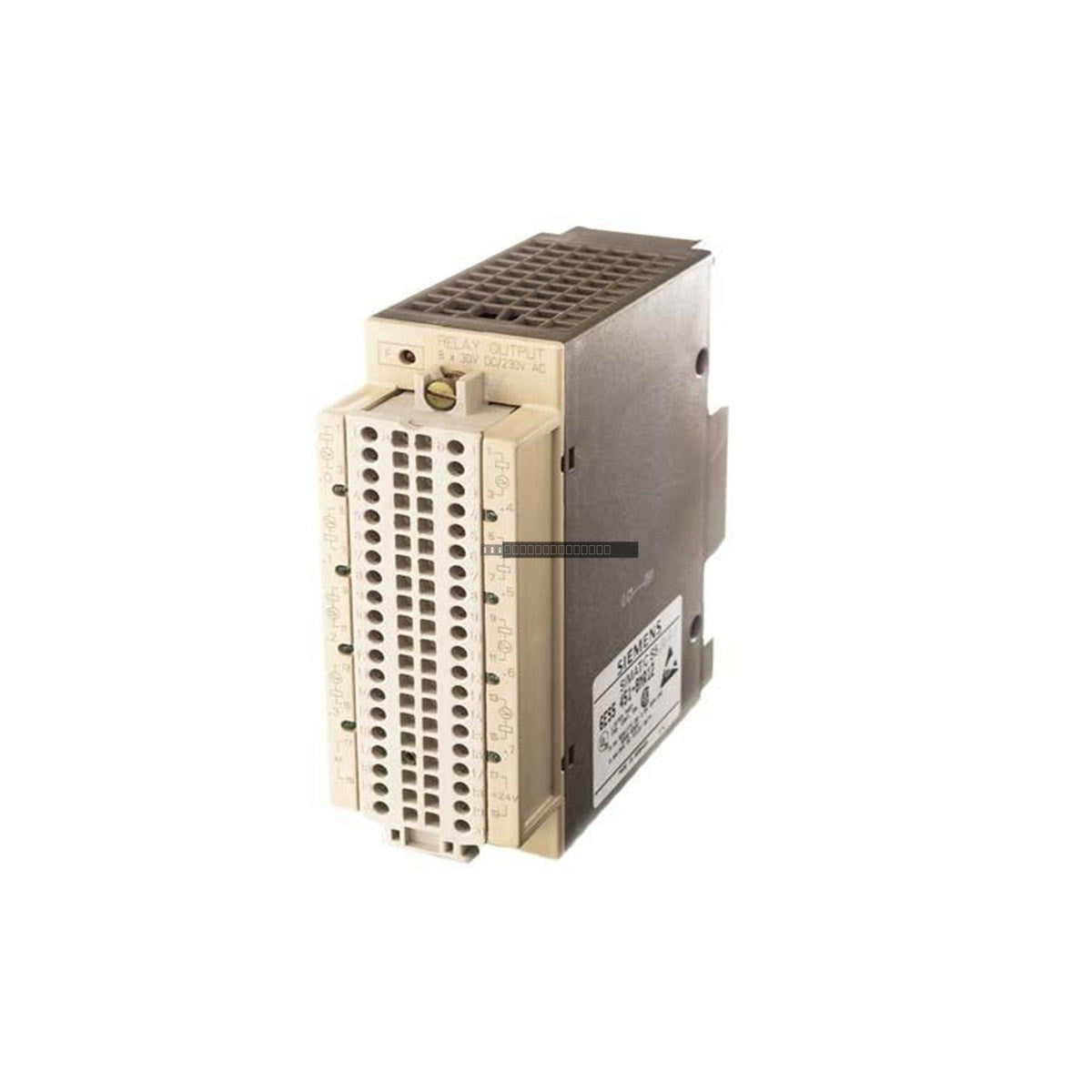

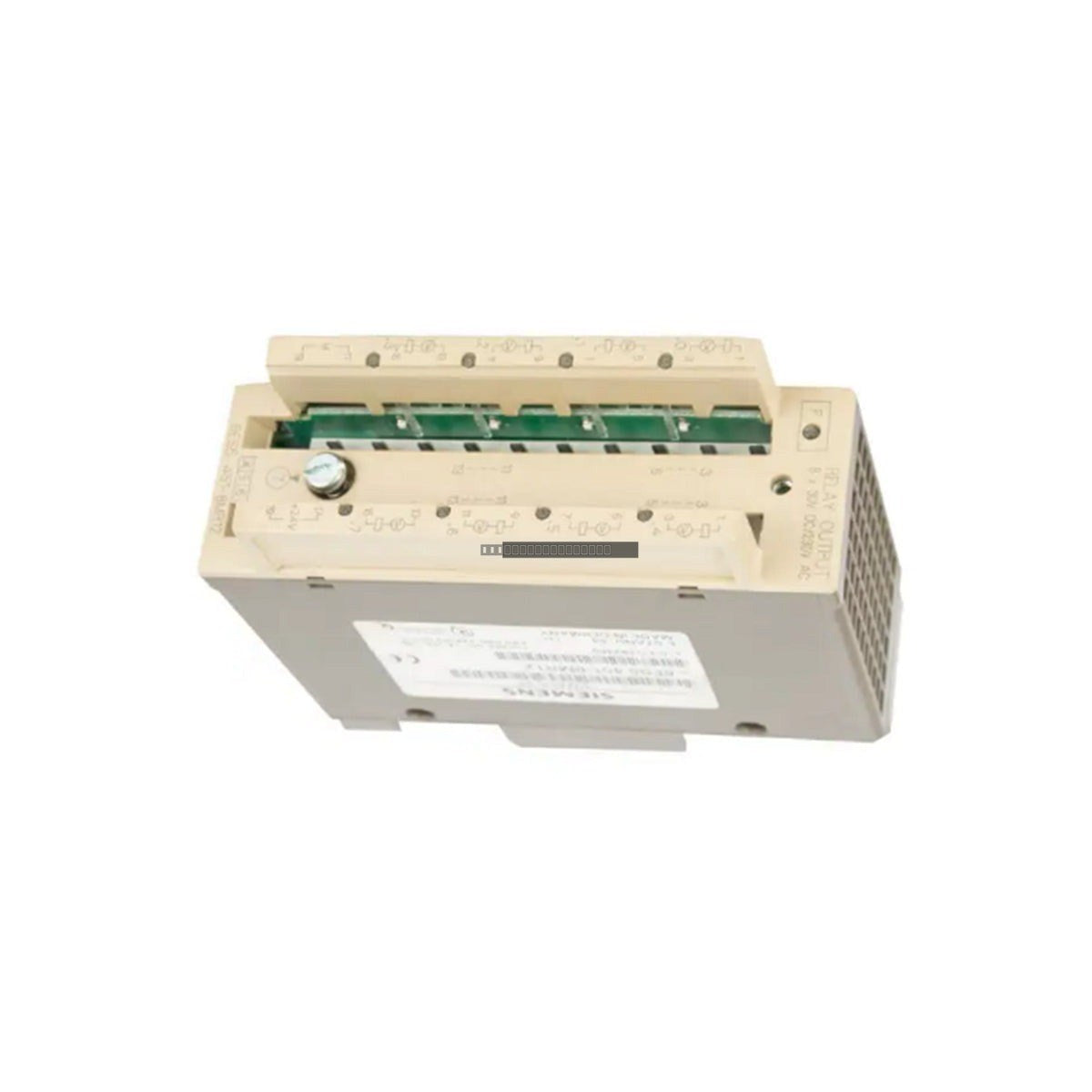

The Siemens 6ES5451-8MR12 is a high-reliability digital output module engineered for the Simatic S5 programmable logic controller series. Equipped with 8 isolated relay output channels, this unit provides the necessary galvanic isolation required to interface low-voltage PLC logic with higher-voltage industrial field devices. It is a standard solution for controlling motor starters, solenoid valves, and contactors in demanding industrial environments.
Features
- 8 independent electromechanical relay outputs for versatile load switching.
- Integrated RC snubber networks on each channel to mitigate arcing and extend relay contact life when handling inductive loads.
- Front-mounted LED indicators for immediate channel status verification and simplified field diagnostics.
- Galvanic isolation between the backplane logic and field side to protect sensitive controller circuitry from voltage transients.
- Designed for seamless integration into standard Simatic S5 backplane racks.
Applications
This relay output module is widely deployed in legacy automation systems including water treatment facilities, oil and gas processing plants, and automotive manufacturing lines. It serves as an essential interface for driving field-level actuators where electrical separation is required for safety and signal integrity.
Technical Specifications
| Model |
6ES5451-8MR12 |
| Output Channels |
8 Relay Outputs |
| Max Switching Voltage |
30 VDC or 230 VAC |
| Max Current per Channel |
2 A (resistive) |
| Internal Current Consumption |
120 mA (from 5 VDC backplane) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage or bus errors.
- Verify that the backplane address selection is properly configured before powering up the system.
- Ensure all field wiring is routed to minimize EMI interference, keeping high-voltage power cables separate from low-voltage signal lines.
- Confirm that the load connected to each relay does not exceed the 2 A resistive load limit to prevent premature contact failure.
- Use appropriate cable shielding and grounding practices to maintain system integrity in noisy industrial environments.
FAQ
Does this module require external power for the relays?
The relay contacts themselves are dry contacts, meaning they switch the voltage provided by your external field power supply. The module itself is powered by the 5 VDC backplane rail.
Can this module handle inductive loads?
Yes, the module includes built-in RC snubber networks specifically designed to suppress arcing caused by inductive loads, which helps protect the relay contacts during switching cycles.
