Description

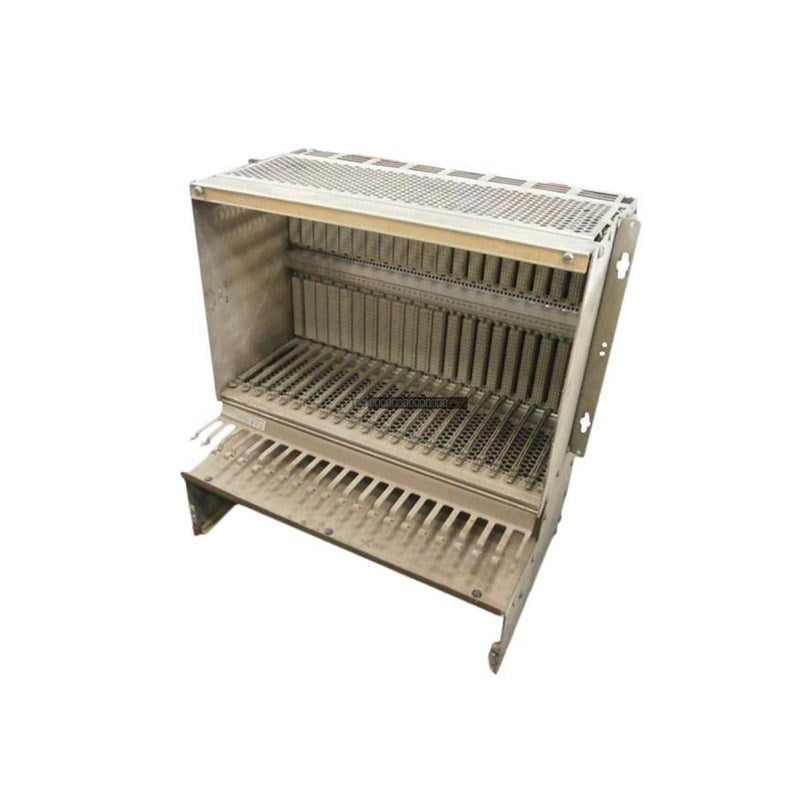

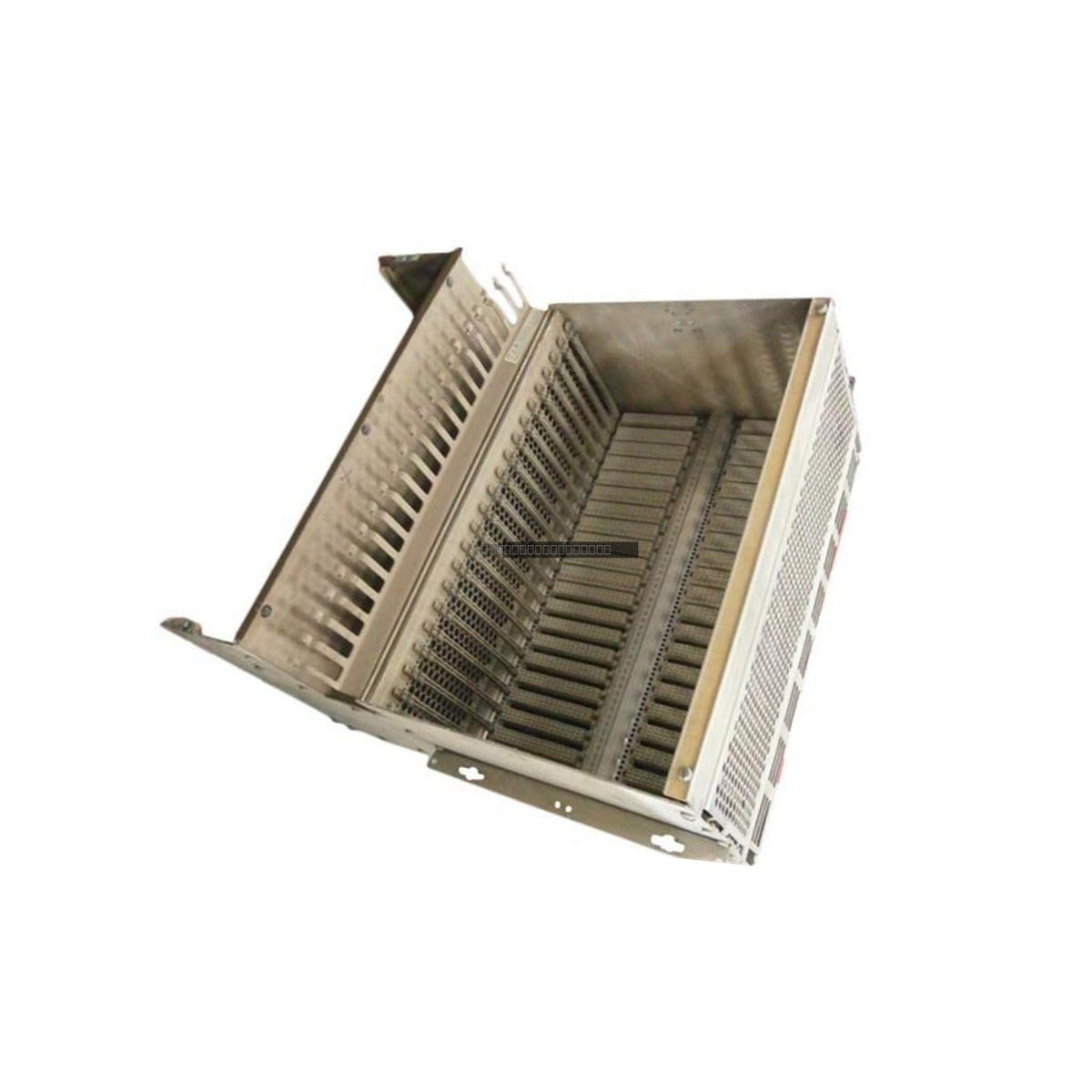

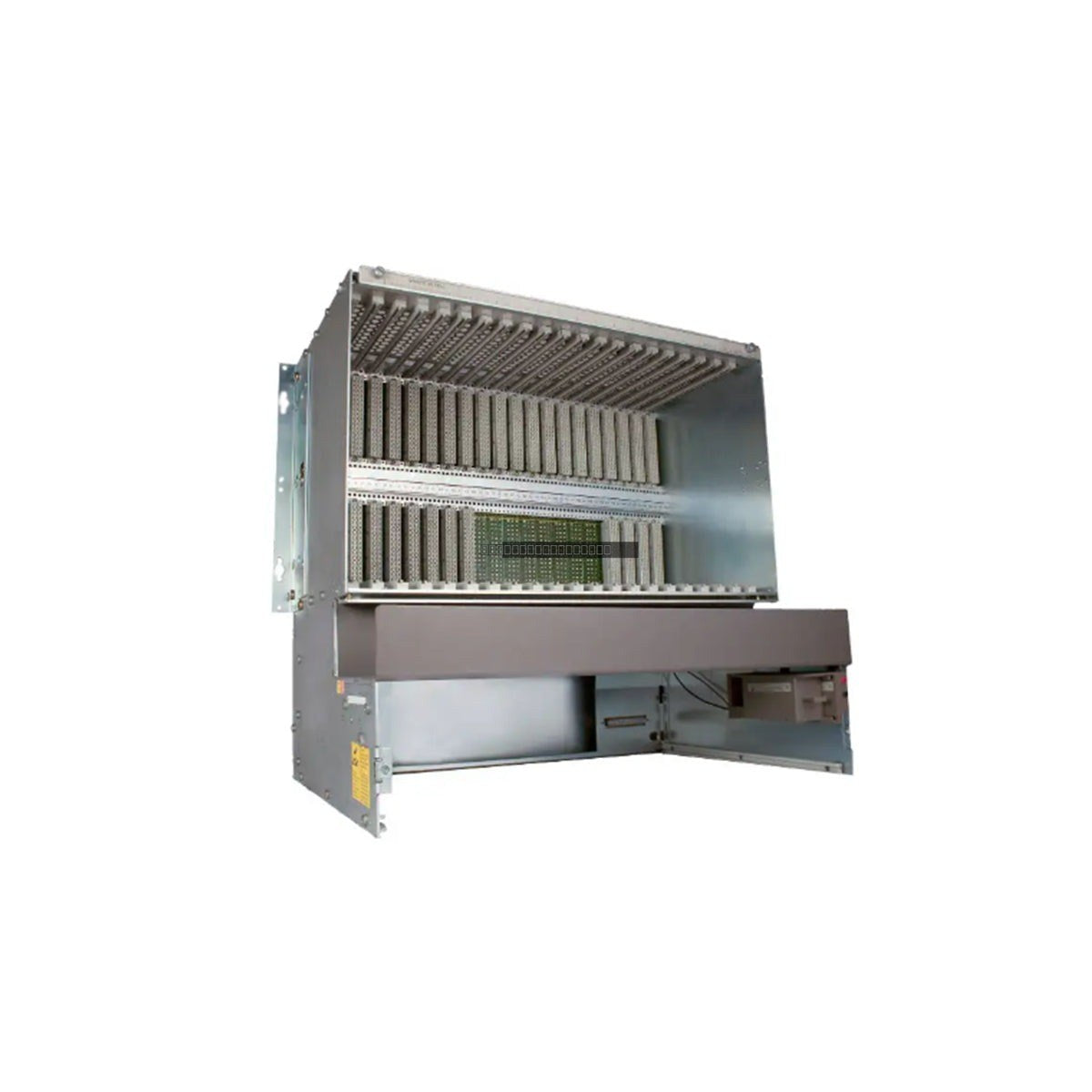

The Siemens Simatic S5 6ES5135-3KA31 is a 21-slot central controller subrack engineered for the S5-135U automation system. This robust chassis provides the fundamental backplane architecture required for large-scale, multi-processor control environments. Designed for reliability in demanding industrial settings, the unit serves as the primary mounting and communication interface for CPUs, memory modules, and I/O cards within the S5-135U platform. As a legacy infrastructure component, it remains essential for the continued operation and maintenance of established control systems in power generation, metallurgy, and chemical processing facilities.
Features
-
High-Capacity Architecture: Supports up to 21 modules, facilitating complex multi-processor configurations and extensive I/O density.
-
Reliable Backplane: Features high-quality contact pins designed to maintain signal integrity and minimize oxidation in long-term industrial deployments.
-
Robust Mechanical Design: Constructed for high-vibration environments, ensuring stable module seating and alignment.
-
Optimized Power Distribution: Manages internal 5 VDC logic power (18 A capacity) and auxiliary 24 VDC rails to support diverse module requirements.
-
Standardized Form Factor: Designed for integration into standard 19-inch industrial enclosures.
Technical Specifications
| Model |
6ES5135-3KA31 |
| Series |
Simatic S5-135U |
| Chassis Type |
21-Slot Subrack |
| Logic Bus Supply |
5 VDC, 18 A max |
| Auxiliary Supply |
24 VDC |
| Operating Temp |
0 to 55 deg C |
| Storage Temp |
-40 to 70 deg C |
Installation Guidelines
-
Power Down: Always disconnect all power sources before installing or removing the rack or any modules within the rack.
-
Mounting: Ensure the subrack is securely bolted into a standard 19-inch industrial cabinet or rack frame to prevent mechanical stress.
-
Grounding: Connect the chassis to a verified protective earth (PE) ground to maintain EMI shielding effectiveness and operator safety.
-
Environment: Maintain adequate clearance above and below the rack to ensure proper convection cooling; avoid installation in areas with high levels of conductive dust or extreme humidity.
-
ESD Handling: Use standard electrostatic discharge (ESD) precautions when handling the backplane or inserting modules to prevent damage to integrated circuit components.
FAQ
Is this a complete PLC system?
No, the 6ES5135-3KA31 is a subrack chassis only. It requires a compatible power supply module, CPU, and various I/O modules to function as a complete control system.
Is this unit compatible with other S5 series?
This rack is specifically designed for the S5-135U series. Please verify your specific hardware configuration to ensure compatibility with your existing S5 modules.
What should I do if my backplane pins are damaged?
The backplane is a critical component for signal communication. If pins are bent, oxidized, or broken, the entire subrack should be replaced to avoid intermittent communication errors or system-wide faults.
