Description

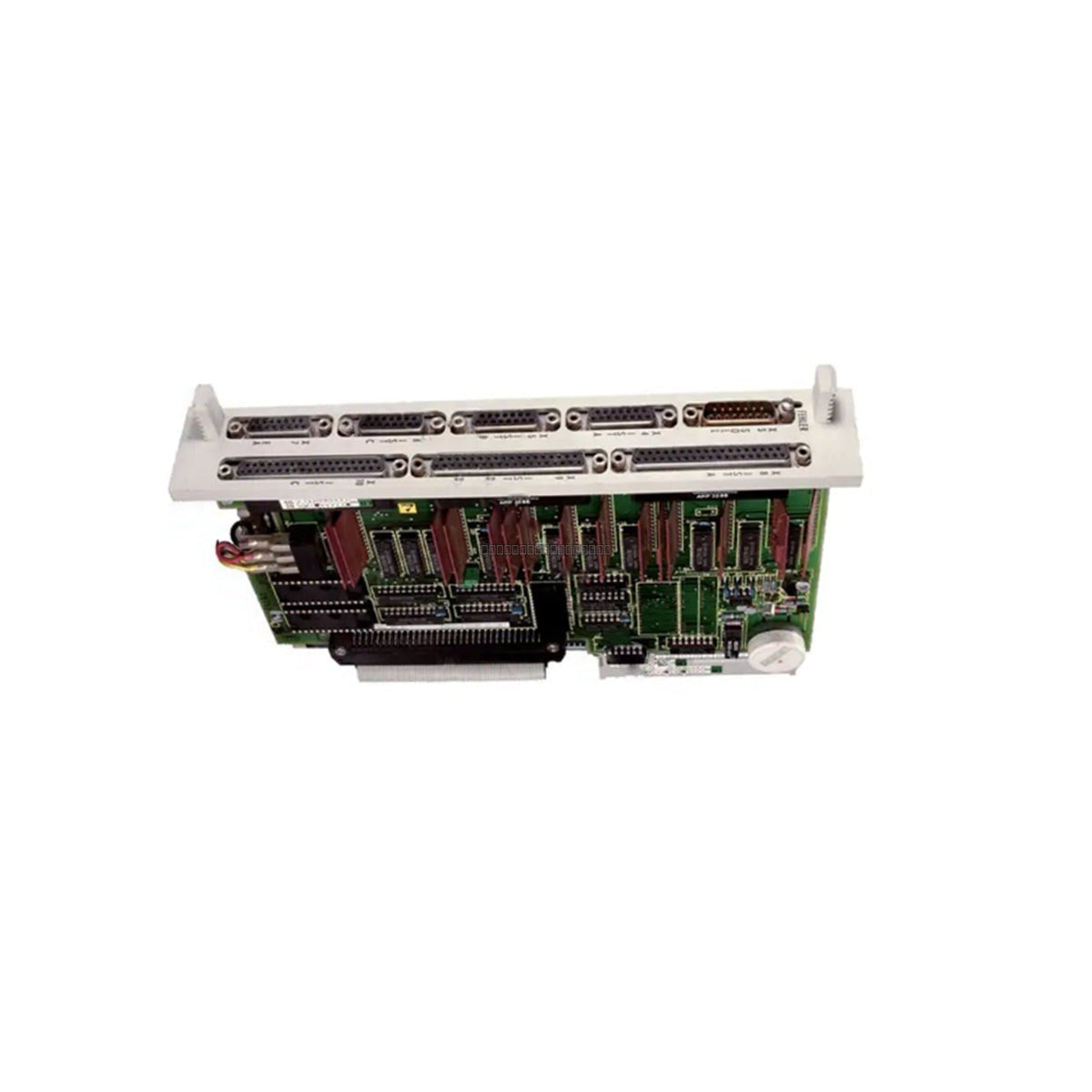

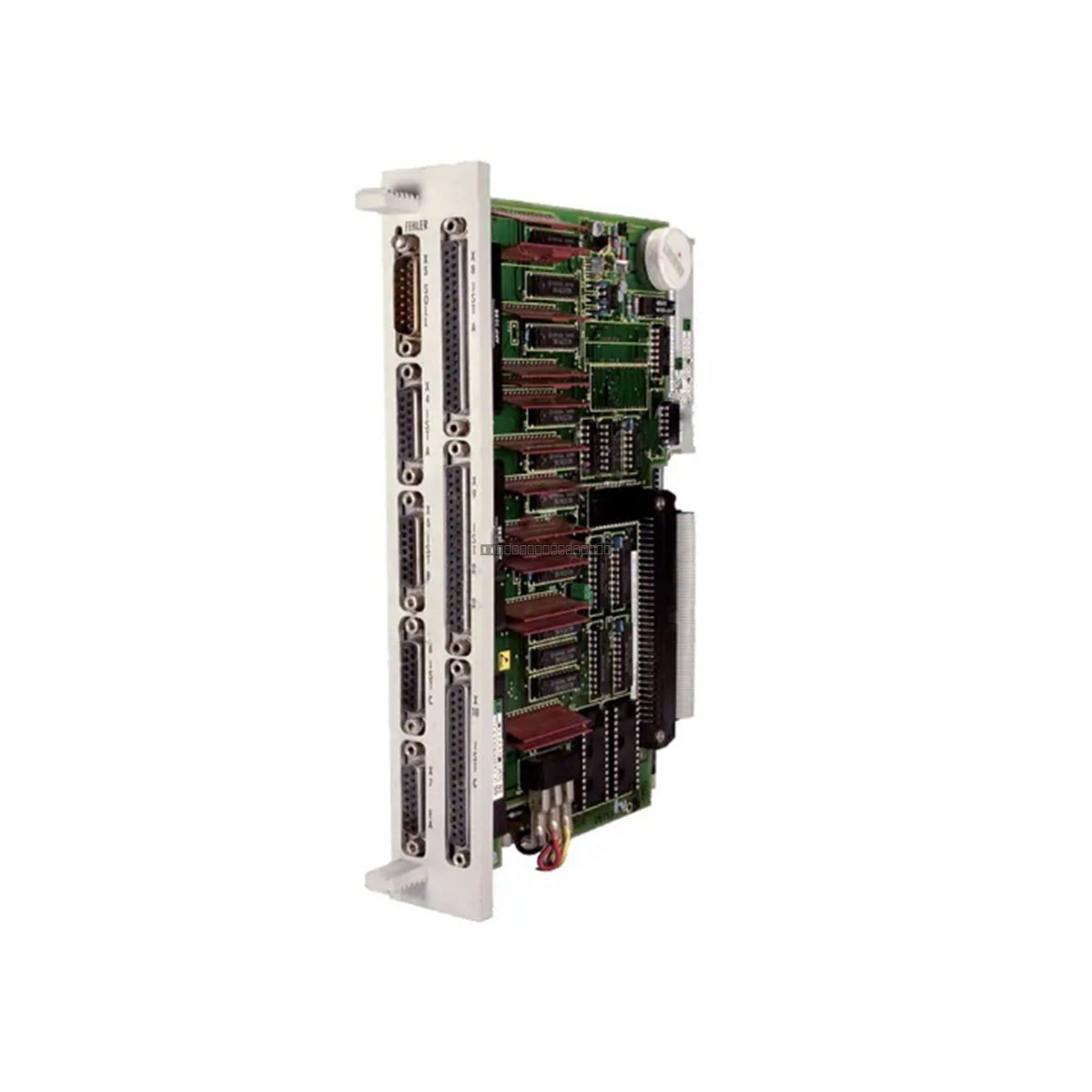

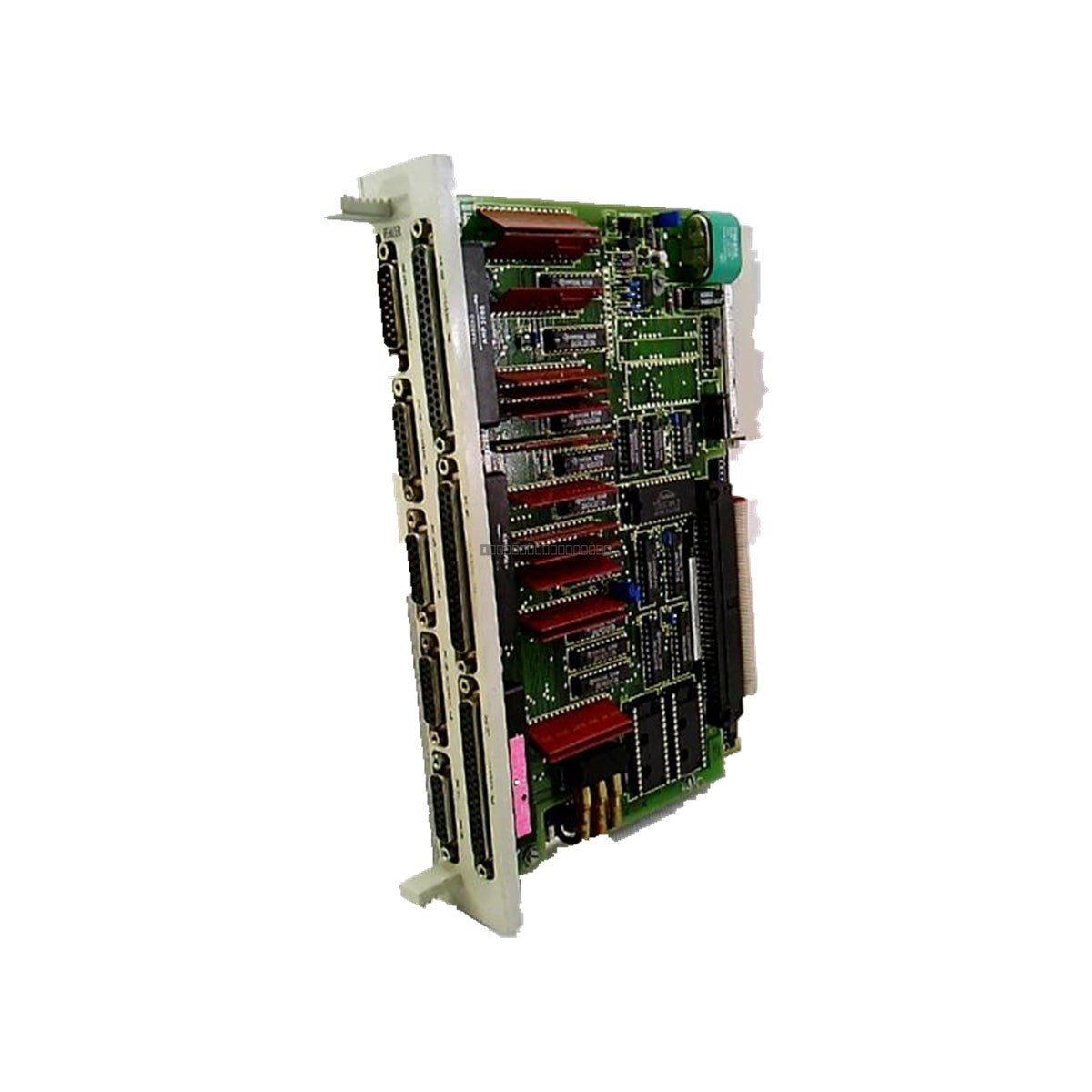

The Siemens 6FM1725-3BA00 is a high-precision rack-mounted WF 725 B positioning module engineered for advanced motion control and axis synchronization within industrial drive systems. This hardware interfaces directly with both absolute and incremental positioning encoders, processing high-speed quadrature signals to compute exact mechanical vectors. Extensively deployed across capital-intensive applications such as deep-shaft mining hoists, heavy steel rolling mills, and automated power plant material handling cranes, the module executes real-time position loops independently of the main processor. By running dedicated motion control algorithms on the board, it minimizes processing lag, prevents mechanical overshoot, and significantly reduces structural stress and unscheduled machine downtime.
Features
- High-speed quadrature signal processing for precise axis synchronization.
- Independent motion control loop execution to reduce host processor load.
- Differential receiver channels for high-frequency noise immunity in industrial environments.
- Integrated diagnostic routines for real-time encoder cable integrity monitoring.
- Support for both absolute (SSI) and incremental (RS-422) encoder feedback.
Applications
The WF 725 B module is designed for demanding industrial motion control environments, including:
- Heavy-duty steel rolling mills.
- Deep-shaft mining hoist control systems.
- Automated material handling and crane systems in power plants.
- High-precision synchronized axis drive applications.
Technical Specifications
| Model |
6FM1725-3BA00 (WF 725 B) |
| Brand |
Siemens |
| Series |
SIMATIC / WF Motion Control Series |
| Module Type |
Axis Positioning Controller Card |
| Encoder Support |
Absolute (SSI) and Incremental (RS-422, 5 VDC / 24 VDC) |
| Operating Input Voltage |
5 VDC (backplane) / 24 VDC (external encoder supply) |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
95 percent non-condensing |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the rack.
- Handle the module using ESD-safe practices to prevent damage to internal sensitive electronic components.
- Verify that the rack backplane is properly grounded to maintain signal integrity and EMI protection.
- Route encoder signal cables separately from high-voltage power lines to minimize electromagnetic interference.
- Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified 0 to 55 deg C range.
FAQ
What type of encoders are compatible with the 6FM1725-3BA00?
This module supports absolute encoders using the SSI protocol and incremental encoders utilizing RS-422 signaling at 5 VDC or 24 VDC levels.
Does this module require external power for the encoders?
Yes, while the module draws its operating power from the rack backplane, it typically requires an external 24 VDC supply for the connected encoder hardware.
How does the module handle encoder faults?
The onboard diagnostic firmware continuously monitors for signal loss or broken wire conditions, allowing the system to trigger a safe-stop sequence to prevent mechanical collisions.
