Description

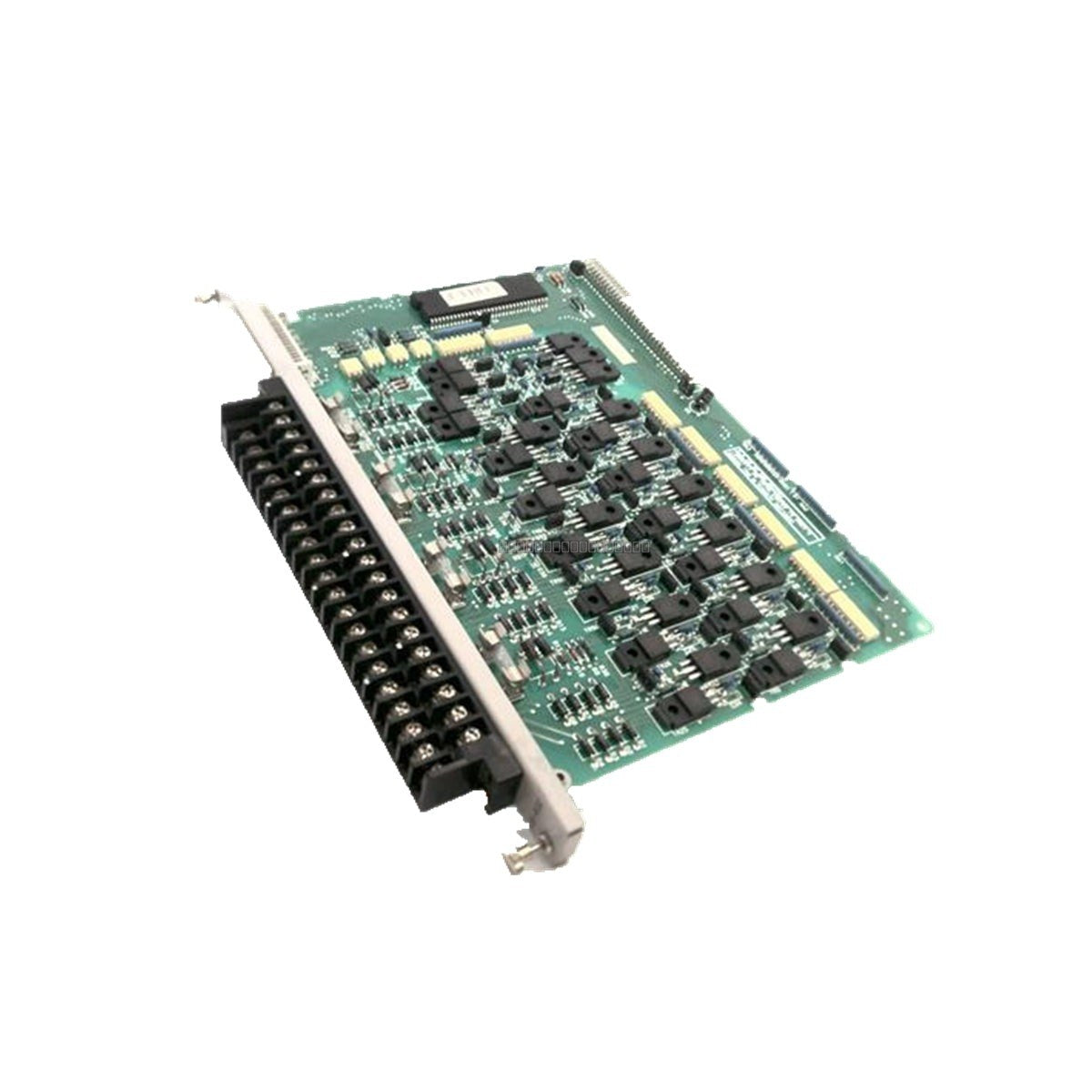

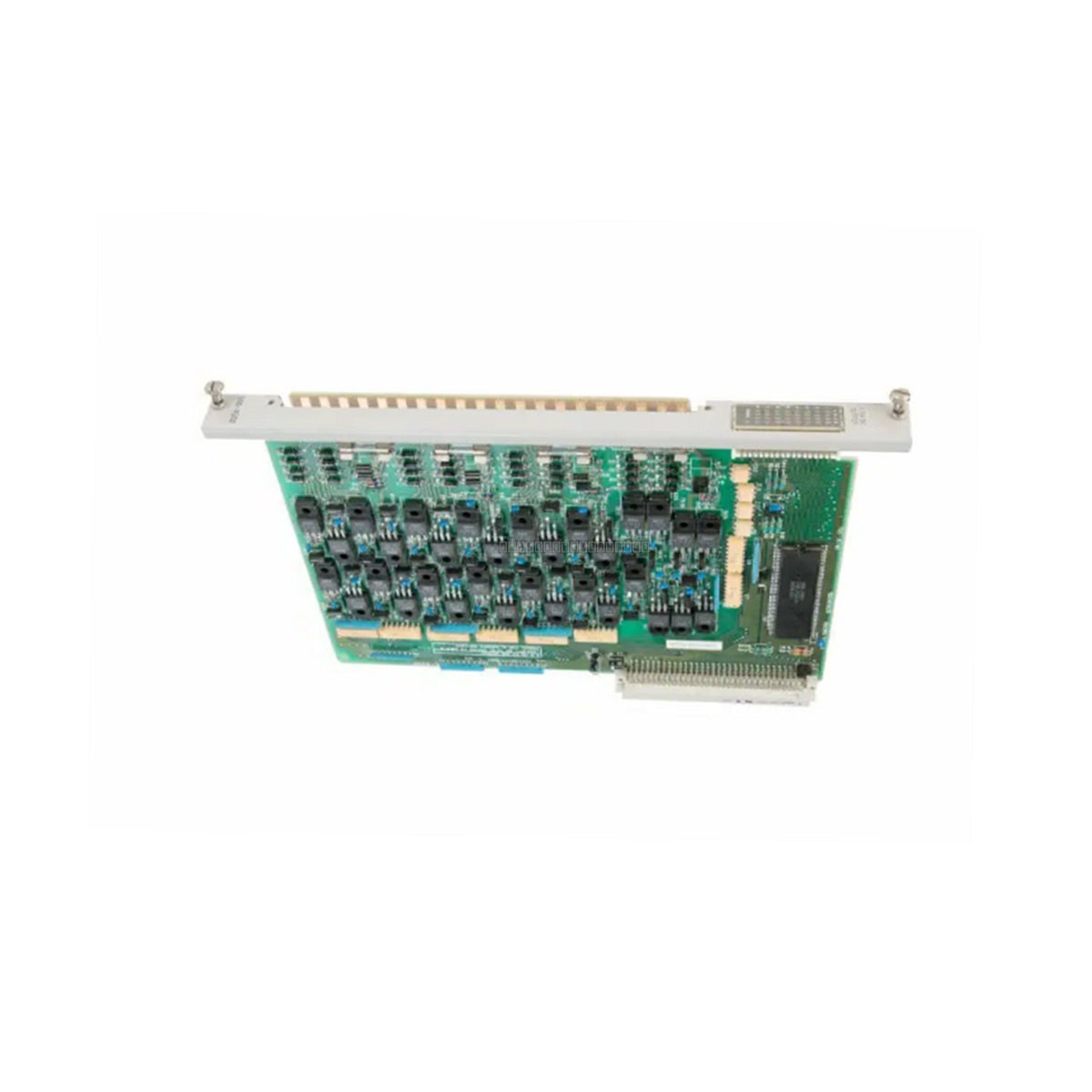

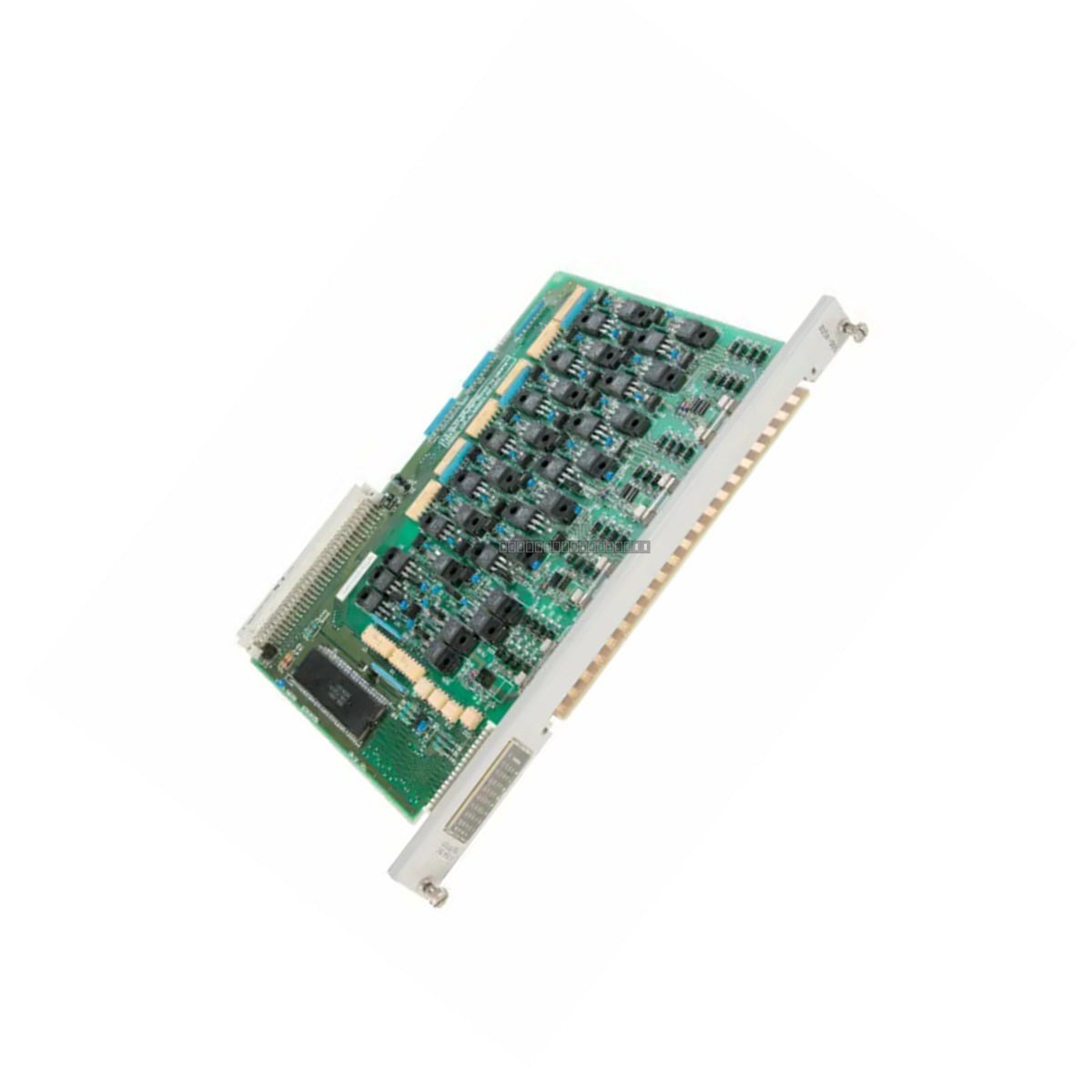

The Siemens 505-4532 is a 32-point digital output module designed for the TI 505 series programmable logic controller (PLC) systems. This module provides reliable switching for 24V DC field devices, offering a current rating of 0.5 Amps per channel. As a core component of the TI 505 I/O family, it facilitates the integration of discrete output signals within industrial automation environments, ensuring precise control over actuators, relays, and indicators.
Features
- 32-point digital output configuration for high-density I/O requirements.
- Designed for 24V DC operation.
- 0.5 Amp current capacity per output channel.
- Compatible with standard Siemens TI 505 series rack-based PLC architectures.
- Robust construction suitable for industrial control panel environments.
Applications
This module is typically utilized in manufacturing and process control applications where high-density digital output control is required. Common uses include driving solenoid valves, contactors, pilot lights, and other 24V DC-rated industrial loads within automated production lines.
Technical Specifications
| Product Model |
505-4532 |
| Manufacturer |
Siemens |
| Module Type |
Digital Output Module |
| Point Count |
32 Points |
| Voltage Rating |
24V DC |
| Current Rating |
0.5 Amp per channel |
| Tariff Code |
8538903000 |
Installation Guidelines
- Ensure the PLC system power is disconnected before installing or removing the module from the rack.
- Verify that the module is fully seated in the backplane connector to ensure proper electrical contact.
- Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
- Maintain proper ventilation within the control cabinet to prevent overheating of the I/O modules.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQ
Is the Siemens 505-4532 still in production?
No, the 505-4532 has been discontinued by the manufacturer. We provide high-quality refurbished or surplus units to support legacy TI 505 systems.
What is the voltage rating for this module?
This module is designed for 24V DC operation.
