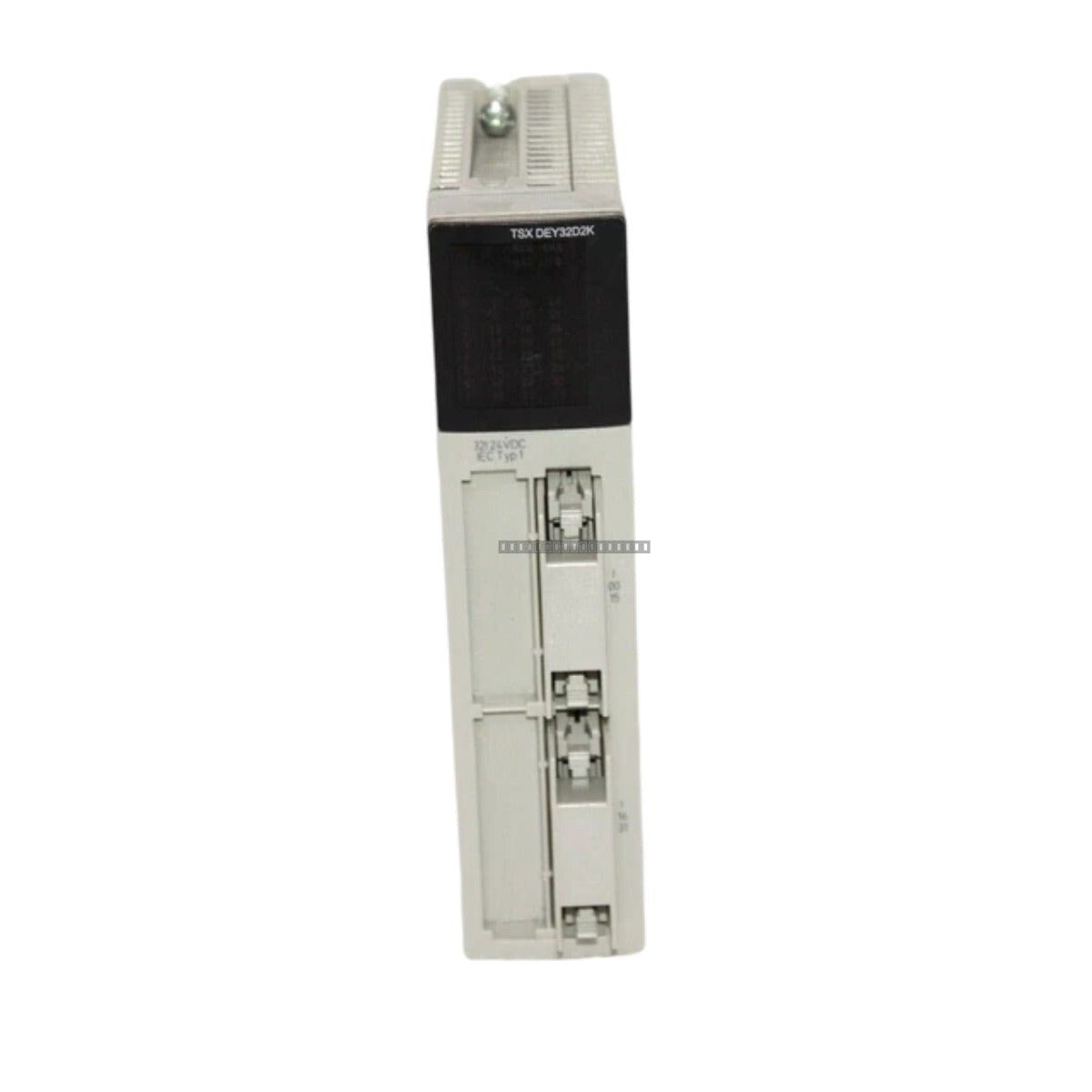

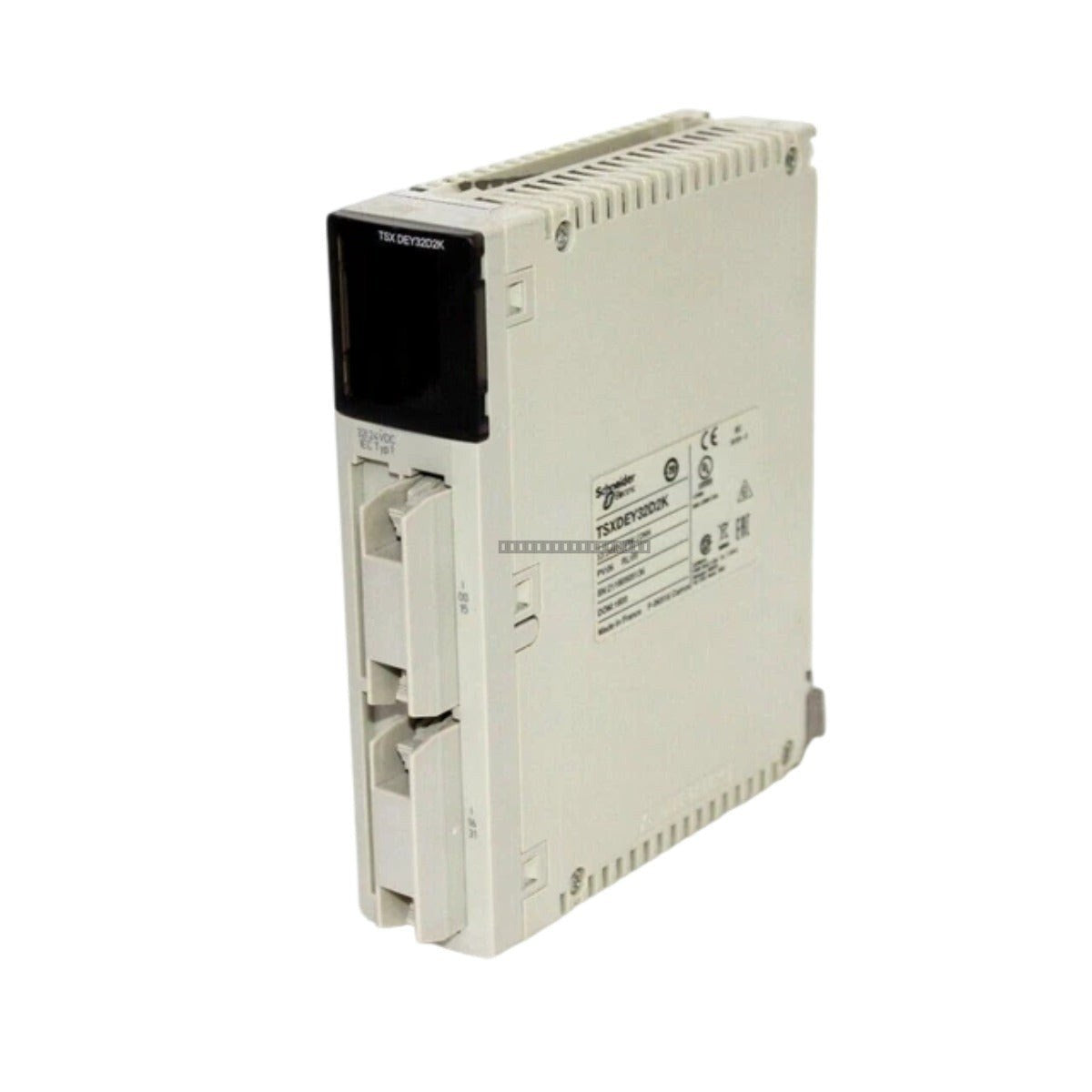

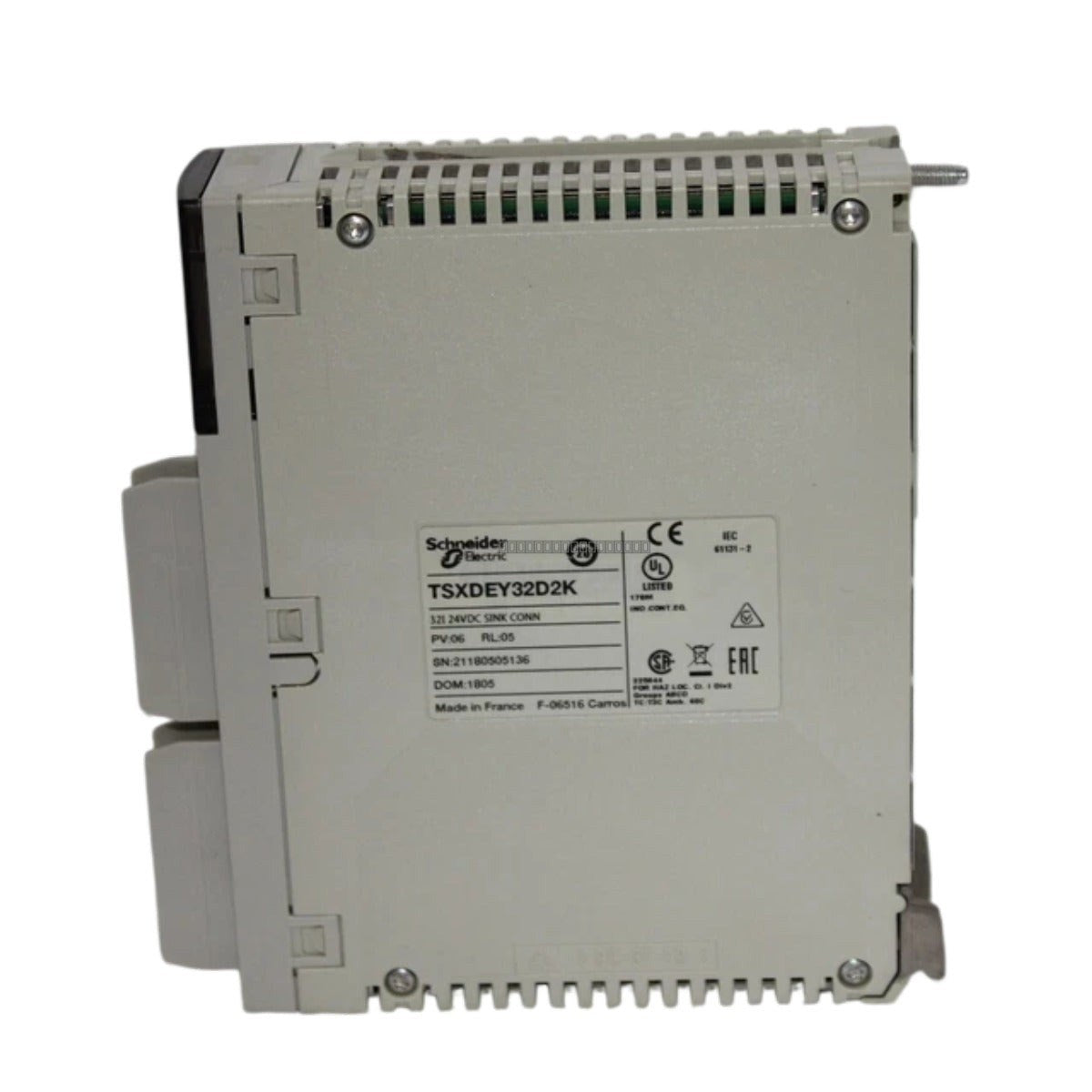

The Schneider TSXDEY32D2K is a high-density discrete input module designed for the Modicon Premium PLC platform. It provides 32 isolated current sink inputs, specifically engineered to interface with 2- or 3-wire proximity sensors in demanding industrial automation environments. This module offers reliable signal processing with robust electrical isolation and fast response times.
Features
- 32 isolated discrete input channels.
- Compatible with standard 24 V DC positive logic.
- Designed for integration with 2- or 3-wire proximity sensors.
- High input impedance for signal integrity.
- Standard HE-10 connector interface for efficient wiring.
- Low power dissipation design suitable for high-density rack configurations.
Applications
This module is typically utilized in manufacturing and process control systems where high-density digital signal acquisition is required, such as conveyor control, assembly line monitoring, and machine safety interlocks within the Modicon Premium ecosystem.
Technical Specifications
| Model Number |
TSXDEY32D2K |
| Platform |
Modicon Premium PLC |
| Number of Inputs |
32 isolated current sink |
| Input Voltage |
24 V DC positive |
| Sensor Power Supply |
19 to 30 V DC |
| Input Current |
3.5 mA |
| Input Impedance |
6300 Ohm at state 1 |
| Voltage Threshold (State 1) |
>= 11 V |
| Voltage Threshold (State 0) |
<= 5 V |
| Response Time |
<= 7 ms |
| Electrical Isolation |
> 10 MOhm at 500 V DC |
| Power Dissipation |
1 W + 0.1 W per active channel |
| Current Consumption |
135 mA at 5 V DC / 160 mA at 24 V DC |
| Connection Type |
HE-10 connector |
| Operating Temperature |
0 degC to +60 degC |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
- Use shielded cables for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Verify that the sensor power supply is within the 19–30 V DC range before connecting field devices.
- Ensure proper grounding of the Modicon Premium rack to maintain electrical isolation integrity.
- Handle the module by the housing to avoid electrostatic discharge (ESD) damage to the internal circuitry.
FAQ
What type of sensors can be used with the TSXDEY32D2K?
This module is designed for use with 2- or 3-wire proximity sensors operating on 24 V DC positive logic.
What is the connection interface for this module?
The module utilizes a standard HE-10 connector for field wiring, which facilitates quick and reliable connections to terminal blocks or distribution boards.
