Product Overview

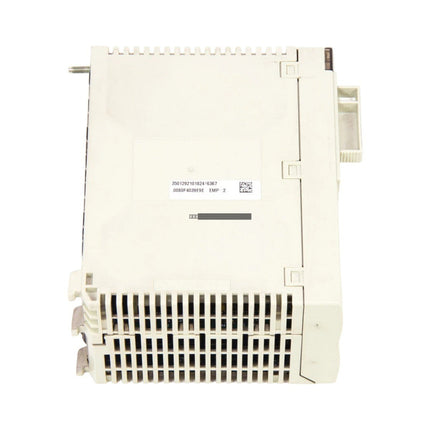

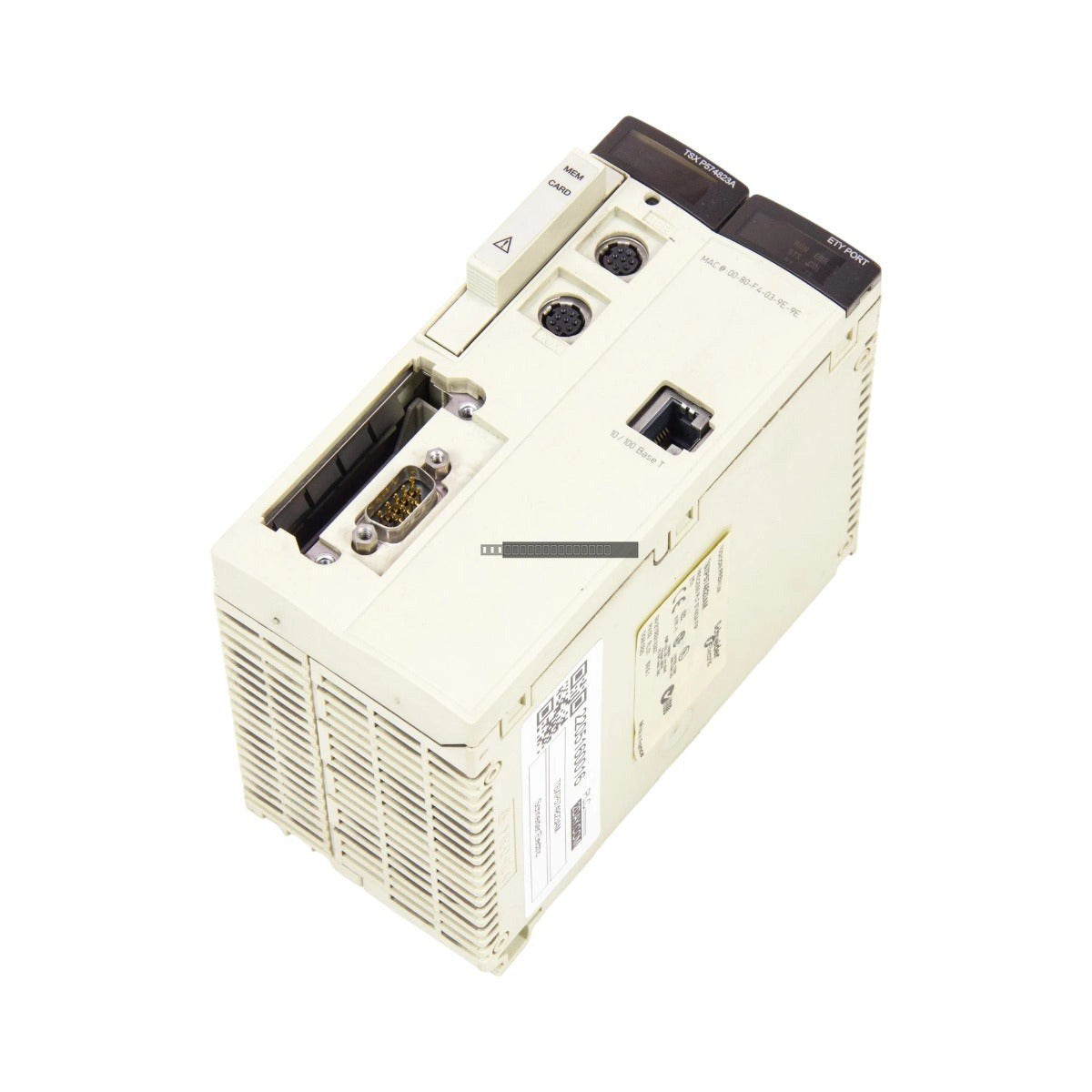

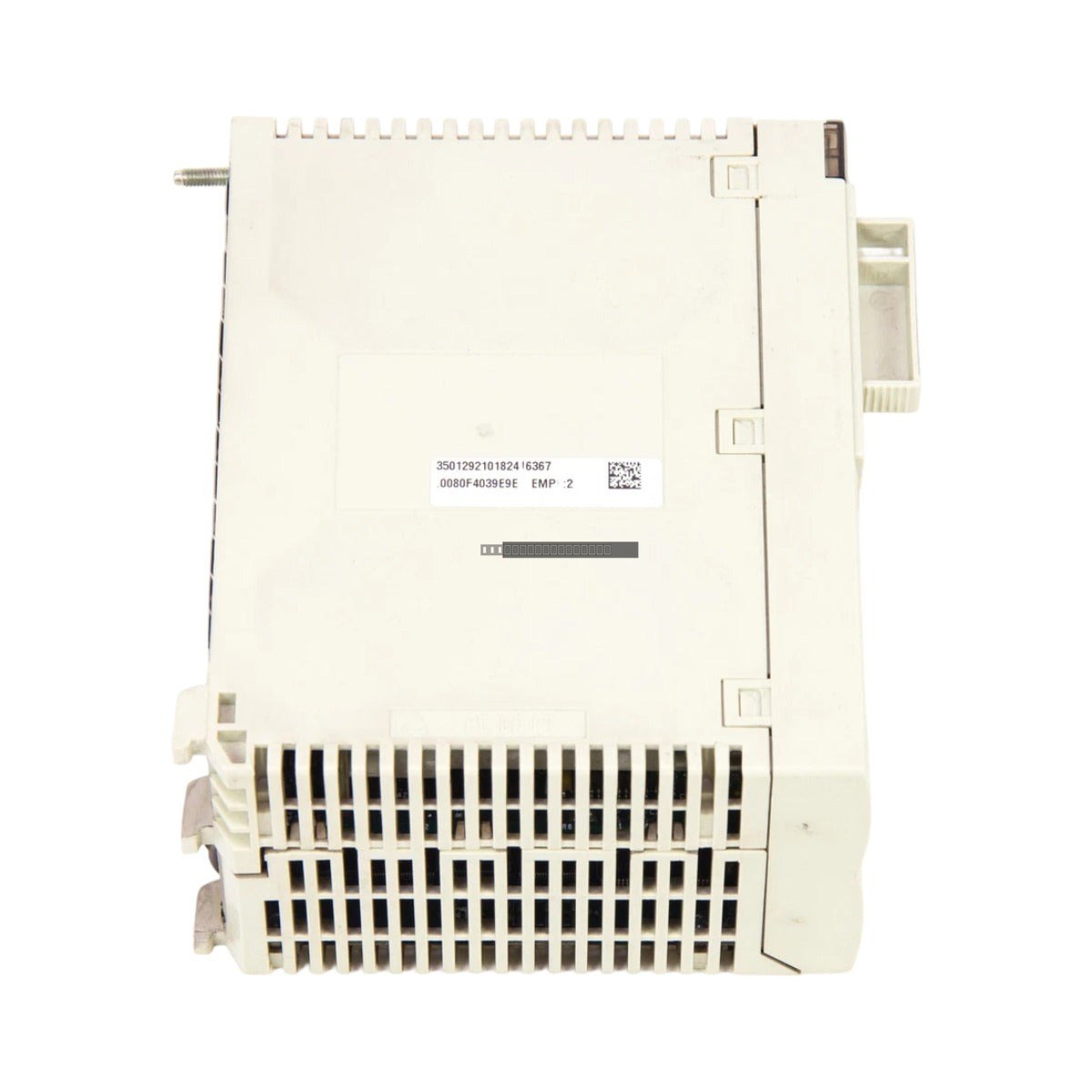

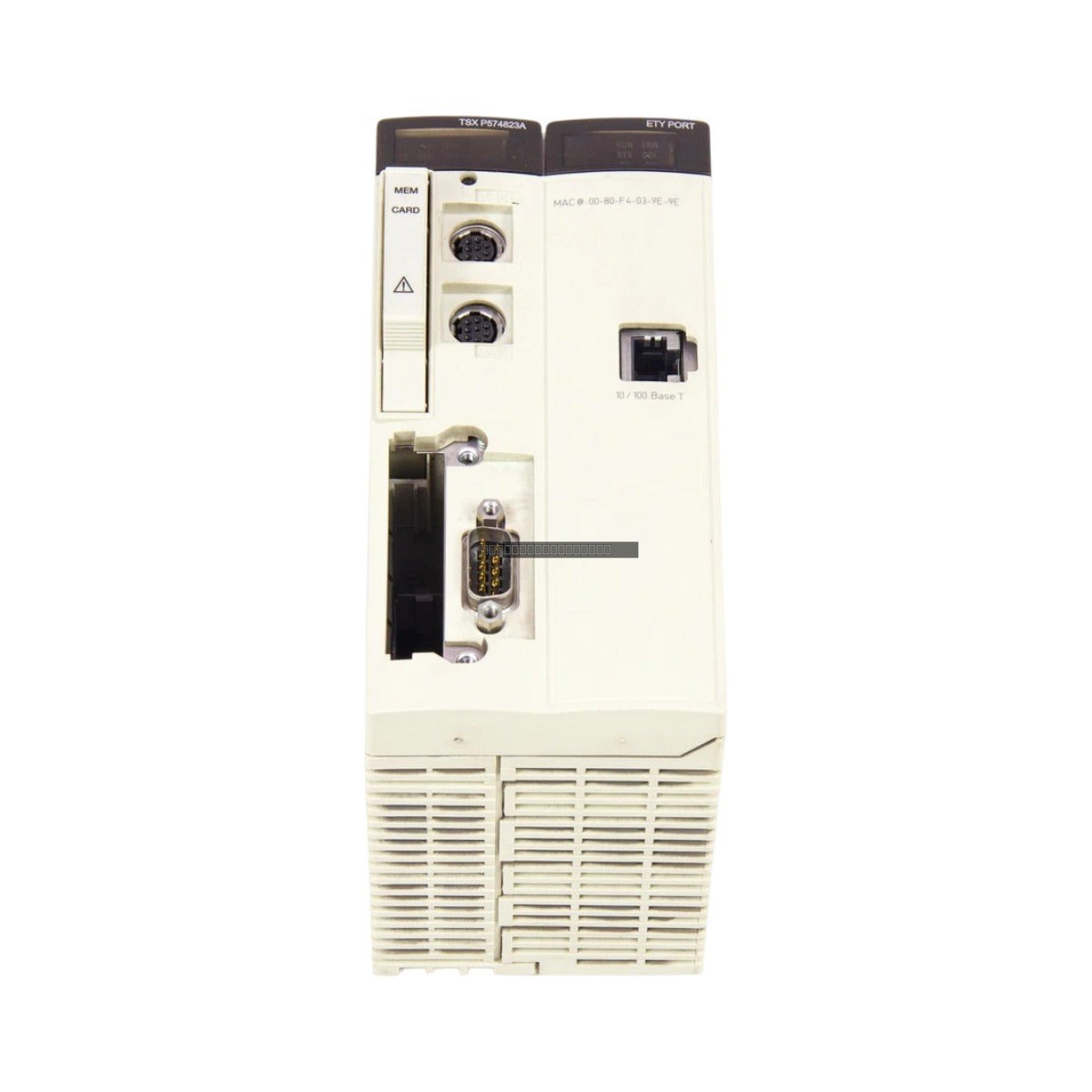

The Schneider Electric TSXP574823 is a high-performance CPU processor module designed for the Modicon Premium automation platform. This double-format processor is engineered for demanding industrial environments, providing robust multitasking capabilities and efficient process control loop management. It is widely utilized in critical infrastructure sectors, including power generation, hydrocarbon processing, and large-scale mining operations, where system reliability and deterministic performance are paramount.
Features
- Dual-processor architecture for efficient separation of logic scanning and communication tasks.
- Integrated 10/100 Mbps RJ45 Ethernet port for seamless TCP/IP network integration.
- Native serial terminal port (mini-DIN) supporting Uni-Telway and Modbus protocols for local device configuration and HMI connectivity.
- High-speed processing with a 0.19 microsecond execution time for Boolean instructions.
- Expandable memory architecture utilizing PCMCIA slots to accommodate complex application requirements.
- Non-volatile memory management to ensure data retention and configuration integrity during power cycles.
Applications
This processor is suitable for complex automation tasks requiring high-speed data processing and reliable communication. Its design supports integration into distributed control systems, machine automation, and process monitoring applications that demand consistent uptime and real-time tracking of industrial variables.
Technical Specifications
| Model |
TSXP574823 |
| Brand |
Schneider Electric |
| Internal RAM |
96K words |
| Instruction Speed |
0.19 us (Boolean) |
| Ethernet Port |
1 x 10/100 Mbps RJ45 |
| Serial Port |
1 x 8-pin mini-DIN (Uni-Telway/Modbus) |
| Power Consumption |
1540 mA @ 5 VDC |
| Operating Temperature |
0 to 60 deg C |
| Relative Humidity |
10 to 95% (non-condensing) |
| Slot Requirement |
2 standard slots |
Installation Guidelines
- Ensure the rack power supply is disconnected before installation or removal of the module.
- The module requires two contiguous slots on a TSX RKY series backplane.
- Maintain adequate ventilation clearance around the rack to adhere to the 0 to 60 deg C operating temperature range.
- Use shielded Ethernet cabling to minimize EMI interference in high-noise industrial environments.
- Handle the module using standard ESD prevention practices to protect internal circuitry.
FAQ
What is the primary function of the TSXP574823?
This unit serves as the central processing engine for Modicon Premium systems, handling logic execution, multitasking, and network communication.
Does this module support memory expansion?
Yes, the module includes PCMCIA memory card slots to extend the base 96K word internal RAM capacity.
What is the power requirement for this CPU?
The module consumes 1540 mA at 5 VDC, which is supplied directly via the backplane connection.
