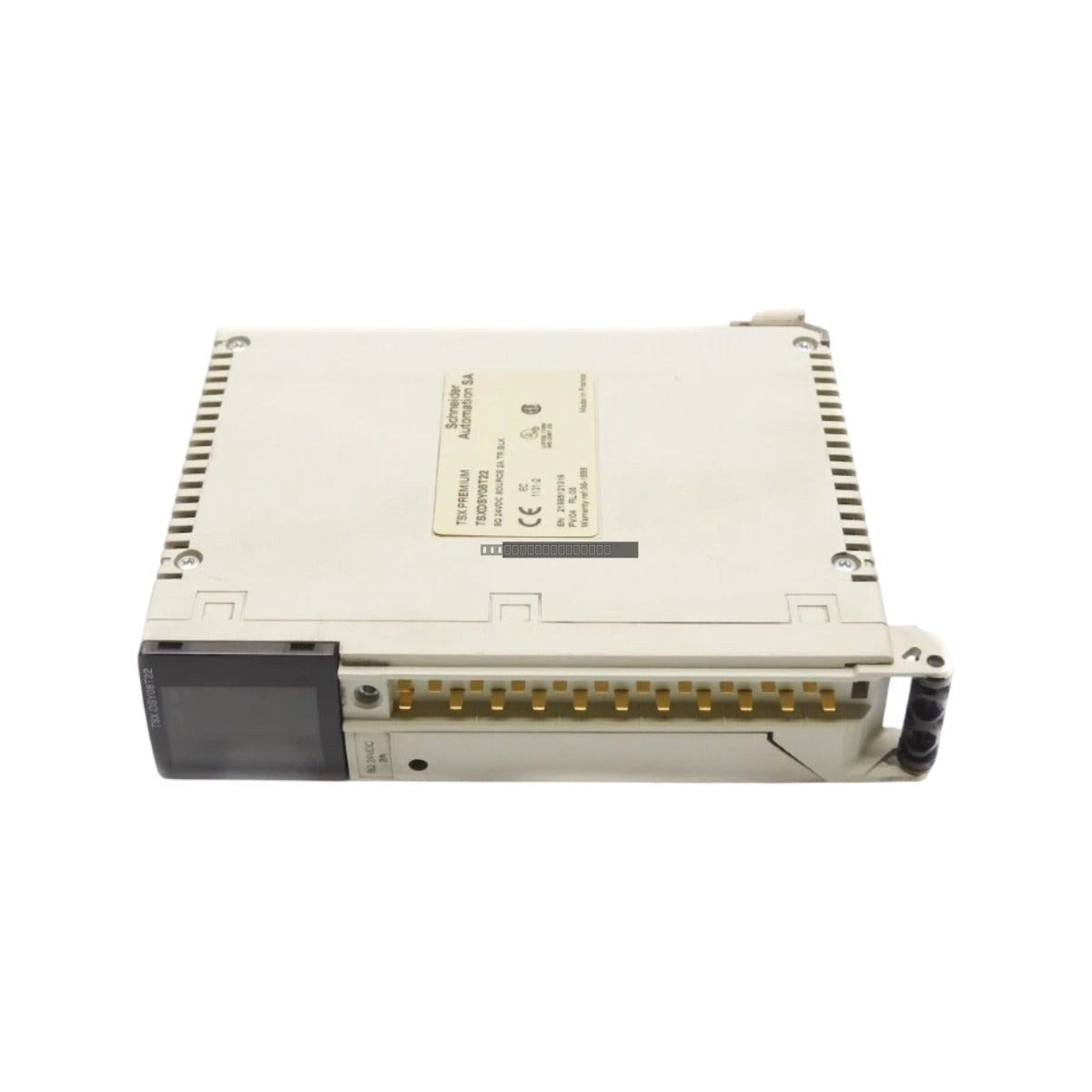

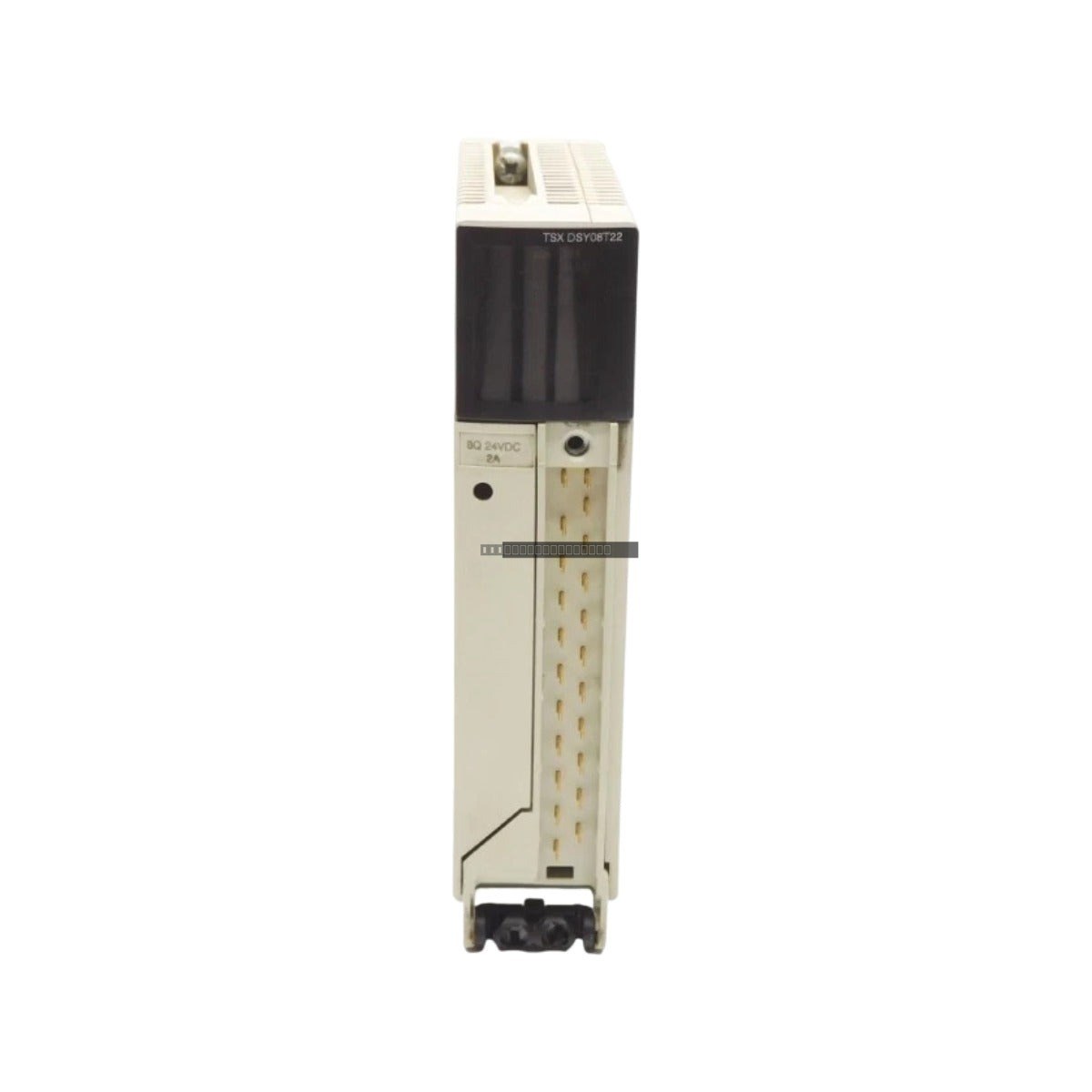

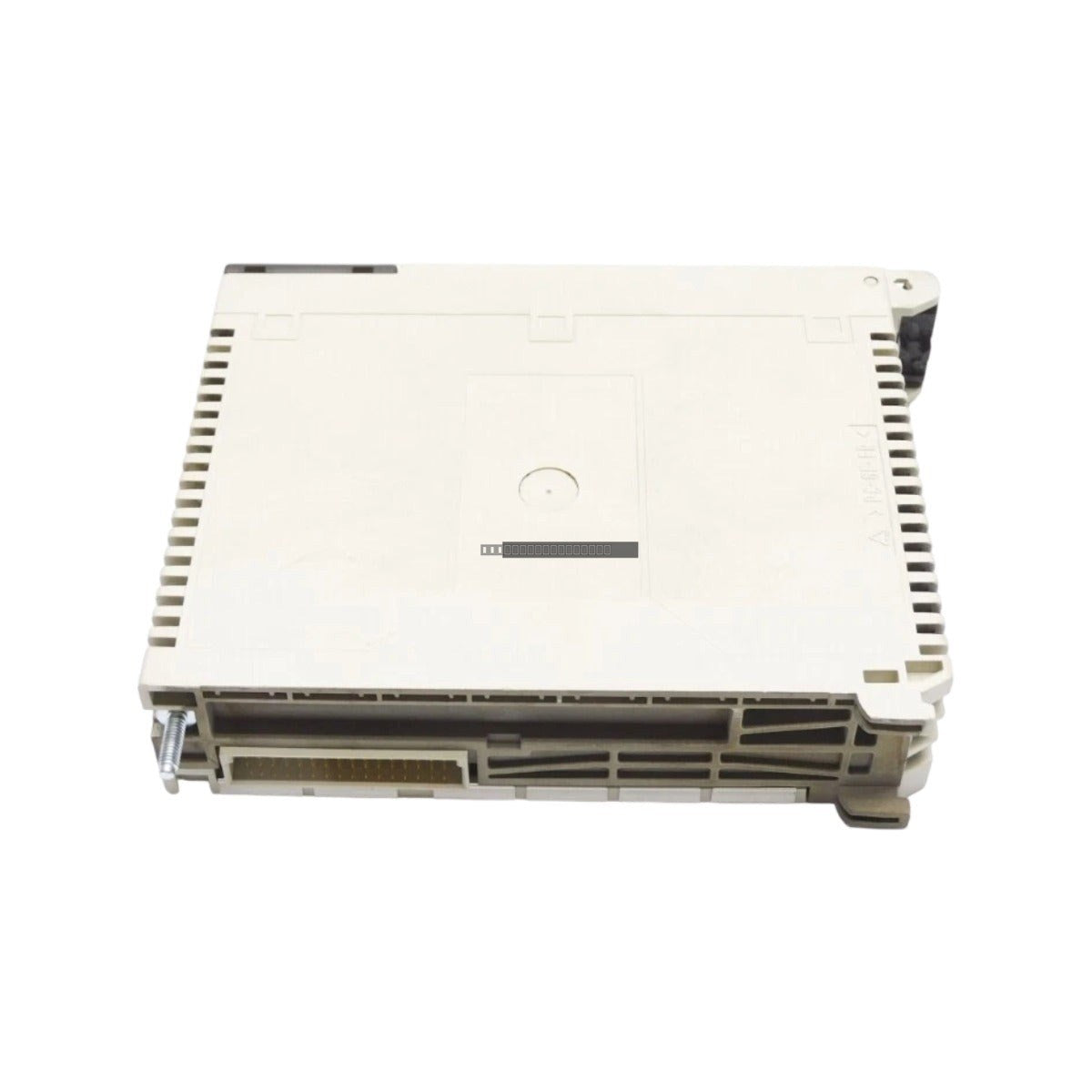

The Schneider Electric TSXDSY08T22 is a high-performance discrete output module designed for the Modicon Premium automation platform. This module provides 8 solid-state transistor output channels, specifically engineered for high-current industrial applications such as driving solenoid valves, contactors, and actuators in demanding environments like power generation and material handling.
Features
- 8 independent source-configuration transistor output channels.
- High-current capacity of 2 A per channel, with a total module capacity of 10 A.
- Integrated electronic protection including short-circuit current limiting and thermal shutdown.
- Galvanic isolation of 1500 V AC between field-side and logic-side circuitry.
- Front-panel LED array for rapid status monitoring and diagnostic troubleshooting.
- Compatible with Telefast pre-wired cabling systems via a standard 20-way HE10 connector.
Applications
This module is suitable for use in critical industrial infrastructure, including petroleum refining, fossil-fuel power generation, and large-scale mining operations where reliable, high-speed switching of field loads is required.
Technical Specifications
| Model |
TSXDSY08T22 |
| Output Type |
Solid-state transistor (Source) |
| Number of Channels |
8 |
| Nominal Voltage |
24 V DC |
| Voltage Range |
19 to 30 V DC |
| Max Current Per Channel |
2 A |
| Max Total Module Current |
10 A |
| Isolation |
1500 V AC |
| Power Dissipation |
4.5 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the Modicon Premium rack is powered down before inserting or removing the module to prevent electrical damage.
- Mount the module in a clean, dry environment within an IP20-rated enclosure or better.
- Ensure adequate ventilation around the module to maintain operating temperatures below 60 deg C.
- Use shielded cabling for field connections to minimize EMI interference, ensuring proper grounding of the shield at the cabinet entry point.
- Verify that the 20-way HE10 connector is securely seated and locked to prevent intermittent signal loss.
- Handle with care to avoid electrostatic discharge (ESD) damage to the internal logic components.
Compliance and Certifications
The TSXDSY08T22 complies with international standards including CE, UL 508, CSA C22.2, and IEC 61131-2 for industrial control equipment.
FAQ
What is the primary function of the TSXDSY08T22?
It is a discrete output module used to switch 24 V DC field devices like solenoids and contactors from the Modicon Premium controller.
Can this module handle inductive loads?
Yes, the module includes integrated demagnetization diodes per channel to protect against inductive voltage spikes during switching.
