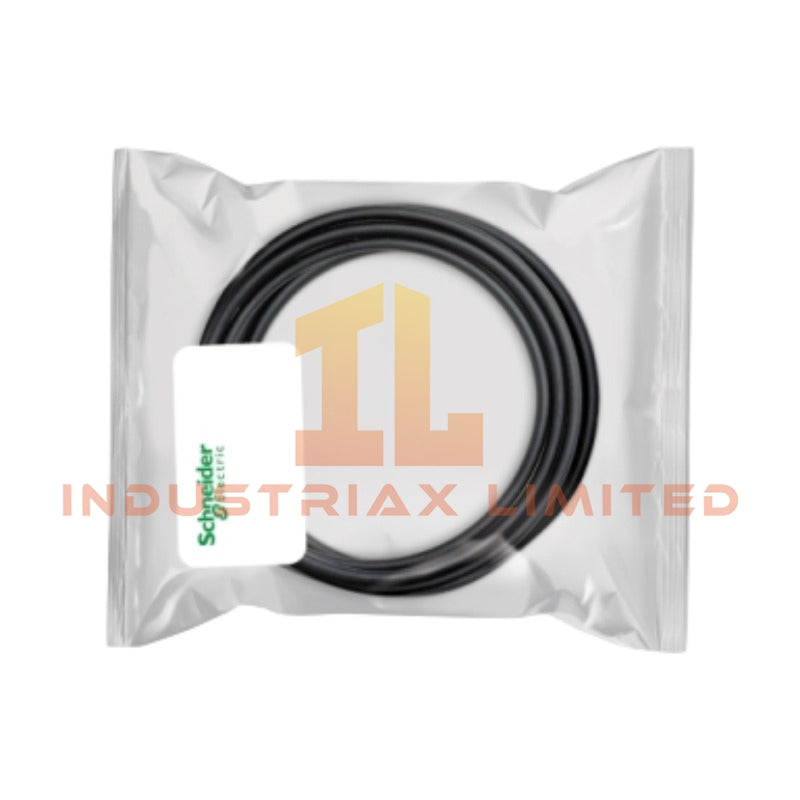

Schneider Electric TSXSCPCM4030 RS422/RS485 Tap Link Cable

Configured for isolated RS422/RS485 tap link communication in Modicon Premium Automation Platform Modbus character-mode networks, the Schneider Electric TSXSCPCM4030 (TSXSCPCM4030 Modbus connecting cable) provides direct physical layer interconnection between field devices and passive junction termination assemblies. The assembly implements flying-lead termination for RS422/RS485 signal routing over a 3 m fixed-length harness.

Suffix Breakdown & Model Matrix

• TSXSCPCM4030: Fixed-order cable assembly identifier
• TSXSCPC: Modicon Premium communication cable family (RS422/RS485 tap link)
• M4030: 3 m harness length designation within tap link cable set

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric TSXSCPCM4030
Origin	France
Weight	0.11 kg
Dimensions	205 x 190 x 30 mm (package)
OperatingTemp	Not specified
PowerConsumption	Passive component, no power consumption
Cable Length	3 m
Electrical Connection	Flying leads
Protocol Support	Modbus (Character Mode), RS422/RS485
Compatibility	TSXSCA50, TSXSCP114
Environmental Rating	No corrosive gases, 95 percent RH non-condensing

Schneider Electric Industrial Control Communication Interface Characteristics

The TSXSCPCM4030 is implemented within Schneider Electric Modicon Premium communication architecture as a passive RS422/RS485 tap link element. In PLC backplane-based distributed I/O topologies, the cable assembly maintains deterministic signal propagation integrity between Modbus character-mode nodes.

Within RS485 differential signaling layers, impedance continuity and common-mode noise rejection are maintained through controlled passive junction routing. The flying-lead termination structure is intended for field termination into TSXSCA50 and TSXSCP114 interface points, ensuring consistent electrical reference alignment across serial multidrop networks.

Backplane-integrated communication timing behavior remains dependent on Modicon Premium CPU scan cycle synchronization and Modbus master polling intervals, with no embedded signal conditioning or active isolation circuitry.

Frequently Asked Questions

Q: Does TSXSCPCM4030 include active signal conditioning or isolation?
A: No. The assembly is a passive RS422/RS485 tap link cable with flying leads and no electronic components.

Q: Can this cable be used in full-duplex RS422 configurations?
A: Yes, provided the system architecture supports RS422 signaling and compatible Modicon Premium interface modules are used.

Q: Does the cable introduce measurable communication latency?
A: No active latency is introduced. Signal delay is limited to propagation delay of the 3 m copper conductor length.

Field Installation Guidelines

• Ensure RS422/RS485 differential pairs are maintained as twisted and correctly polarized during termination
• Avoid running the cable parallel to high-voltage or high-frequency switching conductors to reduce EMI coupling
• Connect flying leads only to compatible TSXSCA50 or TSXSCP114 termination points
• Maintain proper shield grounding strategy at a single reference point in Modbus multidrop networks
• Verify continuity and polarity before commissioning to prevent bus communication errors

Spesifikasi

• Merek: Schneider Electric
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
