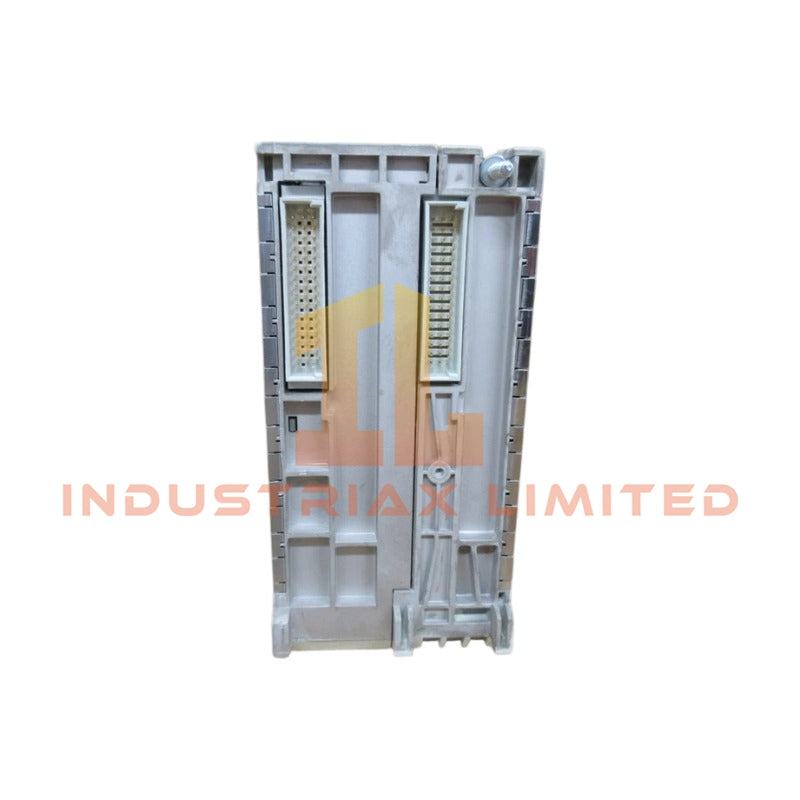

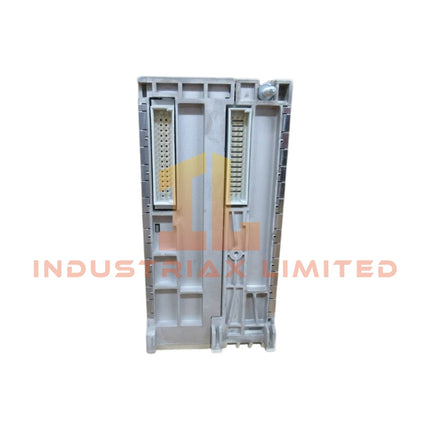

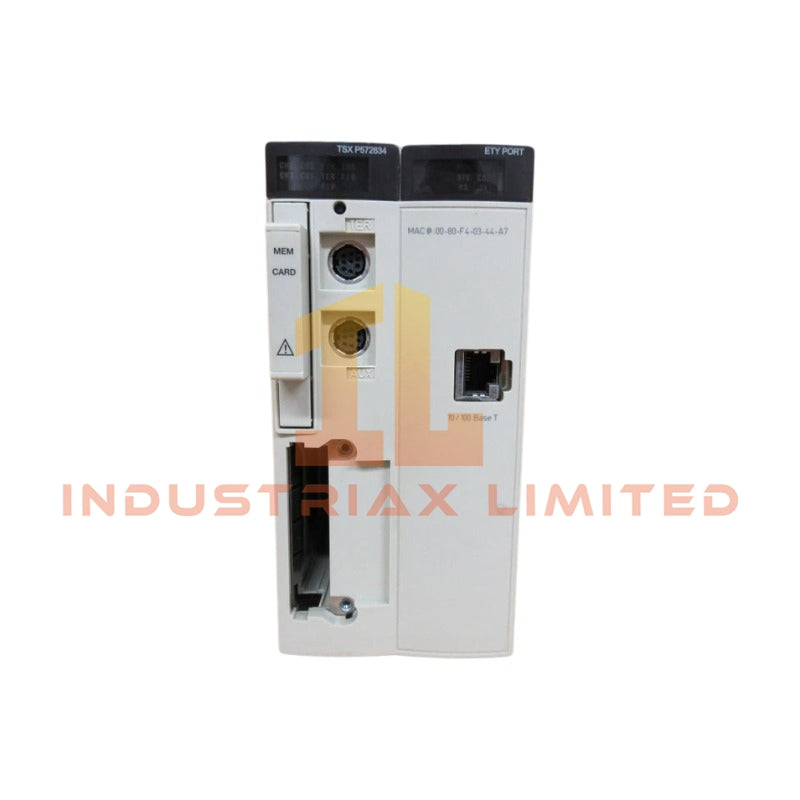

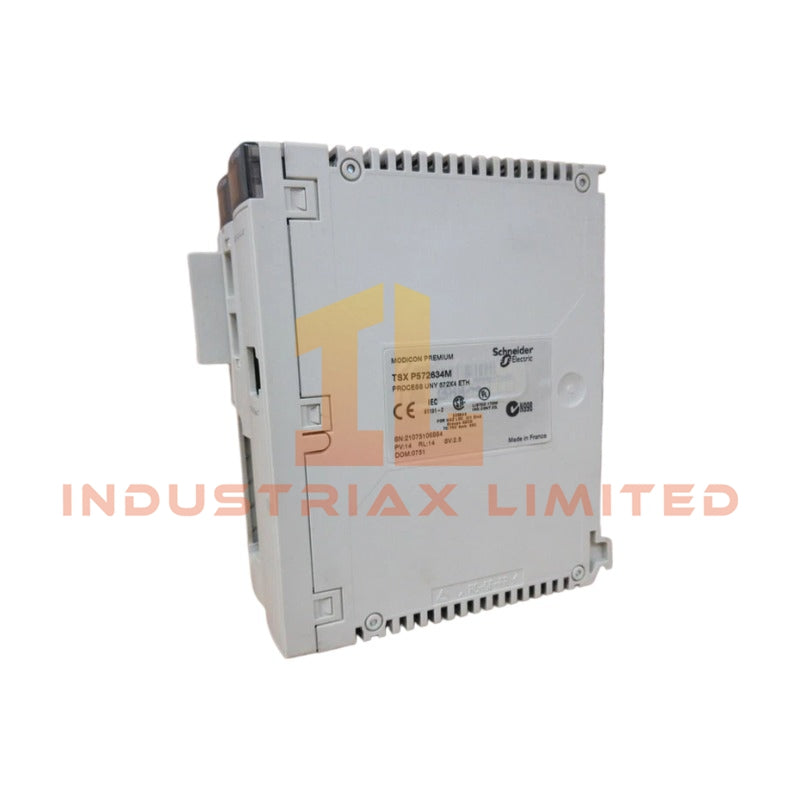

Schneider Electric TSXP572634M PLC Processor Module
Configured for deterministic PLC task execution in Modicon Premium Automation platform, the Schneider Electric TSXP572634M (TSXP572634M processor module) provides direct physical/electrical execution for rack-based I/O processing and Ethernet/RS485 communication handling. The module supports up to 8 racks (12-slot) or 16 racks (4/6/8-slot), integrates 5 V DC backplane supply at 1650 mA, and manages up to 1024 discrete I/O points with 80 analog I/O channels. Internal architecture supports fast, master, and event tasks under Unity Pro environment.
Suffix Breakdown & Model Matrix
No validated manufacturer-published suffix decomposition is provided in the supplied dataset for TSXP572634M. The identifier is treated as a single-order processor module designation within the Modicon Premium range.
Hardware Specifications
Parameter
Specification
ModelBrand
Schneider Electric TSXP572634M
Origin
France
Weight
1.5KG
Dimensions
N/S
OperatingTemp
0 to 60 degC (operation), -25 to 70 degC (storage)
PowerConsumption
5 V DC, 1650 mA backplane supply
Rack Capacity
8 racks (12-slot) / 16 racks (4/6/8-slot)
Max I/O Capacity
1024 discrete I/O, 80 analog I/O
Memory
160 kB base RAM, up to 768 kB with PCMCIA
Communication Interfaces
Ethernet 10BASE-T/100BASE-TX, RS485 serial
Task Structure
1 fast task, 1 master task, 64 event tasks
Instruction Execution
0.19 to 2.6 microseconds depending on operation type
Backplane Bus and Deterministic Control Architecture (Schneider Electric PLC Systems)
The TSXP572634M processor executes cyclic and event-driven logic over a shared Modicon Premium backplane, where I/O scanning and task scheduling are synchronized through deterministic scan cycles. Backplane communication supports high-density I/O mapping up to 1024 points with controlled latency across multi-rack configurations.
Ethernet TCP/IP interface (10/100BASE-TX) is used for supervisory communication and Unity Pro engineering access, while RS485 serial link supports legacy device integration at 19.2 kbit/s. Firmware and application execution consistency depends on internal task scheduler prioritization between fast and master tasks, ensuring predictable scan timing under mixed Boolean and fixed-point arithmetic loads.
Firmware flash compatibility and application download behavior are governed through PCMCIA-based memory expansion, enabling separation of program and data domains for deterministic runtime behavior.
Frequently Asked Questions
Q1: Does TSXP572634M support hot-swap of processor modules? A1: No. The processor is not designed for hot-swap operation. Power-down is required before rack insertion or removal to avoid backplane instability.
Q2: How is backplane load distributed across multi-rack configurations? A2: Backplane load is distributed via the 5 V DC internal supply at 1650 mA. Each rack contributes to total current draw depending on installed I/O modules.
Q3: Can firmware be updated without PCMCIA memory expansion? A3: Yes, but internal RAM is reduced in configuration. PCMCIA enables expanded program memory and improved application storage separation.
Field Installation Guidelines
Install the processor in a grounded Modicon Premium rack with verified backplane continuity. Maintain segregation between Ethernet/RS485 wiring and power conductors to reduce signal coupling on communication lines.
Ensure 5 V DC backplane supply stability prior to slot insertion. All shielded cables shall be terminated at a single-point earth reference to maintain signal integrity across multi-rack configurations.
Avoid installation in environments exceeding IP20 protection boundaries without enclosure. Maintain airflow clearance for thermal dissipation across stacked rack assemblies.
