Description

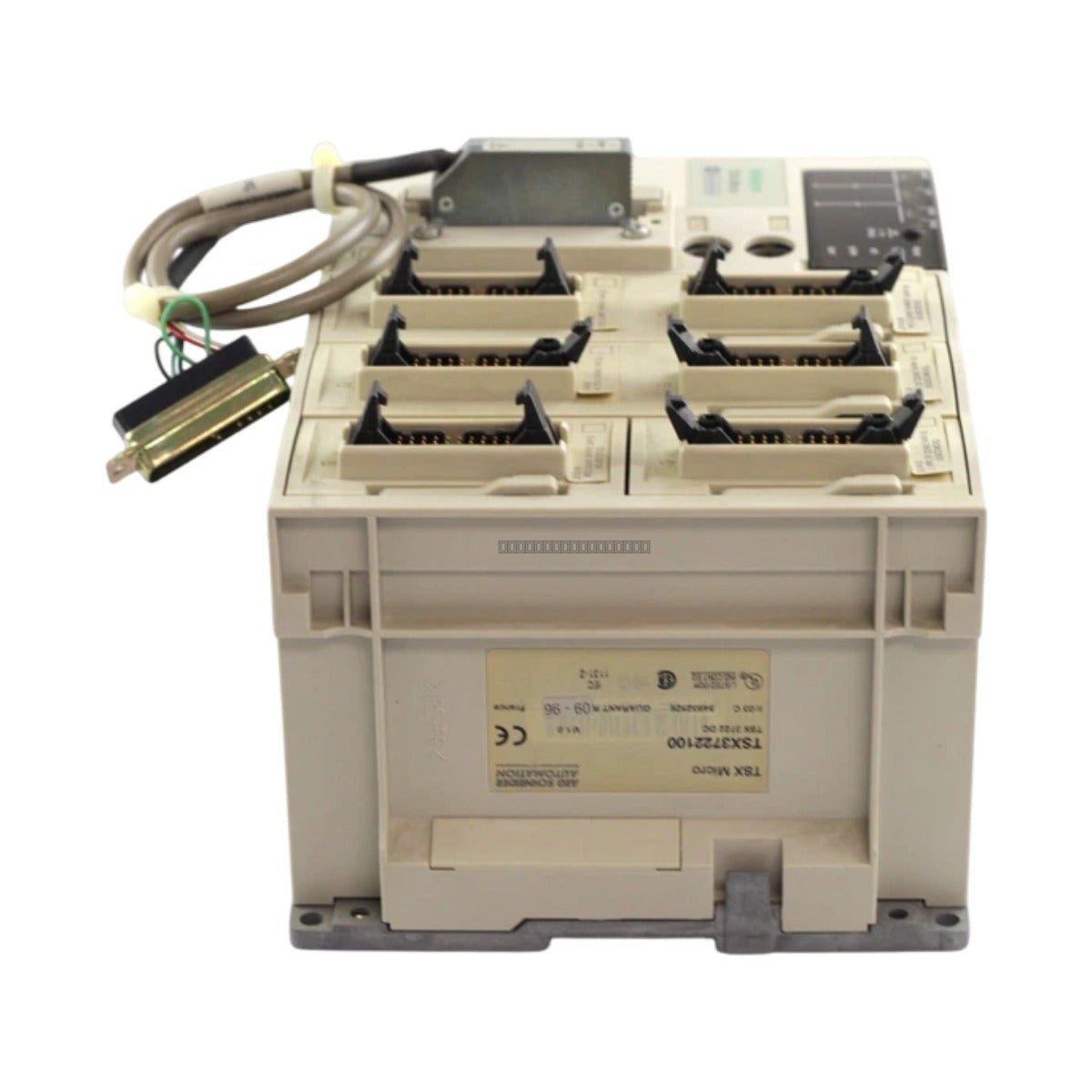

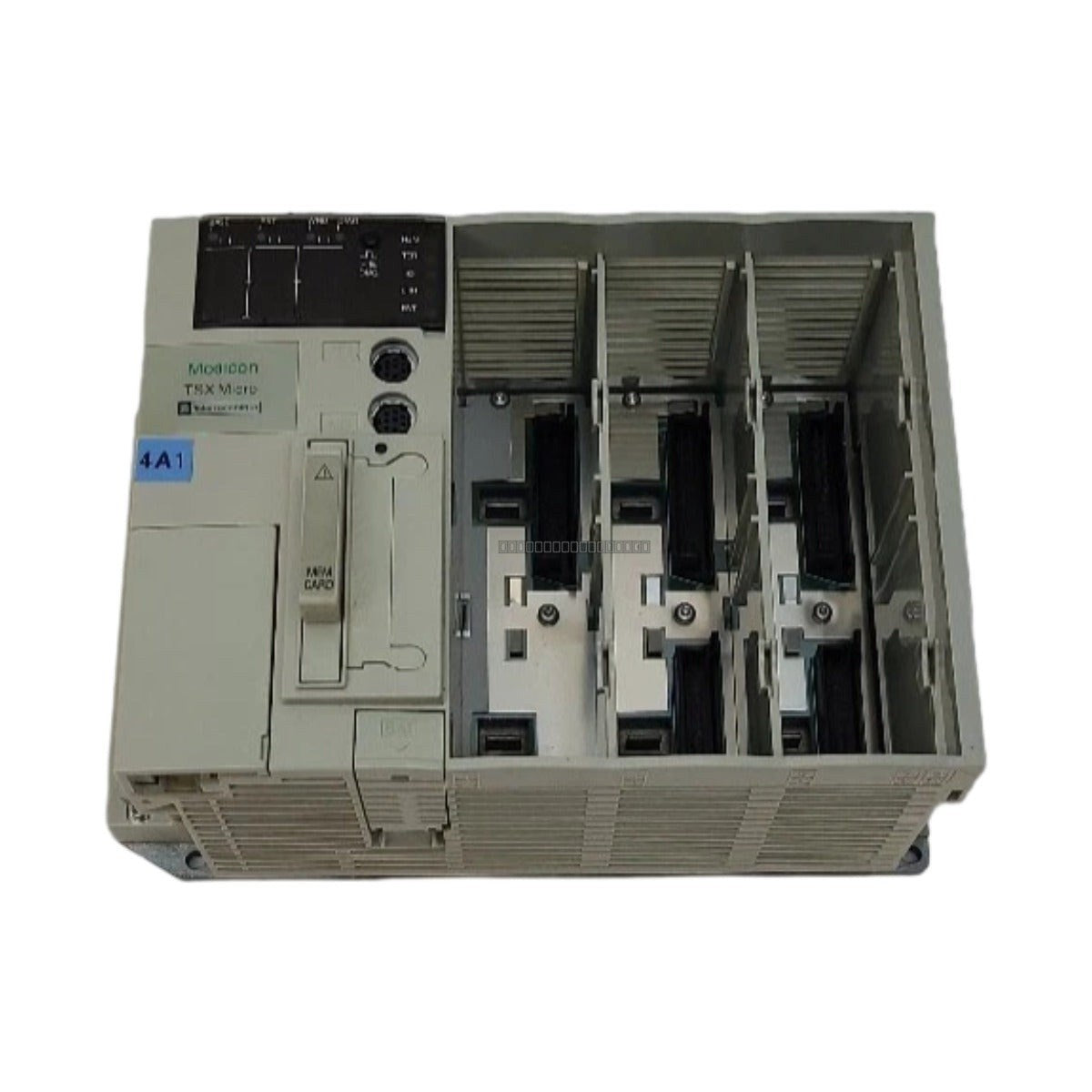

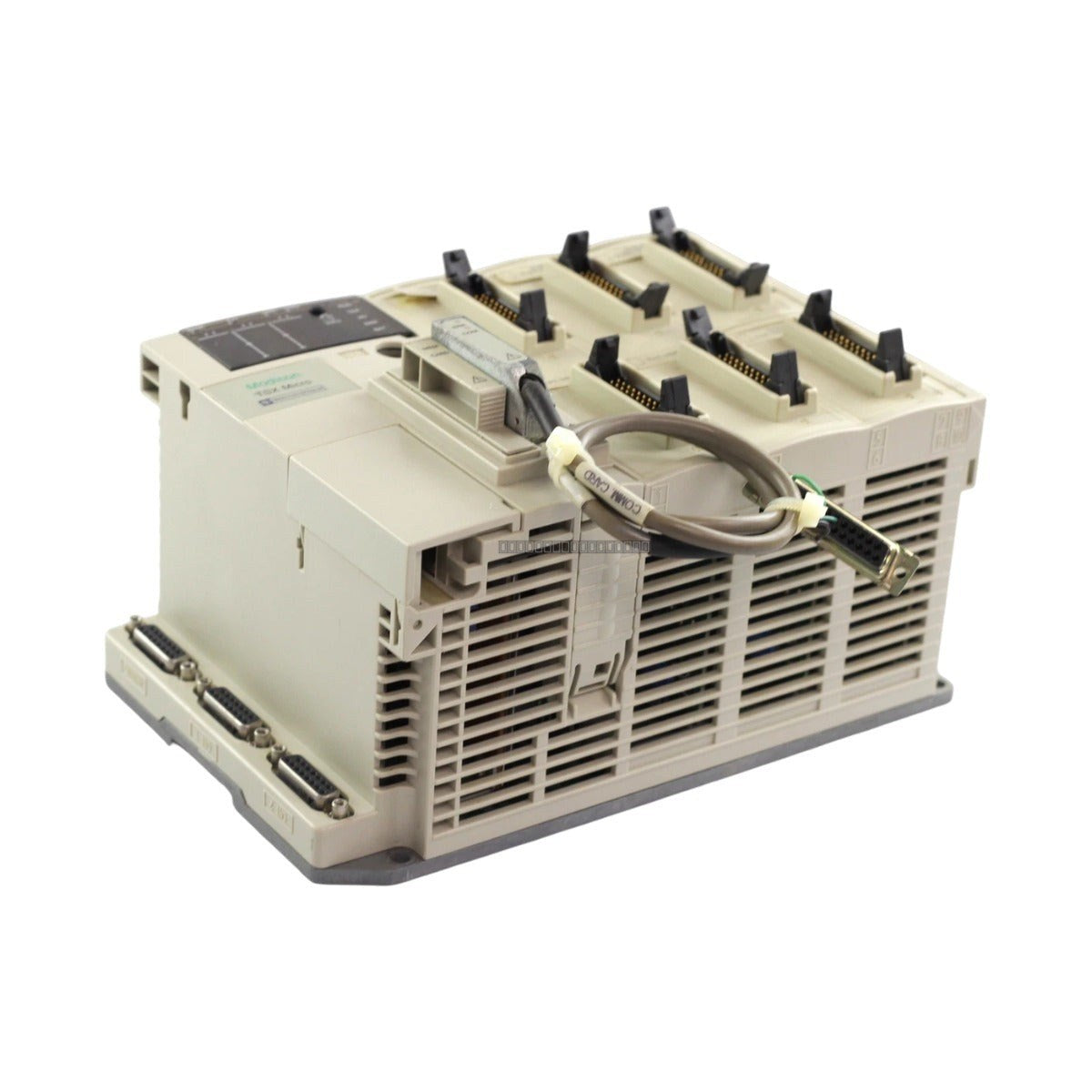

The Schneider Electric TSX3722100 functions as a centralized programmable logic controller (PLC) platform designed for the Modicon TSX Micro automation series. This hardware module coordinates real-time sequential control, machine monitoring, and process regulation across diverse manufacturing sectors, including automated packaging facilities, municipal water treatment plants, and raw material handling systems. The compact processing unit integrates memory execution blocks, communication ports, and flexible I/O extension slots within a single footprint. By delivering rapid instruction execution cycles and continuous internal diagnostics, this primary controller reduces physical component dependencies, prevents hardware failures, and ensures minimal plant downtime during high-throughput operational runs.
Features
- Integrated processing unit for real-time sequential control and process regulation.
- Supports PCMCIA memory expansion cards for application backups and data logging.
- Native support for Uni-Telway, Modbus RTU, and Character Mode protocols.
- Dual terminal ports (TER and AUX) for HMI and supervisory network connectivity.
- Non-volatile system flash memory for data retention during power loss.
- Two dedicated slots for discrete and analog I/O expansion modules.
Applications
This PLC base unit is suitable for a wide range of industrial automation tasks, including:
- Automated packaging and assembly lines.
- Municipal water and wastewater treatment control.
- Raw material handling and conveyor systems.
- Small-to-medium scale machine process regulation.
Technical Specifications
| Brand |
Schneider Electric |
| Model |
TSX3722100 |
| Series |
Modicon TSX Micro |
| Supply Voltage |
24 VDC |
| Power Consumption |
32 W (max) |
| Internal RAM |
20 kWords |
| Memory Expansion |
Up to 128 kWords (PCMCIA) |
| Expansion Slots |
2 slots |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Humidity |
10 to 95 percent (non-condensing) |
| Protection Rating |
IP20 |
Installation Guidelines
- Ensure the unit is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures below 60 deg C.
- Verify power supply polarity before connecting the 24 VDC input to prevent internal circuit damage.
- Always power down the system before inserting or removing PCMCIA memory cards or I/O expansion modules.
- Maintain proper grounding practices to mitigate electromagnetic interference (EMI) in industrial environments.
- Route communication cables away from high-voltage power lines to ensure signal integrity.
FAQ
What communication protocols does the TSX3722100 support?
The unit natively supports Uni-Telway, Modbus RTU, and Character Mode protocols via its integrated TER and AUX ports.
Can I expand the memory of this PLC?
Yes, the unit features a PCMCIA slot that supports memory expansion cards up to 128 kWords for extended data logging and application storage.
What is the power requirement for this module?
This base unit operates on a 24 VDC supply and has a maximum power consumption of 32 W.
