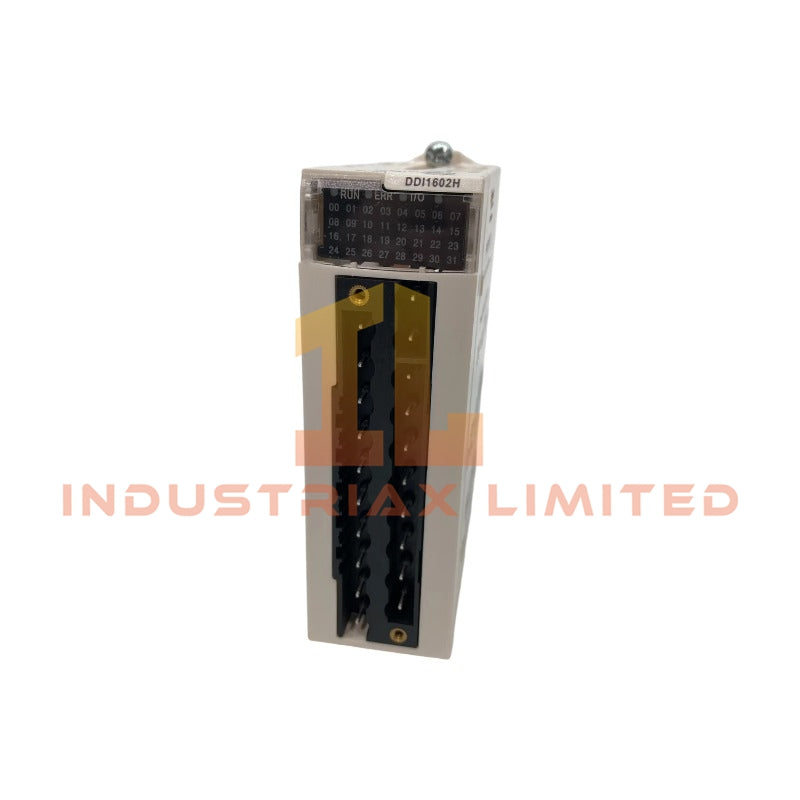

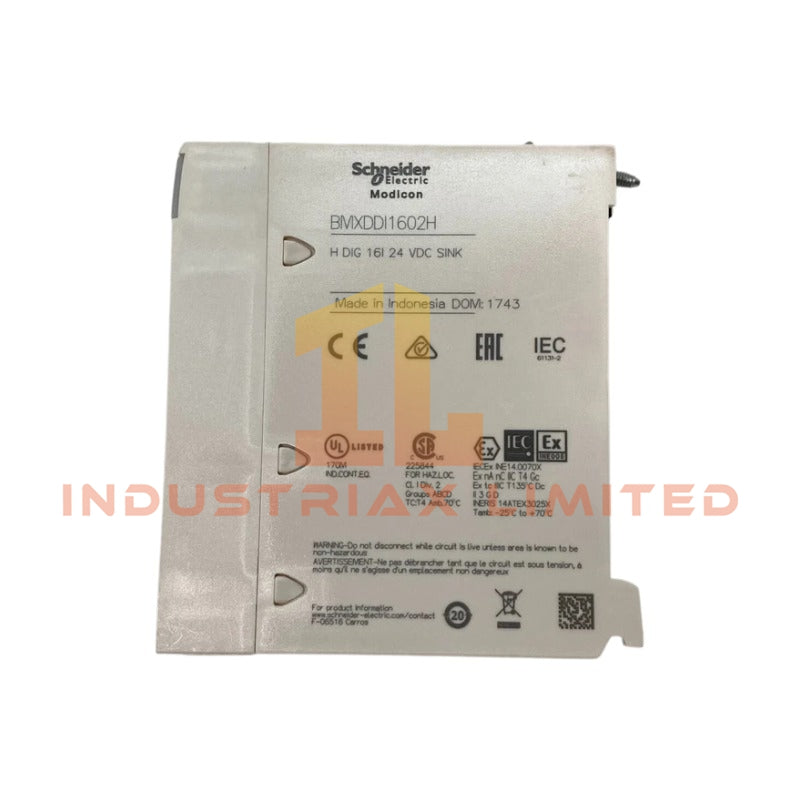

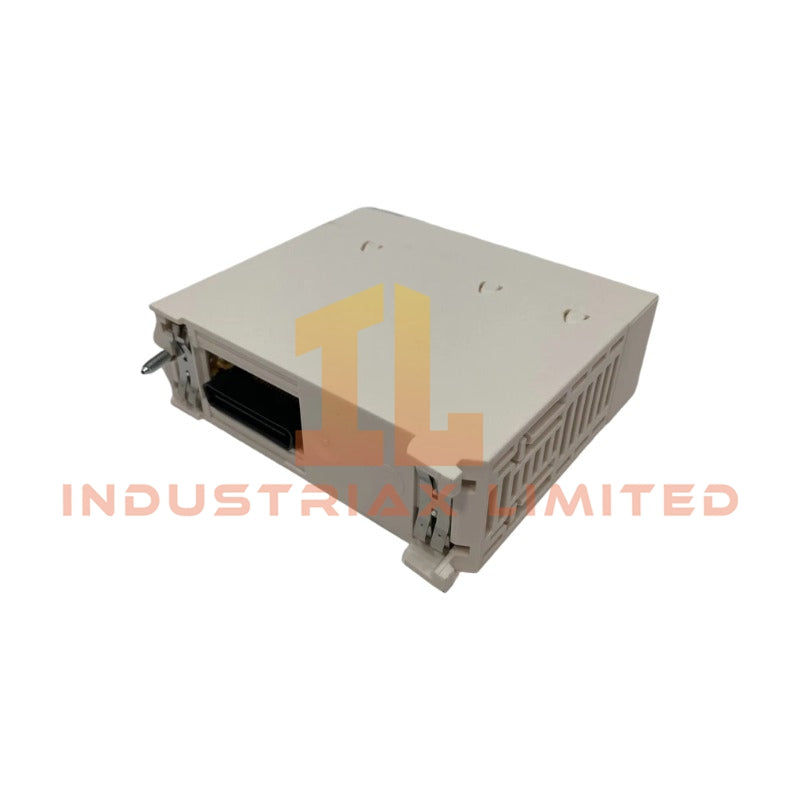

Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module
Configured for discrete signal acquisition in Modicon X80 backplane I/O systems, the Schneider Electric BMXDDI1602H (BMXDDI1602H Discrete Input Module) provides direct physical/electrical execution within Schneider Electric Modicon X80 architectures. The module implements 16-channel 24 V DC current sink (positive logic) input acquisition with isolated channel structure for field signal interfacing.
Suffix Breakdown & Model Matrix
No explicit manufacturer-defined suffix segmentation for BMXDDI1602H is provided in the supplied technical dataset. Model interpretation is limited to catalog identifier level only.
Hardware Specifications
Parameter
Specification
ModelBrand
Schneider Electric BMXDDI1602H
Origin
France
Weight
0.115 kg
Dimensions
Not specified
OperatingTemp
Not specified (sensor supply referenced up to 60 degC / 70 degC conditions)
PowerConsumption
2.5 W
Input Channels
16 discrete inputs
Input Type
Isolated current sink (logic positive)
Input Voltage
24 V DC
Input Current
3.5 mA
Response Time
4 ms typical / 7 ms max
Input Compatibility
IEC 60947-5-2, IEC 61131-2 Type 3 proximity sensors
Insulation Resistance
> 10 MOhm at 500 V DC
Backplane Consumption
76 mA at 3.3 V DC
Backplane Deterministic I/O Handling and Firmware Integration
Within Modicon X80 systems, the BMXDDI1602H integrates into the backplane communication layer through deterministic I/O refresh cycles synchronized with PLC scan execution. Channel state acquisition is executed through fixed-latency sampling windows (4 ms typical), enabling predictable input mapping to process image tables.
Firmware compatibility is aligned with Schneider Electric X80 platform I/O modules, supporting consistent module identification and hot module detection at rack level without requiring reconfiguration of I/O addressing tables.
Signal conditioning is internally optimized for 24 V DC current sink topology, ensuring stable logic interpretation under standard IEC 61131-2 Type 3 sensor electrical behavior.
Frequently Asked Questions (FAQ)
Q: Does the module support hot-swap insertion on an energized backplane? A: The module is designed for rack-based X80 installation. Hot insertion behavior depends on system backplane configuration and PLC rack power management rules.
Q: What is the effect of backplane load on input scan timing? A: Input scan timing is determined by PLC task cycle and backplane update mechanism; the module itself maintains fixed internal response time independent of channel count utilization.
Q: Can inputs be paralleled for signal redundancy? A: Paralleling of inputs is supported electrically, but signal interpretation remains dependent on external wiring topology and PLC logic configuration.
Field Installation Guidelines
The BMXDDI1602H shall be installed on a grounded X80 rack backplane following standard DIN rail mechanical alignment procedures. Ensure that field wiring for 24 V DC inputs is segregated from high-voltage conductors to reduce electromagnetic coupling.
Shielded cable termination should be referenced to a single-point ground to prevent ground loop current through input common terminals. Maintain torque specifications for terminal blocks according to rack-level installation documentation.
Do not exceed specified sensor supply voltage range during commissioning. Verify channel LED status indicators after power-up before enabling PLC scan execution.
