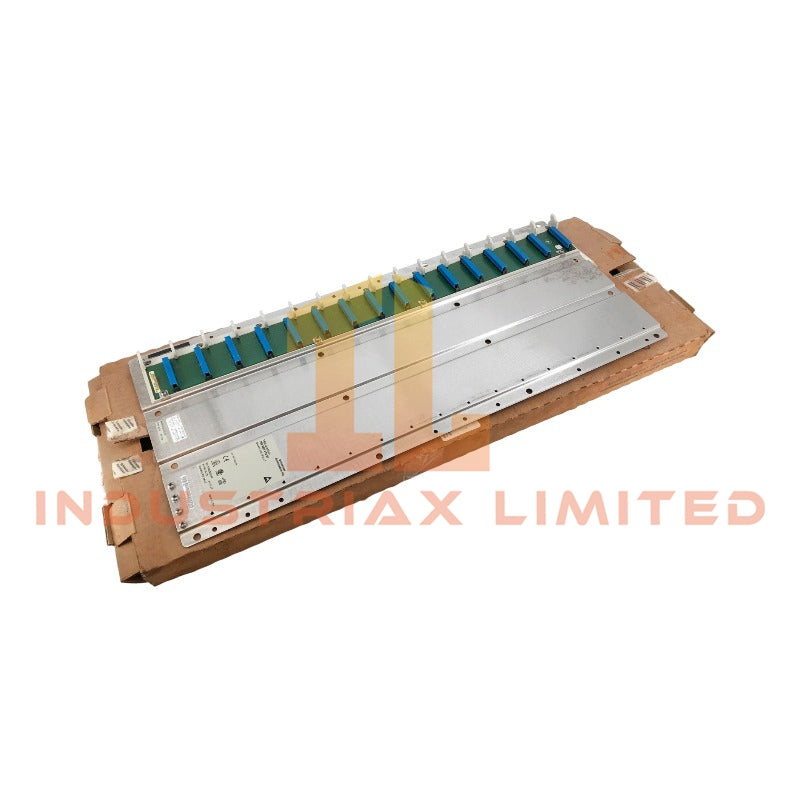

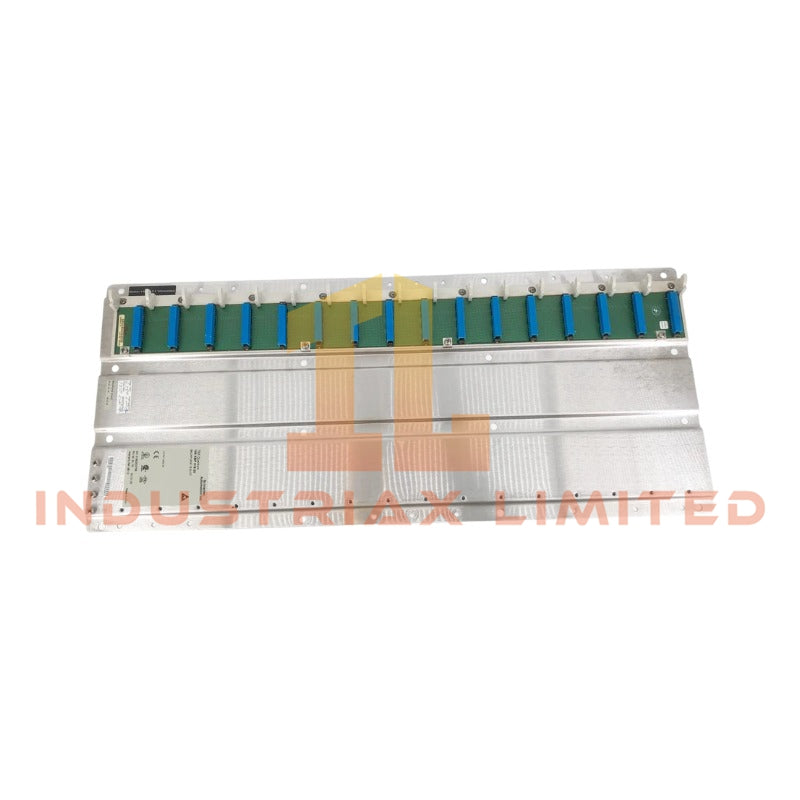

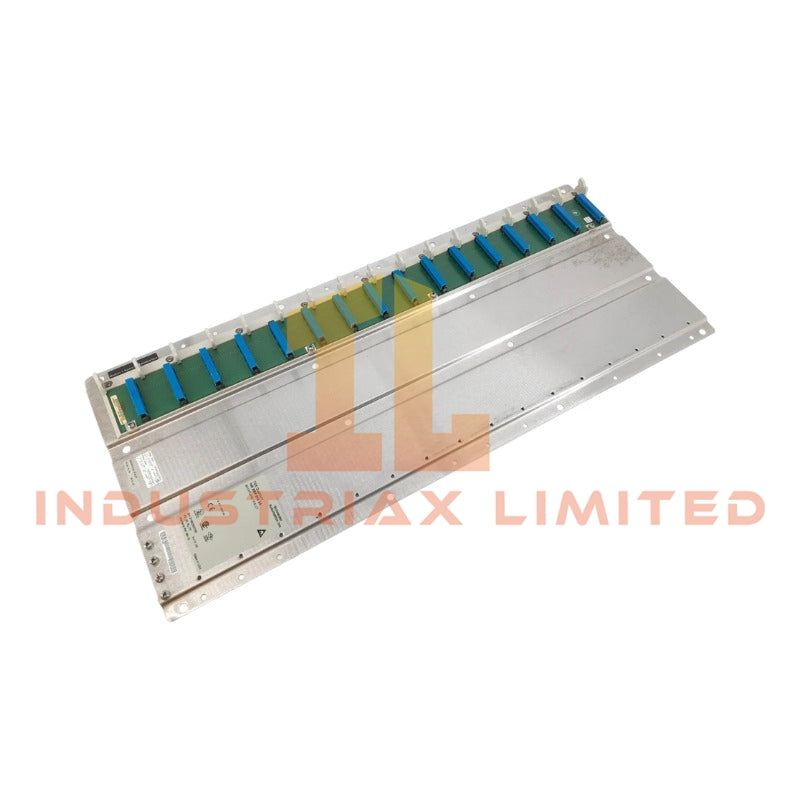

Schneider Electric 140XBP01600 Backplane Rack Module
Configured for distributed I/O module interconnection in Modicon Quantum automation platform,the Schneider Electric 140XBP01600 (140XBP01600 Rack Backplane) provides direct physical/electrical execution within rack-based PLC I/O architectures. It defines a 16-slot backplane structure for local, remote, and distributed module mounting, enabling electrical bus distribution across installed Quantum modules without active processing logic.
Suffix Breakdown & Model Matrix
-
140XBP01600: Standard Modicon Quantum backplane rack
-
XBP: Backplane platform designation
-
01600: 16-slot rack configuration identifier
No further structured suffix segmentation is defined in the provided dataset.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric 140XBP01600 |
| Origin |
France |
| Weight |
1.6 kg |
| PowerConsumption |
Passive component (no intrinsic power consumption specified) |
| Slot Capacity |
16 slots |
| Mounting Type |
Mounting plate, screw-fixed |
| System Compatibility |
Modicon Quantum I/O modules |
Backplane Bus Communication Architecture & PLC Integration Behavior
Deterministic Rack-Level Signal Distribution
The 140XBP01600 backplane implements passive electrical interconnection for Quantum I/O modules, enabling deterministic rack-level signal propagation without embedded processing latency. Within Schneider Electric PLC architectures, backplane bus synchronization supports stable module addressing and slot-level electrical continuity for both local and remote I/O configurations.
Firmware and I/O Density Alignment
In Modicon Quantum systems, I/O density scaling is directly dependent on backplane slot allocation. The 16-slot structure defines maximum module population per rack, while firmware compatibility is governed at the CPU level rather than the backplane. This separation ensures hardware interchangeability without backplane-level firmware flashing requirements.
Channel-to-Channel Electrical Isolation Behavior
Although passive, the backplane architecture relies on module-level isolation design to maintain channel integrity across adjacent slots. Signal separation is achieved through individual I/O module galvanic isolation rather than backplane electronics, maintaining electrical decoupling across densely populated racks.
Frequently Asked Questions
Q: Does the 140XBP01600 support hot-swap module replacement?
A: Hot-swap capability depends on the installed Quantum I/O modules and system configuration. The backplane itself is passive and does not manage switching logic.
Q: What limits the backplane current distribution across 16 slots?
A: Current handling is defined by rack power supply and module load distribution; the backplane provides electrical routing only without active current regulation.
Q: Is firmware required for backplane operation?
A: No firmware is embedded in the 140XBP01600. Firmware relevance applies only to CPU and I/O modules connected to the backplane.
Field Installation Guidelines
-
Install backplane on rigid mounting plate using screw fixation at all designated points
-
Ensure rack enclosure grounding is bonded before module insertion
-
Maintain separation between power wiring and signal backplane connectors
-
Insert I/O modules perpendicular to backplane to avoid connector pin stress
-
Verify slot alignment before full seating of Quantum modules
-
Avoid mechanical deformation of backplane rail during tightening process
