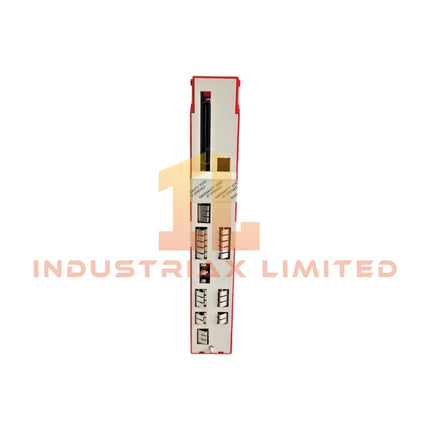

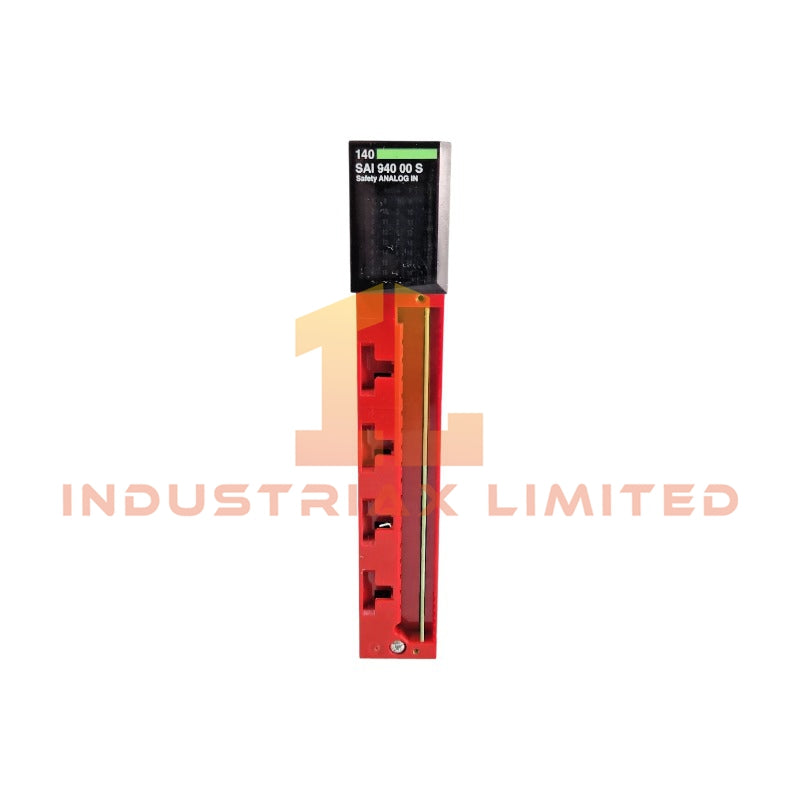

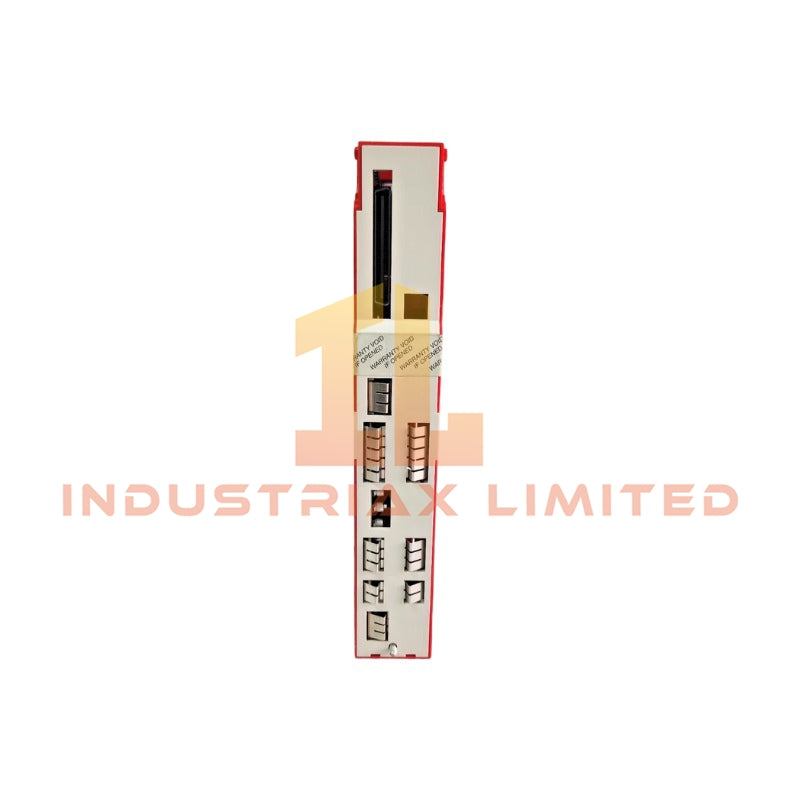

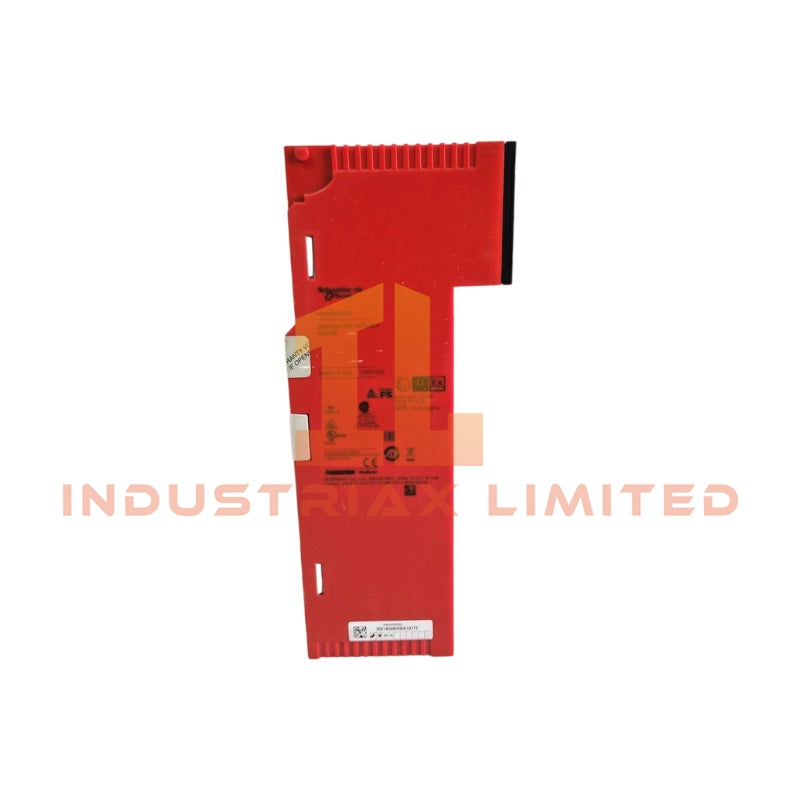

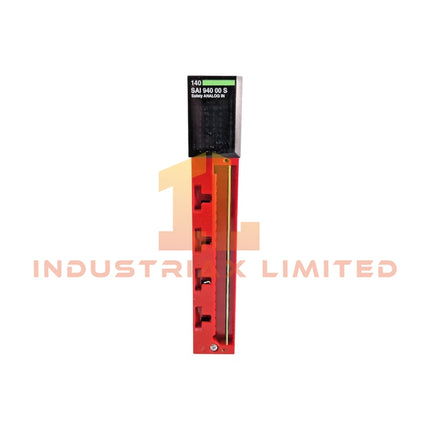

Schneider Electric 140SAI94000S Analogue Safety Input Module
The Schneider Electric 140SAI94000S, also cataloged as the 140SAI94000S Analogue Safety Input Module, operates as a dedicated hardware component for analog signal acquisition within Modicon Quantum automation platform.
Configured for safety-oriented analog current acquisition in Modicon Quantum systems, the Schneider Electric 140SAI94000S (140SAI94000S Analogue Safety Input Module) provides direct electrical conversion of field 0...25 mA signals into 16-bit process data via backplane communication.
Suffix Breakdown & Model Matrix
No validated manufacturer-specified suffix decomposition is available for 140SAI94000S. The identifier is treated as a single ordering and functional module code within the Modicon Quantum catalog structure.
Hardware Specifications
Parameter
Specification
ModelBrand
Schneider Electric 140SAI94000S
PowerConsumption
3.5 W
Analog Input Channels
8
Input Signal Range
0...25 mA
Resolution
16 bit
Update Time
15 ms
Input Impedance
287 Ohm
Absolute Max Input
35 mA
Isolation Channel to Bus
1500 VAC for 60 s
Isolation Channel to Channel
500 VAC for 60 s
Linearity Error
+/- 2 uA max (0...60 degC)
Accuracy
+/- 0.35 % FS (max), +/- 0.3 %
Filter Type
Single pole low pass, 3 dB at 15 Hz
Common Mode Rejection
-70 dB @ 50 Hz, -65 dB @ 60 Hz
Diagnostic Indication
LED status per channel and system
Backplane Signal Processing and Quantum Bus Behavior
The 140SAI94000S integrates into the Modicon Quantum backplane architecture, where analog sampling results are transferred as 13 input words per module addressing structure. Channel acquisition is multiplexed with deterministic scan alignment to the rack bus cycle. Electrical isolation design separates field input circuitry from system backplane logic, supporting channel-level fault containment through galvanic isolation barriers.
Frequently Asked Questions
Q: Does the module support hot-swap replacement during system operation? A: Hot-swap capability depends on Quantum rack configuration. Electrically, channel isolation is maintained; however backplane synchronization reinitialization is required after insertion.
Q: What is the effect of overrange input beyond 25 mA? A: Inputs above nominal range trigger overflow detection and diagnostic fault indication. Absolute maximum withstand is 35 mA without guaranteed measurement linearity.
Q: How is channel fault isolation implemented? A: Each channel is independently isolated at 500 VAC, with full module-to-backplane isolation at 1500 VAC, limiting fault propagation across measurement paths.
Field Installation Guidelines
Install the module only into compatible Modicon Quantum rack backplane slots. Maintain separation between analog input wiring and high-voltage conductors to preserve CMRR performance. Shielded twisted pair cables are required for 0...25 mA loop integrity, with single-point shield grounding at the cabinet earth reference. Ensure torque compliance on terminal blocks according to rack hardware specification. Avoid routing input wiring parallel to switching power conductors or inverter output lines.
