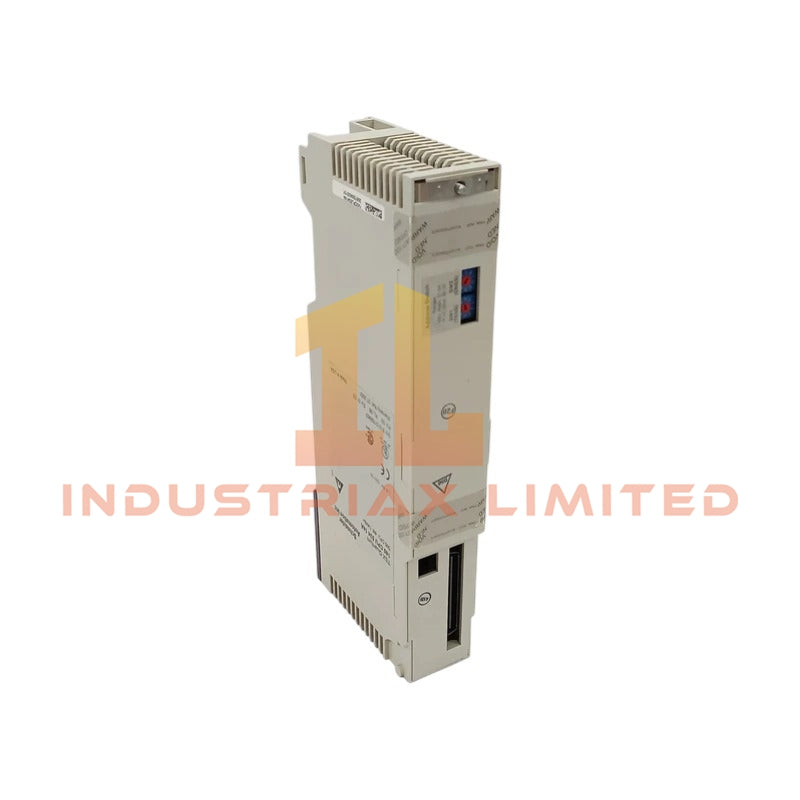

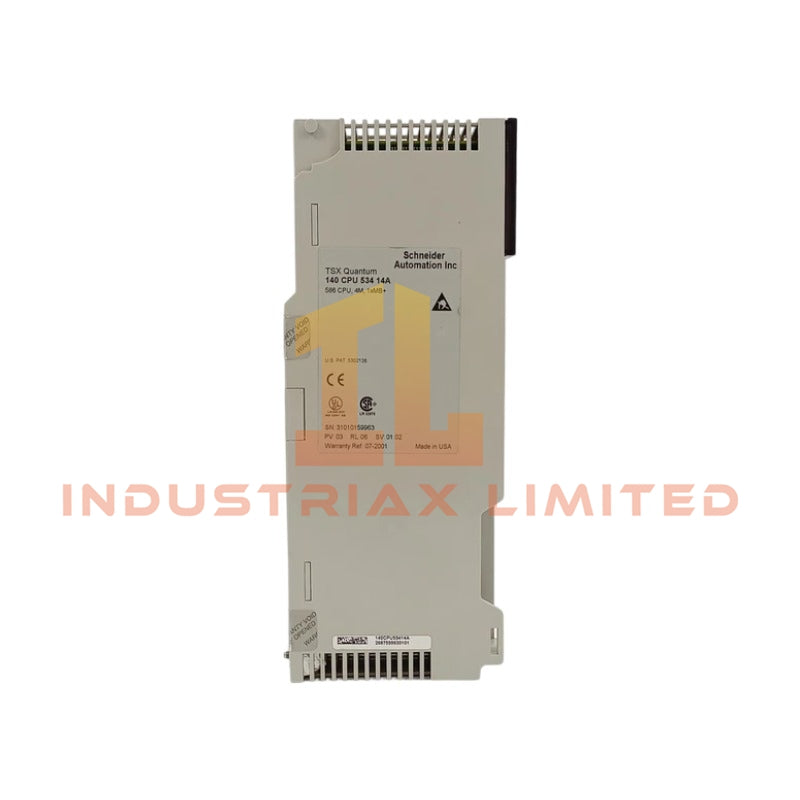

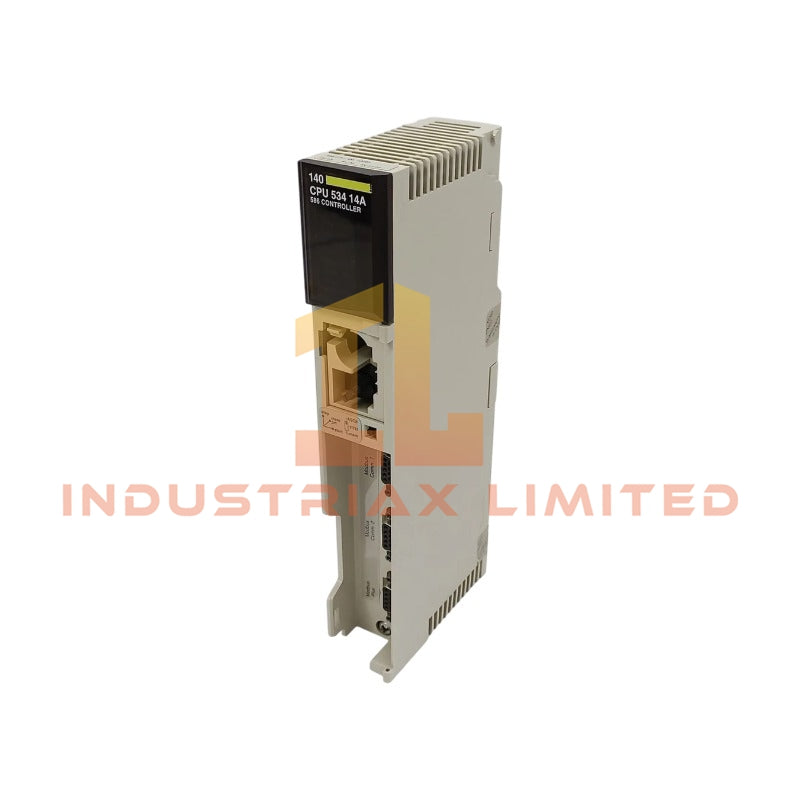

Schneider Electric 140CPU53414A Modicon Quantum Processor Unit
The Schneider Electric 140CPU53414A, also cataloged as the 140CPU53414 Processor Unit, operates as a dedicated hardware component for central processing and logic execution within Modicon Quantum automation platforms.
Hardware Specifications
Parameter
Specification
Model
140CPU53414A
Brand
Schneider Electric
Origin
France
Weight
0.91 kg (2.00 lbs)
Dimensions
5.3 cm x 16.8 cm x 31.7 cm
Operating Temp
0 degC to 60 degC
Storage Temp
-40 degC to 85 degC
Power Consumption
Not Specified
Processor Type
80586 Processor
Clock Frequency
133 MHz
Internal Memory
2.7 MB
Math Coprocessor
Included
Modules Supported
6 modules
Communication Ports
RS-232, RS-485
Key Switch
Included
Battery Type
3V lithium battery (1200 mAh)
Battery Shelf Life
10 years
Backplane Bus Communication and Firmware Compatibility
The module regulates local backplane bus communication velocity across the rack assembly, managing deterministic data exchanges with up to 6 supported modules. Internal flash memory architecture dictates strict firmware flash compatibility parameters; any system update requires alignment with corresponding engineering software revision matrices to maintain precise execution timing and prevent initialization faults.
Frequently Asked Questions
Q: What is the functional purpose of the integrated key switch on the front panel?
A: The key switch provides physical hardware security, allowing users to lock memory configurations, restrict remote program modifications, and manually select the processor operating state.
Q: How does the unit manage internal memory retention during a primary power interruption?
A: Memory content and real-time clock tracking are sustained via an onboard 3V lithium battery with a 1200 mAh capacity, protecting volatile data registers when backplane power is lost.
Field Installation Guidelines
Verify that all backplane power sources are completely disconnected before inserting or removing the processor module from the slot.
Ensure the 3V lithium backup battery is properly oriented and fully engaged within its designated compartment prior to system commissioning.
Ground all RS-232 and RS-485 communication cable shields to the local functional earth terminal to suppress transient electromagnetic noise.
Maintain clear clearance profiles around the module chassis to ensure natural convection cooling stays within the defined 0 degC to 60 degC operating envelope.
