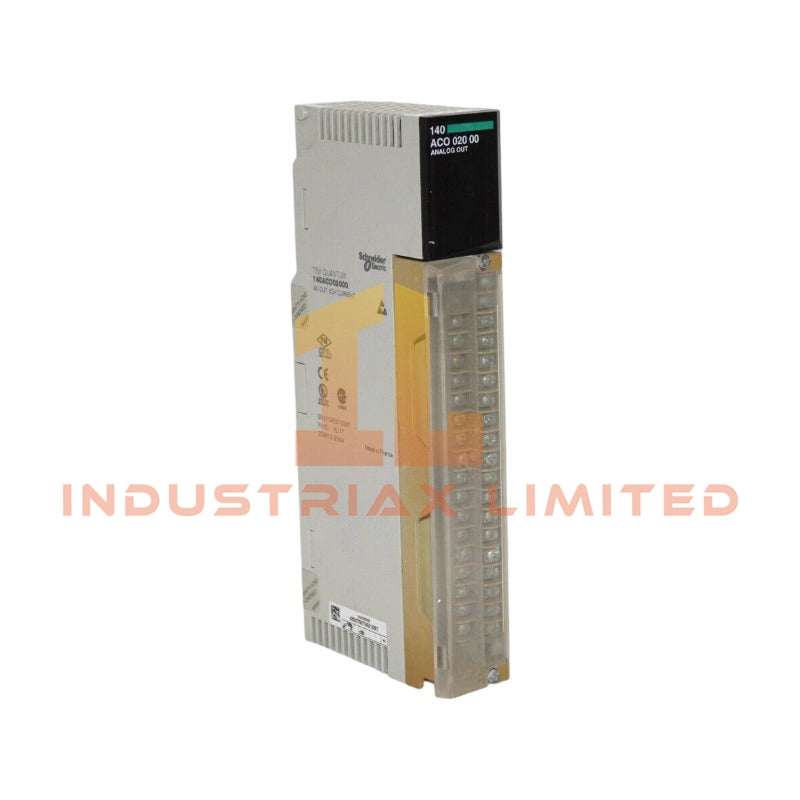

Schneider Electric 140ACO02000 Analog Output Module

Configured for 4-20 mA analog current generation in Modicon Quantum backplane environments, the Schneider Electric 140ACO02000 (140ACO02000 Analog Output Module) provides direct electrical signal conversion across four isolated output channels for process interfacing and actuator drive.

The module is integrated within the Modicon Quantum architecture and executes D/A conversion for current-loop control without embedded control logic or fieldbus protocol termination.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 140ACO02000
Origin	France
Weight	0.91 kg (2.00 lbs)
OperatingTemp	0 to 60 degC
PowerConsumption	Not specified
Output Channels	4
Output Type	4-20 mA current loop
Resolution	12-bit bipolar current conversion
External Loop Voltage	12 to 30 VDC
Mounting	DIN rail or panel mount
Indicators	LED status indication

Backplane Bus Communication and Firmware Interface Behavior

Within the Modicon Quantum PLC rack architecture, the 140ACO02000 exchanges process data through the backplane communication bus, where output words are mapped cyclically from CPU memory to DAC registers. Deterministic update timing is governed by system scan rate and rack arbitration logic.

Firmware compatibility is tied to Quantum series base controllers, with module recognition handled via rack ID enumeration. No field firmware upgrade mechanism is exposed at module level; updates are executed through system-level firmware management tools. Backplane density and channel refresh rate remain dependent on CPU task scheduling and I/O scan configuration.

Suffix Breakdown & Model Matrix

140ACO02000 is a fixed catalog number without documented suffix segmentation or functional sub-code structure. No validated decoding of embedded function blocks or hardware option fields is defined in manufacturer documentation.

Frequently Asked Questions

Q: Does the module support hot-swap insertion under power?
A: Hot-swap capability is dependent on Quantum rack configuration and backplane design. Electrical insertion under load must follow rack-level isolation procedures to prevent transient backplane disturbance.

Q: What is the output update mechanism for the 4-20 mA channels?
A: Output values are updated through cyclic backplane data exchange, where DAC registers are refreshed according to PLC scan cycle timing.

Q: Is channel-to-channel electrical isolation implemented internally?
A: Channel isolation behavior is defined at module hardware design level; field wiring must maintain loop isolation per system grounding scheme to avoid ground loop current interference.

Field Installation Guidelines

• Install module only in de-energized Quantum rack slots unless system supports verified hot insertion procedure.
• Maintain separation between analog output wiring and high-frequency switching conductors to reduce inductive coupling.
• Use shielded twisted pair wiring for 4-20 mA loops, with shield termination at single-point ground reference.
• Ensure loop supply voltage remains within 12 to 30 VDC under full load conditions.
• Verify backplane connector seating alignment to avoid partial pin engagement during insertion.

Spesifikasi

• Merek: Schneider Electric
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
