Description

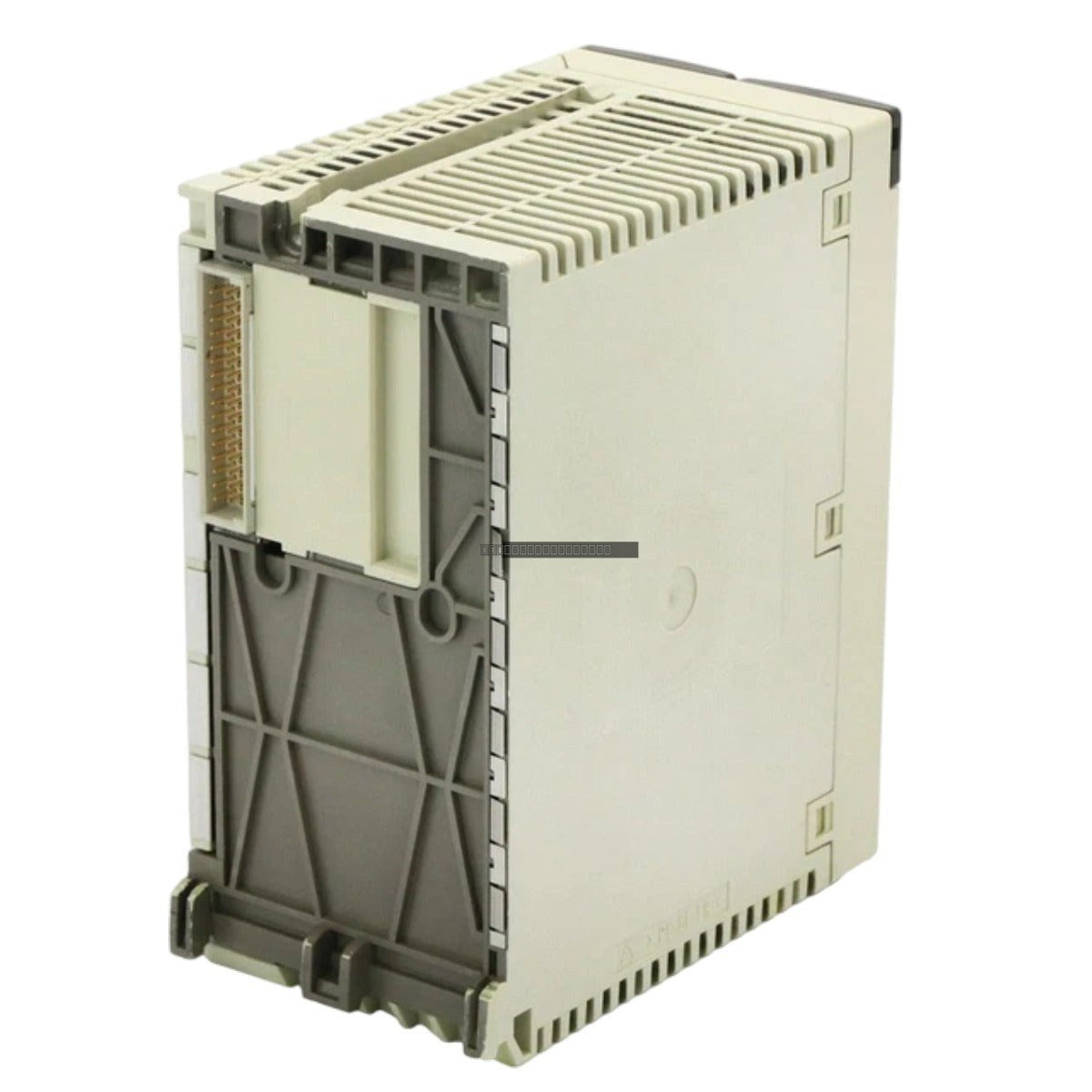

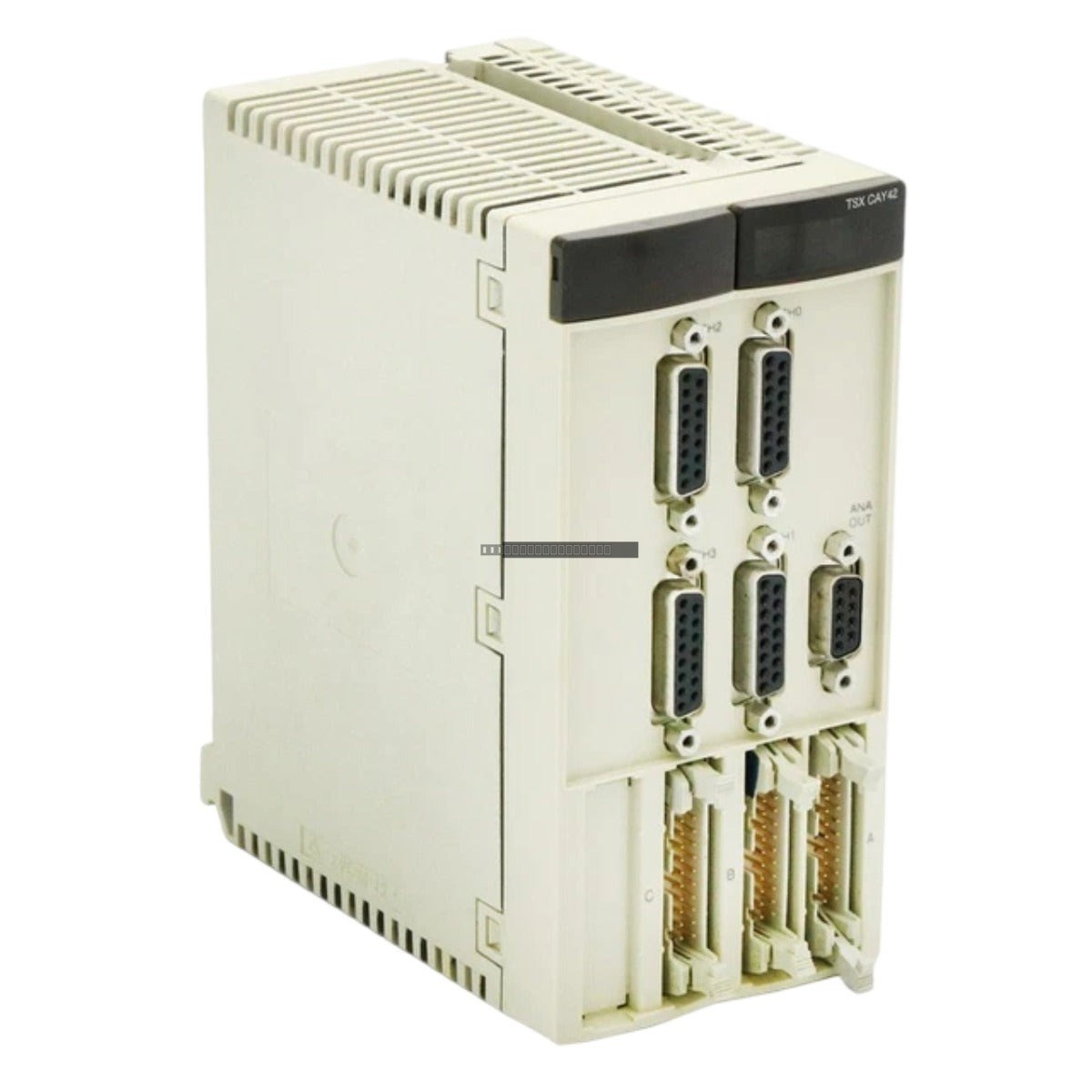

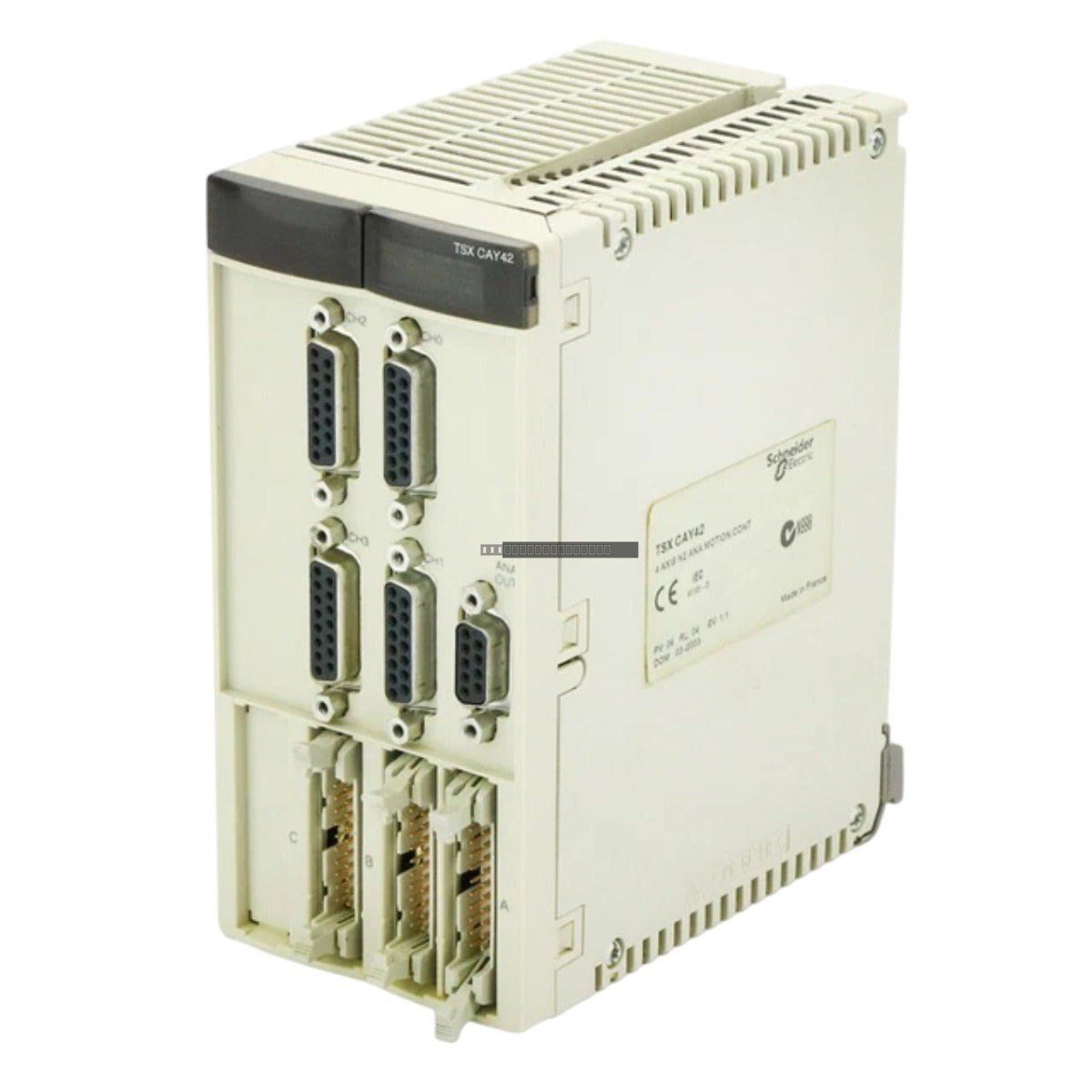

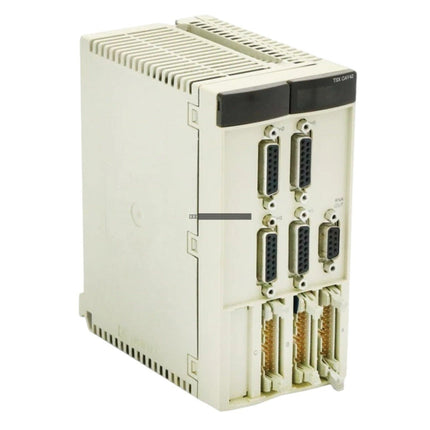

The Schneider Electric TSXCAY42C is a high-performance motion control module designed for the Modicon Premium automation platform. This module provides precise control for up to 4 axes of servomotors, enabling complex motion profiles in industrial automation environments. It is engineered to deliver reliable performance with a cycle time range of 8 ms to 10 s, supporting demanding motion control requirements.
Features
- Supports control for up to 4 independent axes.
- Designed for seamless integration with the Modicon Premium PLC range.
- Optimized for high-precision servomotor management.
- Configurable cycle times ranging from 8 ms to 10 s.
- Robust construction suitable for industrial control cabinet environments.
Applications
The TSXCAY42C is intended for use in automated manufacturing systems requiring multi-axis synchronization, including packaging machinery, material handling equipment, and complex assembly lines utilizing the Modicon Premium architecture.
Technical Specifications
| Model |
TSXCAY42C |
| Brand |
Schneider Electric |
| Product Range |
Modicon Premium |
| Control Axes |
4 |
| Cycle Time |
8 ms to 10 s |
| Weight |
0.88 kg |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the backplane connector and secured with the integrated locking mechanism.
- Use shielded cables for all motion control I/O to minimize electromagnetic interference (EMI).
- Route signal cables away from high-voltage power lines and motor drive cabling.
- Ensure adequate ventilation within the control cabinet to maintain operating temperatures within specified limits.
- Handle with standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.
FAQ
Is the TSXCAY42C still in production?
This module is classified as a phase-out product. It remains a reliable solution for maintenance and expansion of existing Modicon Premium installations, but users should consult current lifecycle status for long-term project planning.
What system is this module compatible with?
The TSXCAY42C is specifically designed for the Schneider Electric Modicon Premium series PLC platform.
