Description

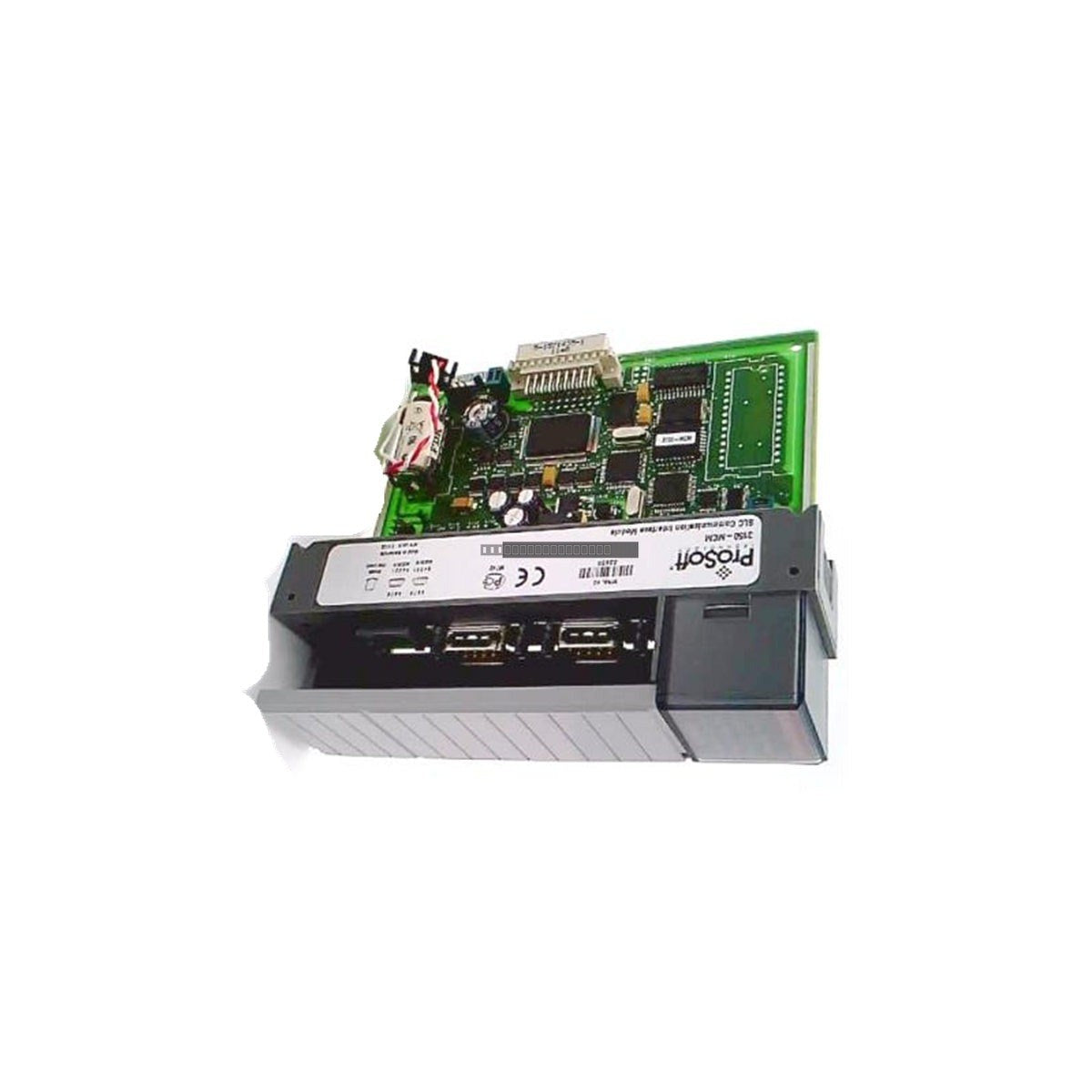

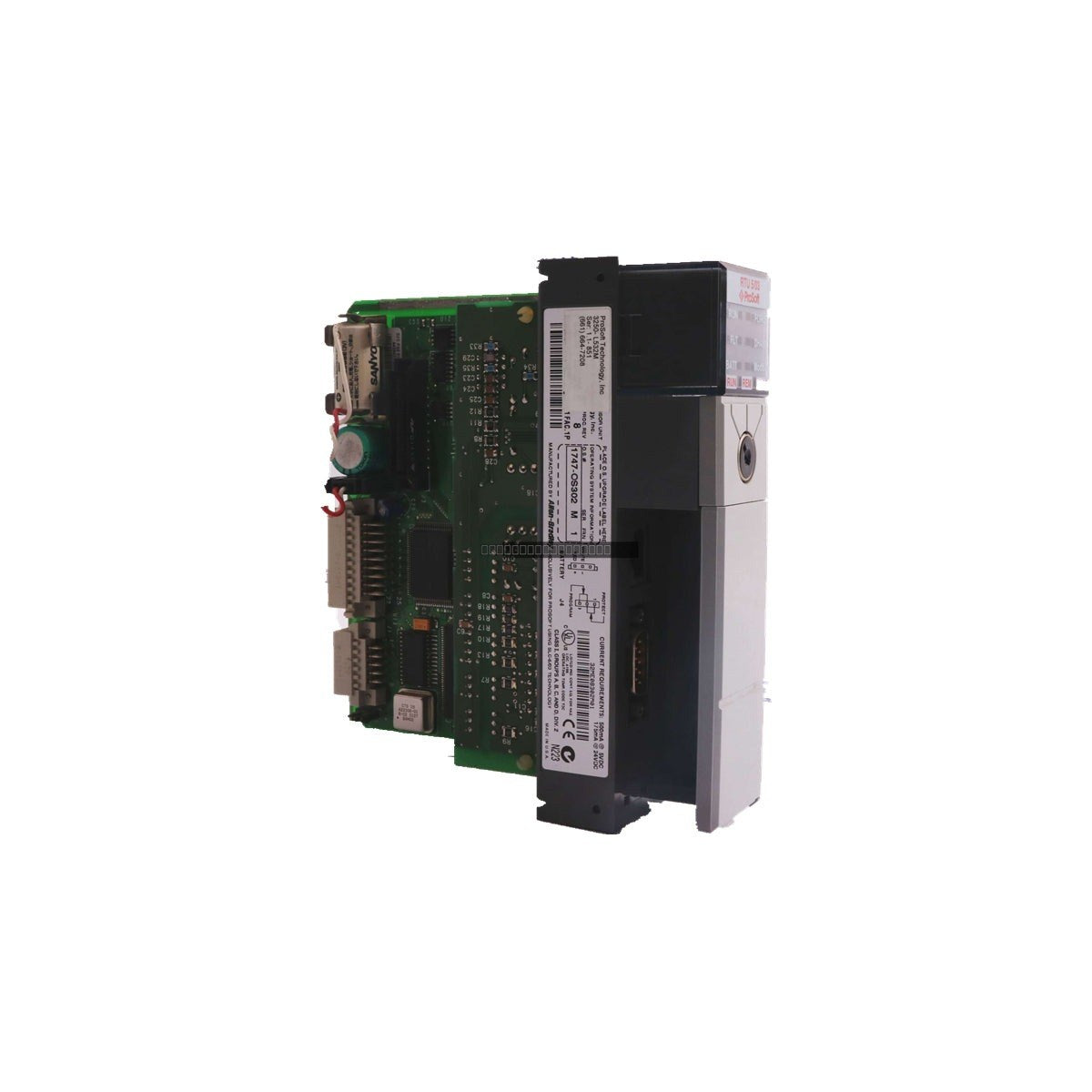

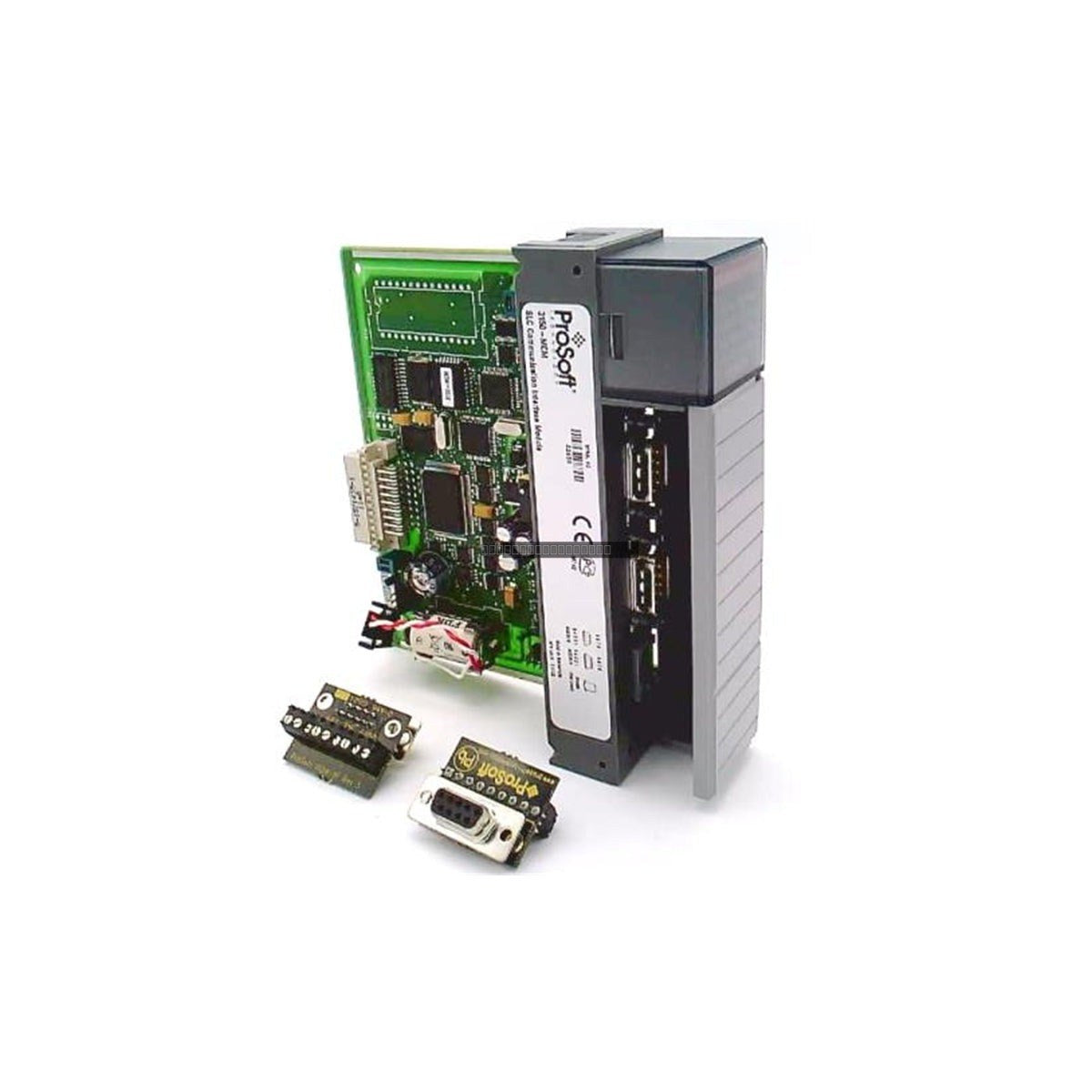

The ProSoft 3150-MCM is a specialized communication module designed to provide Modbus Master or Slave connectivity for industrial automation systems. This module serves as a bridge for integrating Modbus-compliant devices into control architectures, facilitating reliable data exchange between field instruments and the host controller. Although this model has been discontinued by the manufacturer, it remains a critical component for maintaining legacy automation systems.
Features
- Supports both Modbus Master and Modbus Slave operating modes.
- Designed for seamless integration with compatible PLC backplanes.
- Facilitates robust serial communication for industrial protocols.
- Compact hardware footprint suitable for standard control cabinet layouts.
Applications
The 3150-MCM is typically utilized in industrial environments requiring the integration of Modbus RTU or ASCII devices, such as variable frequency drives, power meters, sensors, and other third-party field equipment into a centralized control system.
Technical Specifications
| Product Model |
3150-MCM |
| Manufacturer |
ProSoft |
| Function |
Modbus Master/Slave Communication Module |
| Series |
Modbus Series 2 |
| Weight |
0.26 kg |
Installation Guidelines
- Ensure the host controller power is disconnected before installing or removing the module from the rack.
- Verify that the module is firmly seated in the chassis to ensure proper backplane connection.
- Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
- Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the manufacturer's specified range.
FAQ
Is the 3150-MCM still in production?
No, the ProSoft 3150-MCM has been discontinued by the manufacturer. It is primarily available through secondary market channels for maintenance and repair of existing installations.
Can this module function as both a Master and a Slave?
Yes, the 3150-MCM is designed to be configured as either a Modbus Master or a Modbus Slave, depending on the specific requirements of your communication network.
