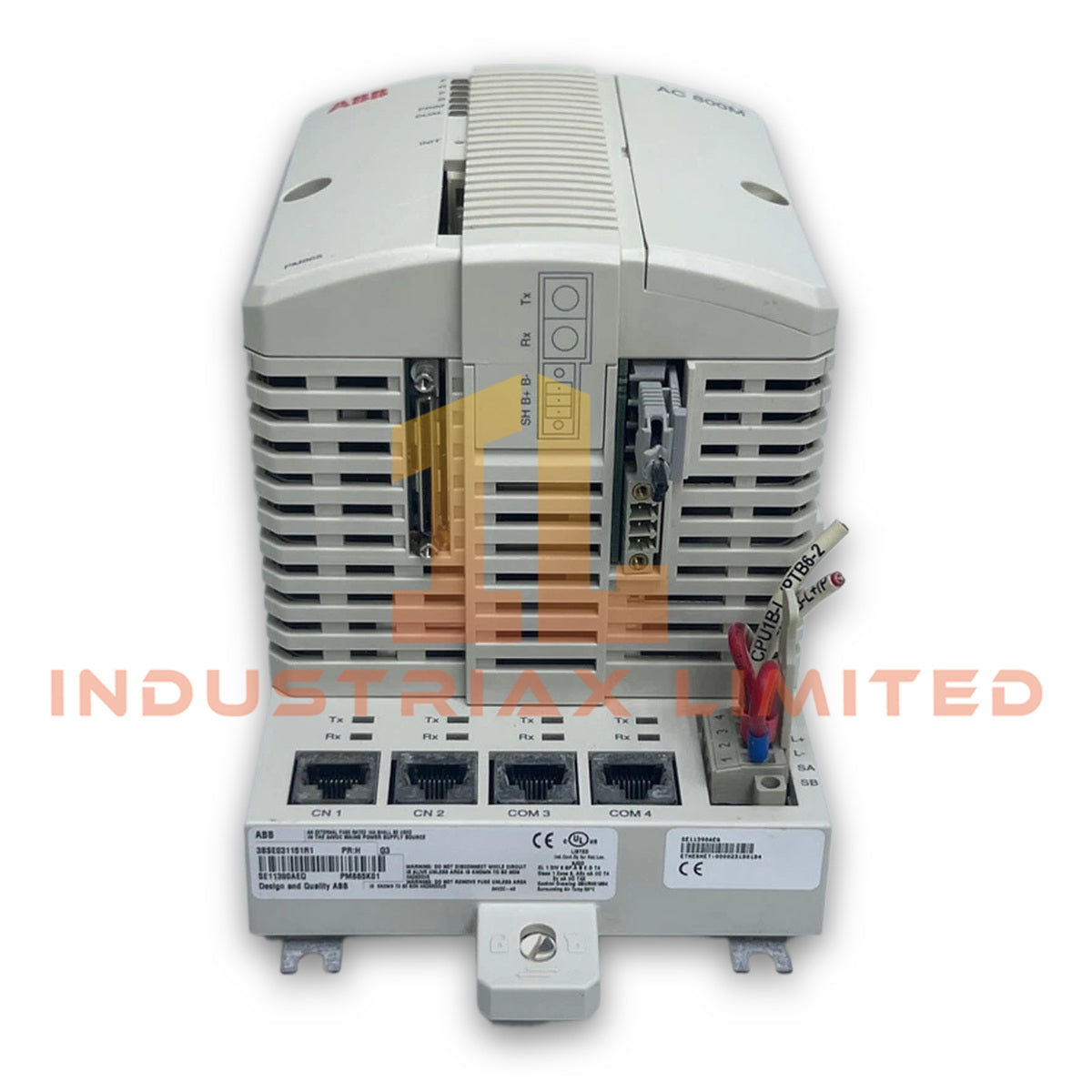

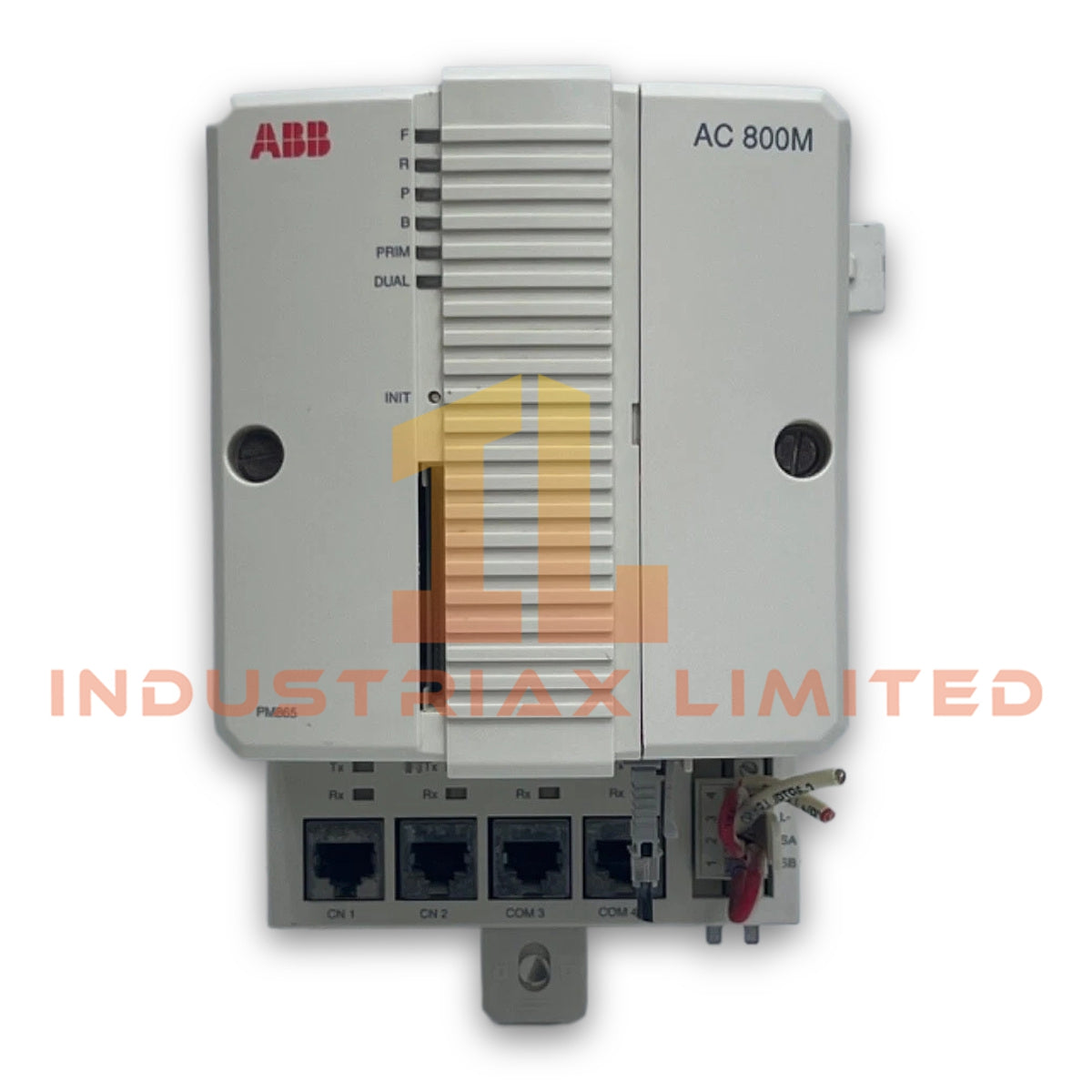

ABB PM865 Processor Unit
The ABB PM865, also cataloged as the PM865 Processor Unit, operates as a dedicated control processing component for executing application logic, communication tasks, and system diagnostics within the ABB AC 800M controller platform.
Hardware Specifications
Parameter
Specification
Model
PM865
Brand
ABB
Product Type
AC 800M Processor Unit
System Platform
ABB AC 800M / System 800xA
Processor Architecture
PowerPC-based processor architecture
Memory
RAM and non-volatile flash memory for application execution and storage
Redundancy Support
Supports CPU redundancy configurations with hot standby operation
Communication Interface
Ethernet interfaces for controller communication and MMS services
Serial Interface
RS-232 / RS-485 communication support for external devices
Safety Support
Compatible with ABB High Integrity configurations up to SIL 2 / SIL 3 when configured with approved components
Industrial operating temperature range; exact value not specified in available technical data
Power Consumption
Depends on system configuration and connected modules; exact value not specified in available technical data
Backplane Bus Communication and I/O Scaling
The ABB PM865 integrates with the AC 800M controller architecture through the controller backplane and communication interfaces. It executes IEC 61131-3 application tasks while managing I/O communication cycles, module diagnostics, and network data exchange.
Furthermore, the processor supports scalable I/O configurations through ABB S800 I/O modules and communication interface units. The controller manages distributed signals through deterministic industrial networks while maintaining synchronized application execution.
Firmware flash compatibility allows the processor unit to support approved AC 800M software revisions. Therefore, system upgrades require verification between controller firmware, engineering tools, and connected hardware modules.
Frequently Asked Questions
Q: Does the ABB PM865 support redundant processor configurations? A: Yes. The PM865 supports CPU redundancy arrangements using compatible AC 800M hardware and engineering configurations. Redundant operation requires matching processor units and approved system settings.
Q: What communication functions are available on the PM865? A: The PM865 provides Ethernet-based controller communication, MMS services, and serial communication capability through supported interfaces for external device integration.
Q: Can the PM865 be used in High Integrity safety applications? A: The PM865 can be configured within ABB High Integrity systems when combined with compatible safety firmware, engineering tools, and approved system components.
Field Installation Guidelines
Install the PM865 on an approved ABB AC 800M controller baseplate with correct mechanical alignment.
Verify 24 VDC power wiring polarity before energizing the processor unit.
Keep communication cables separated from high-voltage and high-current power conductors to reduce electromagnetic interference.
Connect cable shields according to ABB grounding recommendations for industrial control systems.
Confirm firmware compatibility between the PM865 processor, engineering software, and connected I/O modules before commissioning.
Check redundant processor wiring and synchronization status when using hot standby configurations.
Perform controller diagnostics after installation to verify communication status, memory operation, and module recognition.
