Description

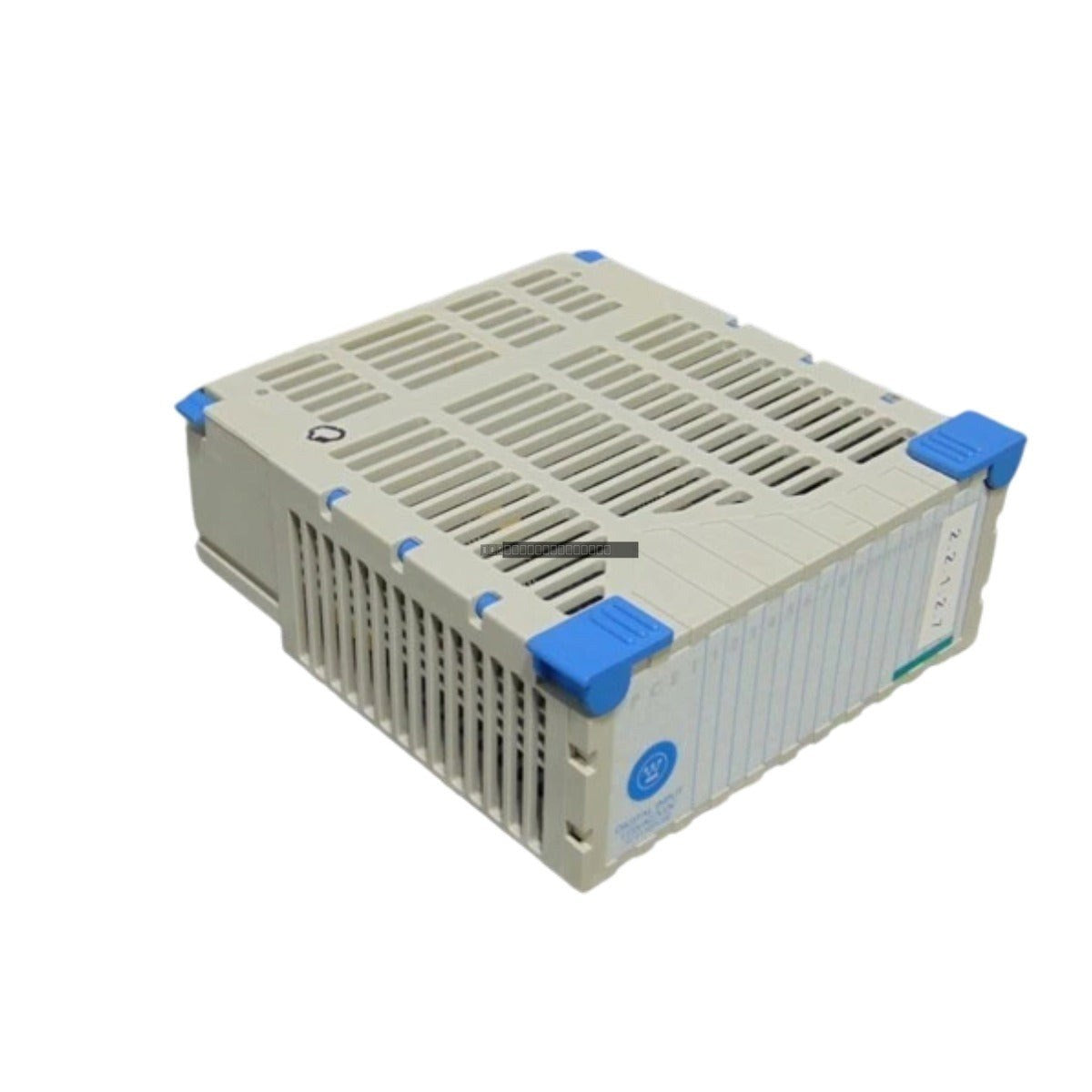

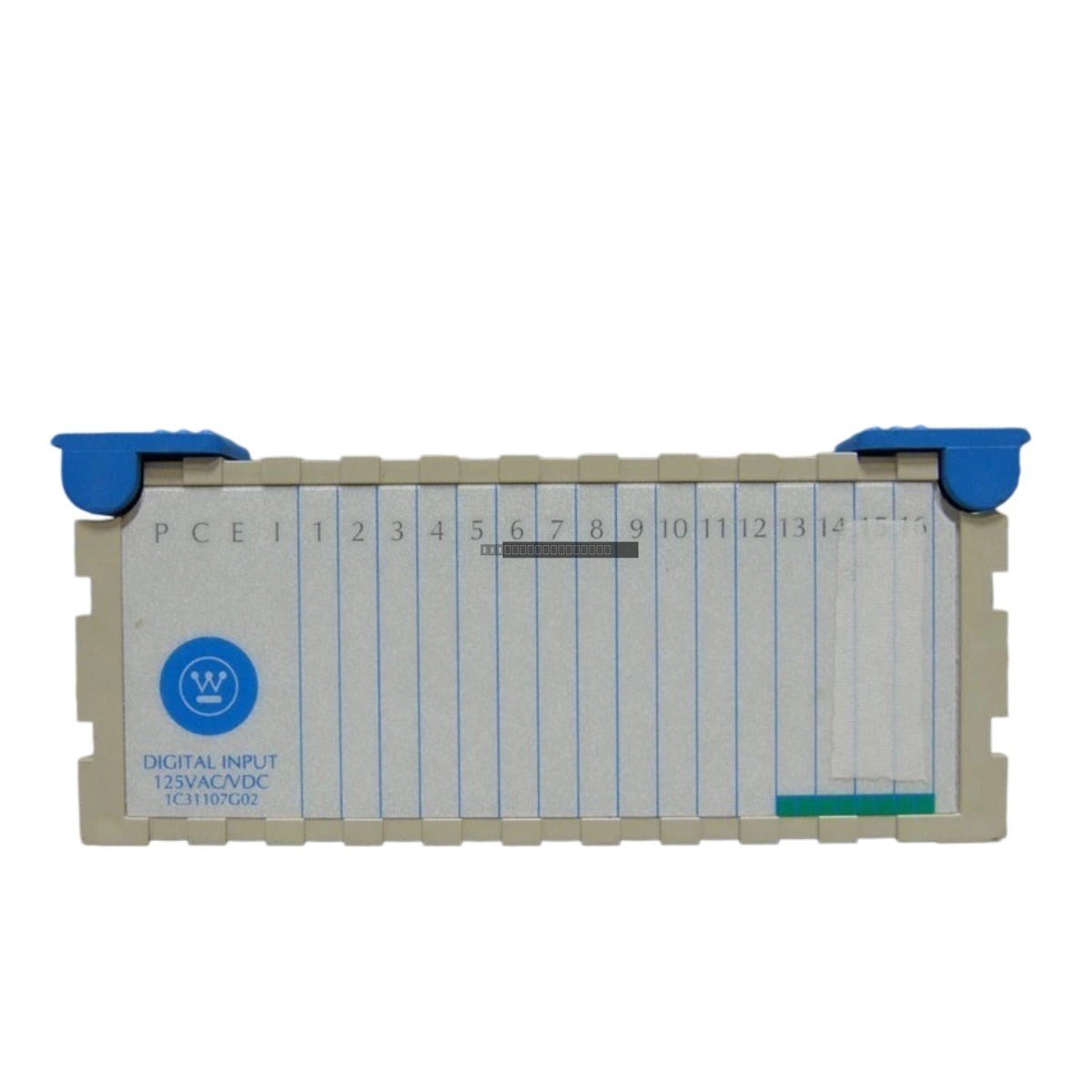

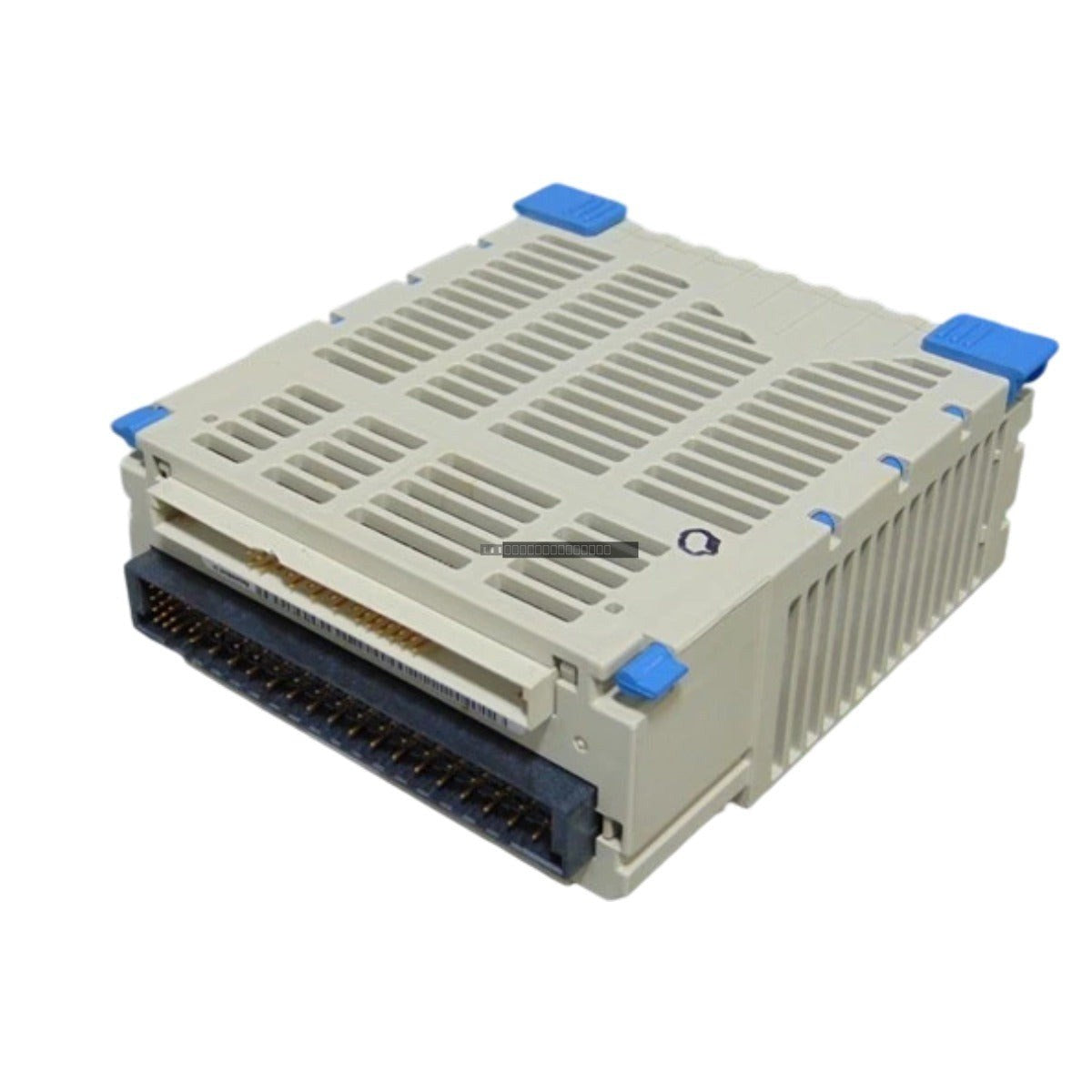

The Ovation 1C31107G02 Digital Input Module is a high-reliability interface designed for signal acquisition within Ovation distributed control system (DCS) architectures. This module is engineered to convert discrete field inputs into logic-level signals, facilitating precise state monitoring of switches, sensors, and safety contacts. It serves as a critical component in power generation, water treatment, and heavy process manufacturing, ensuring accurate, real-time feedback to the central controller to maintain operational continuity and system visibility.
Features
- High-speed signal sampling for rapid state change detection.
- Robust electrical isolation between field instrumentation and the system backplane.
- Integrated self-diagnostic routines for verifying channel integrity and data consistency.
- Designed for high-availability operation in industrial environments.
- Shielding against electrical transients, surges, and common-mode interference.
Applications
The 1C31107G02 is typically deployed in industrial automation environments requiring reliable discrete input monitoring, including:
- Power generation plant control systems.
- Water and wastewater treatment facilities.
- Heavy process manufacturing and monitoring.
- Emergency stop and safety contact monitoring circuits.
Technical Specifications
| Model |
1C31107G02 |
| Brand |
Ovation |
| Operating Temperature |
0 to 60 degC |
| Origin |
United States |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack.
- Handle the module using ESD-safe practices to prevent damage to internal sensitive components.
- Verify that the module is fully seated in the backplane slot to ensure reliable electrical contact.
- Route field wiring away from high-voltage cables and sources of high-EMI to minimize signal noise.
- Ensure proper grounding of the control cabinet to maintain the effectiveness of the module's electrical isolation.
- Maintain adequate ventilation within the cabinet to stay within the specified operating temperature range.
FAQ
What is the primary function of the 1C31107G02?
The 1C31107G02 is a digital input module used to interface discrete field signals (such as switches or sensors) with the Ovation DCS, allowing the controller to monitor the status of connected field devices.
Does this module require specific environmental conditions?
Yes, the module is designed for industrial environments and should be operated within a temperature range of 0 to 60 degC. Proper cabinet cooling and grounding are recommended for optimal performance.
How does the module protect the control system?
The module features internal electrical isolation that shields the primary controller from electrical transients, surges, and common-mode interference originating from the field side.
