Description

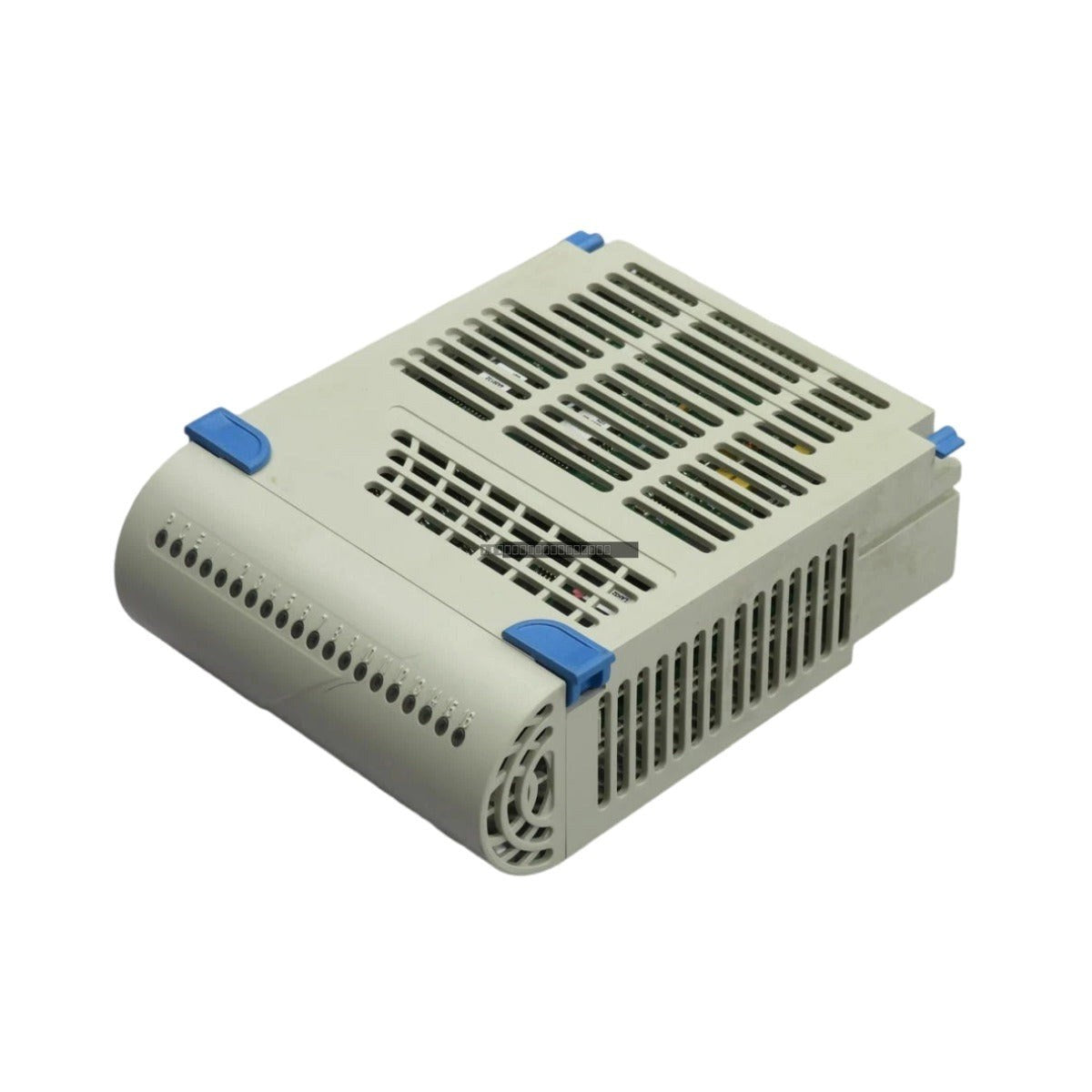

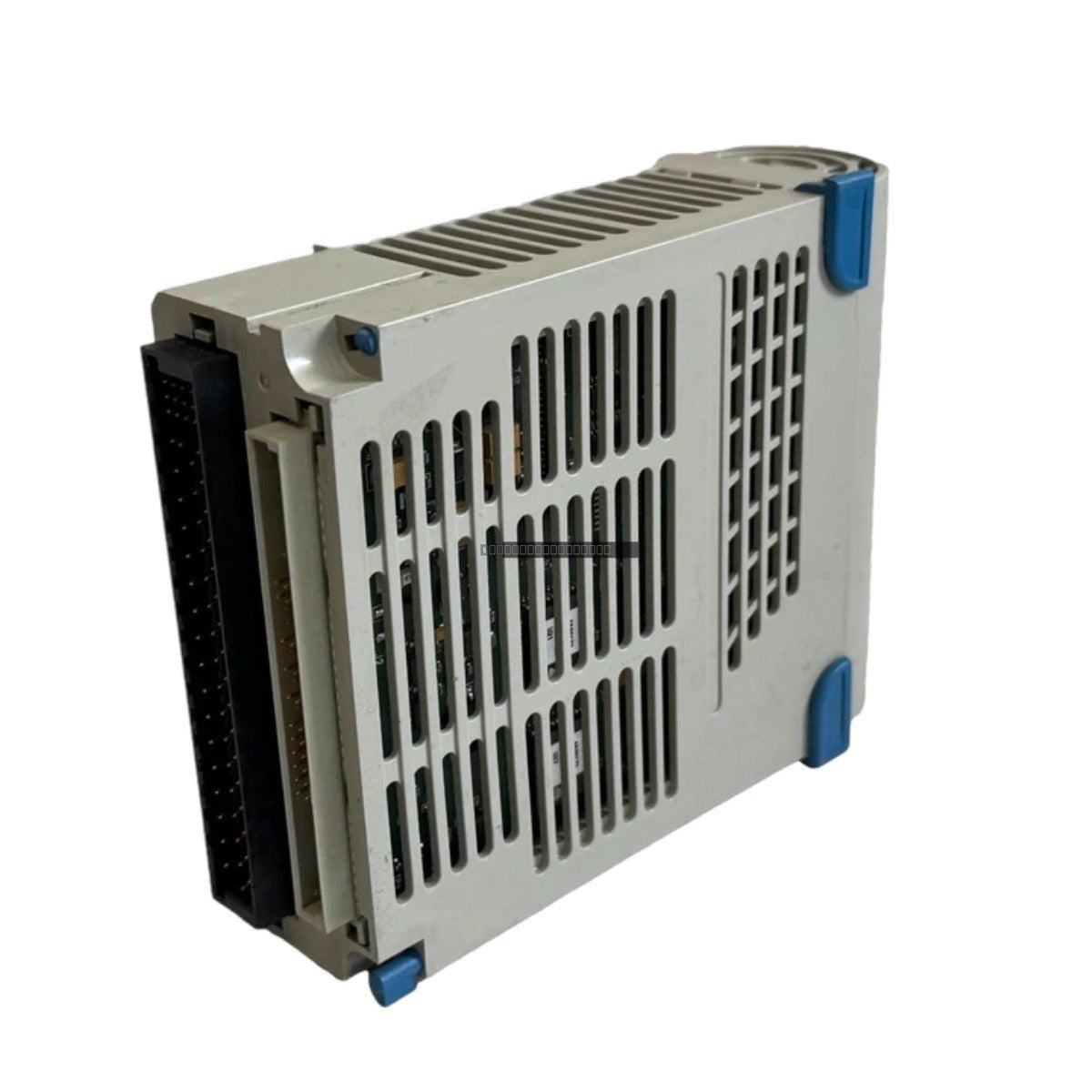

The Ovation 5X00070G02 is a precision-engineered analog output module designed for seamless integration within the Ovation distributed control system (DCS). This module is specifically configured to provide reliable signal conversion, translating digital control commands into accurate analog outputs for actuators, control valves, and other critical final control elements. It is widely utilized in demanding industrial environments, including power generation and heavy manufacturing, where high-fidelity signal output is essential for maintaining stable process loops and preventing costly system downtime.
Features
- High-speed digital-to-analog conversion architecture for real-time control.
- Integrated diagnostic monitoring for detection of open-loop and short-circuit faults.
- Galvanic isolation between the field-side output channels and the internal control bus.
- Designed for deterministic performance and low-latency communication within the Ovation I/O rack.
- Robust construction suitable for continuous operation in high-EMI industrial environments.
Applications
This module is primarily used in distributed control systems to manage field instrumentation. Typical applications include modulating control valves, driving variable speed drives, and providing setpoint signals to auxiliary process equipment in power plants and petrochemical facilities.
Technical Specifications
| Model |
5X00070G02 |
| Brand |
Ovation |
| Operating Temperature |
0 to 60 degC |
| Power Supply |
24 VDC (Backplane) |
| Output Signals |
4-20 mA or 0-10 VDC |
| Isolation |
Channel-to-bus galvanic isolation |
| Mounting |
Ovation Distributed I/O Rack |
Installation Guidelines
- Ensure the Ovation I/O rack is powered down before inserting or removing the 5X00070G02 module to prevent electrical damage.
- Verify that the module is correctly seated in the backplane slot to ensure reliable bus communication.
- Maintain proper grounding practices for all field-side wiring to mitigate the effects of electromagnetic interference (EMI).
- Use shielded twisted-pair cabling for analog signal runs to maintain signal integrity.
- Ensure the installation environment remains within the specified temperature range of 0 to 60 degC with adequate ventilation.
FAQ
What is the primary function of the 5X00070G02?
This module acts as an analog output interface, converting digital control signals from the Ovation controller into standard 4-20 mA or 0-10 VDC signals to drive field devices.
Does this module provide fault diagnostics?
Yes, the module includes internal circuitry to monitor for open-loop or short-circuit conditions, providing feedback to the central controller for enhanced system diagnostics.
