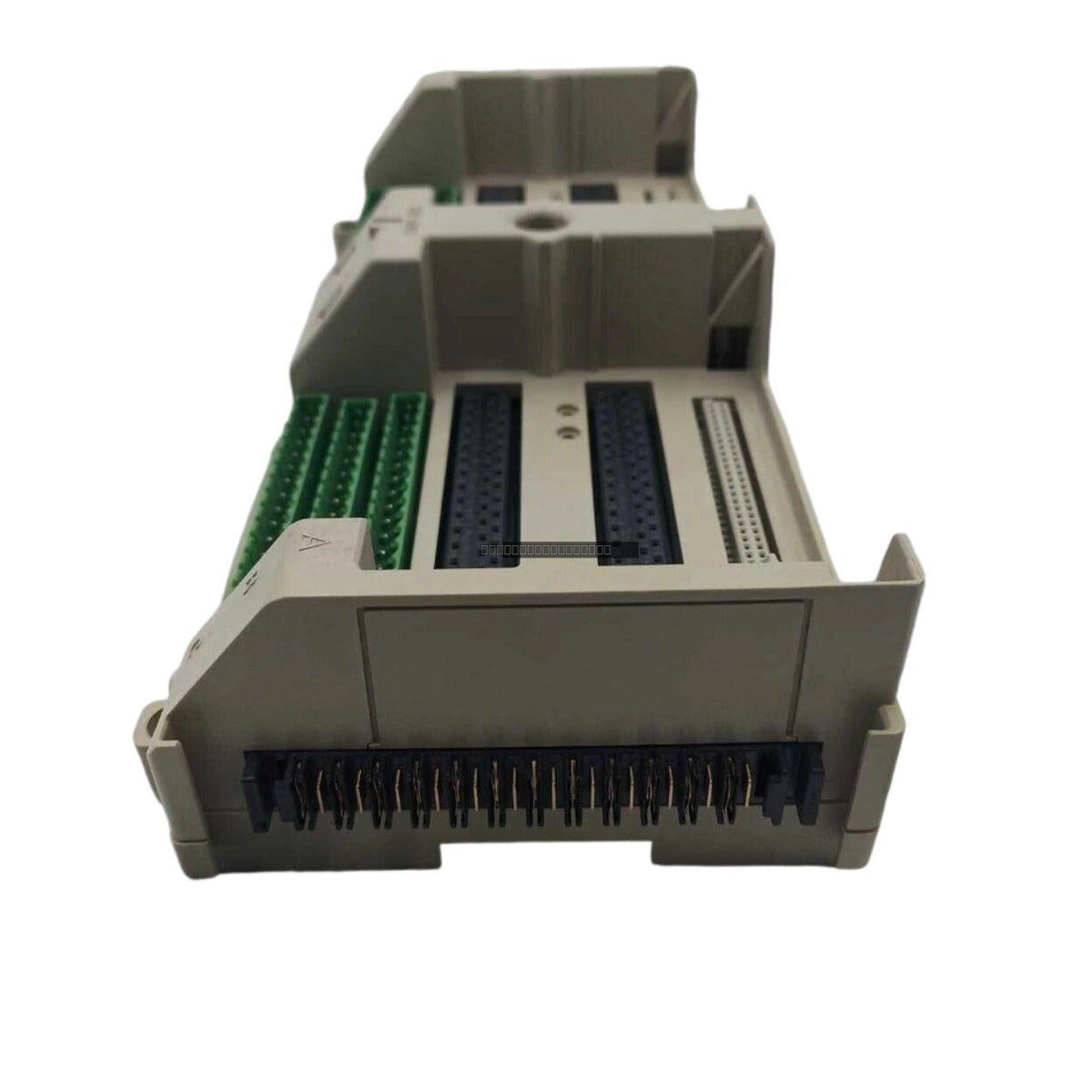

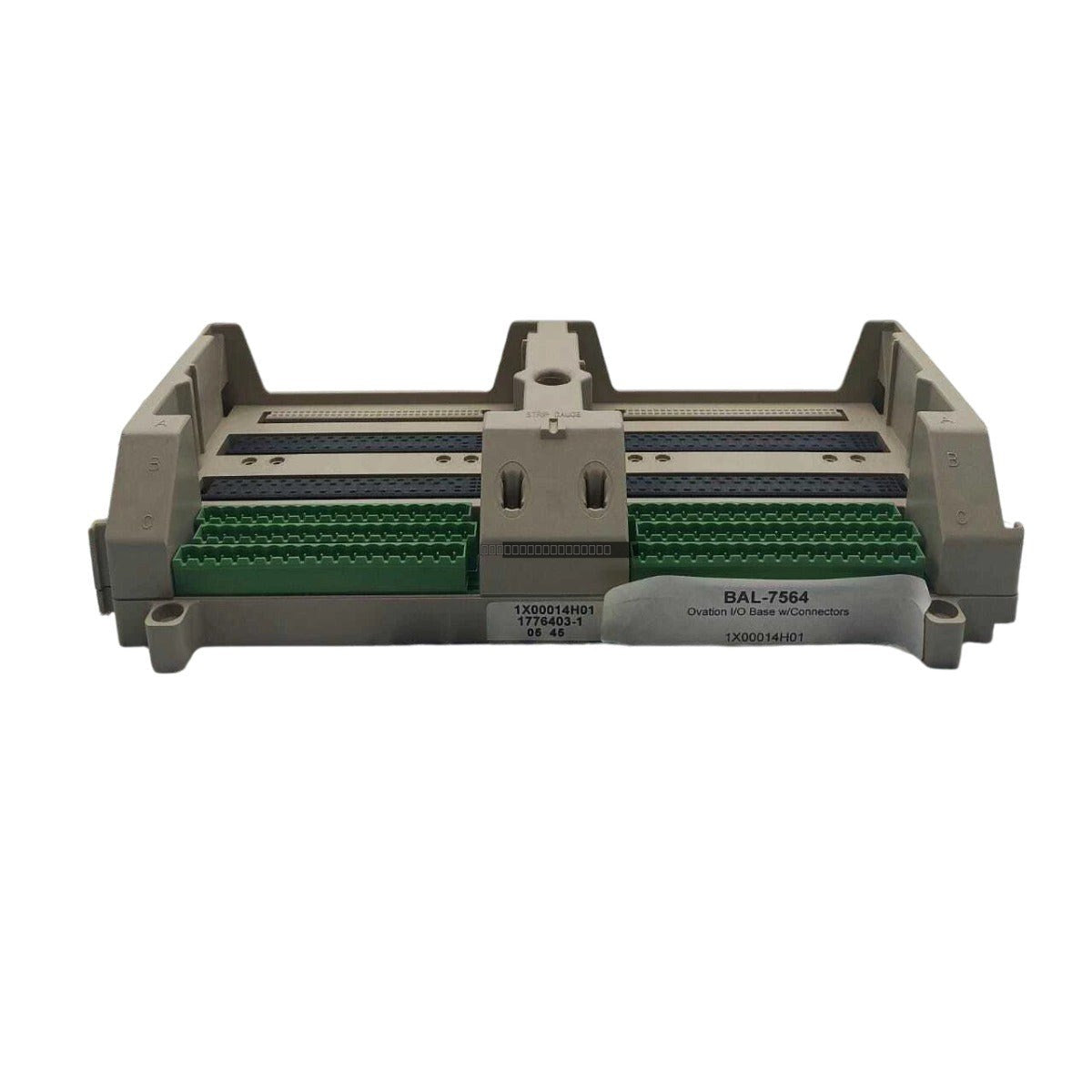

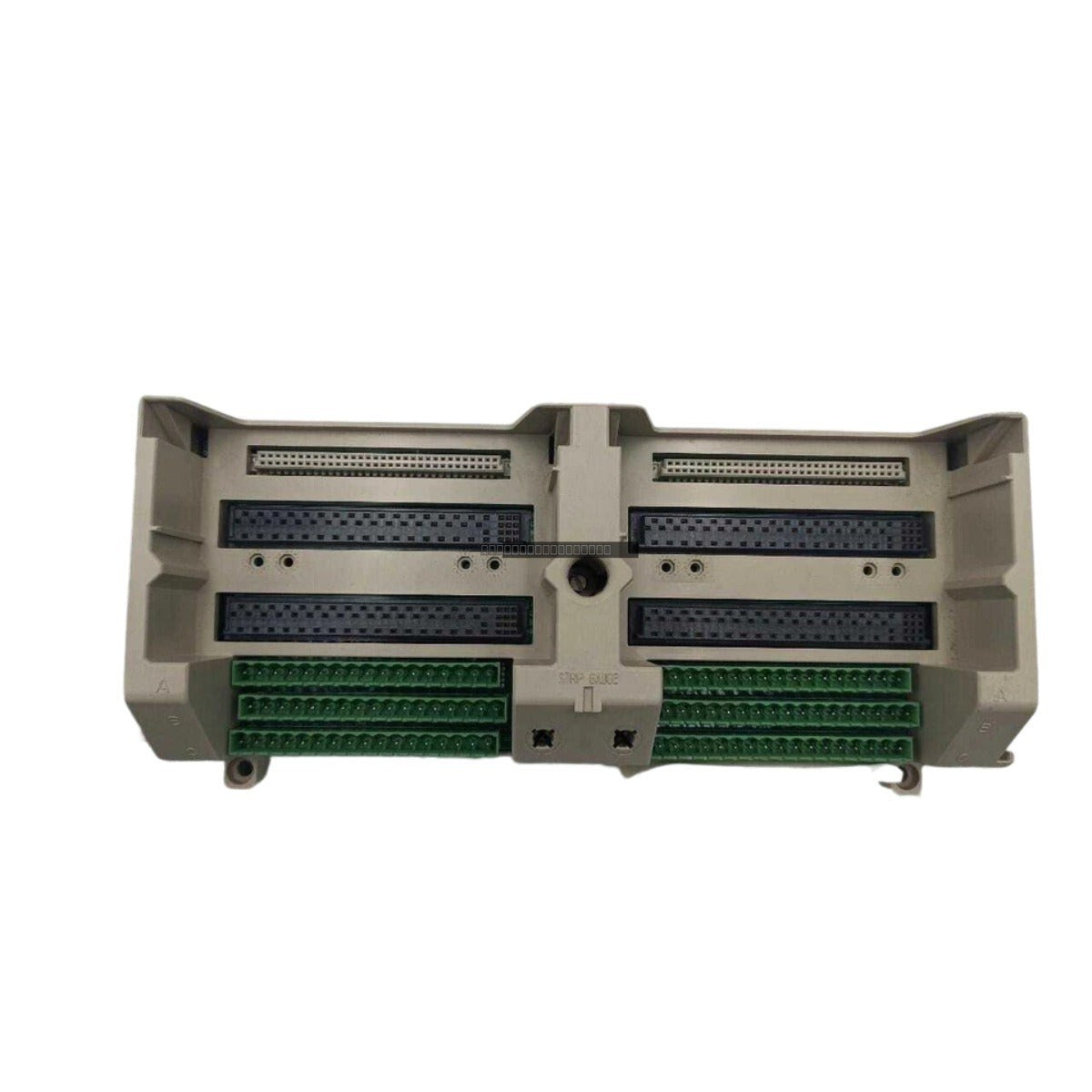

The 1X00014H01 is a critical I/O base module designed for the Emerson Ovation distributed control system. This base unit serves as the physical mounting and electrical interface for I/O modules within the BAL-7564 series architecture. By providing a stable, high-density connection point, it ensures reliable signal transmission between field instrumentation and the control system, supporting high-availability operations in power generation and heavy industrial processing environments.
Features
- Designed for seamless integration with BAL-7564 series I/O modules.
- Robust mechanical design provides vibration resistance and structural support for control hardware.
- Integrated high-density connectors facilitate rapid installation and maintenance, supporting hot-swappable module replacement.
- Engineered for low-resistance signal paths to maintain integrity across long-distance field wiring.
- Shielded electrical architecture minimizes common-mode noise and protects control loops from interference.
Applications
This I/O base module is utilized in large-scale automation systems, including power plants, petrochemical refineries, and manufacturing facilities where continuous, reliable signal routing is essential for process control and instrumentation monitoring.
Technical Specifications
| Model |
1X00014H01 |
| Brand |
Emerson |
| Series |
Ovation |
| Operating Temperature |
0 to 60 degC |
| Compatibility |
BAL-7564 Series I/O modules |
| Mounting |
Standard Ovation I/O rack rail |
| Connector Type |
Integrated multi-pin industrial headers |
Installation Guidelines
- Ensure the Ovation I/O rack rail is properly grounded before mounting the base unit.
- Verify that the system power is managed according to site safety protocols before inserting or removing any I/O modules from the base.
- Align the module carefully with the integrated headers to prevent pin damage during seating.
- Maintain adequate ventilation around the rack to ensure the operating temperature remains within the 0 to 60 degC range.
- Route field wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
FAQ
Is this module hot-swappable? Yes, the 1X00014H01 is designed to support the hot-swapping of compatible I/O modules, allowing for maintenance without requiring a full system shutdown.
What is the primary function of this unit? It acts as the physical and electrical backplane interface for Ovation I/O modules, providing secure mounting and signal routing for field devices.
