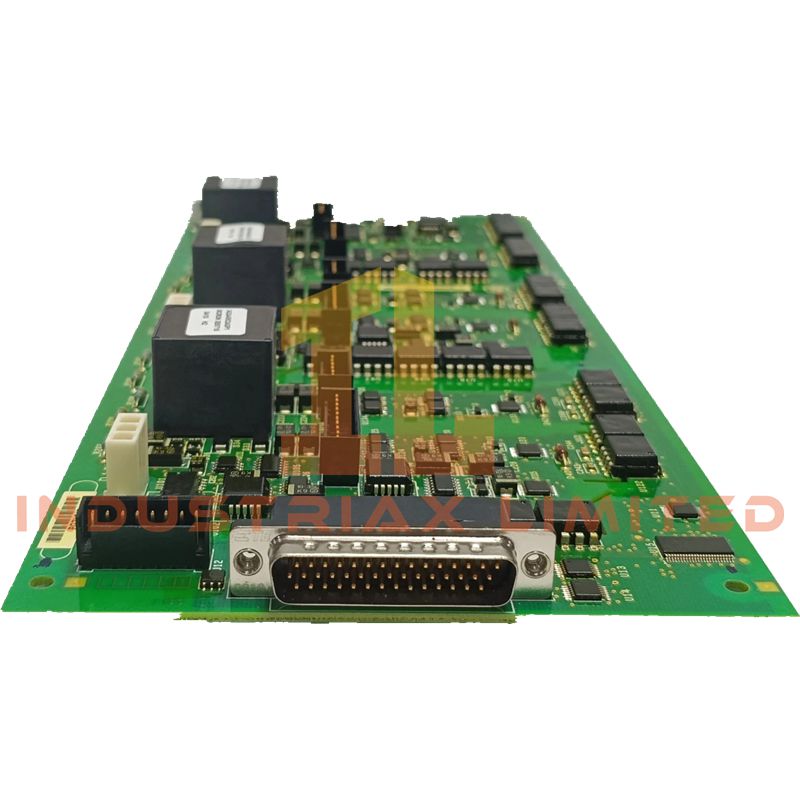

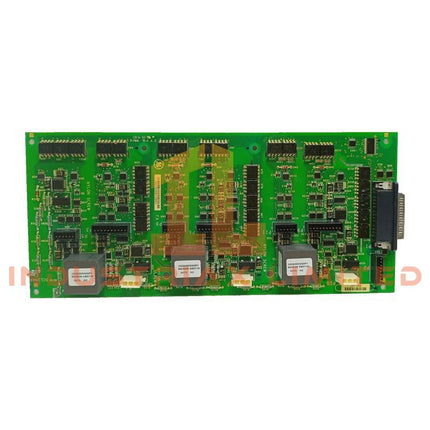

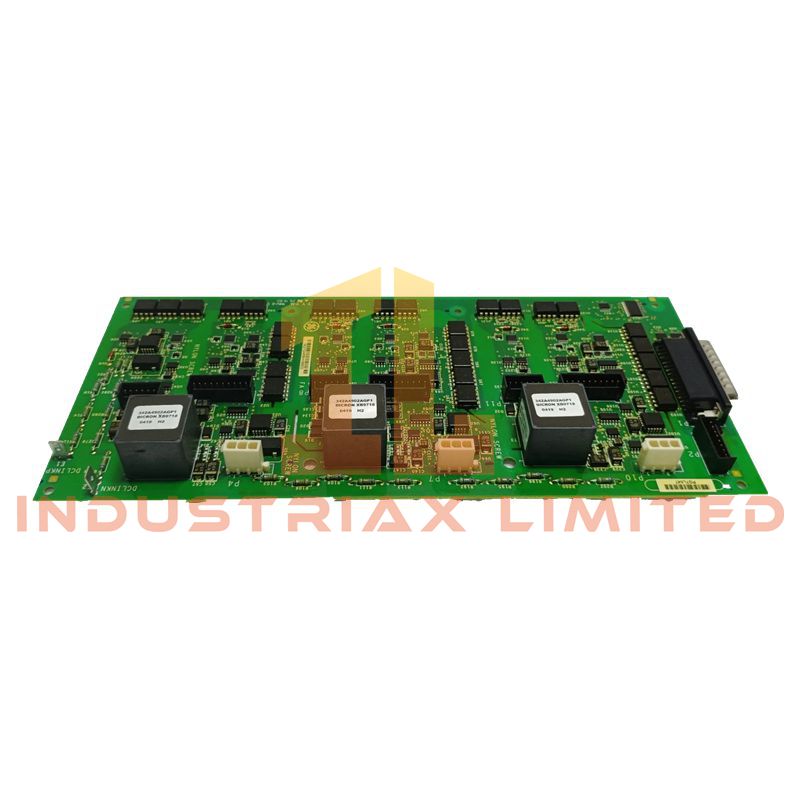

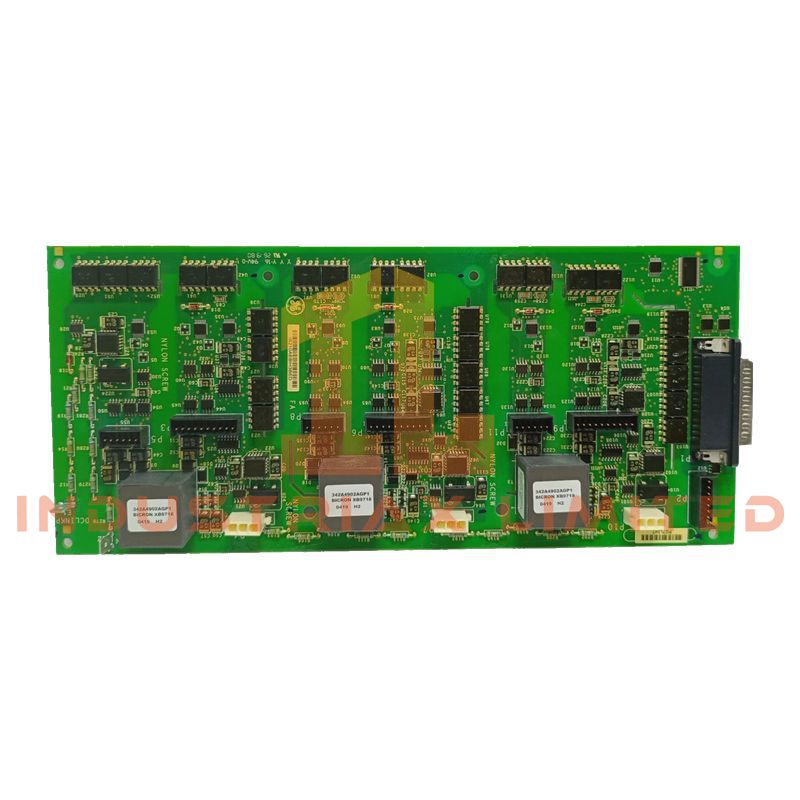

GE IS210AEBIH1B Mark VI Analog Expansion Board Module
The GE IS210AEBIH1B, also cataloged as the IS210AEBI Analog Expansion Board Module, operates as a dedicated hardware component for analog channel expansion and signal conversion within the GE Speedtronic Mark VI turbine control system. The module provides additional analog input and output processing through the controller backplane interface.
Hardware Specifications
Parameter
Specification
Model
IS210AEBIH1B
Brand
GE
Origin
United States
Weight
0.35 kg
Operating Temp
-30 to +65 deg C
Power Consumption
Supplied by +28 VDC nominal input
Product Type
Analog Expansion Modules
Analog Inputs
8 channels, configurable for 4-20 mA or +/-10 VDC
Analog Outputs
4 channels, 4-20 mA
Resolution
16-bit A/D and D/A conversion
Accuracy
+/-0.1% of full scale
Isolation
Channel-to-channel and channel-to-system isolation
Communication Interface
Mark VI controller backplane interface
Mounting
Rack mount, Mark VI chassis compatible
PCB Protection
Conformal coating
Industrial Control Backplane and I/O Density Scaling
The IS210AEBIH1B extends analog signal capacity within the GE Mark VI control architecture. The module performs signal conditioning, conversion, and electrical isolation between field instrumentation and controller processing units.
The Mark VI platform uses modular I/O expansion structures to increase channel availability. The AEBI module supports I/O density scaling through additional analog channels while maintaining communication through the controller backplane. Firmware flash compatibility must match the installed Mark VI hardware revision and controller configuration.
Frequently Asked Questions
Q: What is the primary function of the IS210AEBIH1B module? A: The IS210AEBIH1B provides additional analog input and output capacity for the GE Mark VI control system, including signal conditioning and conversion functions.
Q: Which analog signals are supported by this module? A: The module supports configurable analog inputs of 4-20 mA and +/-10 VDC, with 4-20 mA analog outputs.
Q: Does the IS210AEBIH1B support redundant Mark VI configurations? A: The module is designed for Mark VI system configurations supporting simplex and TMR (Triple Modular Redundancy) architectures.
Field Installation Guidelines
Install the IS210AEBIH1B module in the specified Mark VI rack position and confirm correct mechanical alignment with the chassis interface before energizing the system.
Verify analog channel configuration, field wiring polarity, and terminal assignments according to the system drawings. Keep analog signal cables separated from high-current switching lines and power conductors to reduce electromagnetic interference. Use shielded instrumentation cables where required and connect cable shields according to the site grounding standard.
Check rack mounting hardware, backplane engagement, and grounding continuity during installation inspection.
