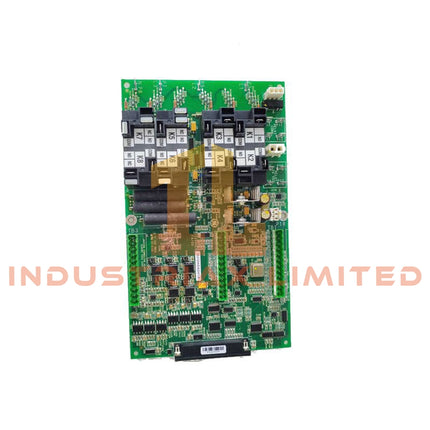

GE IS200GDDDG1ABA Gate Driver Dynamic Discharge Board

The GE IS200GDDDG1ABA, also cataloged as the IS200GDDDG1ABA Gate Driver Dynamic Discharge Board, operates as a dedicated hardware component for IGBT gate control and DC link energy discharge execution within the GE Mark VI / EX2100 excitation control system.

Hardware Specifications

Parameter	Specification
Model	IS200GDDDG1ABA
Brand	GE
Origin	United States
Weight	2.3 kg
Dimensions	17.8 cm high x 33.02 cm wide x 90 mm depth
Operating Temp	-30 to +65 deg C
Power Consumption	+5 V at 1.2 A, +/-12 V at 200 mA from VME backplane
Product Type	Gate Driver Dynamic Discharge Boards
System Platform	GE Mark VI / EX2100 Static Exciter
Gate Drive Channels	6 differential gate drive channels
Gate Drive Output	15 V differential, 2 A peak, 20 us pulse width
Gate Drive Isolation	Transformer-isolated gate drive circuits
Dynamic Discharge Device	600 V IGBT with 2 kA pulse capability
Dynamic Discharge Response	10 us turn-on time
Isolation Rating	1500 Vrms gate-to-logic, 500 V channel-to-channel
Connectors	96-pin DIN VME connector, two 20-position pluggable headers
Protection Functions	Gate supply UVLO, desaturation detection, MOV surge suppression
Diagnostics	LED indicators for Bridge OK, IMOK, and DD AUX Power Available
Coating	IPC-CC-830 conformal coating

GE Mark VI Excitation IGBT Gate Control and Firmware Compatibility

The IS200GDDDG1ABA provides IGBT switching control within the GE Mark VI and EX2100 excitation architecture. The board receives gate commands through the VME backplane interface and generates isolated drive signals for six IGBT devices in the exciter bridge.

The dynamic discharge circuit manages DC link energy dissipation during fault or shutdown sequences by controlling the discharge IGBT and resistor path. The board supports Mark VI TMR architecture compatibility, allowing synchronized control processing across redundant controller channels.

Firmware flash compatibility with the Mark VI control environment allows diagnostic communication and hardware status monitoring. Protection circuits including undervoltage lockout, desaturation detection, and surge suppression monitor gate drive conditions during switching operation.

Frequently Asked Questions

Q: How many IGBT gate drive channels are provided by the IS200GDDDG1ABA?
A: The board provides six isolated differential gate drive channels for IGBT bridge control.

Q: What is the purpose of the dynamic discharge function?
A: The dynamic discharge circuit transfers stored DC link energy into resistor banks during trip or shutdown events to control overvoltage conditions.

Q: What interface connects the board to the Mark VI controller system?
A: The board uses a 96-pin DIN VME connector and additional pluggable headers for system interfacing.

Field Installation Guidelines

Install the IS200GDDDG1ABA in the designated GE Mark VI or EX2100 VME rack position with correct connector alignment. Verify that all excitation power sources and DC link circuits are de-energized before installation or replacement.

Maintain separation between gate drive wiring, high-voltage DC conductors, and low-level control wiring. Ensure cabinet grounding and shielding connections follow the excitation system installation requirements to minimize electromagnetic interference.

Check VME connector seating, auxiliary power connections, and diagnostic LED status after installation. Verify gate drive signal integrity and system communication before returning the excitation system to service.
