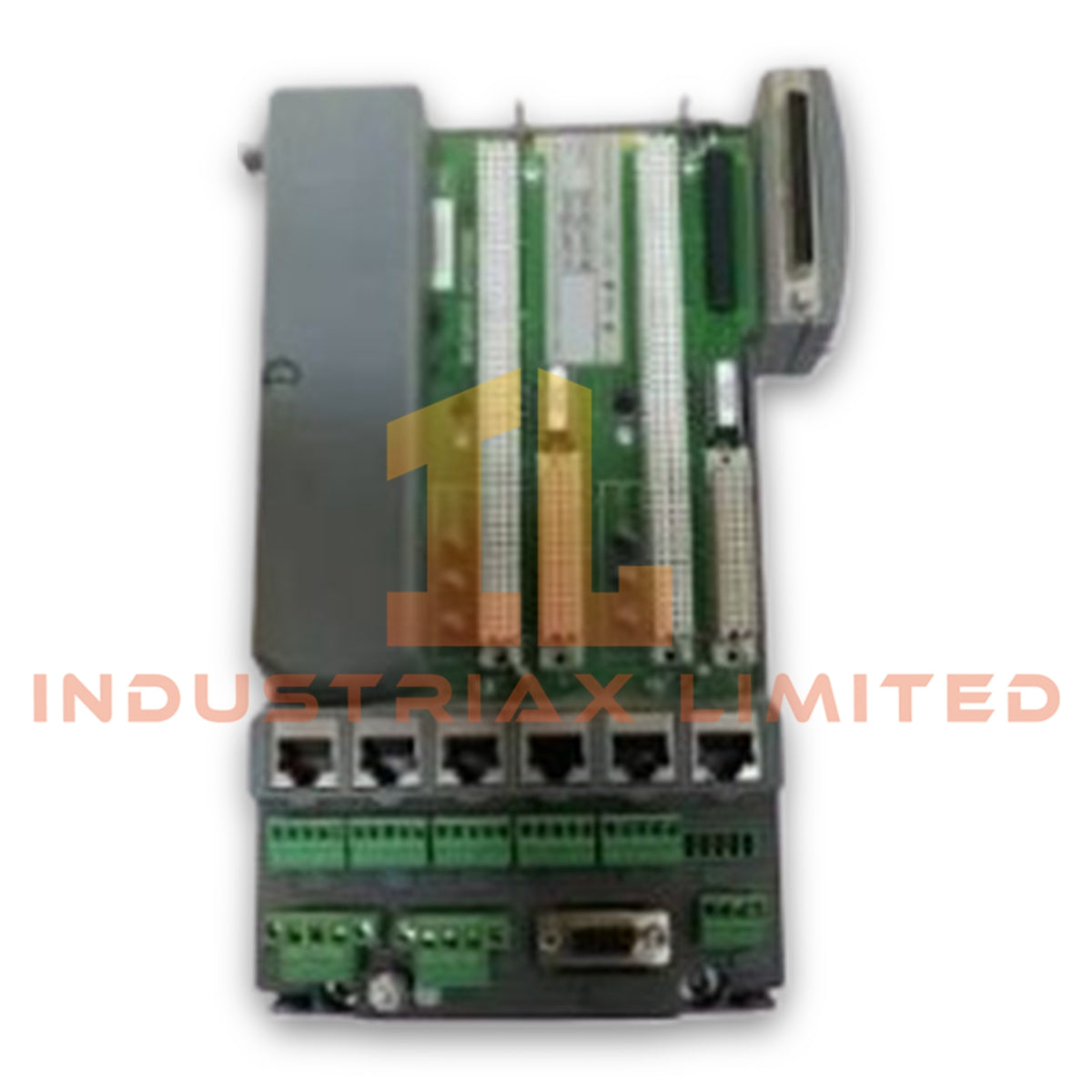

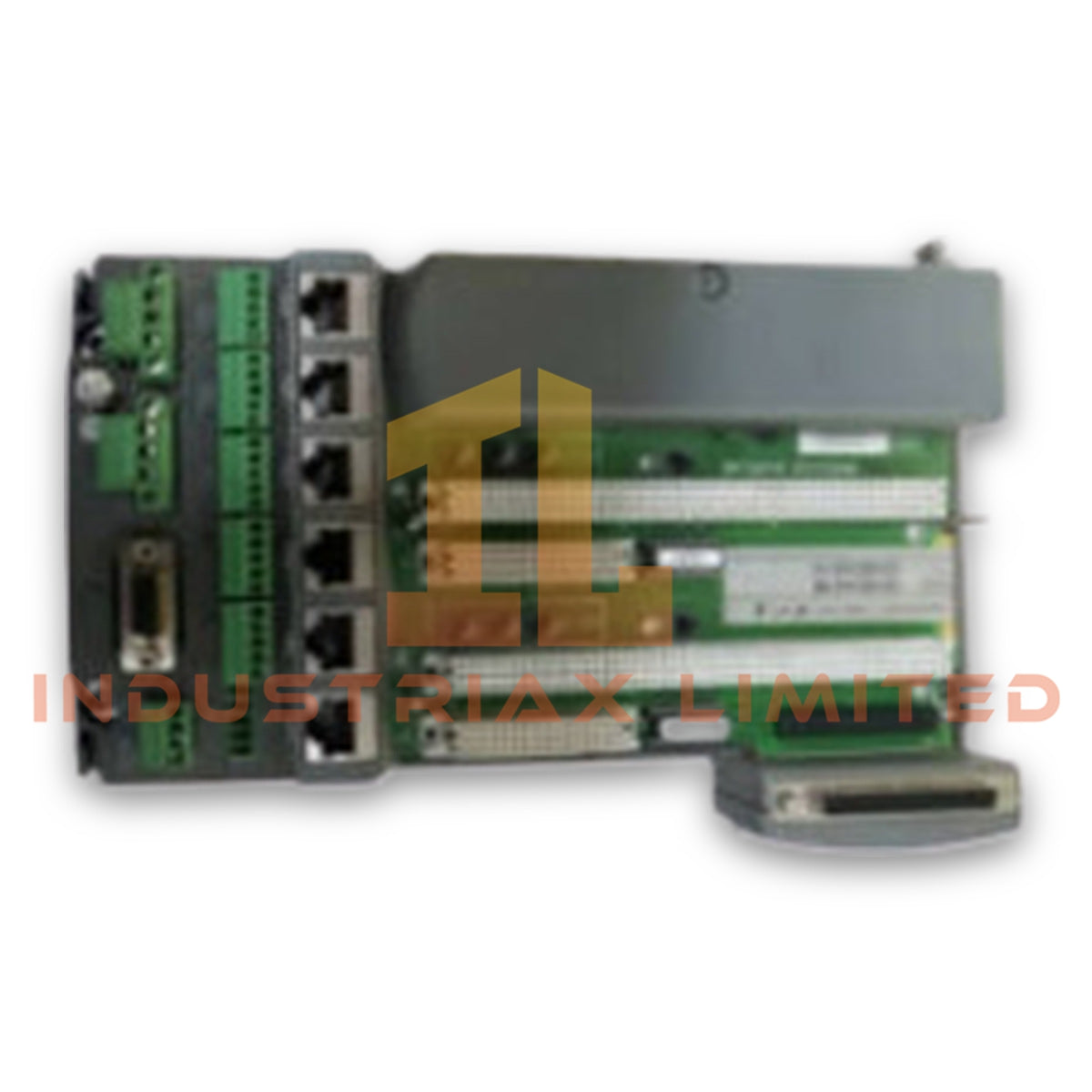

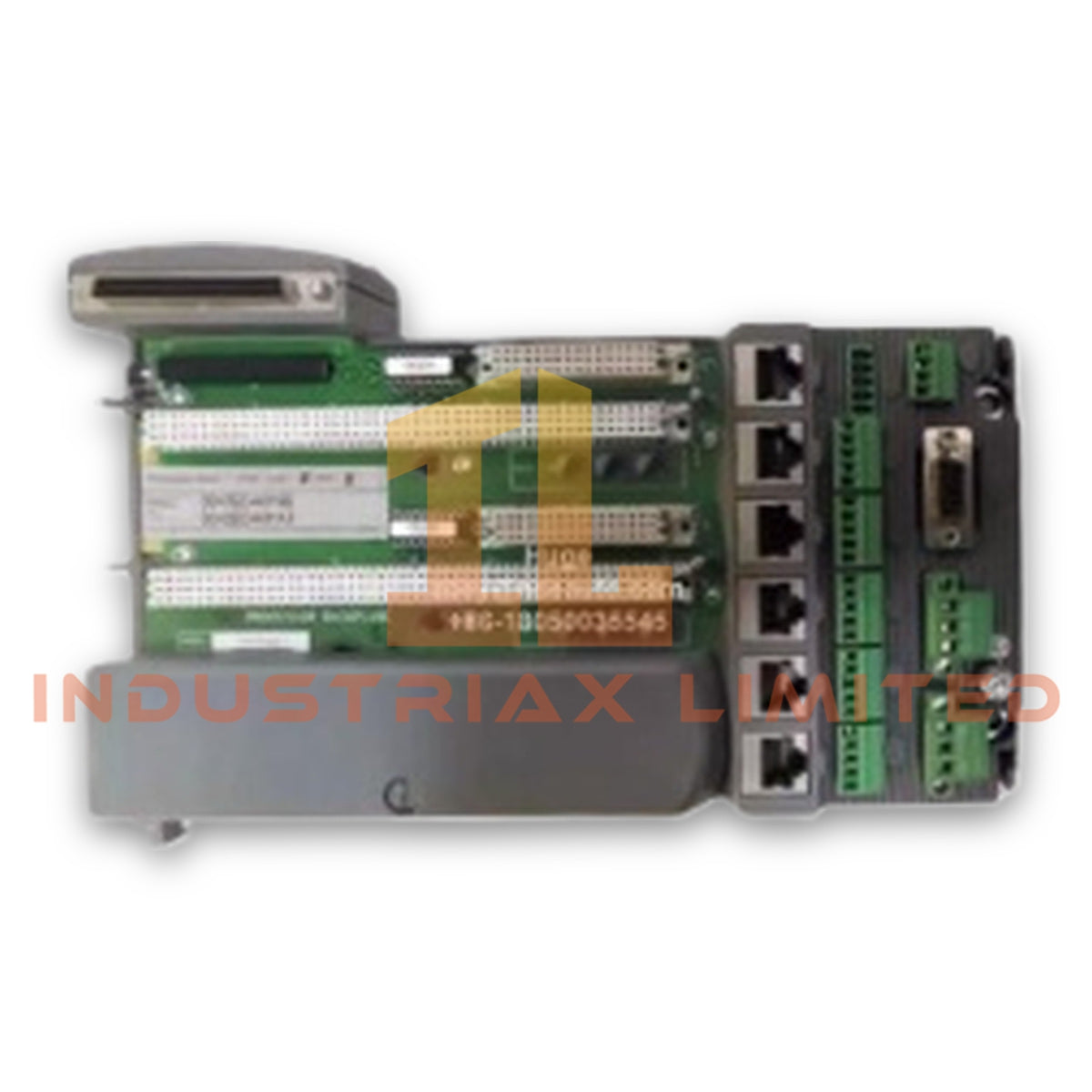

ICS Triplex T9100 AADvance Processor Backplane

Configured for processor and I/O bus interconnection in the AADvance controller, the ICS Triplex T9100 (T9100 Processor Base Unit) provides the physical backplane interface for controller modules, dual I/O buses, and six auto-sensing Ethernet ports.

Hardware Specifications

Parameter	Specification
Model	T9100
Brand	ICS Triplex
Product Type	AADvance Processor Backplane
Origin	USA
Weight	0.36 kg
Dimensions	4.1 x 12.1 x 16.5 cm estimated shipping size
Operating Temp	-20 deg C to +60 deg C
Humidity	5% to 95% non-condensing
Voltage Range	18-32 V
Power Consumption	Maximum current 10.4 A
Slot Capacity	Up to 10 module slots
Slot Current	400 mA per slot
Ethernet Ports	Six auto-sensing 10/100BASE-TX ports
I/O Bus	Dual I/O Bus 1 and Bus 2
System	AADvance Controller
Program Protection	Program Enable key interface

AADvance Safety Control Architecture

The T9100 provides the physical processor base and backplane connections used by the AADvance controller. The backplane accommodates up to 10 module slots and distributes the controller's internal electrical connections across installed modules.

The AADvance architecture supports safety-oriented control execution, while the T9100 itself functions as the processor base unit rather than a standalone safety logic processor. Therefore, SIL or TMR characteristics should be evaluated against the complete configured AADvance controller rather than assigned solely to the T9100.

The T9100 also provides six auto-sensing 10/100BASE-TX Ethernet ports and separate I/O Bus 1 and I/O Bus 2 connections. These interfaces support the controller's internal module communication and external Ethernet connectivity according to the installed AADvance configuration.

Frequently Asked Questions (FAQ)

Q: How many module slots does the T9100 provide?
A: The T9100 provides up to 10 module slots, with a stated maximum current of 400 mA per slot.

Q: What supply voltage range does the T9100 specify?
A: The supplied specification lists an operating voltage range of 18-32 V.

Q: Does the T9100 function as a standalone AADvance processor?
A: No. The T9100 is identified as the processor base unit and backplane. The complete AADvance controller requires the appropriate processor and associated modules.

Field Installation Guidelines

• Install the T9100 within the approved AADvance controller assembly and follow the system installation documentation.
• Verify the supply voltage remains within the specified 18-32 V range before energizing the assembly.
• Confirm that the total module current remains within the stated backplane loading limits.
• Secure all installed modules mechanically before applying power.
• Route Ethernet and I/O wiring separately from high-current switching and power conductors where practical.
• Maintain appropriate cable shielding and grounding practices for the connected field wiring and communication interfaces.
• Inspect the Program Enable key connection before downloading or modifying an application.
• Do not assign SIL or TMR performance solely to the T9100; verify the complete AADvance controller configuration and applicable safety documentation.
