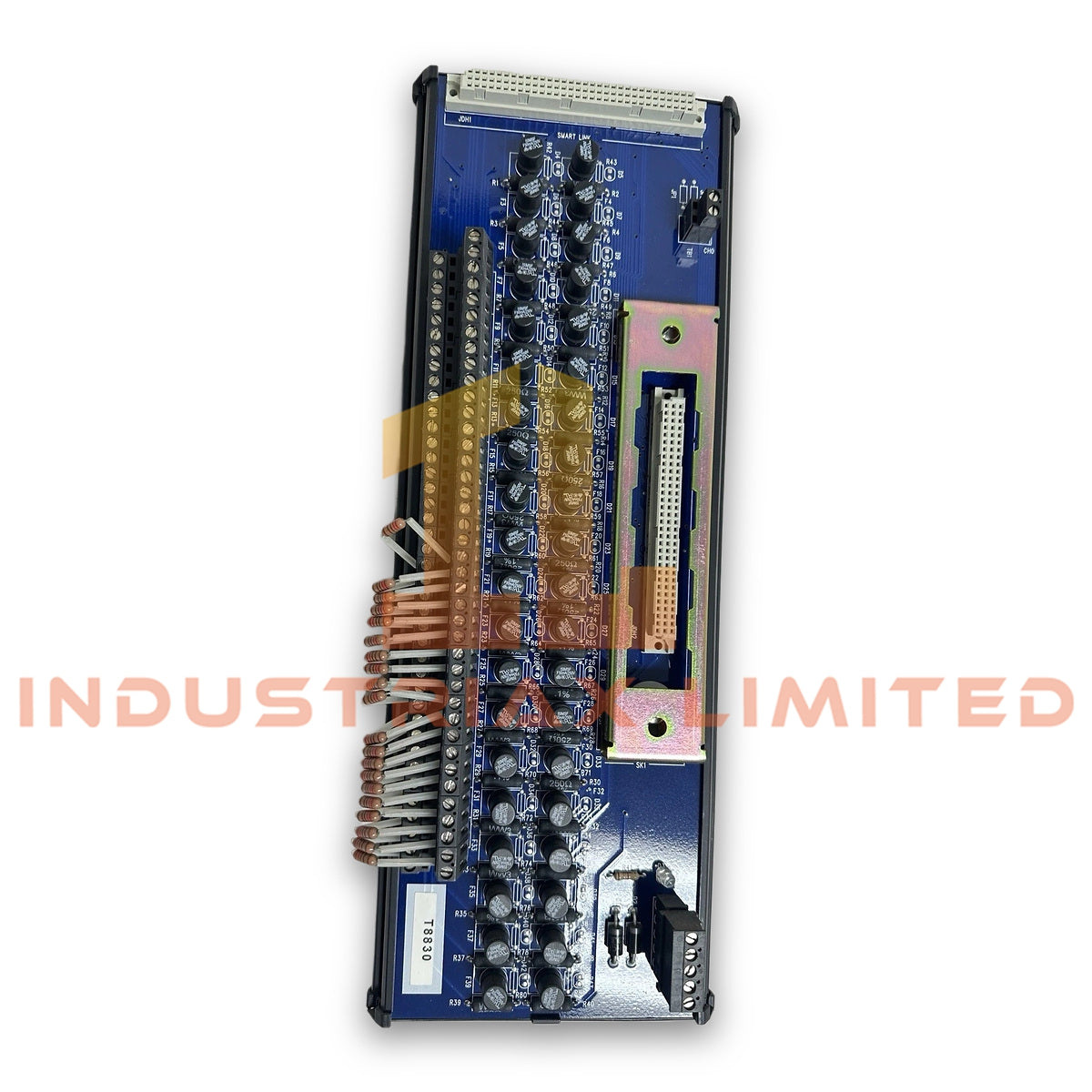

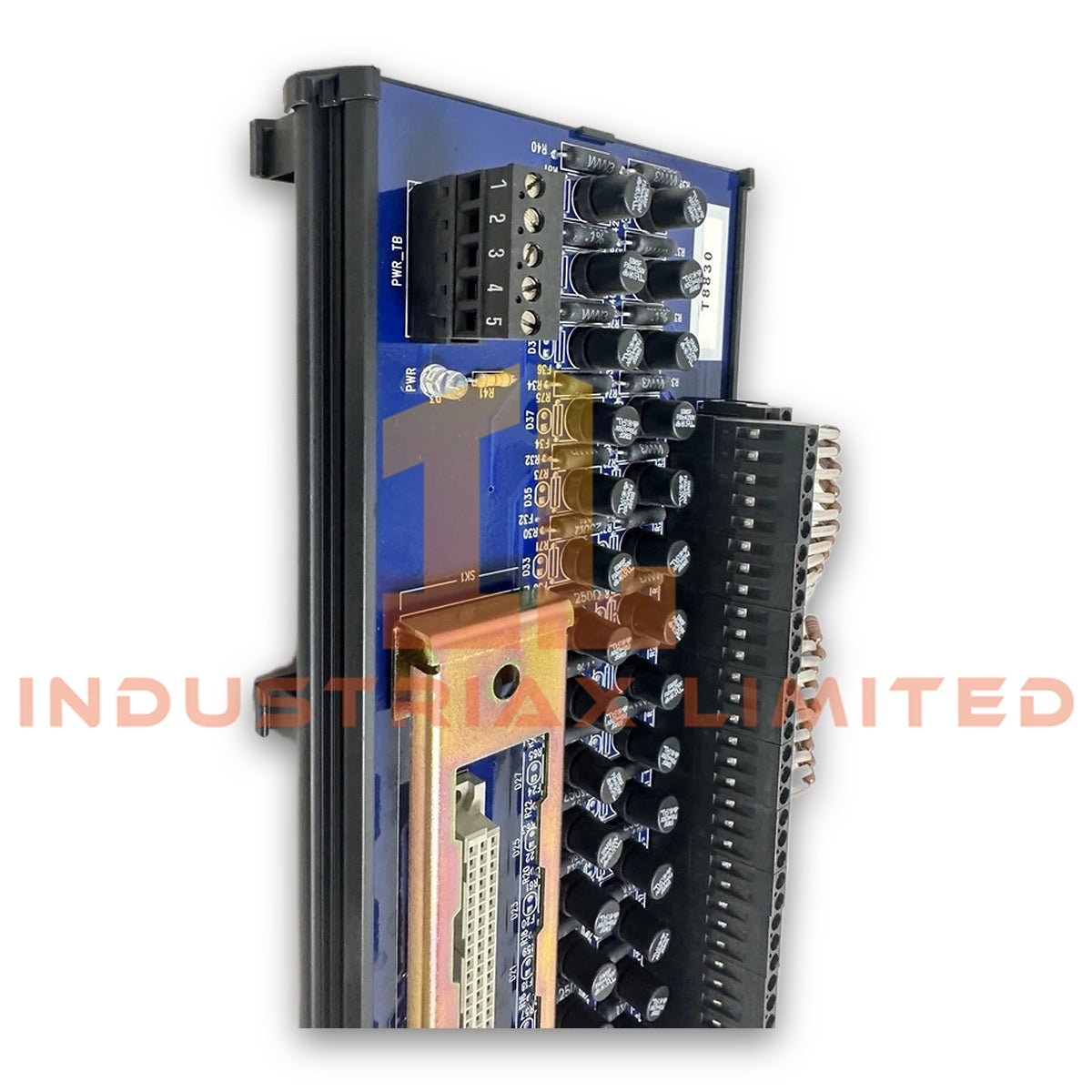

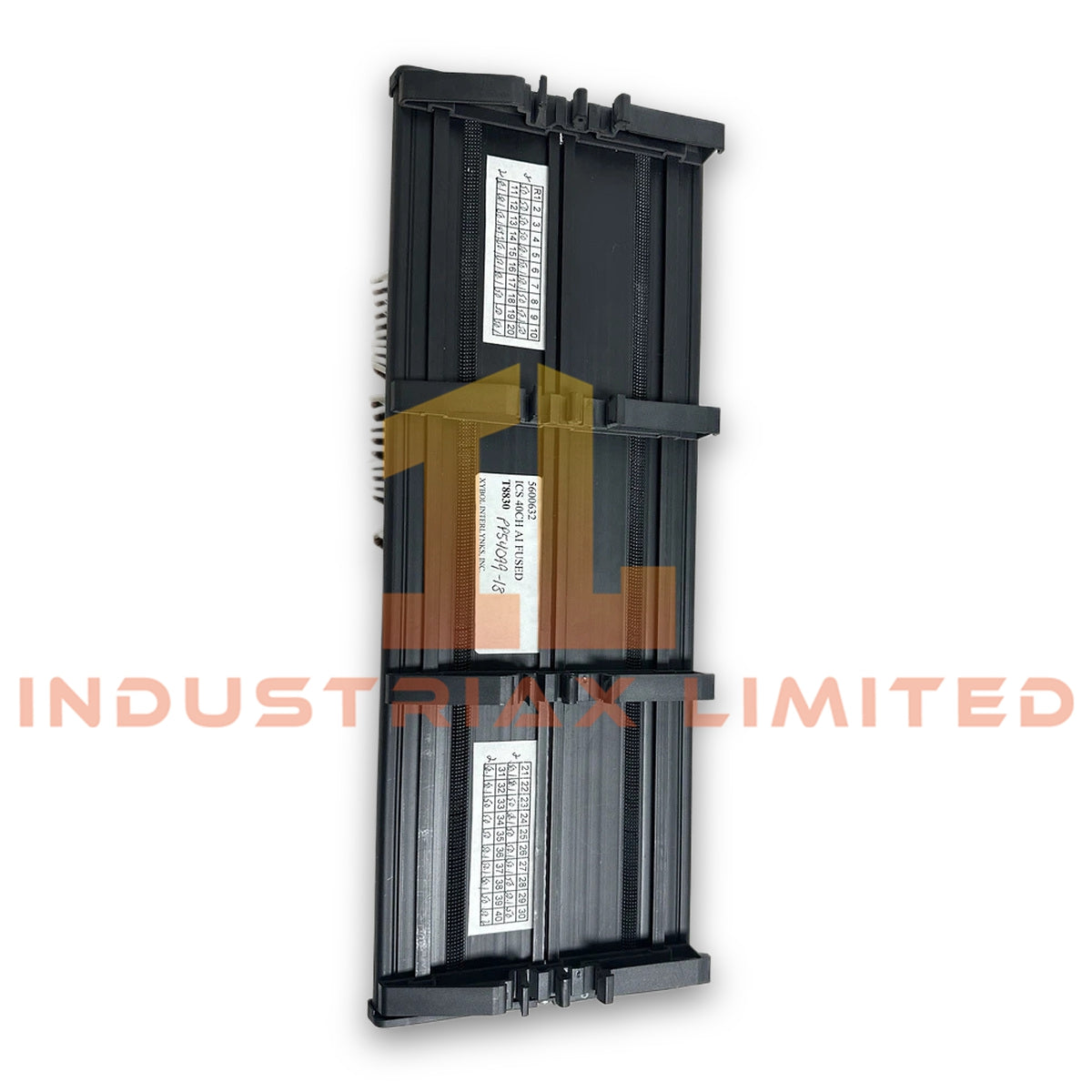

ICS Triplex T8830 Trusted 40-Channel Analog Input Field Terminal Assembly

Configured for analog field signal termination in the Trusted TMR safety system, the ICS Triplex T8830 (T8830 Trusted 40-Channel Analog Input Field Terminal Assembly) provides direct electrical interfacing between field transmitters and compatible Trusted Analog Input Modules. It routes up to 40 analog input circuits through dedicated terminal connections, incorporates individual channel protection, and combines dual field power feeds for continuous field wiring operation.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single catalog model, T8830. No official suffix variants or ordering matrix are specified in the available manufacturer information.

Hardware Specifications

Parameter	Specification
Model	T8830
Brand	ICS Triplex
Product Type	Trusted 40-Channel Analog Input Field Terminal Assembly (FTA)
Product Series	Trusted TMR System
Compatible Module	Trusted Analog Input Module (for example T8431)
Number of Channels	40 analog input channels
Field Device Connection	2-wire field wiring
Terminal Arrangement	3-way and 2-way terminal blocks
Field Power Supply	Dual 24 VDC feeds combined through diode circuitry
Channel Protection	50 mA fuse per channel
Module Interface	96-way connector (SK1)
Status Indicators	Green LED for field power presence
Mounting	Standard DIN rail
Brand	ICS Triplex
Origin	USA
Weight	Approximately 0.6 kg to 0.8 kg
Dimensions	Approximately 318 mm x 168 mm x 147 mm (manufacturer variants exist)

Triple Modular Redundancy (TMR) Interface Characteristics

The T8830 is designed as part of the ICS Triplex Trusted safety platform that supports Triple Modular Redundancy (TMR) system architecture. Although the Field Terminal Assembly itself performs passive field termination rather than signal voting, its electrical layout supports the signal paths required by the Trusted I/O subsystem. In addition, dual field power inputs improve power distribution continuity, while individual channel fusing limits fault propagation from external wiring. Consequently, maintenance personnel can isolate field circuit faults without affecting adjacent input channels.

Frequently Asked Questions

Q: Does the T8830 perform analog signal conversion or processing?
A: No. The T8830 functions as a Field Terminal Assembly. It provides field wiring termination, channel protection, and electrical connection to the compatible Trusted Analog Input Module, where signal acquisition and conversion occur.

Q: Can field power remain connected during module replacement?
A: The Field Terminal Assembly provides separate field termination and power distribution. However, module replacement procedures should always follow the maintenance instructions defined for the Trusted system to prevent unintended process interruption.

Q: Why is each channel protected by an individual fuse?
A: Each analog input channel includes a 50 mA fuse to limit current during external wiring faults. Therefore, a fault on one field loop does not directly transfer excessive current to neighboring channels.

Field Installation Guidelines

• Mount the T8830 on a properly grounded standard DIN rail inside the designated control cabinet.
• Verify that the dual 24 VDC field power supplies are correctly wired before energizing the assembly.
• Route analog signal cables separately from high-voltage or motor power wiring to reduce conducted electrical interference.
• Terminate cable shields according to the control system grounding philosophy, and avoid multiple shield ground points unless the system design specifically requires them.
• Confirm terminal tightening torque according to the manufacturer documentation before commissioning.
• Inspect the channel fuses before replacing field instruments following a wiring fault.
• Verify the power indication LED after system energization to confirm field power availability.
