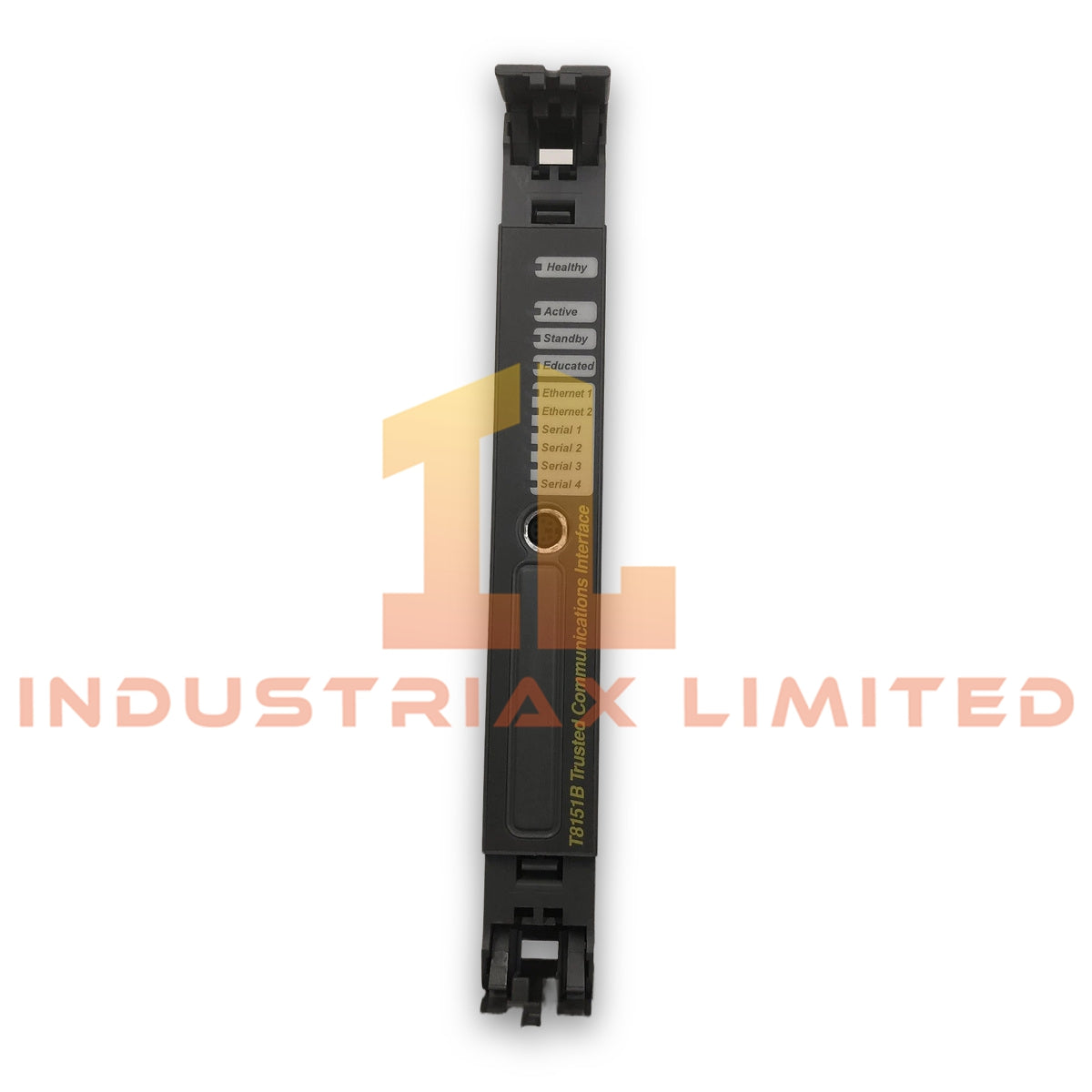

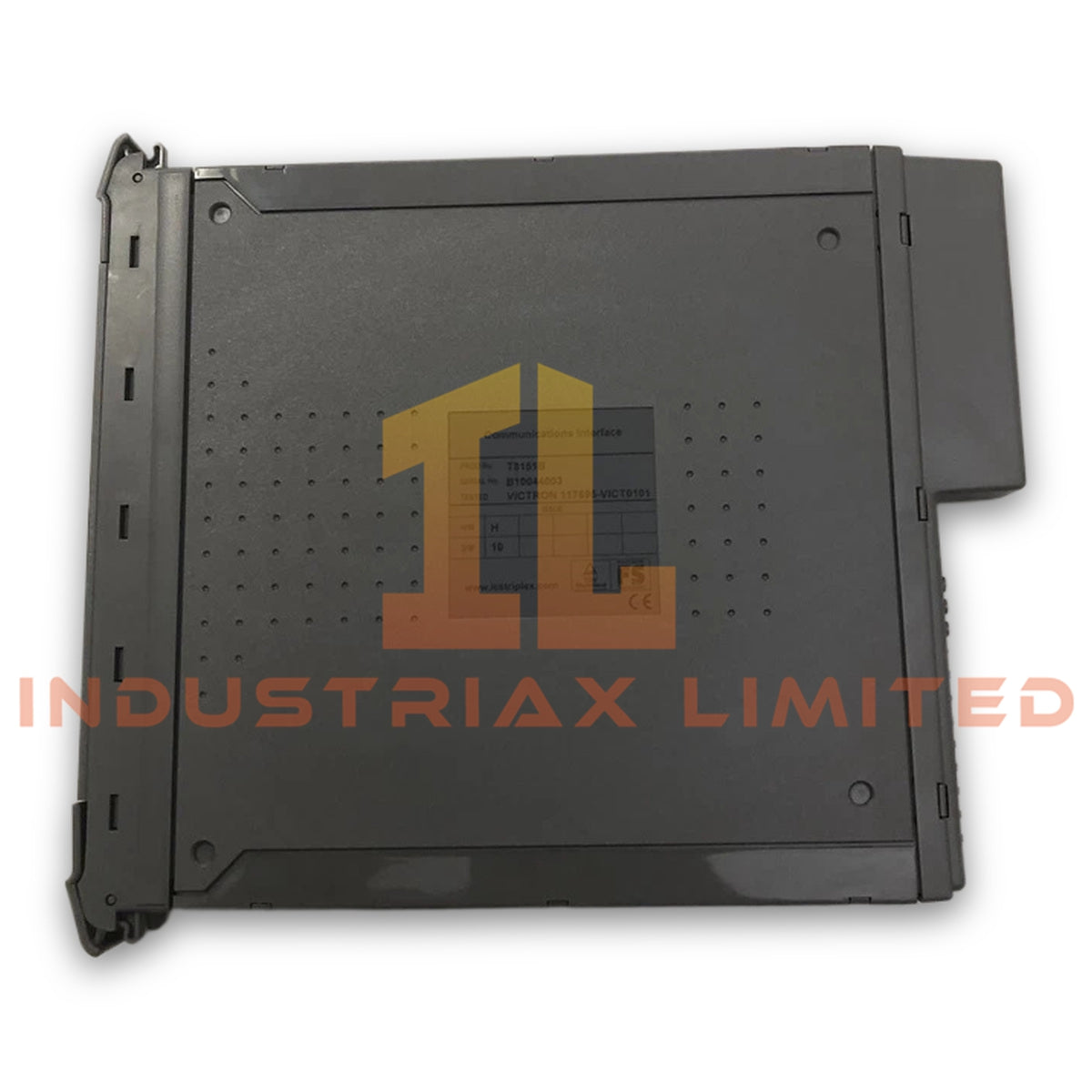

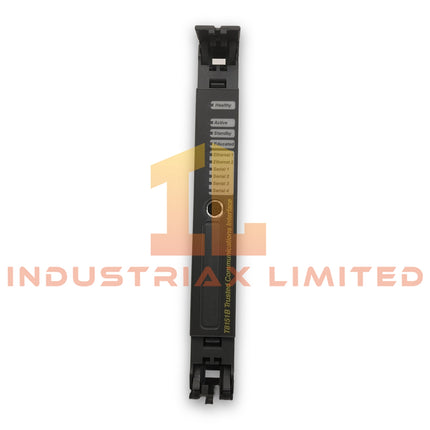

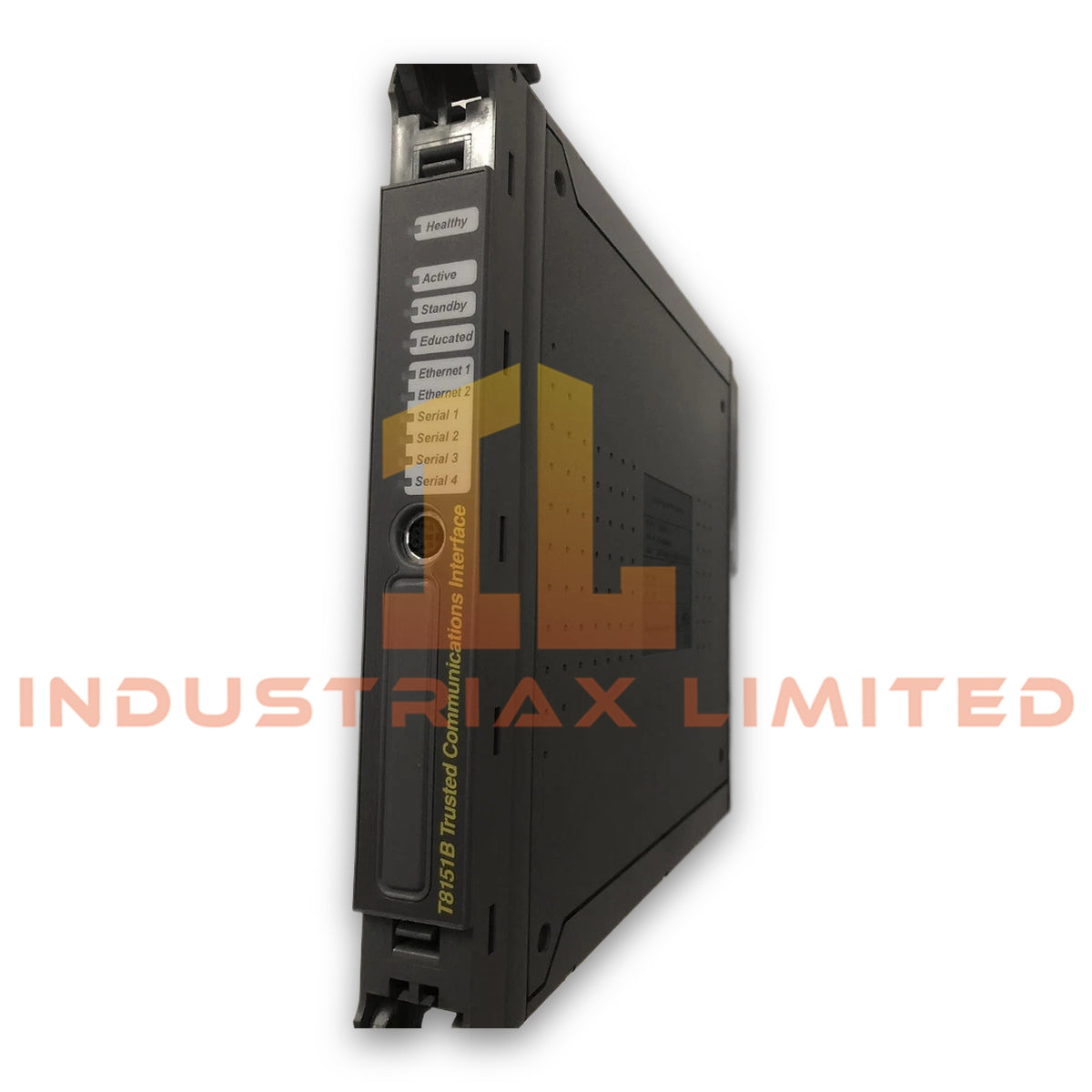

The ICS Triplex T8151B, also cataloged as the T8151B Communications Interface Module, operates as a dedicated hardware component for deterministic data exchange within the Trusted TMR control system. It provides dual Ethernet communication, four serial interfaces, and a front-panel diagnostic port. Furthermore, the module manages communication paths between the Trusted backplane and external devices while continuously reporting operating and fault status through dedicated indicators.
Suffix Breakdown & Model Matrix
The supplied documentation identifies a single catalog number, T8151B. No official suffix variations or ordering matrix are specified in the available manufacturer information.
Hardware Specifications
Parameter
Specification
Model
T8151B
Brand
ICS Triplex
Product Type
Communications Interface Module
System Series
Trusted TMR
Communication Ports
Dual Ethernet, 4 Serial Ports
Diagnostic Interface
Front Panel Serial Diagnostic Port
Communication Function
High-performance communications links
Status Indication
Fault and Status Indicators
Power Supply
24 VDC
Power Consumption
5 W maximum
Operating Temp
-40 deg C to +70 deg C
Storage Temp
-40 deg C to +85 deg C
Humidity
5 % to 95 % non-condensing
Vibration
0.03 g RMS per axis, 5 Hz to 500 Hz
Dimensions
3 x 30.3 x 26.4 cm
Weight
1.14 kg
Origin
USA
Shipment Location
Xiamen, China
Tariff Code
8537101190
Triple Modular Redundancy Communication Architecture
The Trusted platform implements a triple modular redundancy (TMR) 2oo3 architecture to maintain deterministic system operation during hardware faults. Accordingly, the T8151B exchanges communication data with the Trusted backplane while supporting the fault-tolerant design philosophy of the controller. In addition, diagnostic information is continuously monitored so communication faults can be identified without interrupting normal controller execution.
The module is designed for integration with Trusted system hardware where communication integrity, controlled fault reporting, and deterministic message transfer are required. Proper backplane installation and system configuration are necessary to maintain expected communication performance.
Frequently Asked Questions
Q: Does the T8151B support hot replacement while the controller is energized? A: Hot-swap capability depends on the Trusted controller configuration and the manufacturer's maintenance procedures. Follow the applicable Trusted system documentation before removing or installing the module.
Q: What communication interfaces are available on the module? A: The T8151B provides two Ethernet ports, four serial communication ports, and one front-panel serial diagnostic interface for commissioning and maintenance.
Q: What environmental conditions are supported during operation? A: The module is specified for operation from -40 deg C to +70 deg C with humidity from 5 % to 95 % non-condensing and vibration of 0.03 g RMS per axis over 5 Hz to 500 Hz.
Field Installation Guidelines
De-energize the equipment unless the installed system documentation specifically permits online module replacement.
Insert the module completely into the Trusted chassis until the backplane connector is fully engaged.
Secure communication cables to prevent excessive mechanical stress on Ethernet and serial connectors.
Route communication wiring separately from high-voltage and high-current conductors to reduce electromagnetic interference.
Connect cable shields according to the system grounding strategy to minimize communication noise.
Confirm that the fault and status indicators show normal operating conditions before placing the controller into service.
Verify communication parameters and network configuration after installation using the designated diagnostic interface.
