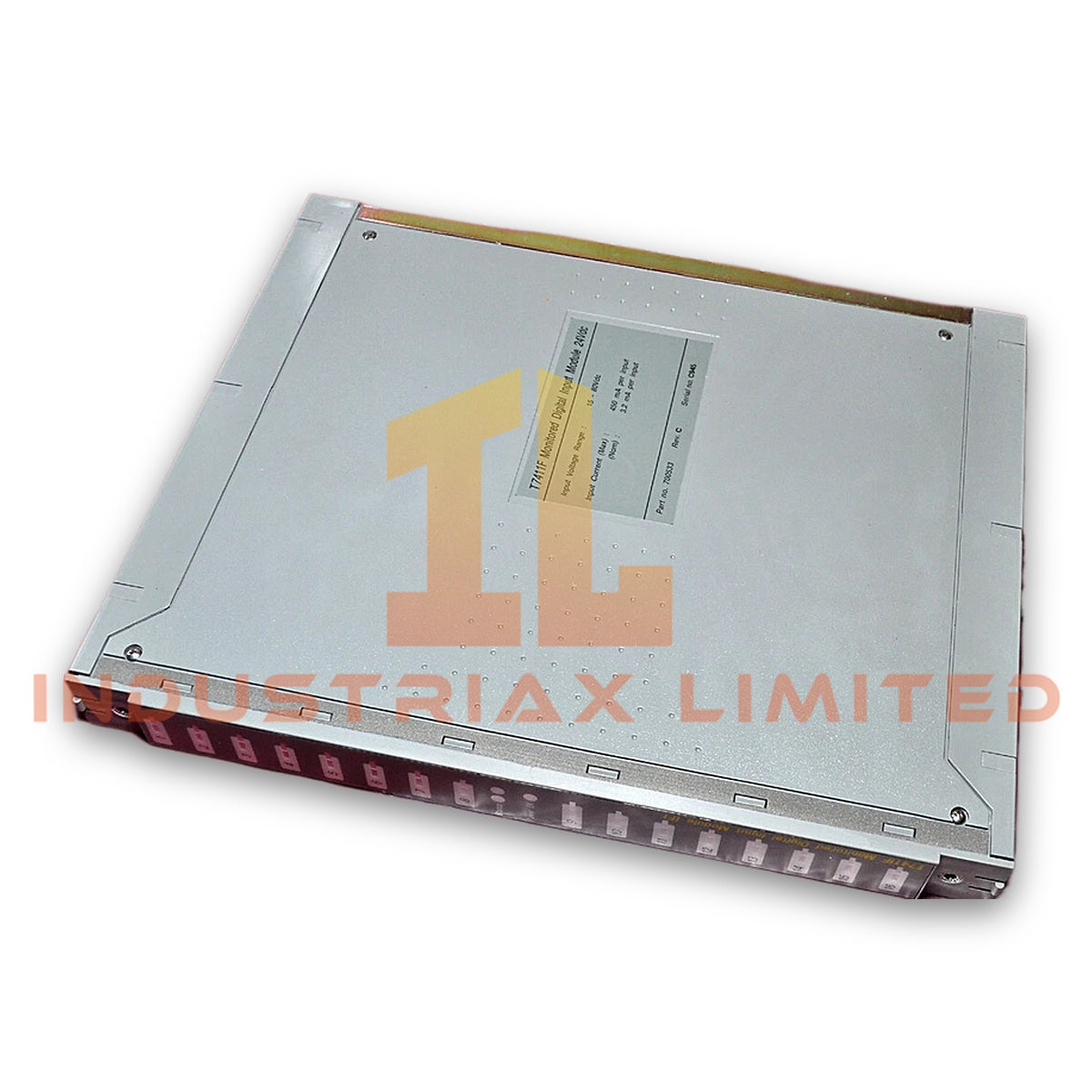

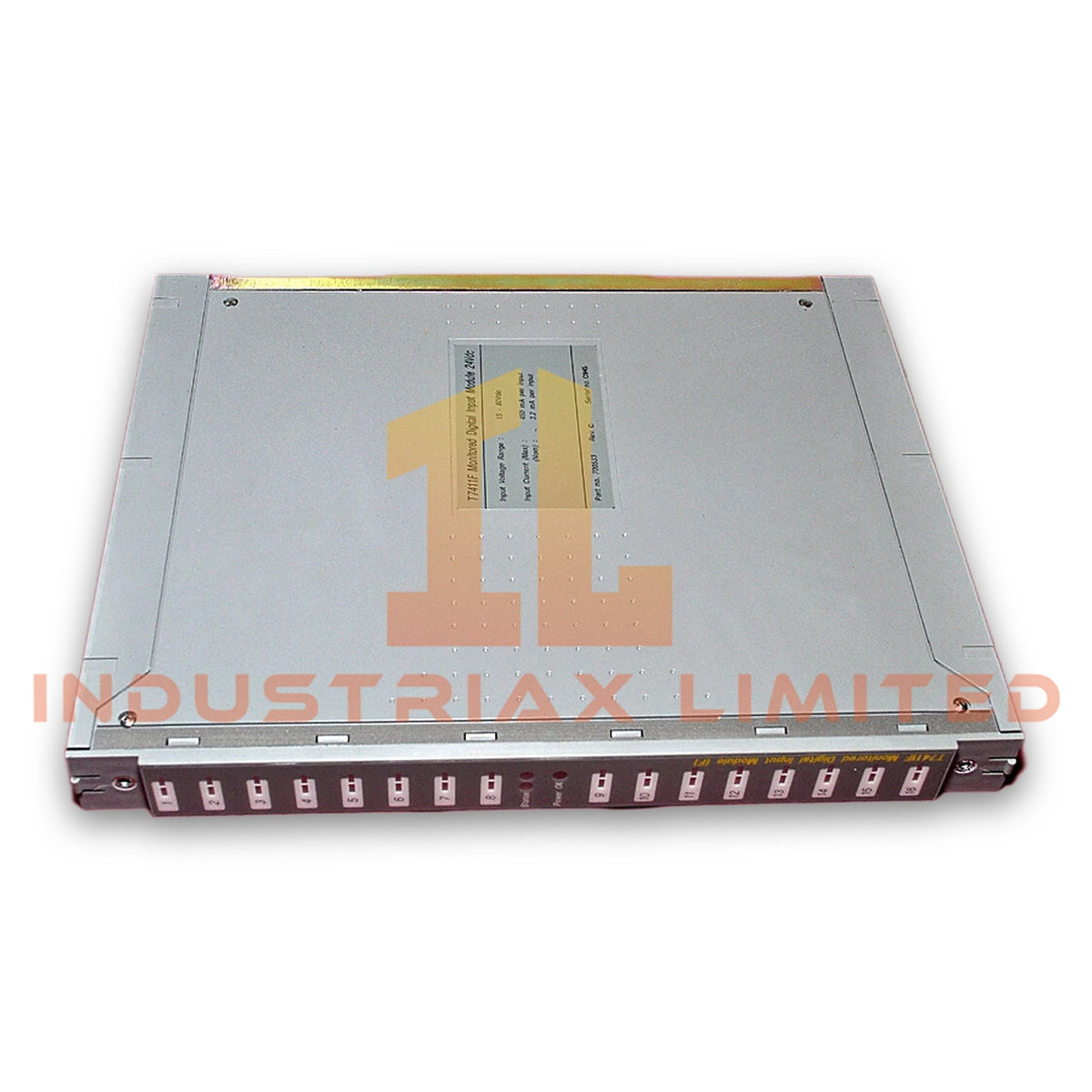

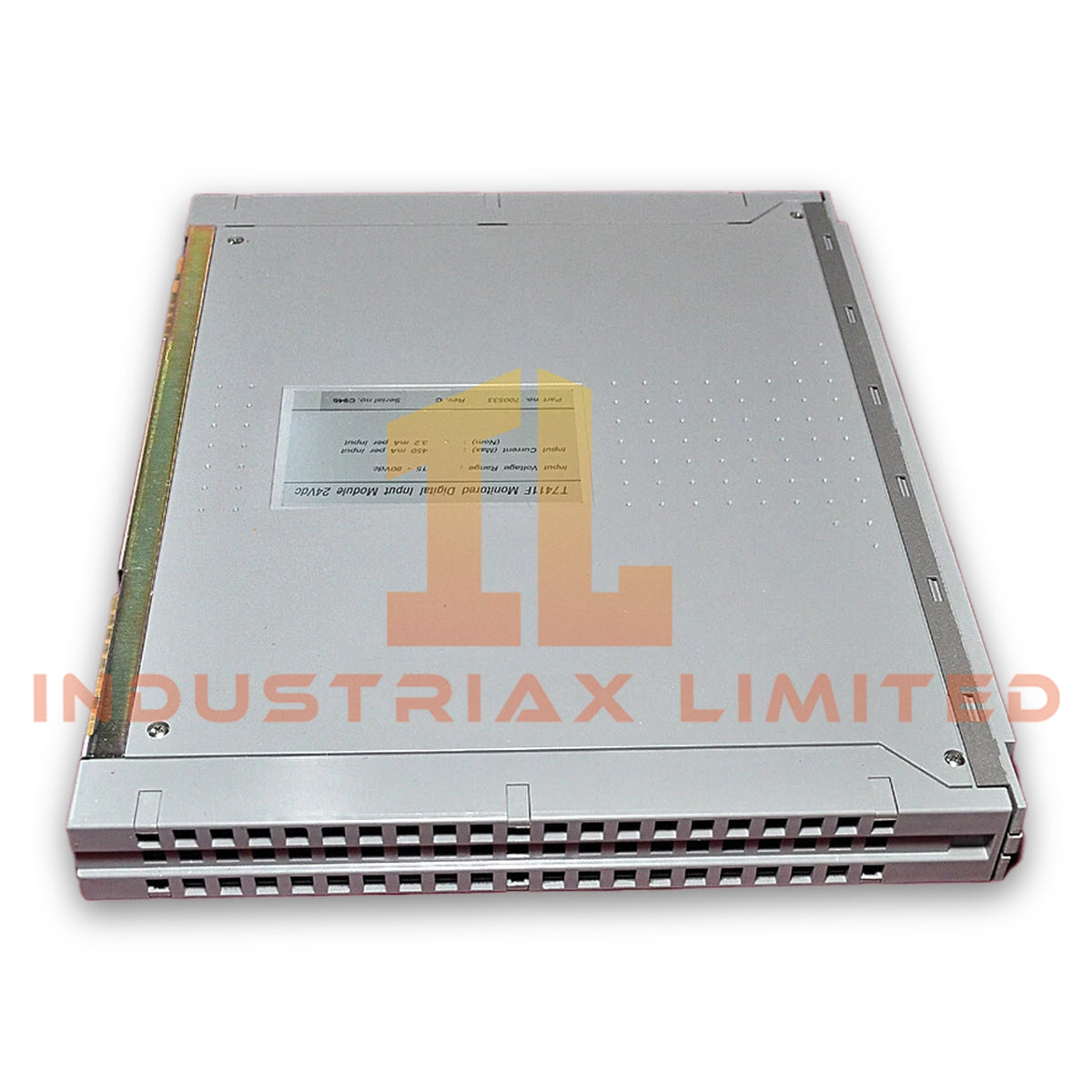

ICS Triplex T7411F Monitored Digital Input Module

The ICS Triplex T7411F, also cataloged as the T7411F Monitored Digital Input Module, monitors 24 VDC field input signals within ICS Triplex Trusted and Regent safety control systems. It provides 16 monitored digital input channels and detects switch status, open-circuit conditions, and short-circuit conditions through dynamic line monitoring.

Hardware Specifications

Parameter	Specification
Model	T7411F
Brand	ICS Triplex
Manufacturer	ICS Triplex (Rockwell Automation)
Product Type	Monitored Digital Input Module
Input Channels	16 monitored digital input channels
Nominal Input Voltage	24 VDC
Input Monitoring	Dynamic line monitoring
Fault Detection	Switch status, open circuit, and short circuit detection
Voting Logic	1oo2 and 2oo3 configurations
Safety Certification	DIN 19250 / AK5
Safety Application	Suitable for SIL 3 applications under IEC 61508
Operating Temperature	0 deg C to +60 deg C
Storage Temperature	-40 deg C to +85 deg C
Operating Humidity	5% to 95% RH, non-condensing
Weight	Approx. 3.0 kg
System Compatibility	ICS Triplex Trusted, Regent, and Regent+Plus systems

Safety Architecture and Input Diagnostics

The T7411F processes monitored digital field signals for safety control applications. In addition, its dynamic input monitoring checks the electrical state of field circuits rather than only reading the logical switch condition.

The module supports 1oo2 and 2oo3 voting configurations. Therefore, the associated safety architecture can maintain fault-tolerant signal processing when the system implements the corresponding redundant arrangement.

For TMR-based safety systems, 2oo3 voting allows the control system to compare redundant signal paths and determine the voted state. However, the exact system-level voting behavior depends on the configured Trusted or Regent architecture.

The module also reports detected input-line faults. Open and short circuits can therefore appear as diagnostic conditions instead of being treated solely as normal field states.

Frequently Asked Questions (FAQ)

Q: What field signal does the T7411F monitor?

A: The supplied specification identifies the T7411F as a 24 VDC monitored digital input module with 16 input channels.

Q: Does the T7411F detect field wiring faults?

A: Yes. Dynamic line monitoring detects switch status, open-circuit conditions, and short-circuit conditions on monitored input circuits.

Q: Does the module support redundant voting?

A: Yes. The supplied specification states support for 1oo2 and 2oo3 voting configurations. The actual voting implementation depends on the system configuration.

Field Installation Guidelines

• Install the module in the specified ICS Triplex Trusted or compatible system hardware configuration.
• Verify the field supply voltage before connecting the digital input circuits.
• Route field signal wiring separately from high-voltage power conductors and high-current switching circuits where practical.
• Maintain consistent terminal identification throughout the field wiring and system drawings.
• Connect cable shields according to the applicable system grounding design. Avoid creating unintended ground loops.
• Verify open-circuit and short-circuit diagnostic behavior during commissioning before placing the safety function into service.
• Confirm that the configured 1oo2 or 2oo3 voting arrangement matches the approved safety-system design.
• Do not apply field wiring changes while the associated safety function remains in an unsafe maintenance state.
• Check operating temperature and humidity against the specified environmental limits before installation.
