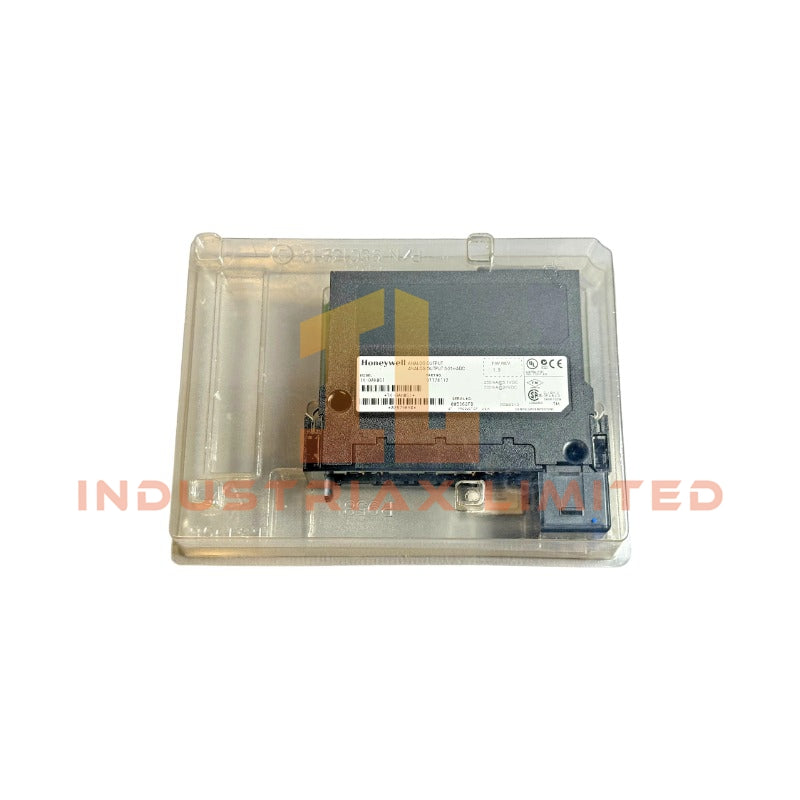

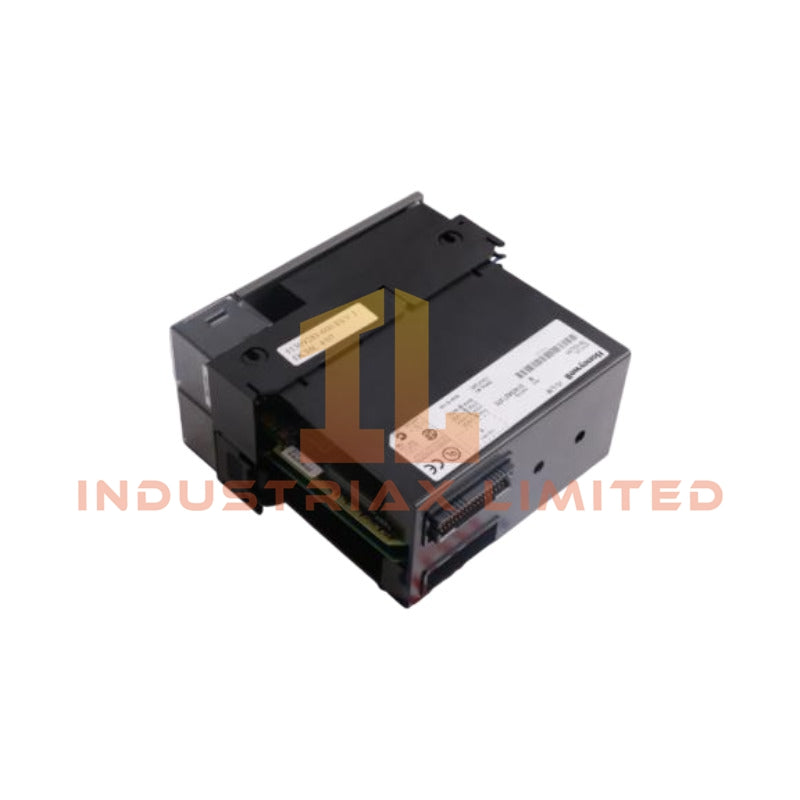

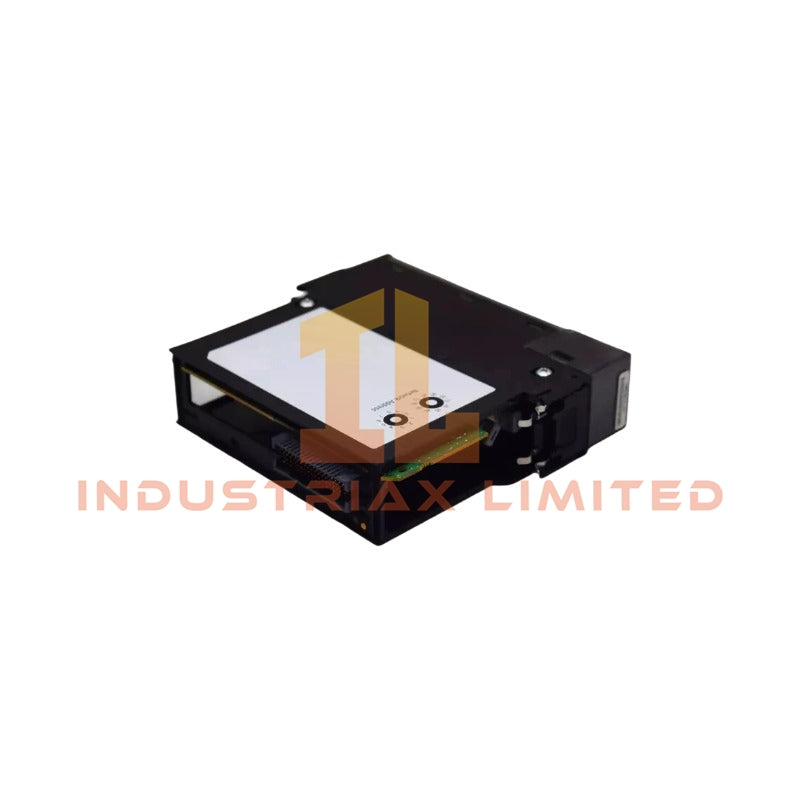

Honeywell TC-OAH061 Analog Output Module

The Honeywell TK-OAH061, also cataloged as the TC-OAH061 analog output module, operates as a dedicated hardware component for 4-20 mA current loop signal generation within the Experion PKS / C200 control I/O architecture. Configured for deterministic analog output execution in distributed control systems, the Honeywell TK-OAH061 (TC-OAH061 analog output module) provides direct electrical conversion of controller-side digital values into field-level current loop outputs.

The module implements 6 independent galvanically isolated output channels, each supporting 4-20 mA signal driving with high-resolution digital-to-analog conversion and channel separation for loop integrity preservation.

Hardware Specifications

Parameter	Specification
Model	TK-OAH061 / TC-OAH061
Brand	Honeywell
Origin	USA
Weight	0.35 kg to 0.5 kg (module only, nominal range)
Power Consumption	Up to 6.7 W
Module Type	Analog Output Module
Channels	6 isolated output channels
Output Signal Range	4-20 mA (0-21 mA operational range)
Resolution	13-bit D/A conversion
Channel Isolation	Galvanically isolated outputs
Update Rate	25 ms (all channels)

Honeywell Channel Isolation & 4-20 mA Loop Execution Characteristics

The module implements per-channel galvanic isolation architecture, ensuring electrical decoupling between output loops and system-side electronics. Each channel operates as an independent current sourcing node for 4-20 mA loop transmission, supporting direct actuator, valve positioner, and drive interface loading without shared electrical reference coupling. The 13-bit conversion structure distributes resolution across the full current span, allowing stable incremental loop adjustment under continuous control updates at a 25 ms system cycle.

Frequently Asked Questions (FAQ)

Q: Does the TK-OAH061 support hot-swap insertion under energized backplane conditions?
A: Hot-swap capability is dependent on the C200 backplane implementation. The module itself is designed for controlled system insertion but requires compliance with system-level power isolation procedures.

Q: What is the effect of channel isolation on cross-channel loop interference?
A: Each output channel is galvanically isolated, preventing direct electrical coupling between 4-20 mA loops and reducing cross-channel leakage paths at the hardware level.

Q: Is firmware-level calibration required after module replacement?
A: Calibration behavior is managed at controller configuration level. The module itself does not contain field-updatable firmware logic exposed to end-user adjustment.

Field Installation Guidelines

Install the module into the designated C200 I/O rack slot with backplane power fully verified prior to insertion. Maintain shield continuity for each 4-20 mA loop and ensure single-point grounding at the control cabinet earth reference. Field wiring should be separated from high-voltage or switching conductors to preserve current loop stability. Terminal block engagement must be fully seated to maintain channel isolation integrity and prevent intermittent loop discontinuities.

Spesifikasi

• Merek: Honeywell
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
