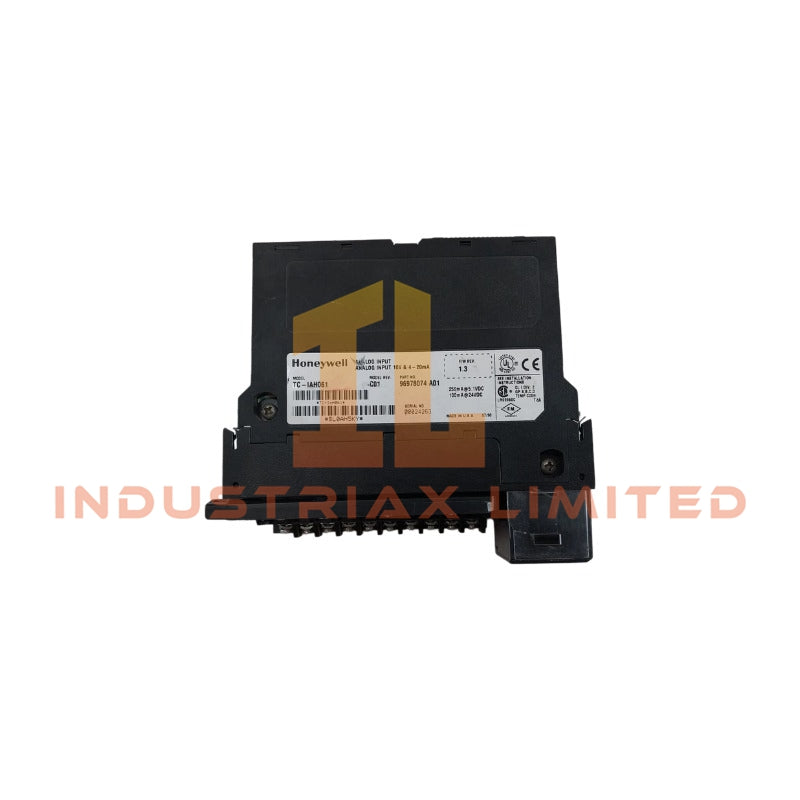

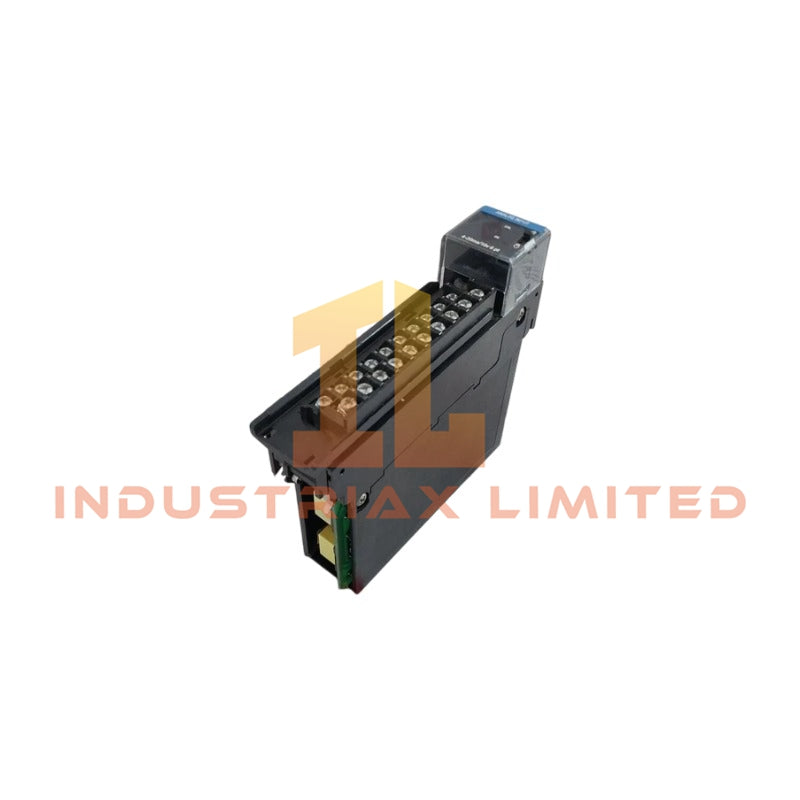

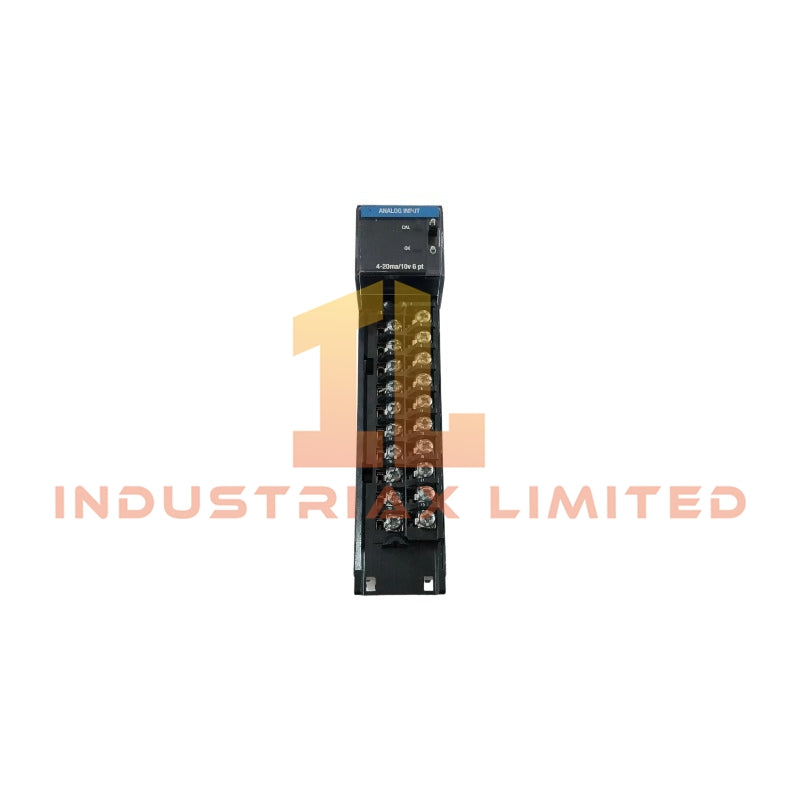

Honeywell TC-IAH061 Experion Analog Input Module

Configured for isolated analog signal acquisition in Honeywell Experion control systems, the Honeywell TC-IAH061 (TC-IAH061 Experion Analog Input Module) provides direct physical and electrical execution for 6-channel field input monitoring with galvanically isolated measurement circuits.

Hardware Specifications

Parameter	Specification
Model	TC-IAH061
Brand	Honeywell
Product Type	Experion Analog Input Module
Origin	USA
Weight	0.52kg
Power Consumption	4.3 W max
Number of Points	6 galvanically isolated channels
Input Signal Type	Analog input signals
Open Circuit Detection	Upscale reading for voltage input; zero scale reading for current input
Typical OC Detection Time	5 seconds for voltage; 1 second for current
Channel Bandwidth	0 to 15 Hz (-3 dB)
RFI Immunity	Error less than 2.0% of range at 10 V/m, 27 to 1000 MHz
Module Update Rate	25 ms for all channels
Connection Terminal Block	TC_TBNH 20-position terminal block

Process Signal Isolation and DCS Interface Characteristics

The TC-IAH061 is designed for analog measurement integration within Honeywell Experion architectures. The module provides galvanically isolated input channels to separate field wiring circuits from internal system electronics.

Moreover, the isolated channel design supports process instrumentation connections where electrical separation is required between individual field signals and the control system interface. The module architecture supports standard DCS analog acquisition requirements, including signal integrity control and channel-to-channel isolation.

The module supports analog loop monitoring functions with defined open-circuit detection behavior. Voltage input failures generate upscale readings, while current input failures generate zero scale readings for diagnostic processing.

Frequently Asked Questions

Q: How many analog input channels does the TC-IAH061 provide?
A: The TC-IAH061 provides 6 galvanically isolated analog input channels.

Q: How does the module detect open circuit conditions?
A: The module applies upscale detection for voltage inputs and zero scale detection for current inputs.

Q: What terminal block is compatible with the TC-IAH061 module?
A: The module connects through the Honeywell TC_TBNH 20-position terminal block.

Field Installation Guidelines

Install the TC-IAH061 according to the Honeywell Experion I/O system hardware configuration requirements.

• Verify terminal block wiring before applying field power to prevent incorrect signal connections.
• Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Connect cable shields according to the plant grounding standard and avoid multiple uncontrolled grounding points.
• Confirm field loop polarity and signal type before commissioning the input channels.
• Check module seating and backplane connection integrity during rack installation.
• Validate analog input values and open-circuit detection behavior during system testing.
