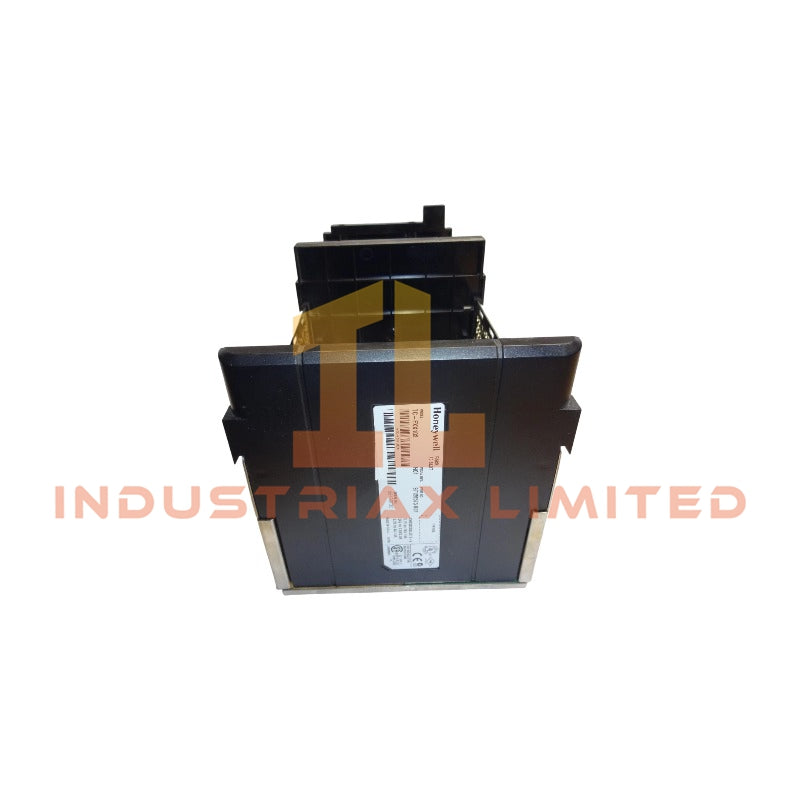

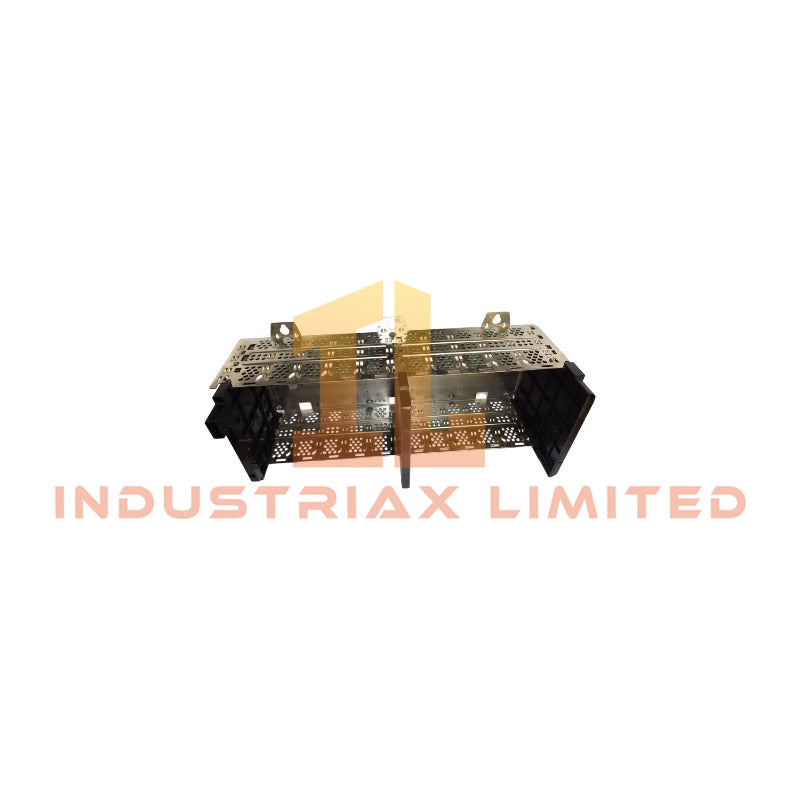

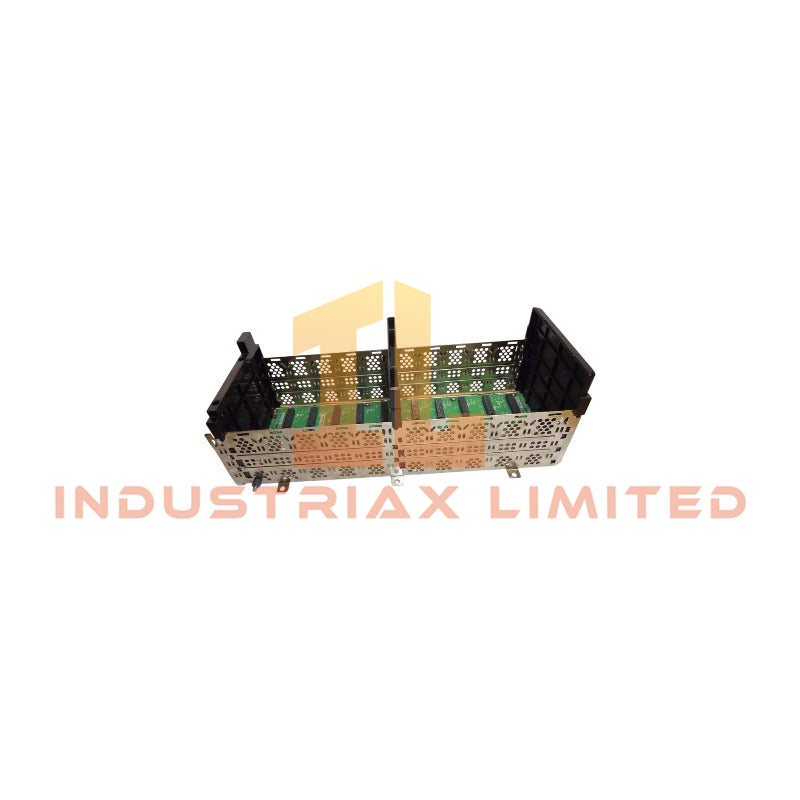

Honeywell TC-FXX102 Experion Series-A 10 Slot Chassis Configured for module mounting and multi-voltage backplane power distribution in Honeywell Experion Series-A...
Baca selengkapnya
Configured for module mounting and multi-voltage backplane power distribution in Honeywell Experion Series-A CIOM-A platforms, the Honeywell TC-FXX102 (TC-FXX102 10 Slot Chassis) provides direct physical power and communication infrastructure for installed I/O modules.
Hardware Specifications
Parameter
Specification
Model
TC-FXX102
Brand
Honeywell
Product Type
10 Slot Chassis
System Platform
Experion PKS Series-A Chassis I/O Module (CIOM-A)
Origin
USA
Weight
0.75 kg
Dimensions
26.3 x 116.9 x 14.5 cm
Operating Temp
-40 deg C to +70 deg C
Storage Temp
-40 deg C to +85 deg C
Relative Humidity
5-95% RH, Non-condensing
Slot Capacity
10 Module Slots
Chassis Current Rating
13 A
Logic Backplane Voltage
5.1 VDC
Maximum 5.1 V Backplane Current
Up to 15 A
Auxiliary Backplane Voltage
24 VDC
Maximum 24 V Backplane Current
Up to 2.8 A
I/O Backplane Voltage
3.3 VDC
Maximum 3.3 V Backplane Current
Up to 4 A
Maximum Combined Backplane Output Power
75 W
Power Consumption
Determined by installed Series-A modules, maximum backplane output limited to 75 W
Process Control Backplane and Signal Distribution Characteristics
The Honeywell TC-FXX102 chassis provides a multi-rail backplane architecture for Experion Series-A I/O modules. The backplane distributes 5.1 VDC logic power, 24 VDC auxiliary power, and 3.3 VDC I/O power to installed modules.
The chassis supports Honeywell Series-A communication and I/O module integration through dedicated backplane connections. Channel-to-channel isolation and signal integrity depend on the installed I/O module design, while the chassis provides the physical electrical interface required for module operation.
The chassis configuration supports process control architectures where modules require stable backplane voltage distribution and structured I/O density scaling. In addition, the design allows integration of redundant power supply arrangements using compatible redundant power supply adapters.
Frequently Asked Questions
Q: How many modules can be installed in the TC-FXX102 chassis? A: The chassis provides 10 single-wide module slots. Double-wide modules occupy two adjacent slot positions.
Q: What backplane voltages are distributed by the TC-FXX102? A: The chassis distributes three backplane voltage rails: 5.1 VDC logic power, 24 VDC auxiliary power, and 3.3 VDC I/O power.
Q: Does the TC-FXX102 support redundant power configurations? A: Yes. The chassis supports redundant power configurations through compatible TC-RPSCA2 or TK-RPSCA2 redundant power supply chassis adapters.
Field Installation Guidelines
Install the TC-FXX102 chassis on a mechanically stable panel surface with sufficient clearance for module insertion, wiring access, and thermal ventilation.
Verify that the installed power supply configuration matches the Series-A chassis requirements before energizing the backplane. Ensure all module connectors are fully seated and mechanical locking features are engaged.
Route power and signal wiring separately where possible to reduce electrical interference. Maintain proper cabinet grounding practices, including connection of protective earth and cable shield termination according to site electrical standards.
Before operation, confirm the installed module combination does not exceed the chassis backplane voltage rail current limits and total output power specification.
