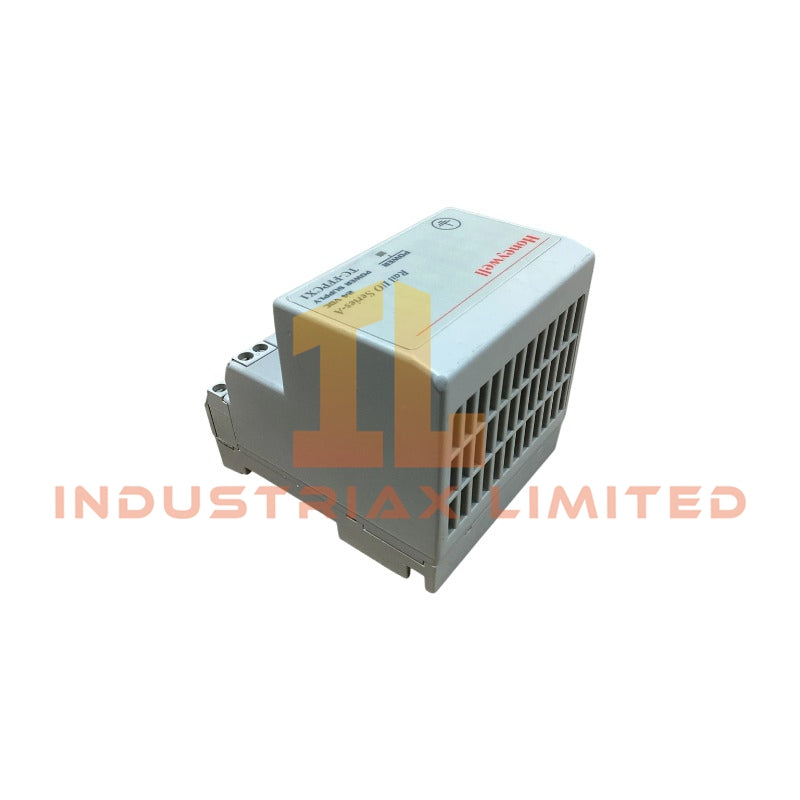

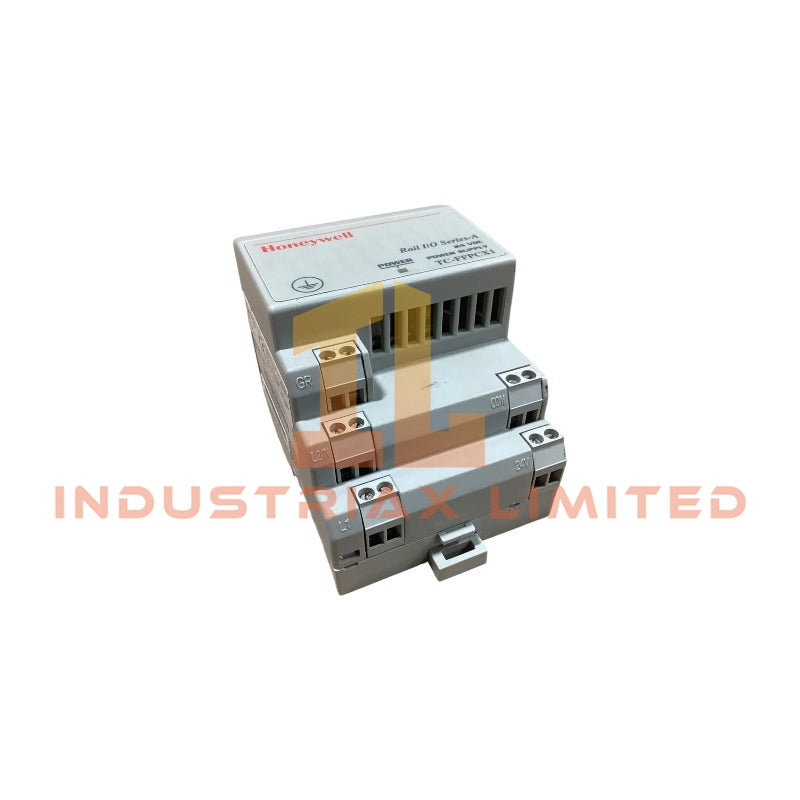

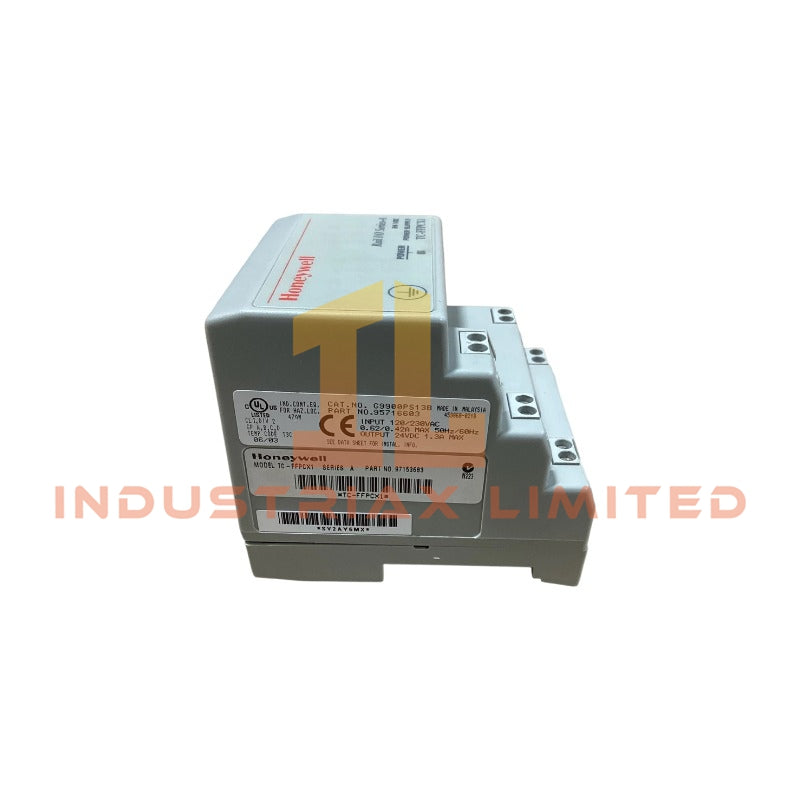

Honeywell TC-FFPCX1 Power Supply Module

The Honeywell TC-FFPCX1, also cataloged as the TC-FFPCX1 Power Supply Module, operates as a dedicated hardware component for 24 VDC power conversion within Honeywell Experion LS Series A Rail I/O system platforms.

Hardware Specifications

Parameter	Specification
Model	TC-FFPCX1
Brand	Honeywell
Product Type	Power Supply Module
System Compatibility	Honeywell Experion LS / Series A Rail I/O System
Input Voltage	120 VAC nominal
Input Voltage Range	85 to 265 VAC
Output Voltage	24 VDC
Output Current	1.3 A maximum
Power Consumption	92 W nominal
Mounting Type	DIN Rail Mount
Connection Type	Screw Terminal
Cooling Method	Natural Convection
Operating Temp	-20 to 60 deg C
Origin	USA
Weight	Approx. 0.22 kg to 0.56 kg
Dimensions	Approx. 130 x 35 x 115 mm

4-20 mA HART and Process Control Interface Compatibility

The TC-FFPCX1 provides regulated 24 VDC power distribution for Honeywell Series A Rail I/O assemblies. The module supports the electrical supply requirements of process control components connected within the I/O architecture. Moreover, the stable DC output allows connected field interface devices and control modules to maintain specified operating voltage conditions.

In Honeywell process automation environments, power modules operate together with analog and digital I/O components that support industrial signal standards, including 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity where applicable within the system configuration. The TC-FFPCX1 functions as the local power source and does not perform signal conditioning or communication processing.

Frequently Asked Questions

Q: Does the TC-FFPCX1 provide communication functions with Honeywell controllers?
A: No. The TC-FFPCX1 is a power supply module that converts AC input power into regulated 24 VDC output. It does not provide controller communication or fieldbus processing.

Q: What type of installation method is required for the TC-FFPCX1?
A: The module is installed on a DIN rail inside an industrial control cabinet and uses screw terminals for electrical connections.

Q: Can the TC-FFPCX1 directly replace other 24 VDC power supplies?
A: Replacement requires verification of input voltage range, output current rating, mechanical mounting compatibility, and Honeywell system requirements.

Field Installation Guidelines

• Install the module on a compatible DIN rail inside a protected control cabinet environment.
• Verify AC input wiring before applying power to prevent incorrect electrical connection.
• Separate AC input wiring from low-level signal cables to reduce electrical interference.
• Connect the 24 VDC output with correct polarity according to terminal identification.
• Use appropriate grounding and cabinet bonding practices for industrial power distribution.
• Maintain sufficient cabinet airflow to support natural convection cooling.
