Description

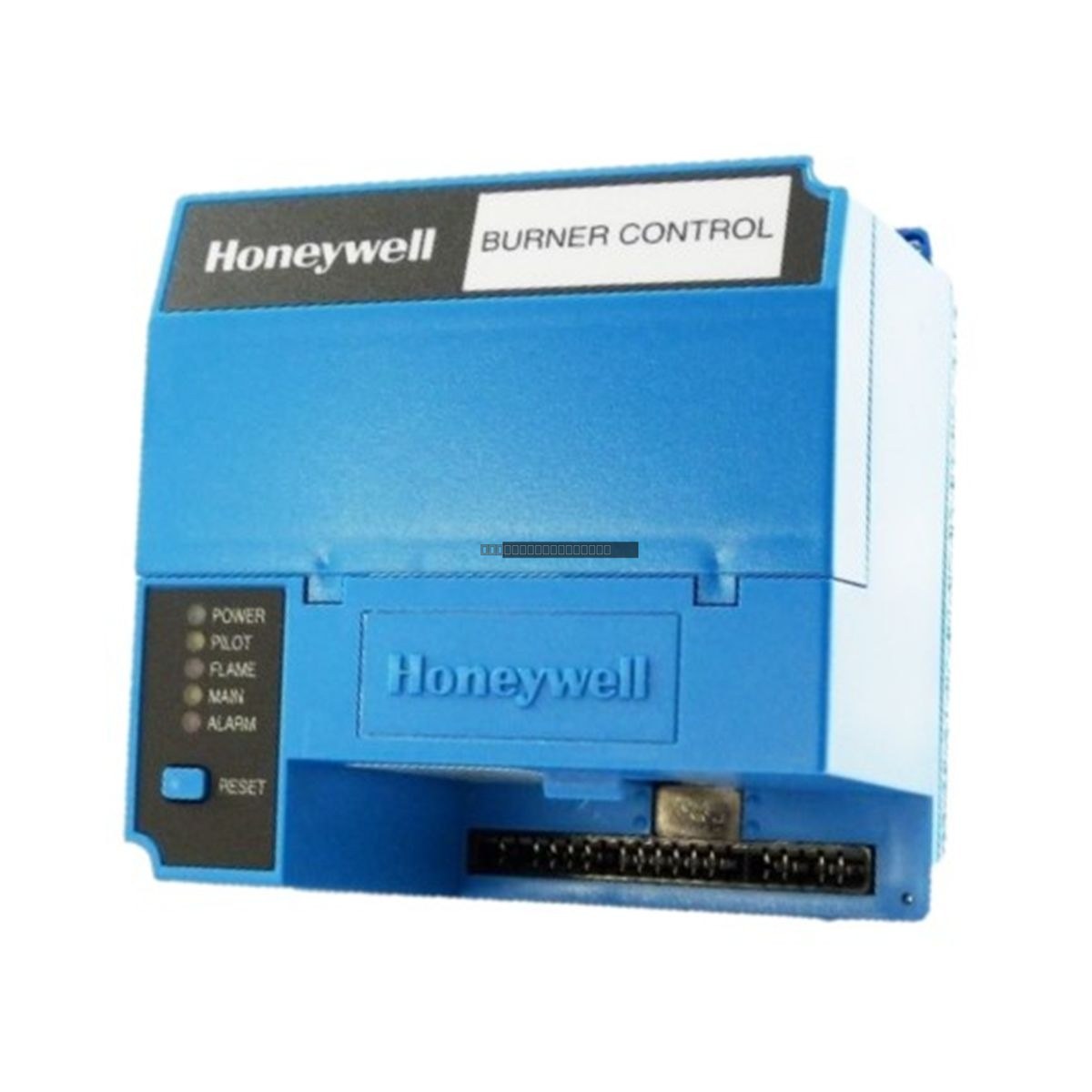

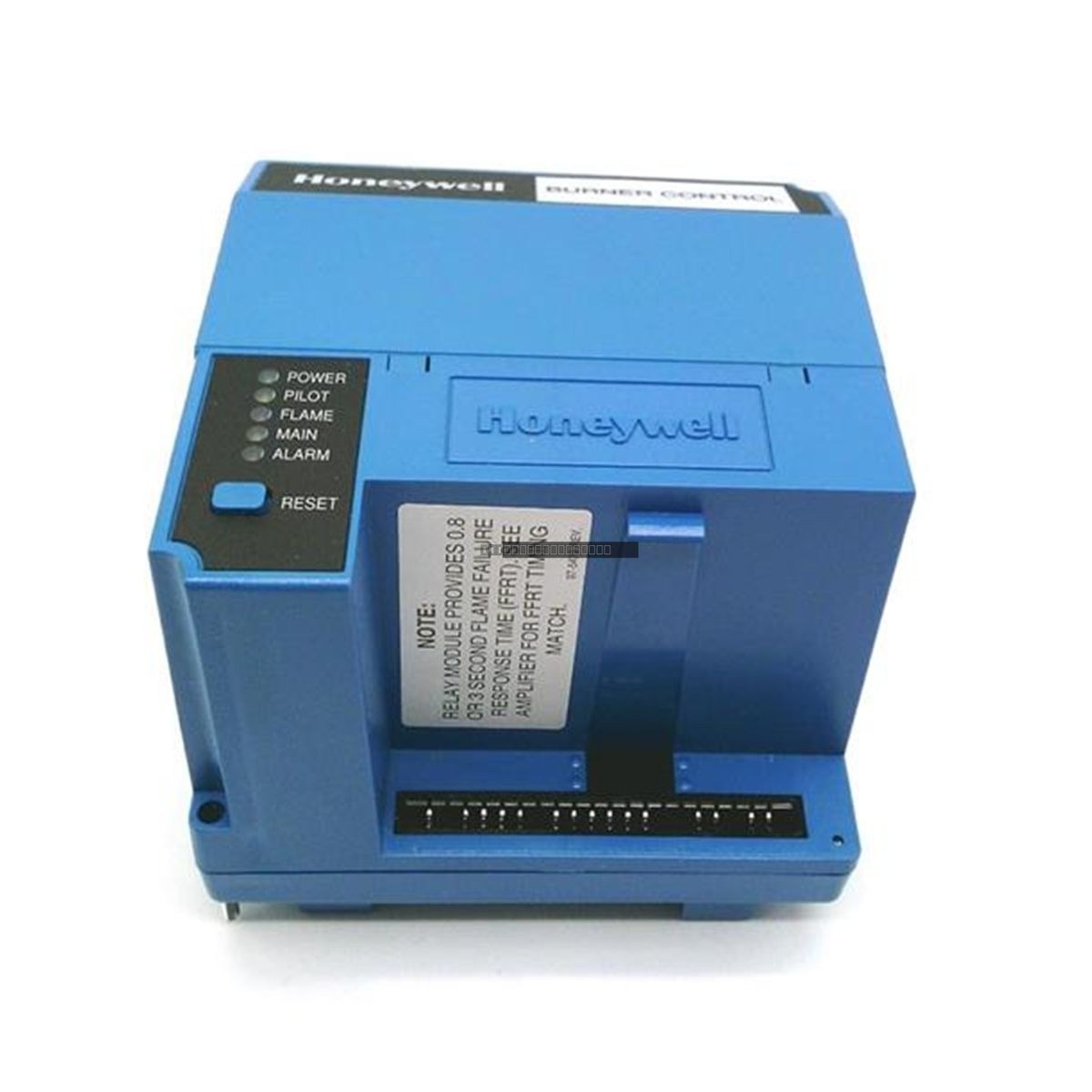

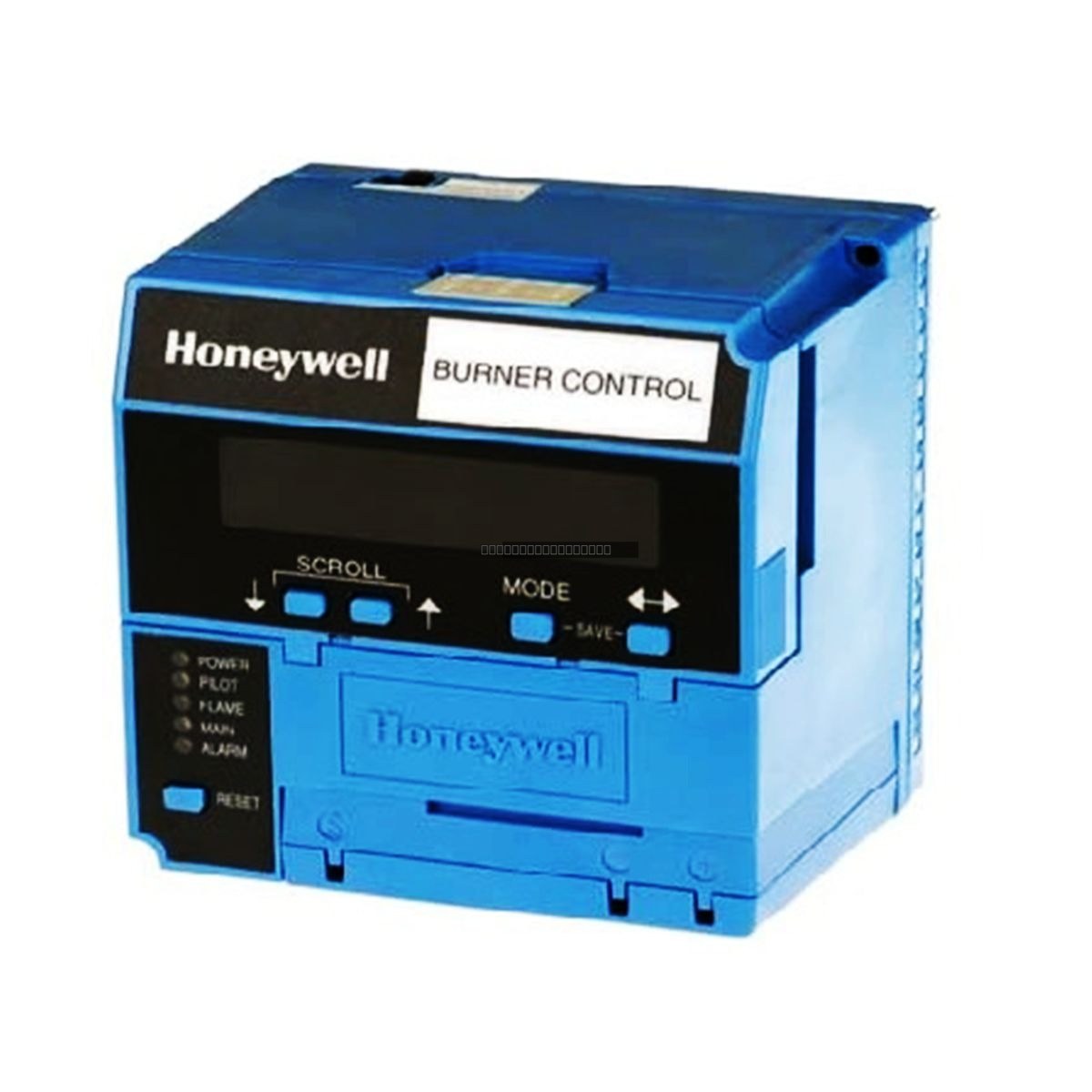

The Honeywell RM7840E1016 is a microprocessor-based integrated burner control designed for industrial combustion applications. It is part of the 7800 Series, providing reliable burner management for power generation, refinery processes, and large-scale HVAC systems. The unit is engineered to manage the ignition sequence, flame monitoring, and safety interlocks required for safe burner operation, featuring interrupted pilot functionality and dual-stage ignition control.
Features
- Supports interrupted pilot operation with dual-stage ignition capabilities.
- Integrated user-selectable airflow verification for enhanced system safety.
- Pre-ignition sequence control with 5-second early spark termination.
- Configurable 15-second post-purge cycle to ensure system clearing.
- Fail-safe logic core designed for high-reliability industrial environments.
- Equipped with a protective dust cover suitable for challenging operational settings.
Applications
This burner control unit is primarily utilized in industrial boiler management systems, large-scale commercial HVAC heating units, and process combustion systems where precise startup and shutdown sequences are required to maintain safety and efficiency.
Technical Specifications
| Model |
RM7840E1016 |
| Brand |
Honeywell |
| Supply Voltage |
120 VAC, 50/60 Hz |
| Power Consumption |
8 VA |
| Operating Temperature |
0 to 60 deg C |
| Pilot Operation |
Interrupted |
| Ignition Type |
Dual-stage |
Installation Guidelines
- Ensure power is disconnected before installing or removing the module from the burner control chassis.
- Verify that all wiring connections are secure and comply with local electrical codes and the specific burner system schematic.
- The unit should be mounted in a location protected from excessive vibration, moisture, and extreme heat sources.
- Maintain proper grounding of the control chassis to prevent electromagnetic interference (EMI) from affecting flame signal integrity.
- Ensure the dust cover is properly seated to protect internal relay components in dusty industrial environments.
FAQ
What is the primary function of the RM7840E1016?
It is a burner control unit that manages the safe startup, monitoring, and shutdown of industrial burners, including ignition sequencing and flame supervision.
Does this unit require external communication protocols?
No, this model operates via standard relay outputs and does not require additional network communication protocols for basic burner management.
